One piece 30° slant bed with box guides
Large swing diameter 600mm
Z-axis travel 610mm (S26/60) or 1100mm (S26/110)

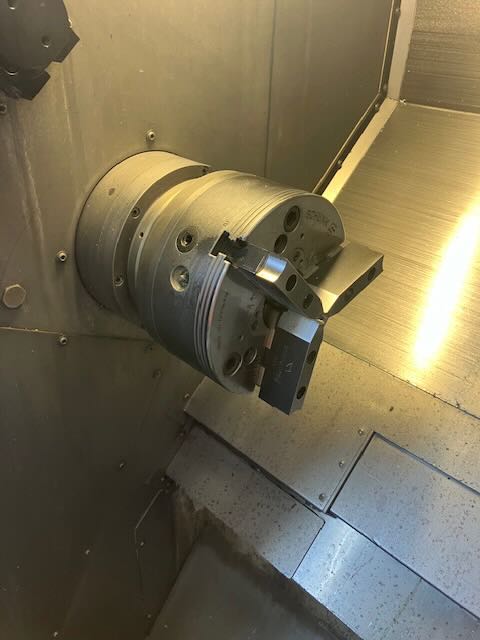

10” Power chuck
High thrust force 1441 Nm
High rapid feed 18/24 m/min (X/Z)
Available with C-axis & BMT – 65 Live tooling One pie...

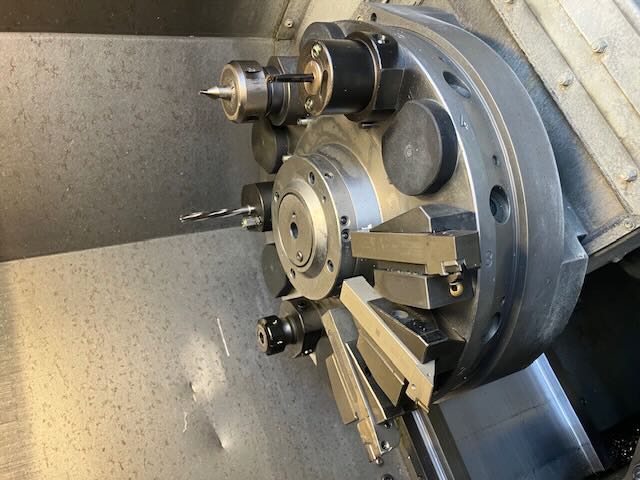

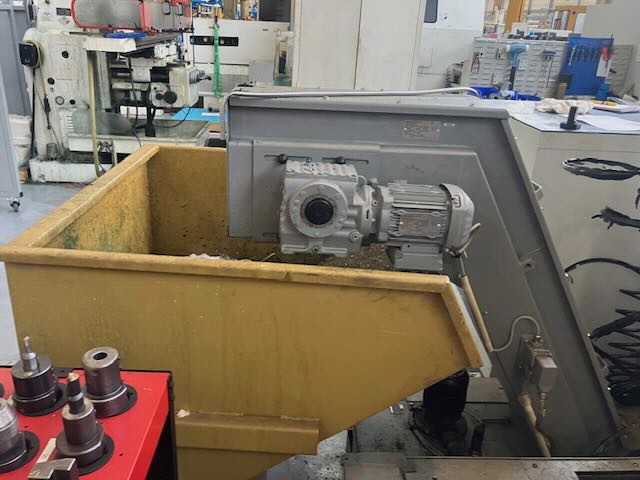

Powerful spindle motor coupled with ZF gearbox Higher rigidity spindle with double roller NN type bearings Wide span box slideways BMT-85 fast indexing turret Integral chip disposal without coolant leakage
Swing over bed dia 600mmStandard turning dia 350mmMaximum turning dia. 430mmSwing over carriage dia 480mmBetween centres 640mmBar capacity (hole through draw bar) 91mmX/Y Travel 210+30/610mmRapid feed X/Z axis m/min 18/24Feed motor kW 3/4No. of tools...
Heavy cutting lathe with spindle nose A2-11 for turning length from 1250mm to 4250mm. Bar capacity 91mm, Spindle speed 2500rpm. Single piece cast slant bed (45-degree) for minimum distance from ball screw to the tool tip Spindle bore A2-11 with hydra...
