MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • V391
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

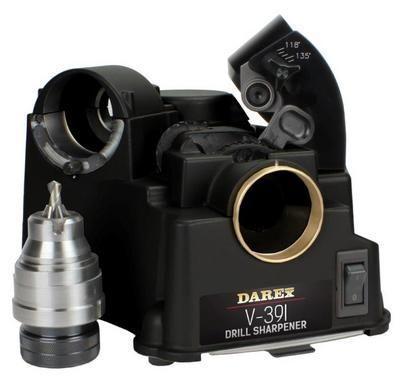

The Darex V391 Drill Sharpener is Priced right for small shops - even very small shops can economically sharpen their own drills in real time. it incorporates much of the same technology in the more advanced machines It is the perfect choice for shops that need a sharpener for intermittent use. It's simple, intuitive design gives everyone access to sharp drills when you need them. The Darex V391 Drill Sharpener comes standard with a CBN grinding wheel for HSS drills and an additional diamond wheel is available for carbide drills. and is adjustable for point angle, relief angle, point split angle and depth as well as stock removal and no tools are required for any adjustments on the machine. there is an optional vacuum accessory which attaches to the vacuum port. If vacuum is not used, the V391 features a grit tray for dust collection.   Duty Rating: Light duty, intermittent use Grit Removal System: Optional vacuum Cutting Tool Diameter: 3–19 mm Options Available: Morse Taper chuck Operation Mode: Manual Machine Weight: 11 kg Point Angles Sharpened: 118°–140° Machine Size: 30 x 28 x 23 cm Point Styles Sharpened: Standard conic and split point Sharpening Wheel Included: Borazon (CBN) for HSS & cobalt (diamond option for carbide available)Remove reference to diamond wheel Power: 3 amps at 230V; 3450 rpm
