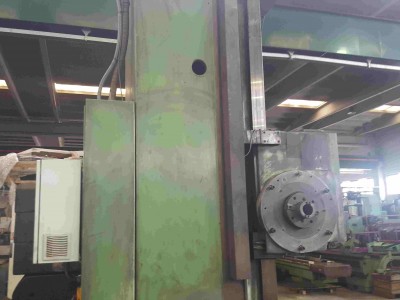

TITAN AFD 105 TABLE TYPE HORIZONTAL BORER

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Horizon

    Model:

  • TITAN AFD 105 TABLE TYPE HORIZONTAL BORER

    Condition:

  • Used

    YOM:

  • NA

    Control:

  • NA

    Price:

  • POA

    Country:

  • Italy
DESCRIPTION
Spindle: 105mm.
Transversal travel: 2.000mm.
Vertical travel: 1.625mm.
Longitudinal travel: 1.500mm.
Spindle travel: 700mm.
Spindle taper: 50ISO
Table: 1.524 x 1.220mm.
Spindle power: 11Kw.
Spindle speeds: N. 18; 12,5 - 1.180Rpm.
Max. weight on table: 5.000kg.
Total weight: 16,5Tons.
Year: 1993
Notes: RETROFITTED IN 2000.COMPLETE WITH:- BIROTATIVE MILLING HEAD- D.R.O.- BALLSCREWS
