MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • XYZ
  • Model:

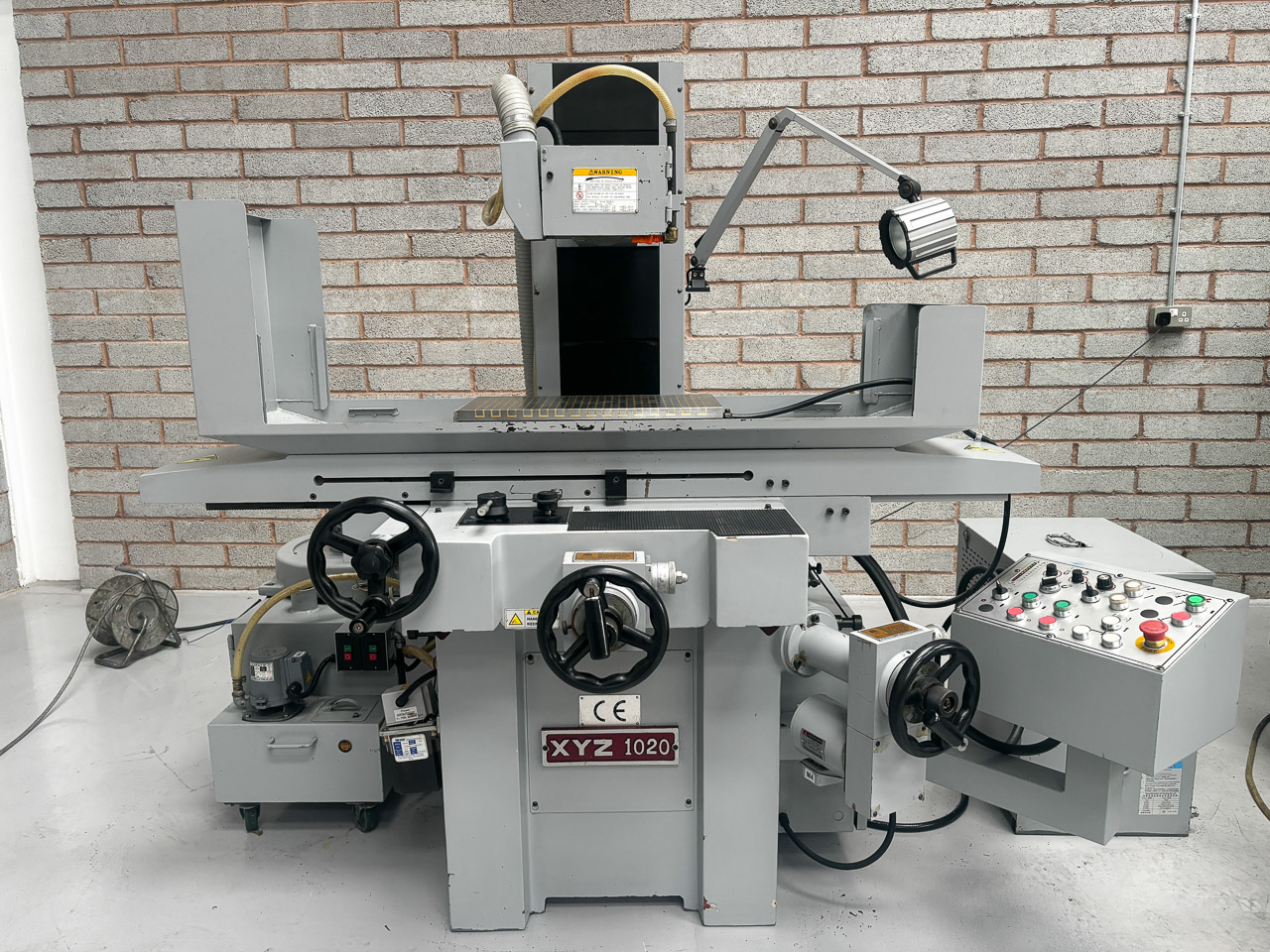

  • XYZ 1020 Surface Grinder (2012)
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

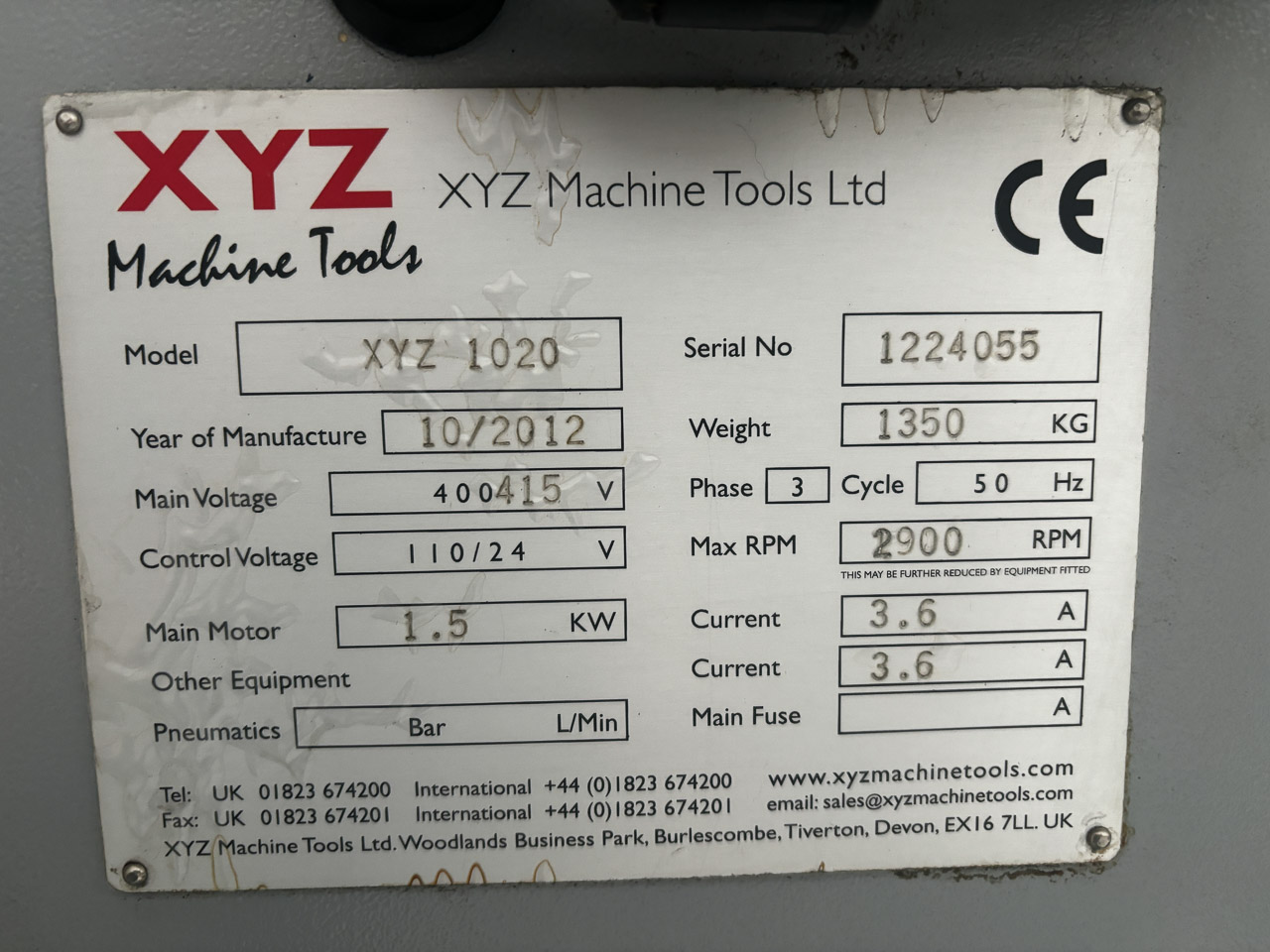

Manufacturer: XYZ Machine Tools Ltd.
Model: XYZ 1020.
Weight: 1550KG.

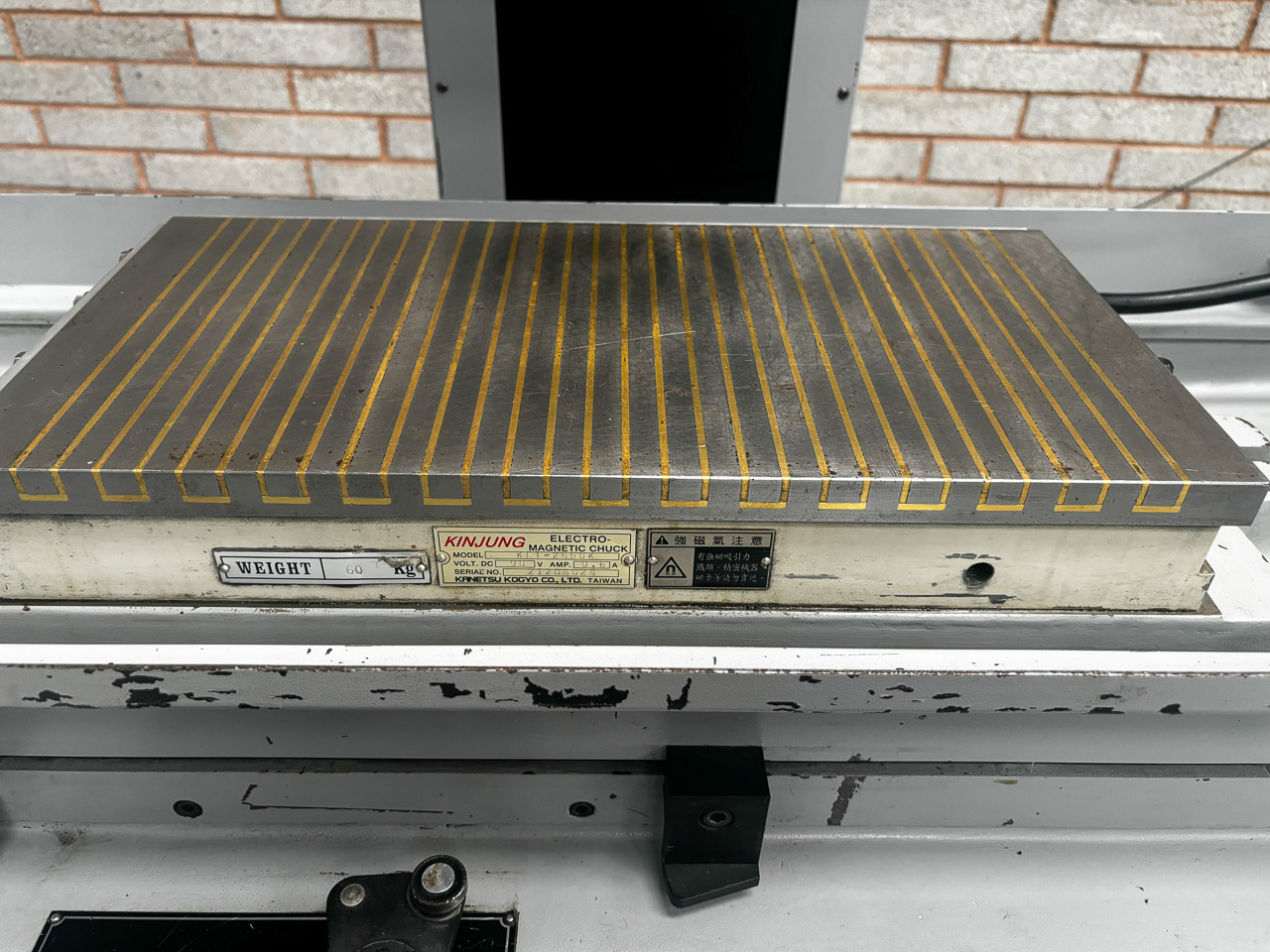

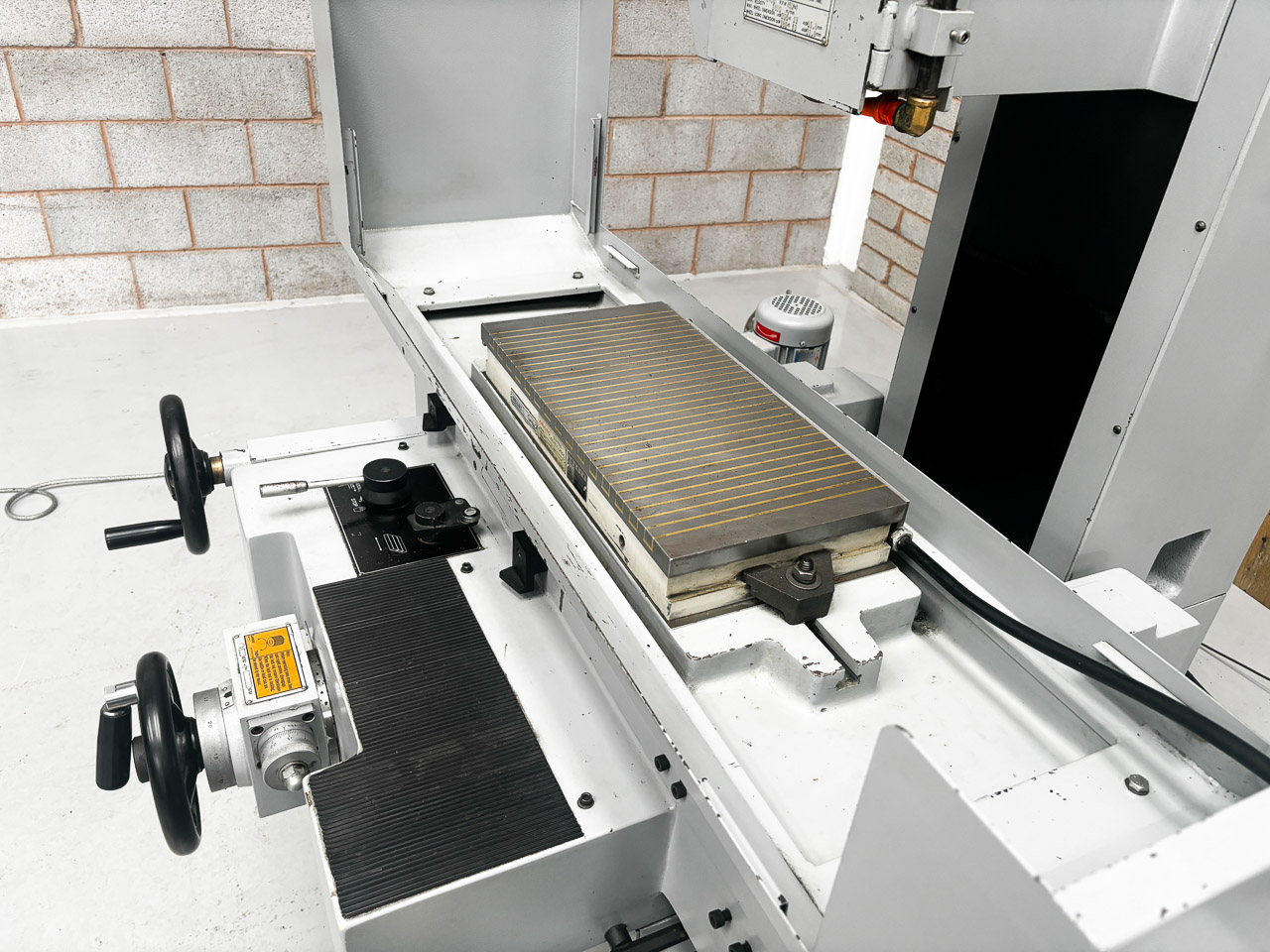

Magnetic Chuck Size: 250 x 500mm.
Max Grinding Length: 500mm.
Max Grinding Width: 250mm.
Max Table Surface to Spindle Centre: 500mm.
Longitudinal Travel: 550mm.
Longitudinal Feeds: 5 - 25M/min.
Cross Travel: 270mm.
Cross Travel- Auto Increment: 0.15 - 15mm.
Cross Feed Travel per Revolution: 4mm.
Cross Feed Handle Graduation: 0.02mm.
Down Feed Travel per Revolution: 2mm.
Down Feed Handle Graduation: 0.01mm.
Spindle: 1.5 kW.
Max Spindle Speed: 2900 RPM.
Hydraulic motor power: 1hp.
Grinding Wheel Diameter: 180mm.
Grinding Wheel Width: 12cm (19cm Max).
Grinding Wheel Bore: 31.75mm.
Voltage: 415V.
Power Requirements: 20Amp - 3 Phase Supply.
Floor Plan: 225cm x 145cm x 180cm.
Year: 2012.
Serial Number: 1224055.
