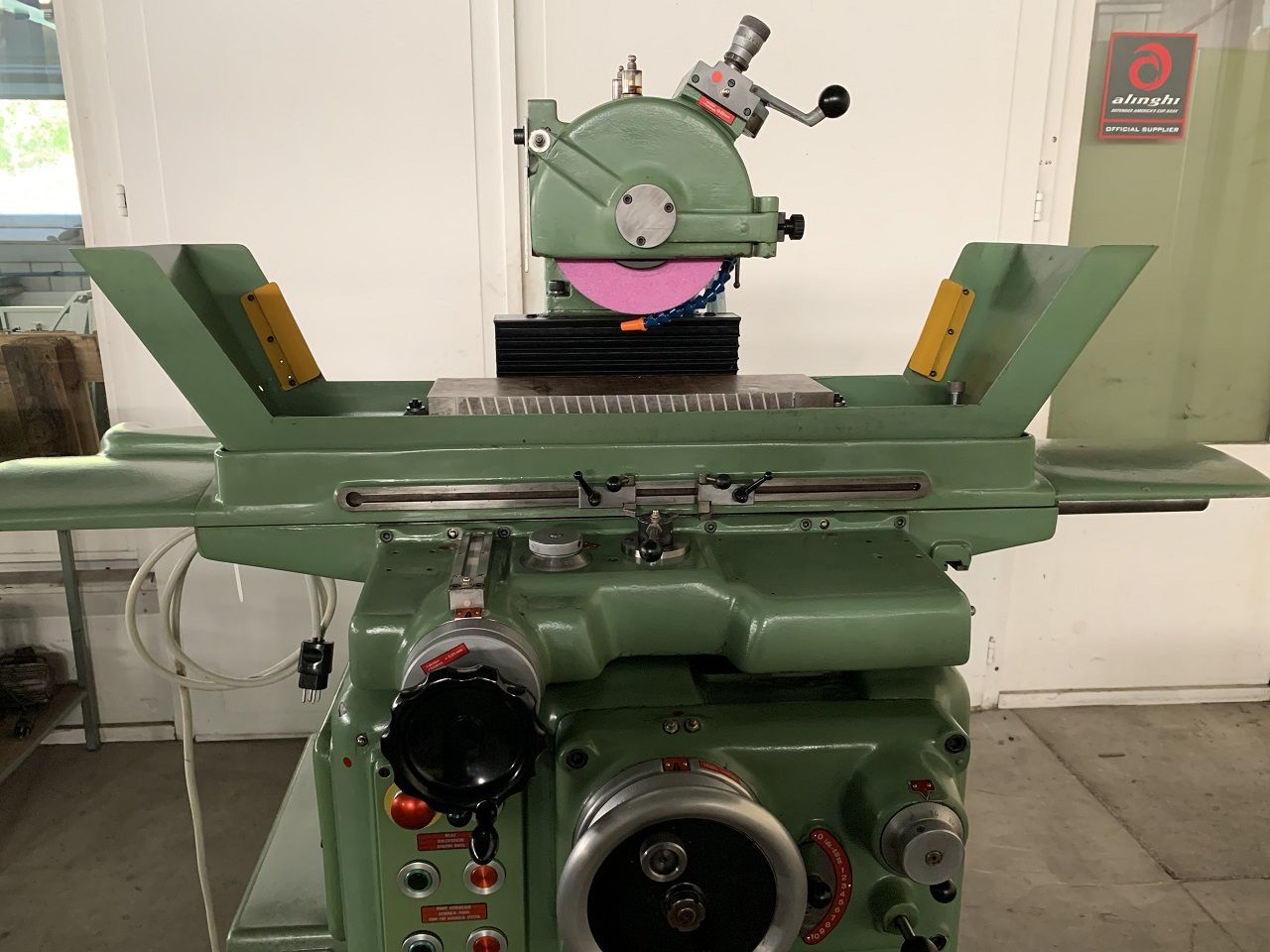

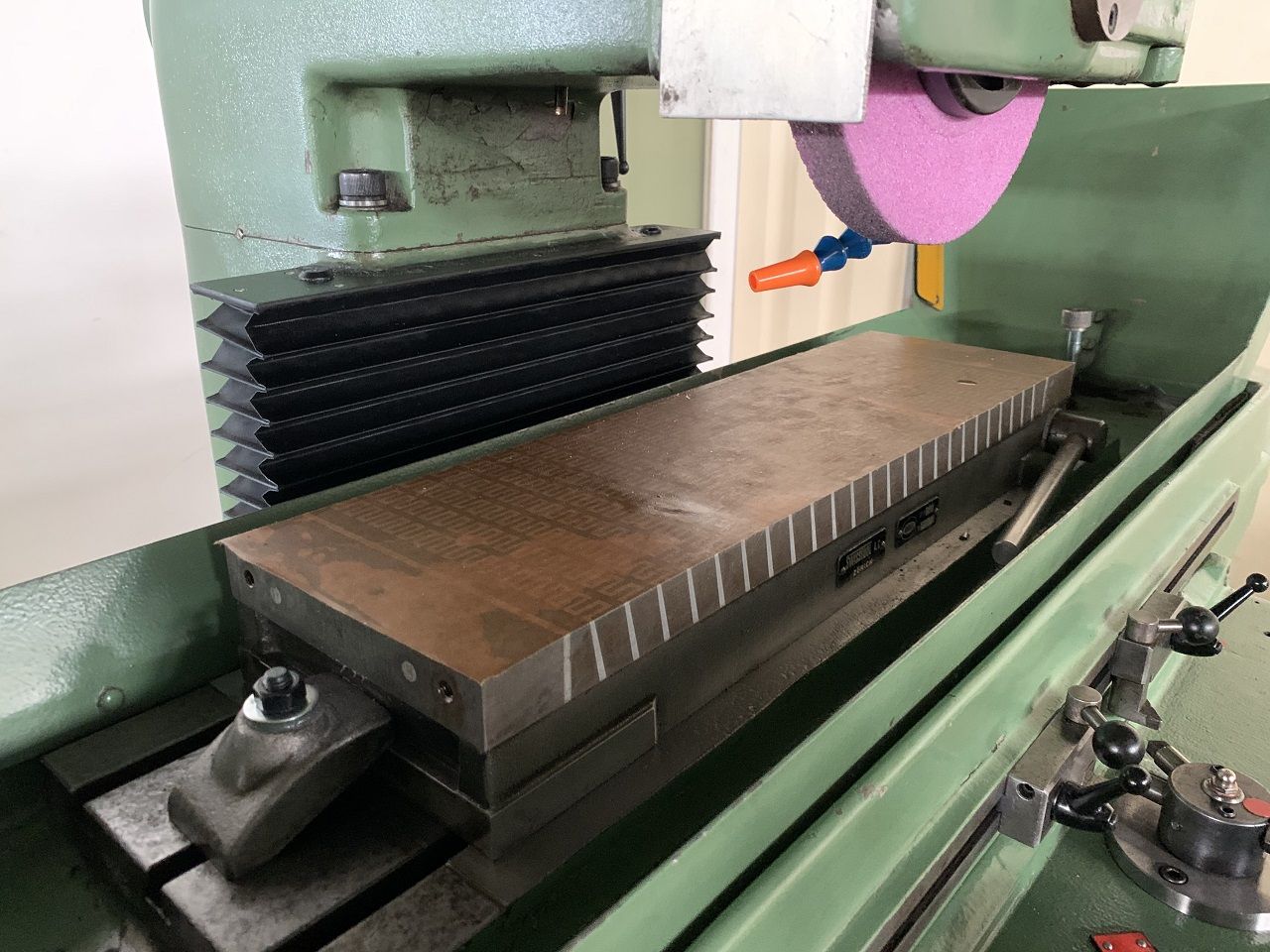

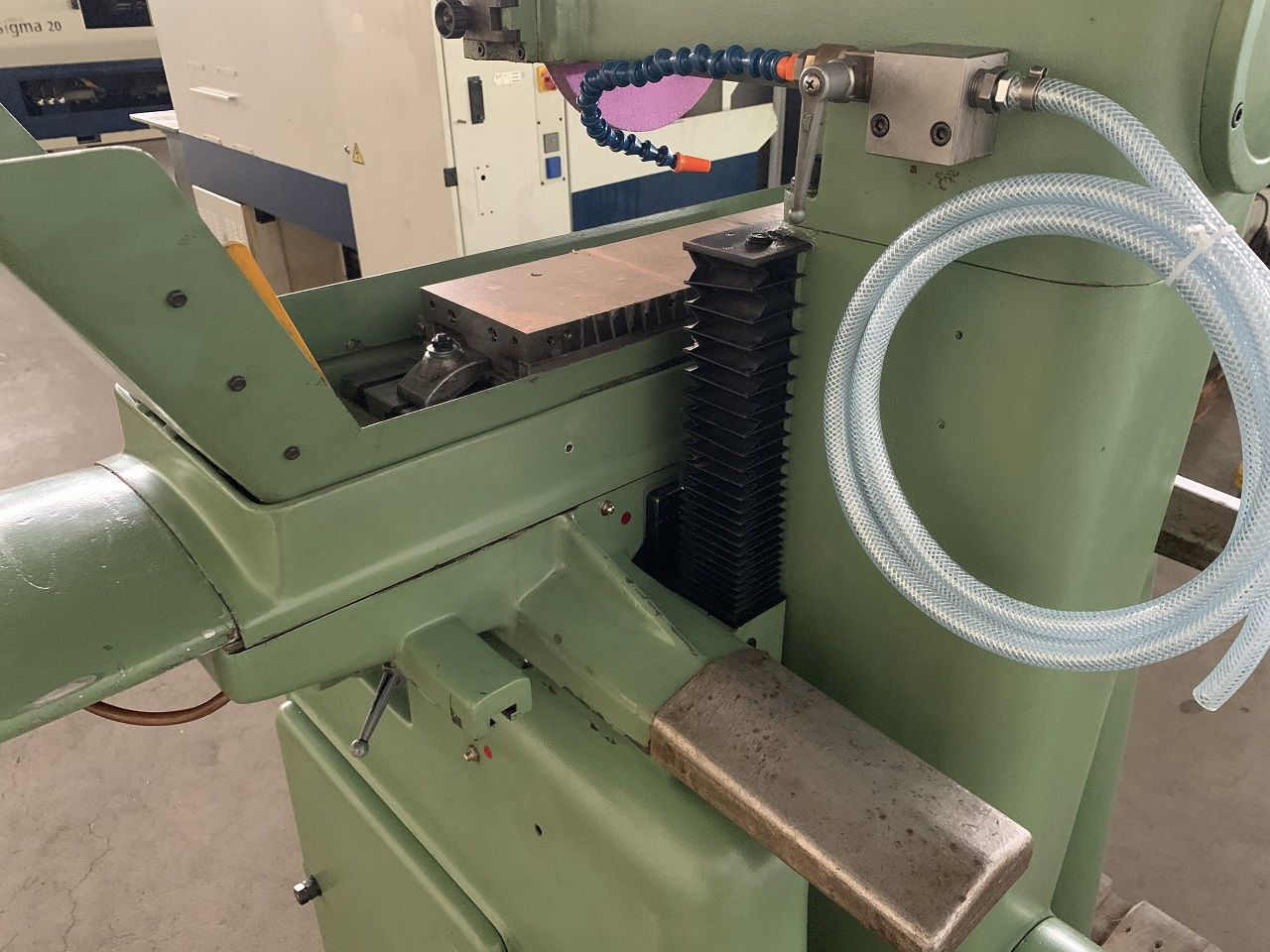

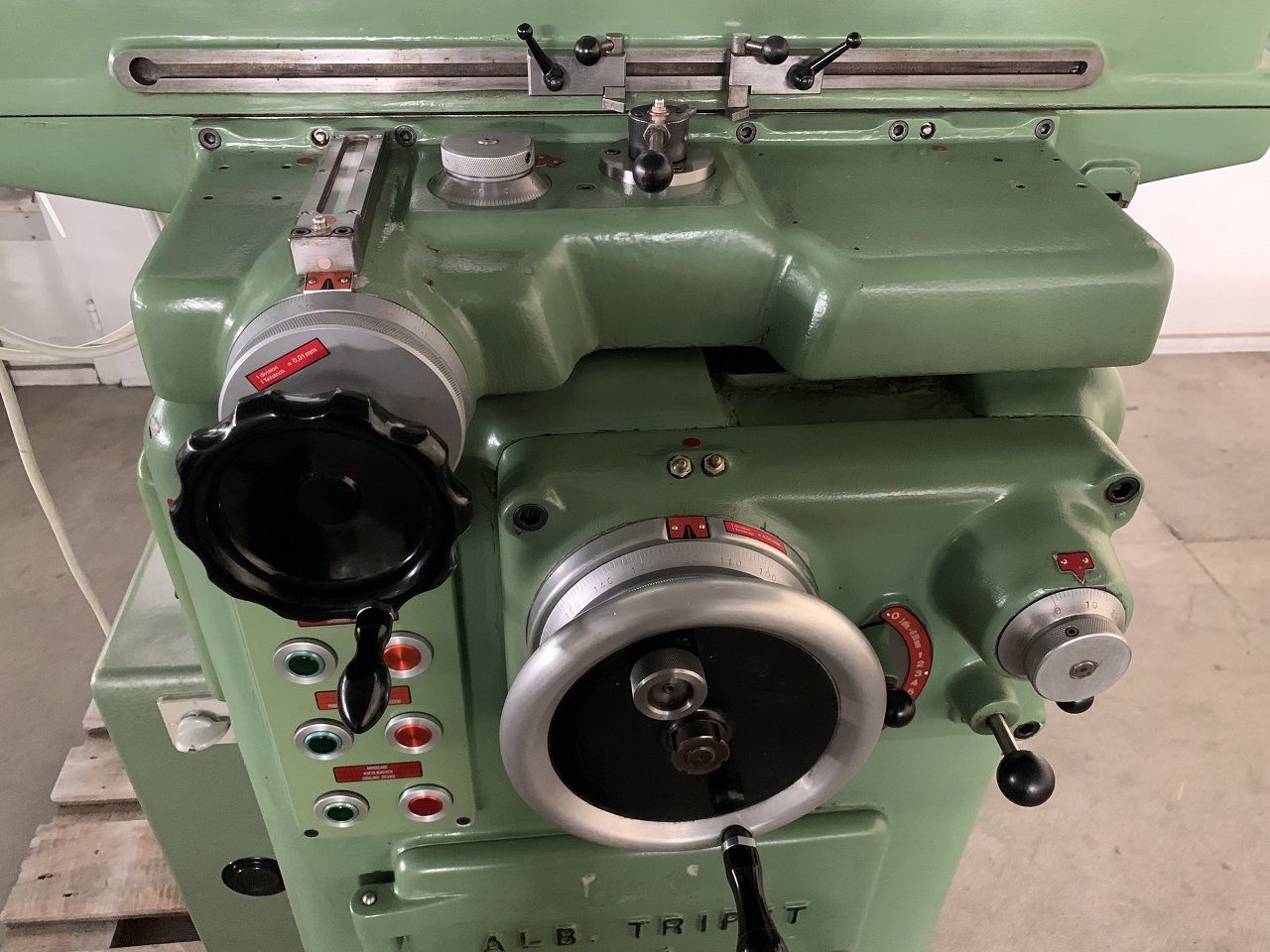

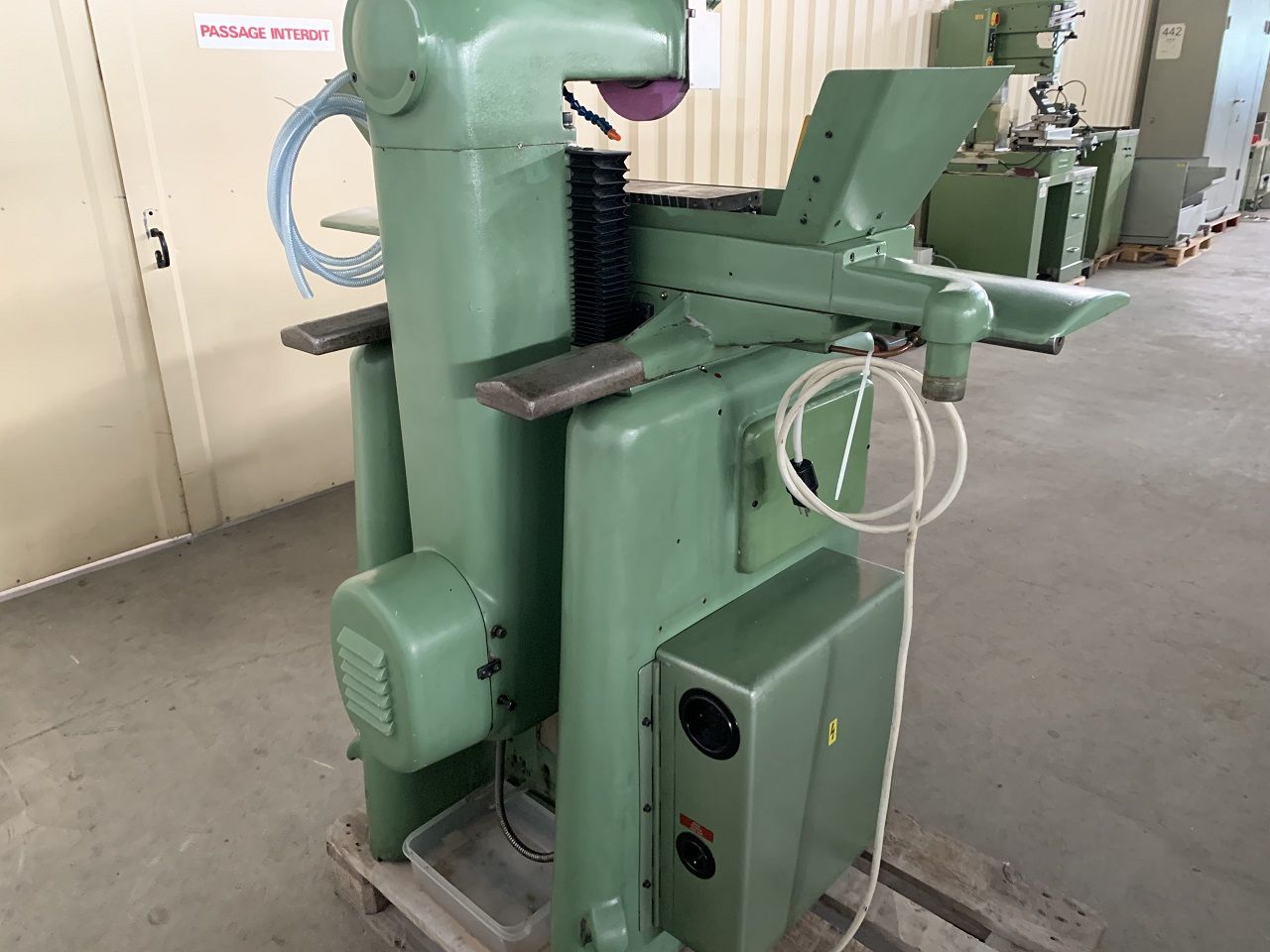

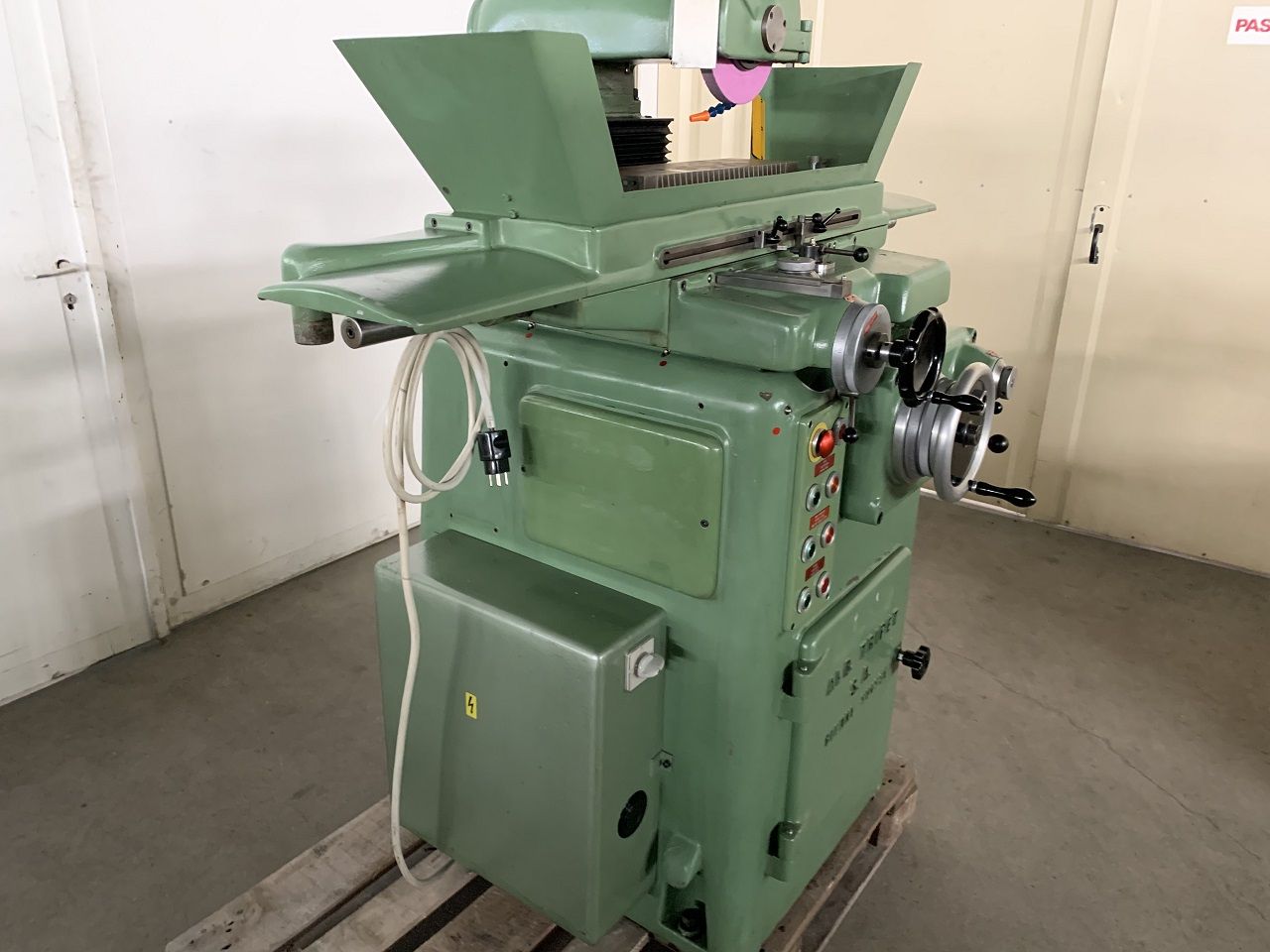

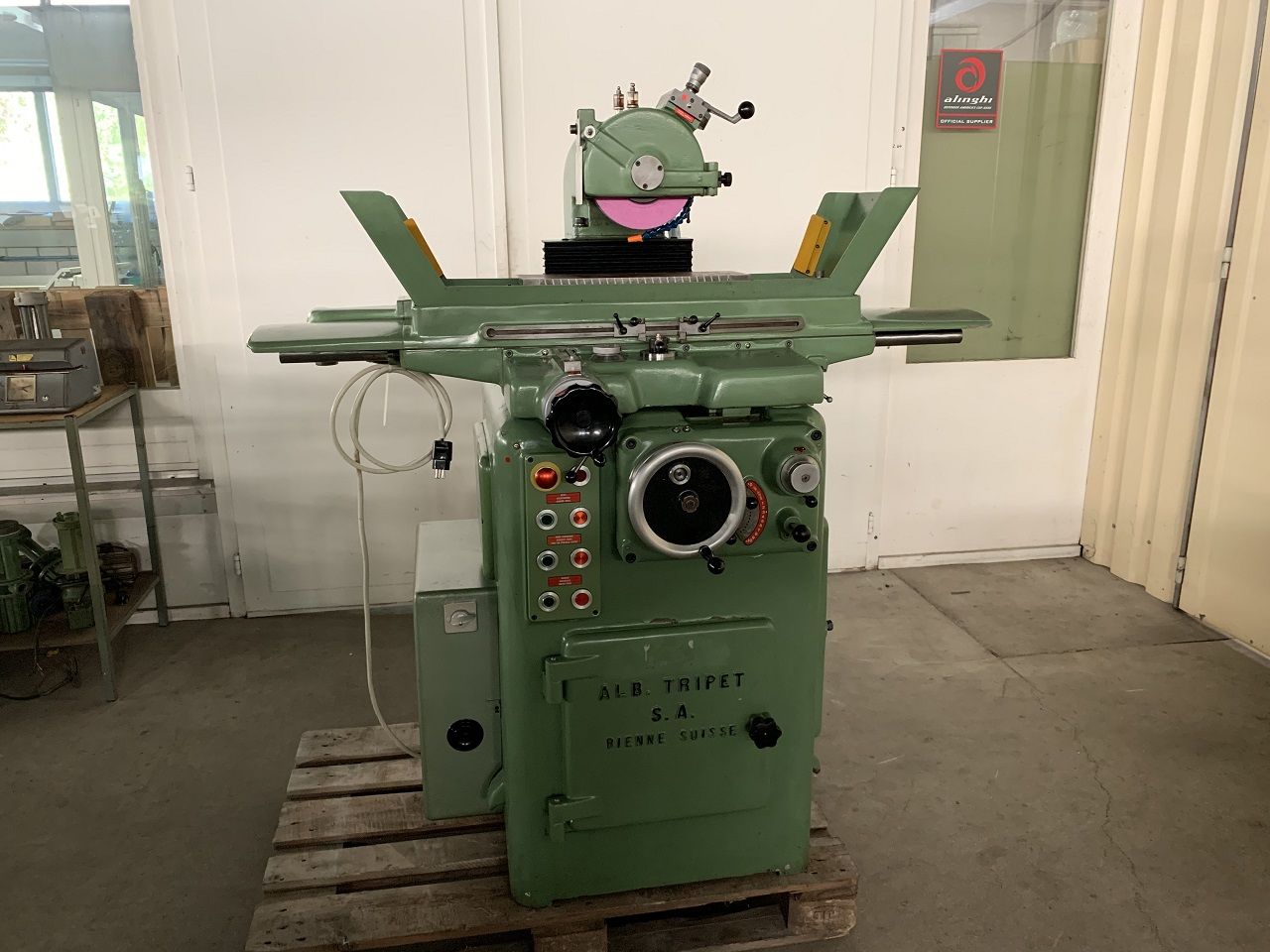

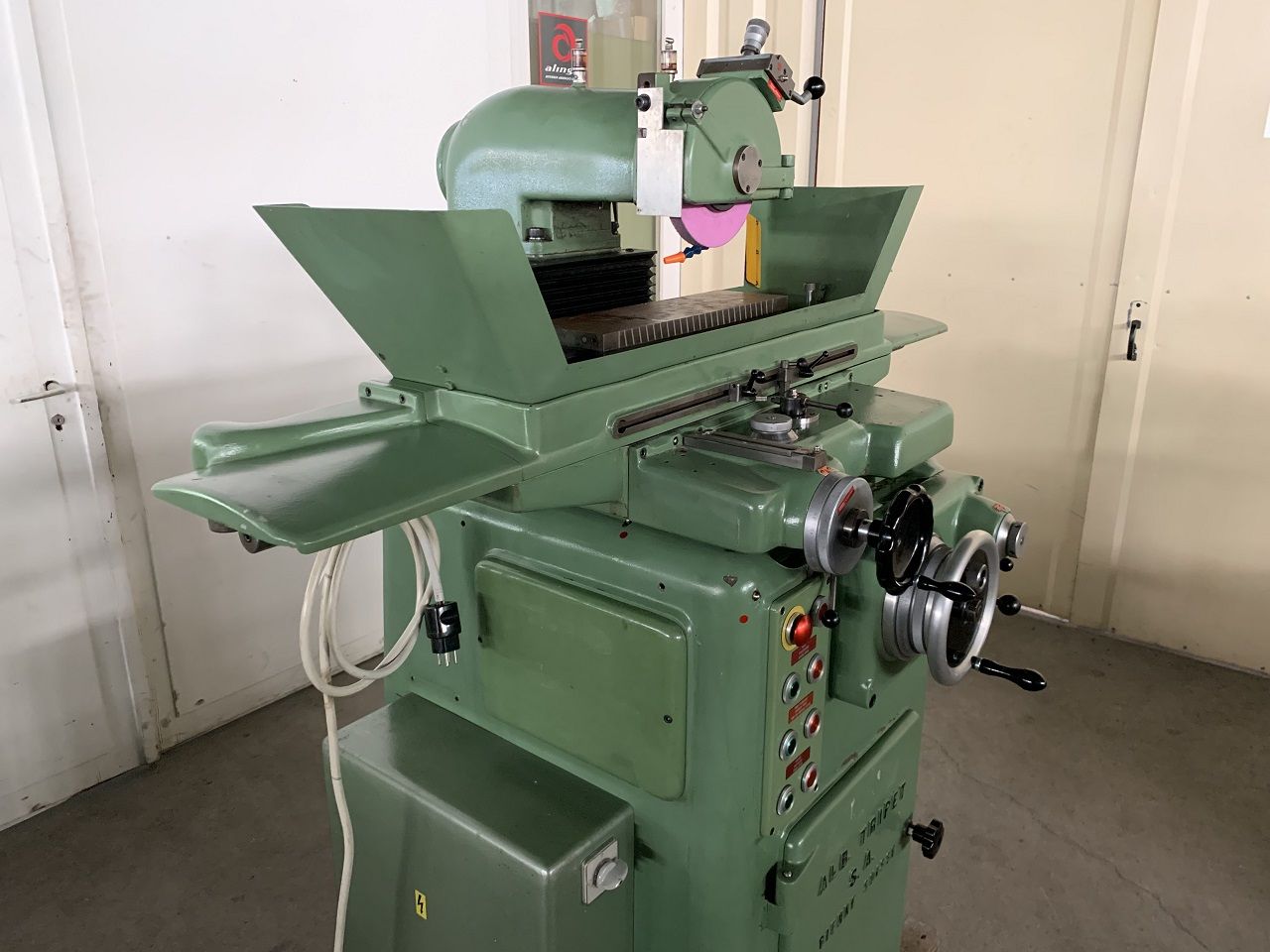

Surface Grinders/SURFACE GRINDING MACHINE TRIPET MHP-500

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Grinding

Subcategory:
Surface Grinders

Manufacturer:
GRINDING

Model:
SURFACE GRINDING MACHINE TRIPET MHP-500

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

<section id="description"> <div class="detail_title_1"> <h1>SURFACE GRINDING MACHINE "TRIPET" MHP-500</h1> </div> <p> <b>Reference</b>: 2190079 </p> <p> </p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing origin</td><td>Swiss</td></tr><tr><td>Voltage</td><td>380/50/3</td></tr><tr><td>Netweight</td><td>abt. 1100 kg</td></tr><tr><td>Dimensions</td><td>abt. 1500x1340x1600 mm</td></tr><tr><td>Customs position</td><td>8460.29 20</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Max. stroke on slide-way</td><td>530x210 mm</td></tr><tr><td>Max grinding capacity</td><td>530x230 mm</td></tr><tr><td>Usable table surface</td><td>600x200 mm</td></tr><tr><td>Longitudinal slide-way speed, continuous</td><td>0-21 m/min</td></tr><tr><td>Transverse slide-way speed, continuous</td><td>0-9 m/min</td></tr><tr><td>Vertical move</td><td>250 mm</td></tr><tr><td>Max. way between new grinding-wheel and table</td><td>250 mm</td></tr><tr><td colspan="2">Vertical movement</td></tr><tr><td>On handwheel, 1 division</td><td>0,01 mm</td></tr><tr><td>On micrometric device, 1 division</td><td>0,001 mm</td></tr><tr><td>Automatic</td><td>0,005-0,10 mm</td></tr><tr><td colspan="2">Transverse movement</td></tr><tr><td>On handwheel, 1 division</td><td>0,01 mm</td></tr><tr><td>With comparator</td><td>0,001 mm</td></tr><tr><td colspan="2">Grinding-wheel</td></tr><tr><td>Diameter x width x bore</td><td>225 x 25 x 50 mm</td></tr><tr><td>Normal speed</td><td>2700 rpm</td></tr><tr><td>Speed with variator</td><td>2700-1000 rpm</td></tr><tr><td colspan="2">Motors</td></tr><tr><td>of spindle</td><td>3000 rpm 2,5 HP</td></tr><tr><td>of hydraulic pump</td><td>1500 rpm 0,75 HP</td></tr><tr><td>of cooling pump</td><td>2800 rpm 0,15 HP</td></tr><tr><td colspan="2">errors and omissions excepted-data given without obligation</td></tr></tbody></table></div> </section>.
