Surface Grinders/SURFACE GRINDING MACHINE TRIPET MHPE-500

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Grinding

Subcategory:
Surface Grinders

Manufacturer:
GRINDING

Model:

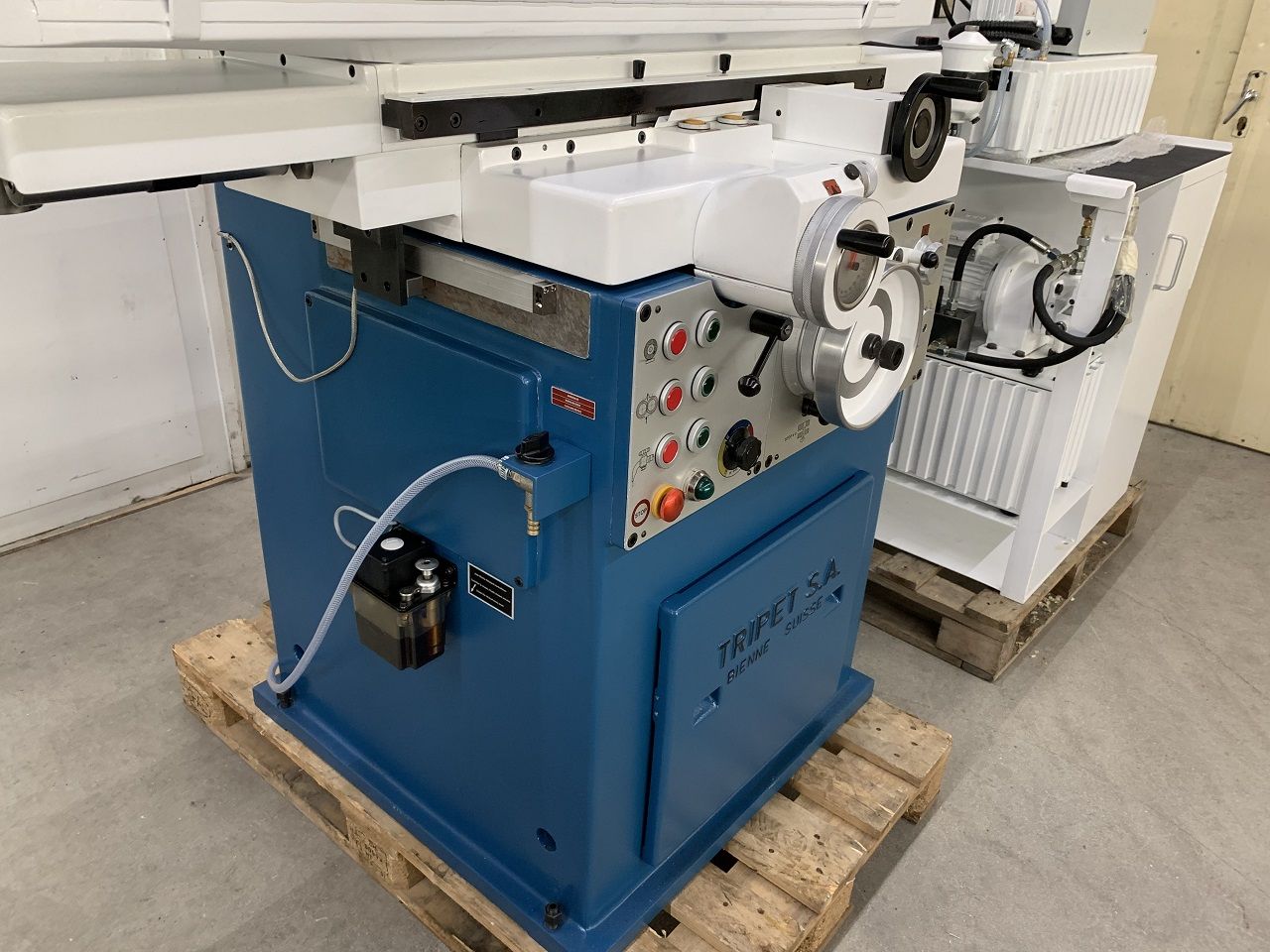

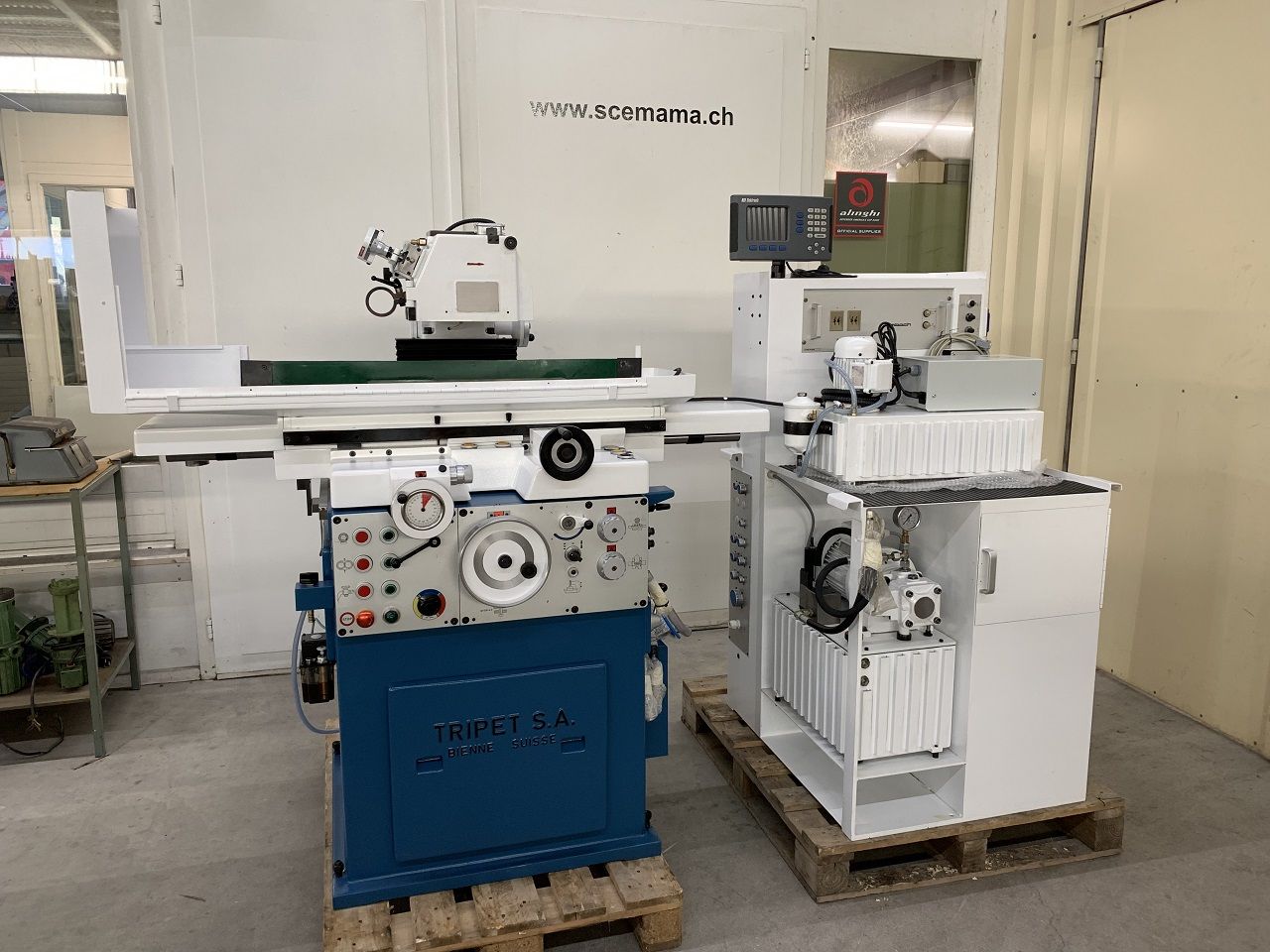

SURFACE GRINDING MACHINE TRIPET MHPE-500

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

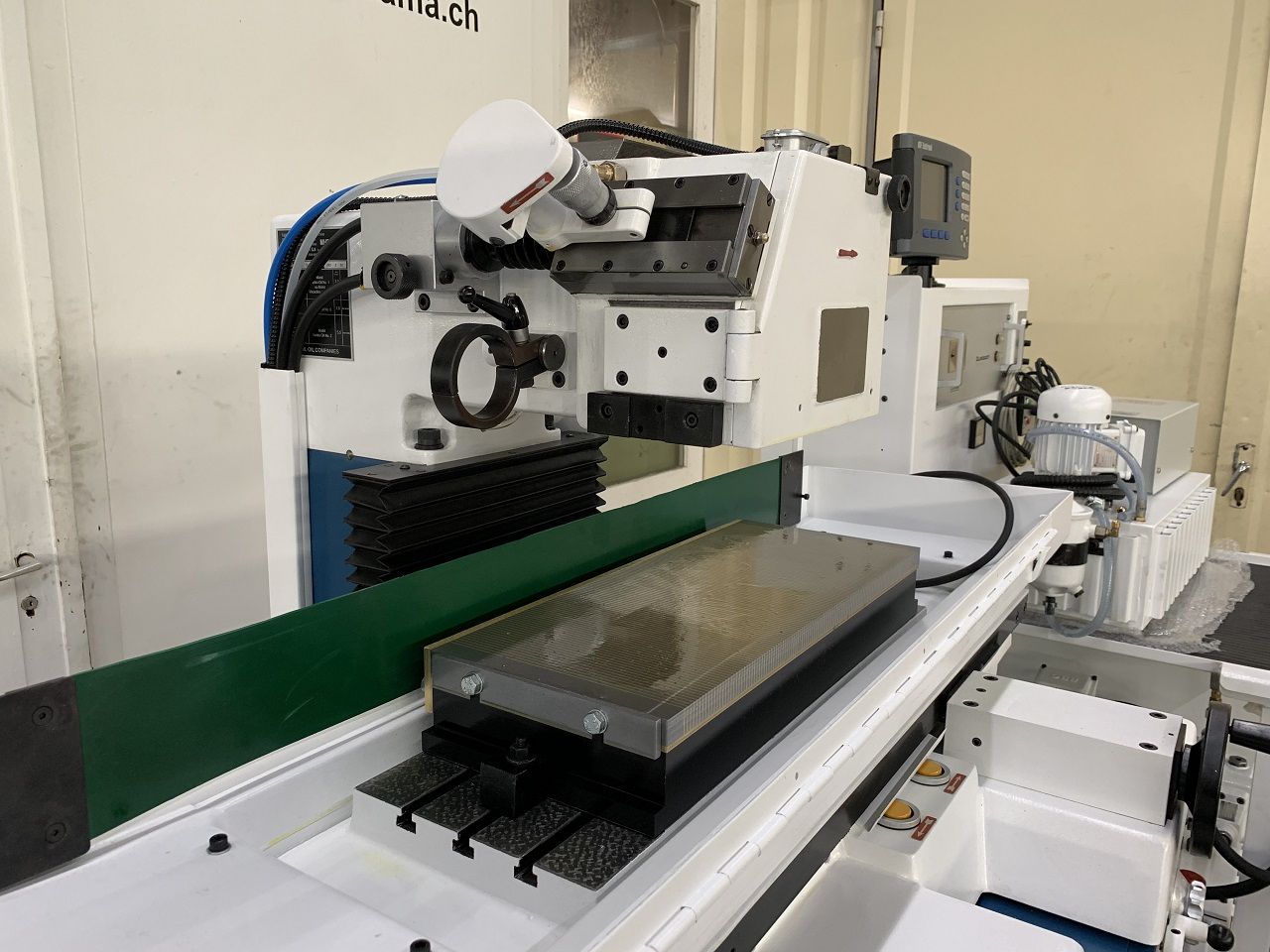

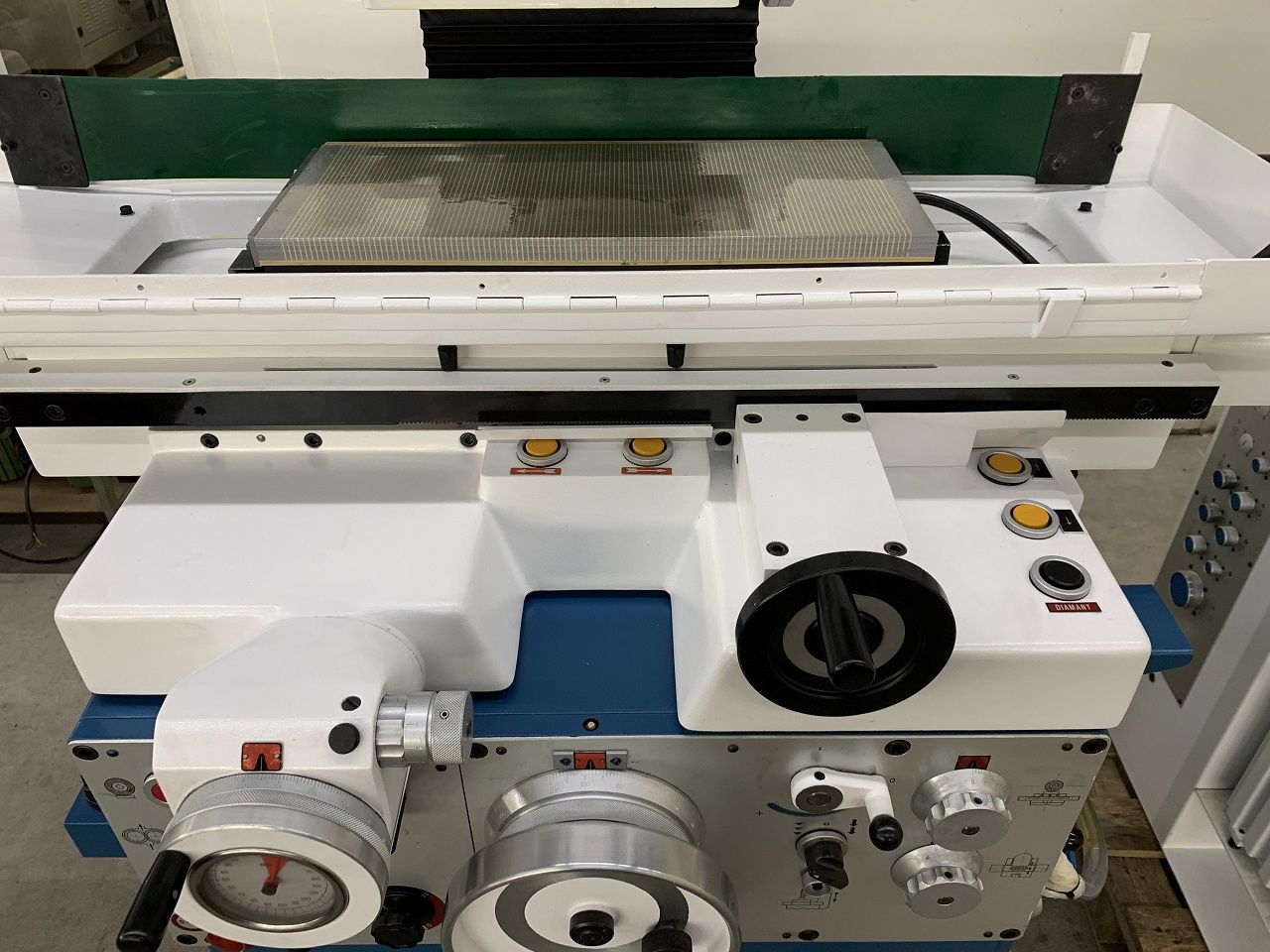

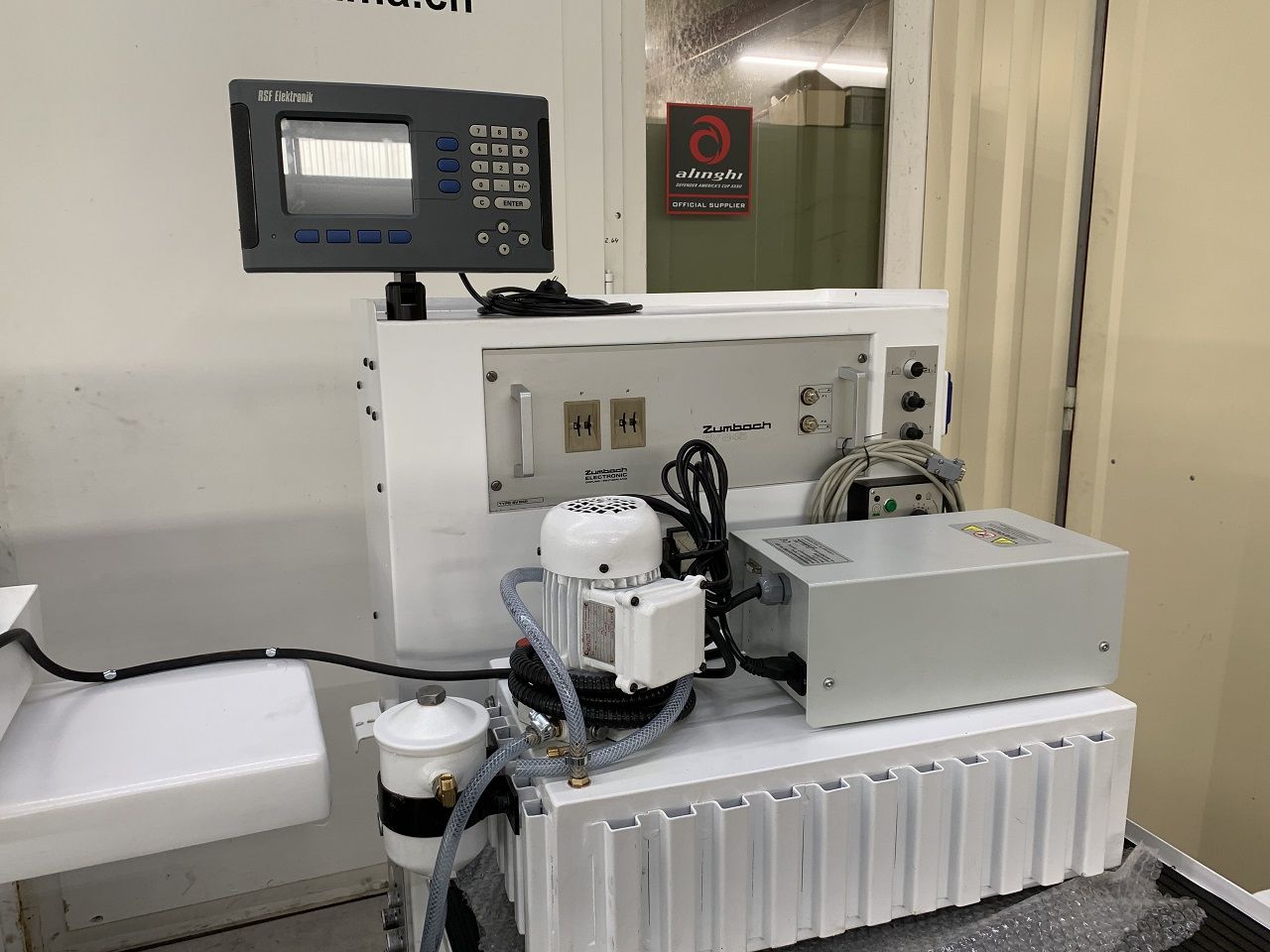

<section id="description"> <div class="detail_title_1"> <h1>SURFACE GRINDING MACHINE "TRIPET" MHPE-500</h1> </div> <p> <b>Reference</b>: 2180140 </p> <p>overhauled, eletro-magnetic plate 500x200 mm NEW, Zumbach SV845, new digital read-out 2 axis RSF Z300</p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing origin </td><td>Swiss</td></tr><tr><td>Voltage</td><td>380/50/3</td></tr><tr><td>Netweight</td><td>1350 kg</td></tr><tr><td>Dimensions </td><td>190x140x170 cm</td></tr><tr><td>Customs position </td><td>8460.1920</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Greatest slideways</td><td>530x220 mm</td></tr><tr><td>Greatest grinding surface </td><td>520x230 mm</td></tr><tr><td>Gripping surface of the table </td><td>600x200 mm</td></tr><tr><td>Speed of the longitudinal table </td><td>0-25 m/min</td></tr><tr><td>- with slow forward </td><td>5/10mm - 8 m/min</td></tr><tr><td>Speed of the transverse slide </td><td>0-6 m/min</td></tr><tr><td>Height adjustment, manual </td><td>330 mm</td></tr><tr><td>- with fast forward </td><td>290 mm</td></tr><tr><td>- speed </td><td>460 mm/min</td></tr><tr><td>Greatest distance between table and spindle-axis </td><td>412 mm</td></tr><tr><td colspan="2">Vertical movement</td></tr><tr><td>- manually, 1 division </td><td>0,01 mm</td></tr><tr><td>- with micrometric adjusment, 1 division </td><td>0,001 mm</td></tr><tr><td>- automatically </td><td>0,001-0,099 mm</td></tr><tr><td>- with push-button </td><td>0,001 mm</td></tr><tr><td colspan="2">Transverse movement </td></tr><tr><td>- by handwheel </td><td> 1 division 0,01 mm</td></tr><tr><td>- with micrometric adjustment </td><td> 1 division 0,001 mm</td></tr><tr><td colspan="2">Grinding wheel </td></tr><tr><td>- diameter x width x bore </td><td>250x30x76.2 mm</td></tr><tr><td>- r.p.m., normal </td><td>2700 rpm</td></tr><tr><td>- r.p.m., with variator </td><td>3300-1150 rpm</td></tr><tr><td colspan="2">Motors for </td></tr><tr><td>Grinding wheel </td><td>1,8 kW</td></tr><tr><td></td><td>3000 rpm</td></tr><tr><td>Hydraulic pump </td><td>1,0 kW</td></tr><tr><td></td><td>1400 rpm</td></tr><tr><td>Cooling water </td><td>0,1 kW</td></tr><tr><td></td><td>1500 rpm</td></tr><tr><td>Speed forward </td><td>0,18 kW</td></tr><tr><td></td><td>670 rpm</td></tr><tr><td colspan="2">errors and omissions excepted-data given without obligation</td></tr></tbody></table></div> </section>.
