MACHINE INFORMATION AND SPECIFICATION
- Category:
- Grinding
- Subcategory:
- Surface Grinders
- Manufacturer:
- GRINDING
- Model:
- SURFACE GRINDING MACHINE
- Condition:
- Used
- YOM:
- N/A
- Control:
- NA
- Price:
- POA
- Seller:
- SCEMAMA SA
- Country:
- Switzerland
DESCRIPTION

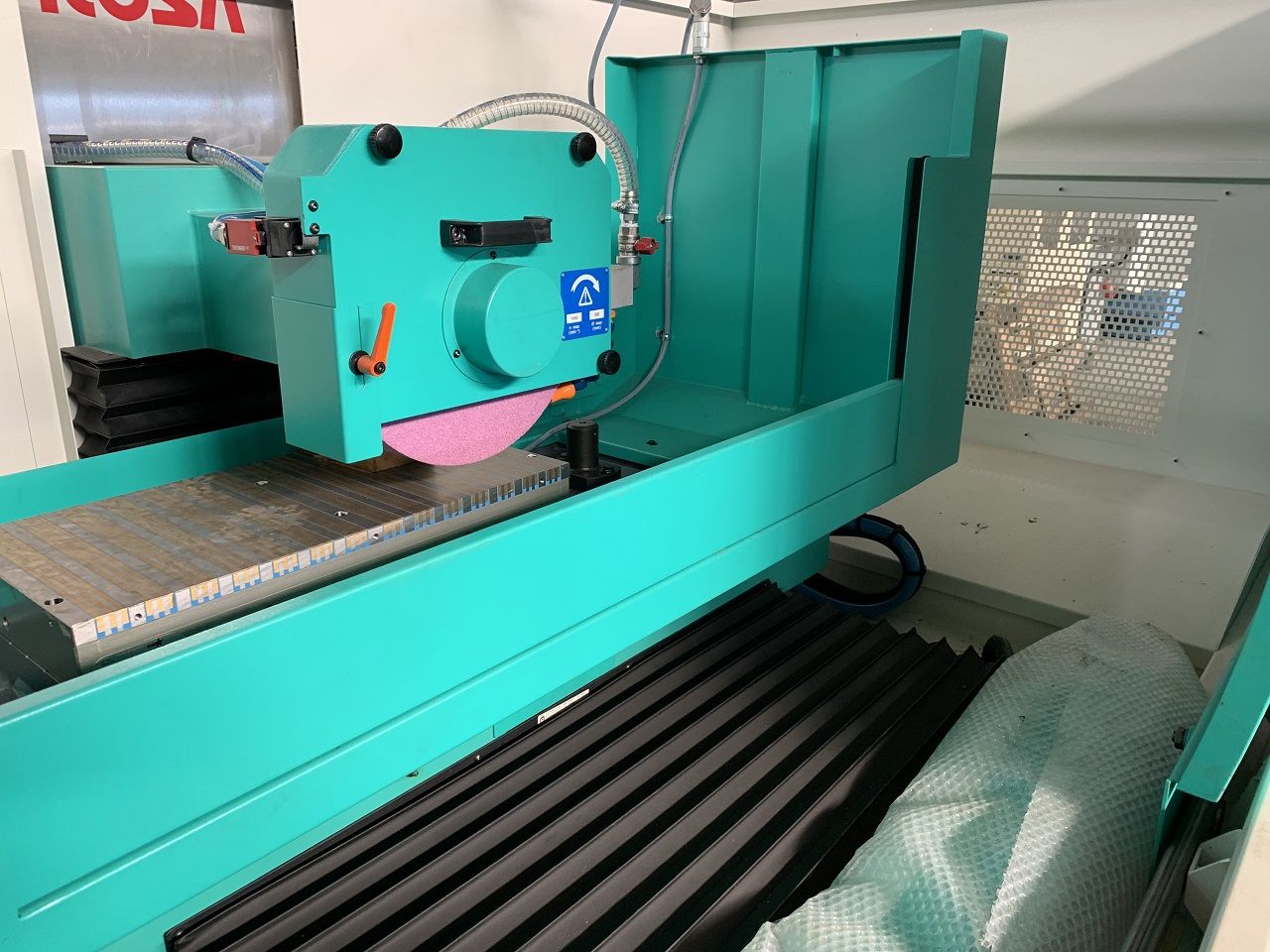

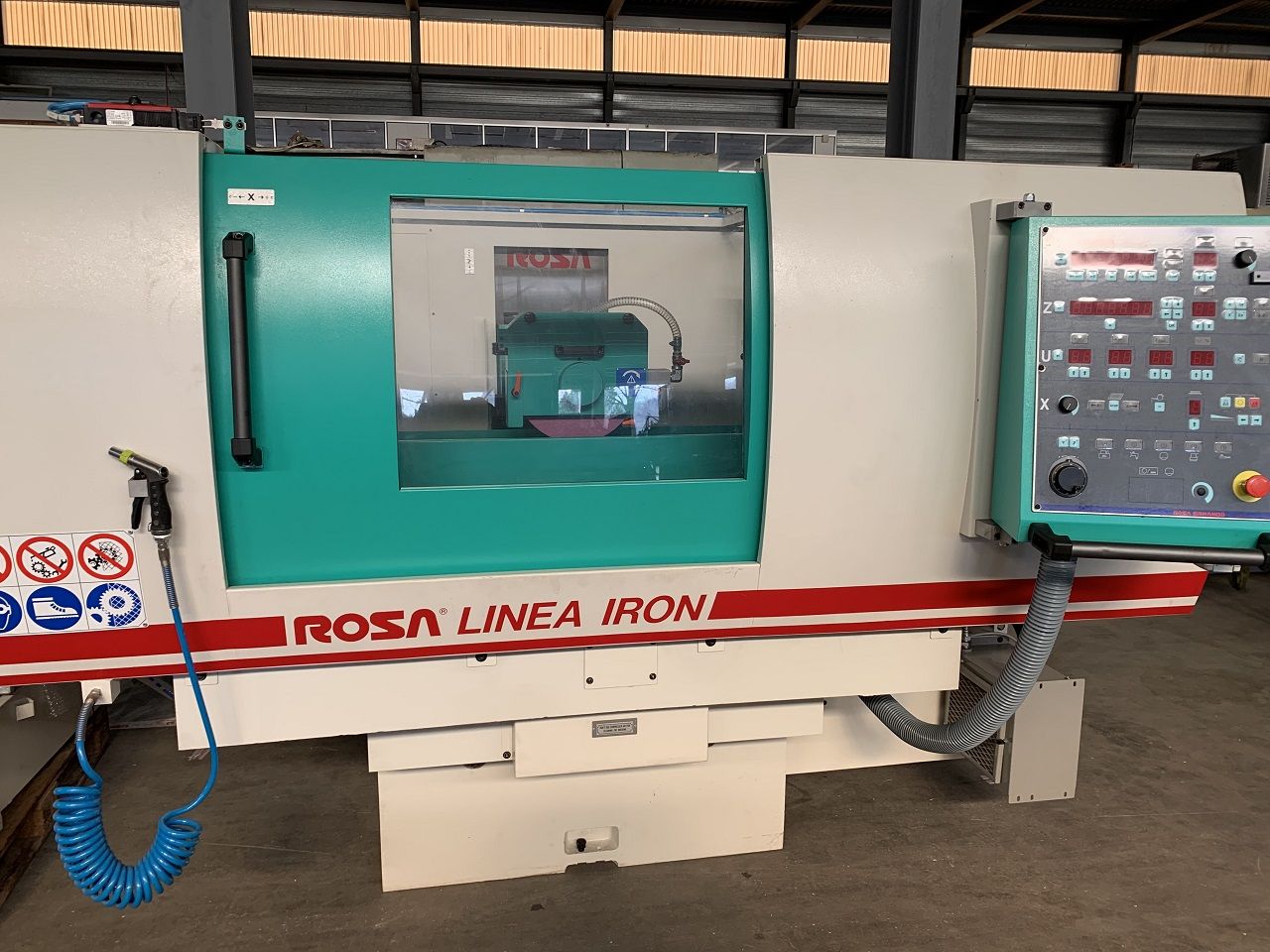

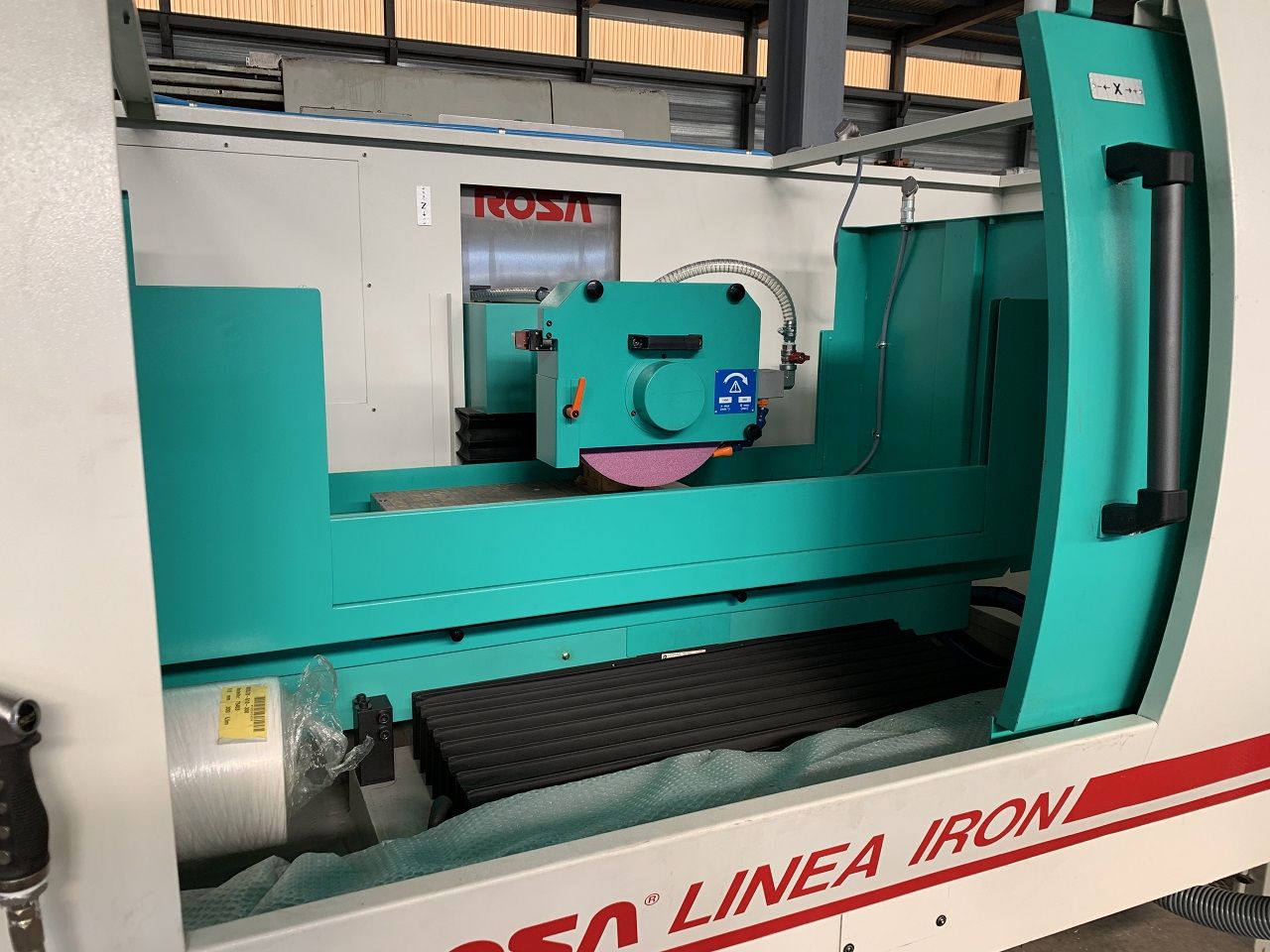

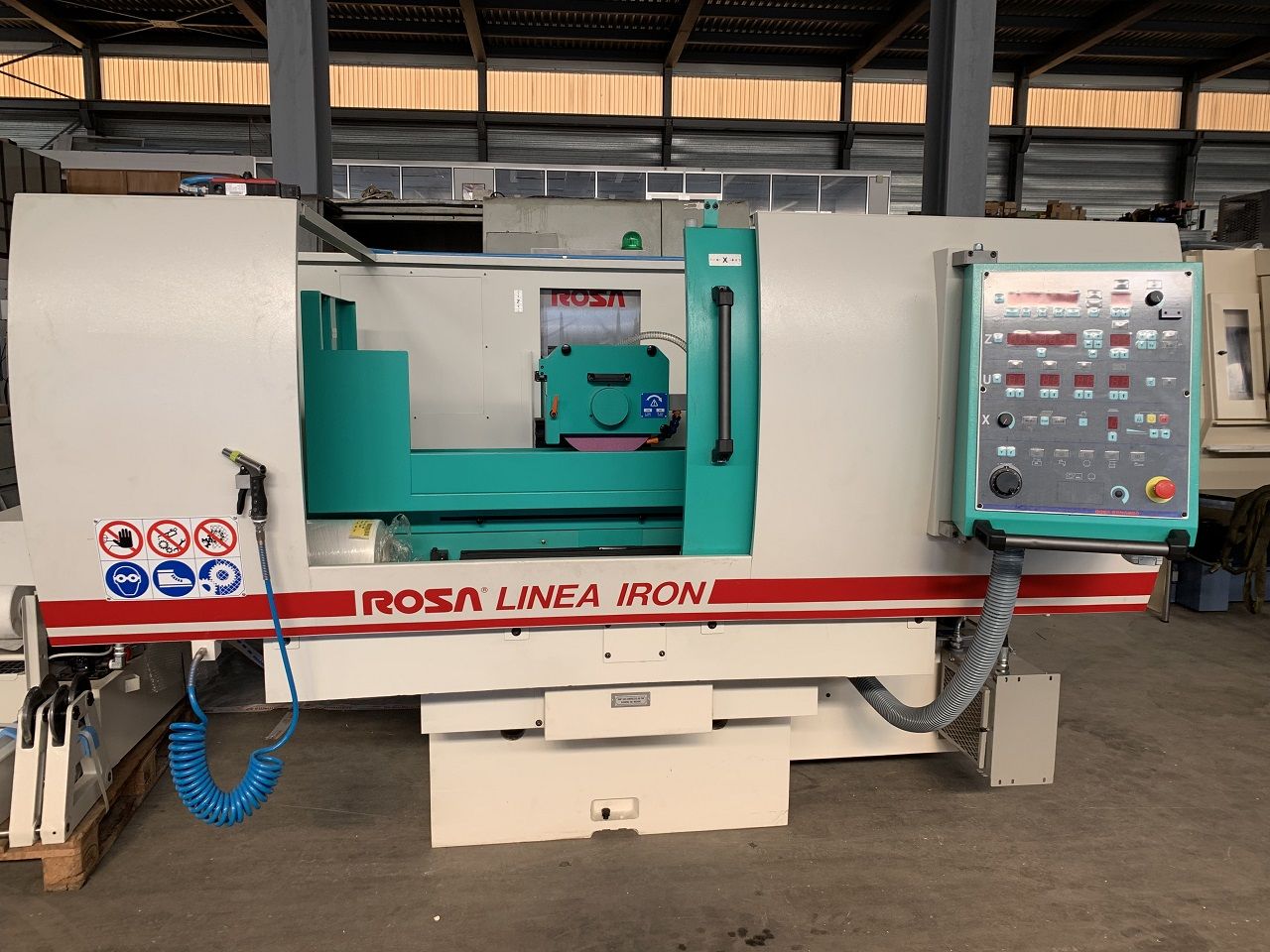

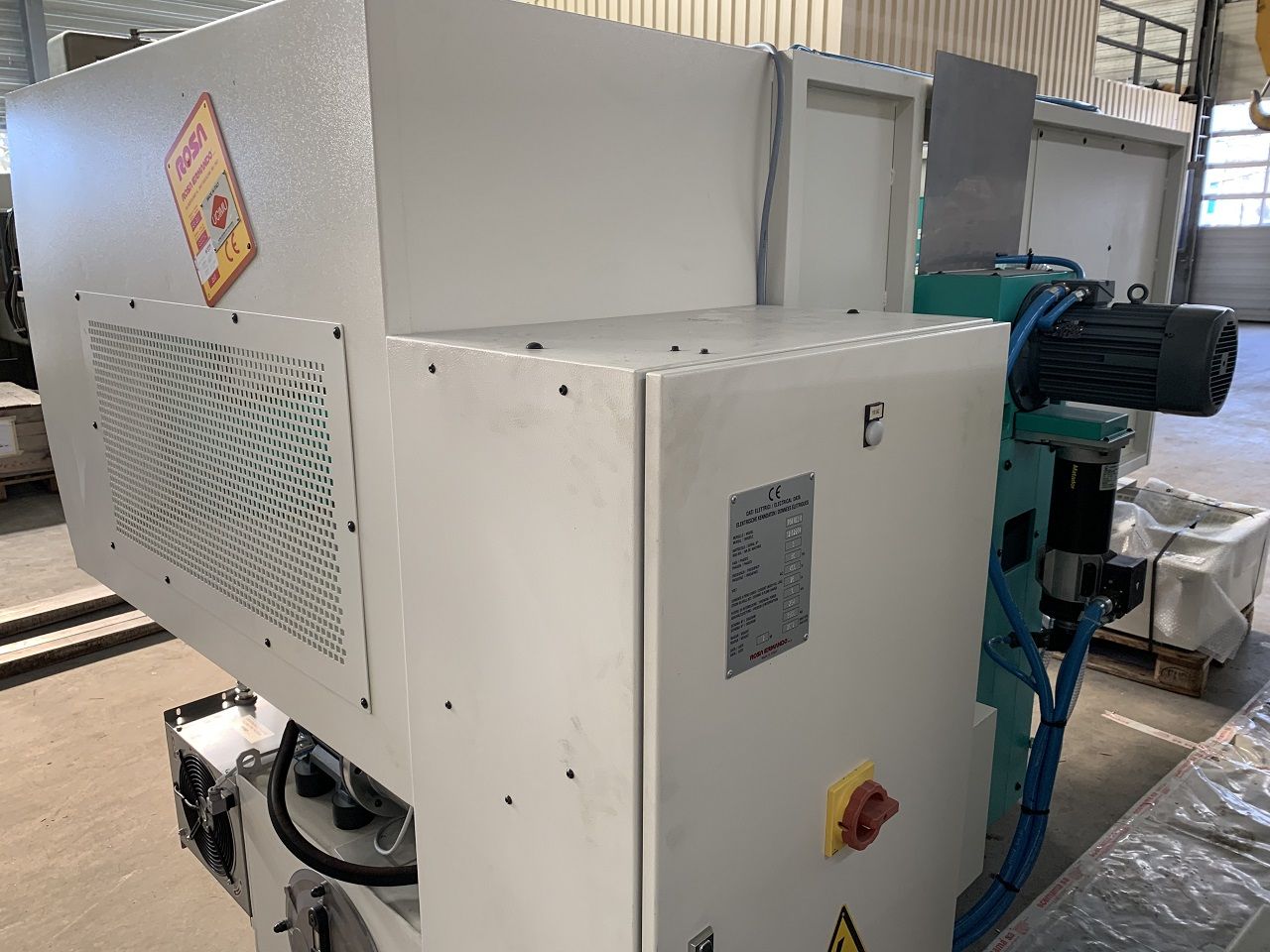

SURFACE GRINDING MACHINE "ROSA" TYPE LINEA IRON 06.3
Reference: 2319004

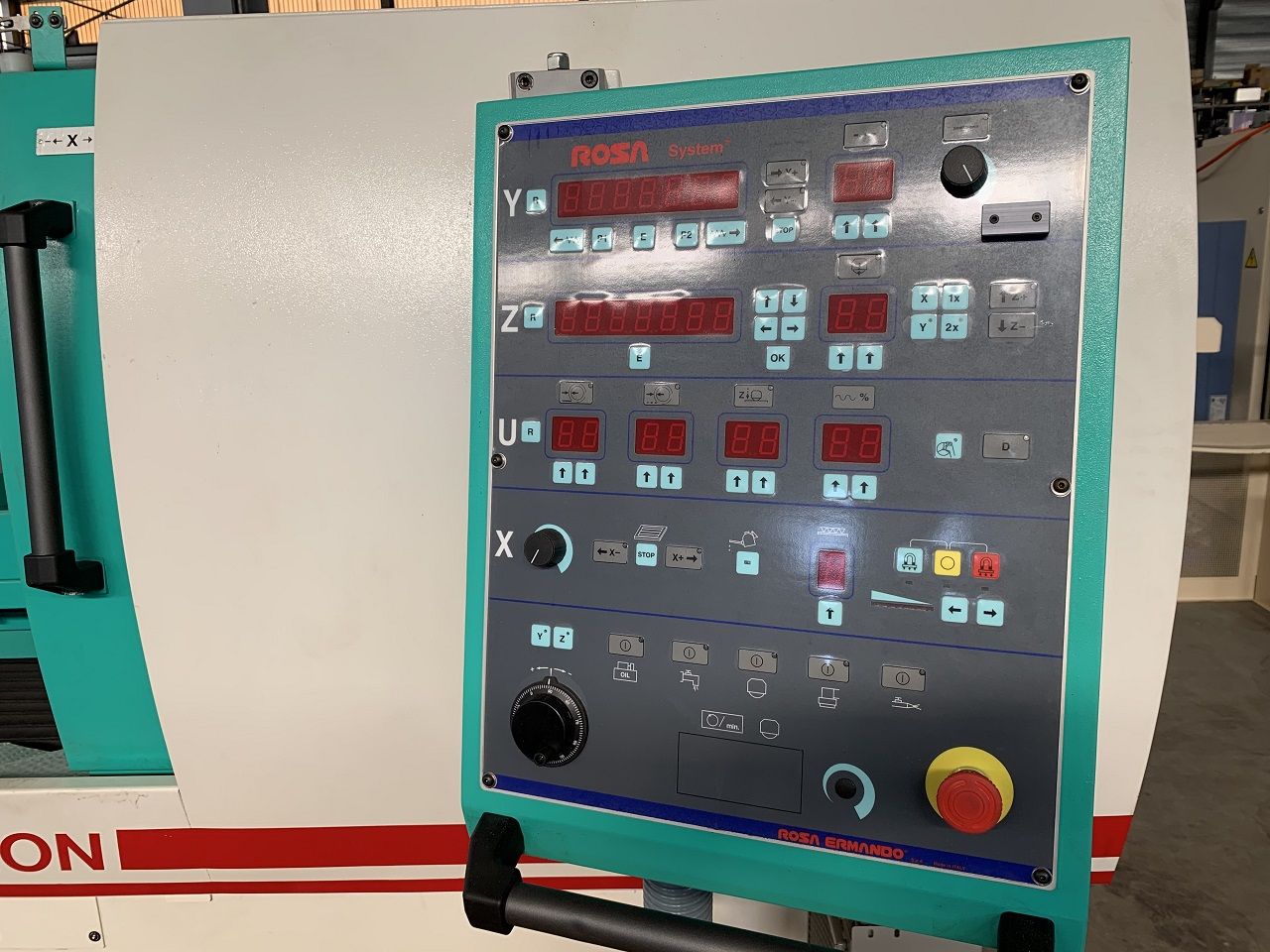

Numeric control - electromagnetic plate 600x300 mm. coolant by paper filtration - 3 wheel-flanges,
Information

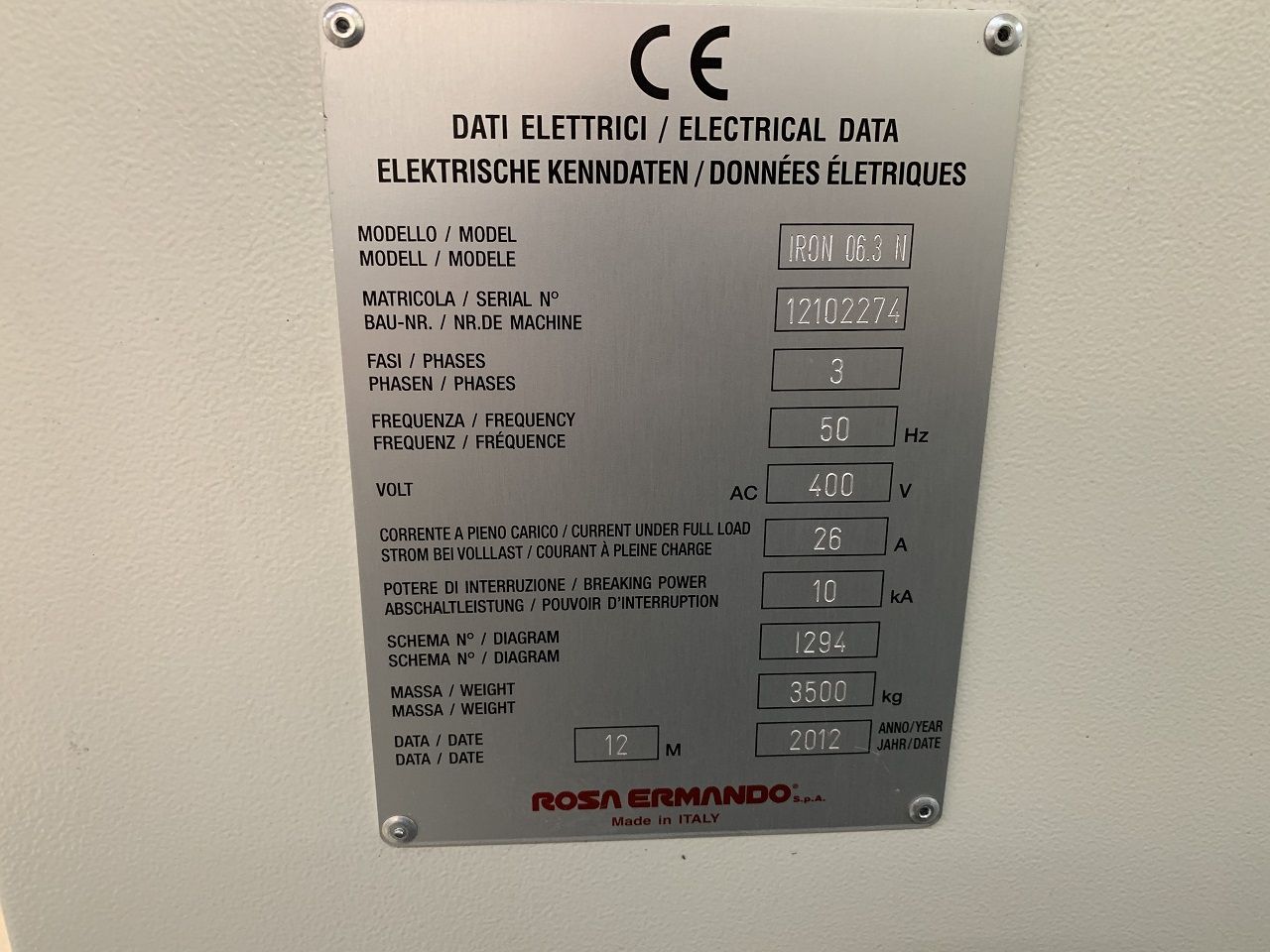

| Manufacturing origin | CE - Italy |
| Voltage | 400 V |
| Netweight | 3500 kg |
| Custom position | 8460.1120 |
| Dimensions | 300x200x190 cm |
TECHNICAL DATA
| Longitudinal grinding length | 620 mm |
| Cross grinding width | 400 mm |
| Vertical grinding height with new wheel | 330 mm |
| X-axis | |
| Longitudinal travel | 850 mm |
| Speed | 1 � 32 m/min |
| Table surface | 600x300 mm |
| Admissible load on table | 1000 kg |
| Y-axis | |
| Cross travel | 360 mm |
| Speed | 0 � 3,5 m/min |
| Z-axis | |
| Distance table to center spindle | 505 mm |
| Speed | 2 m/min |
| Spindle | |
| Power of wheel motor | 5,5 (S6) kW |
| Speed | 1500 min-1 |

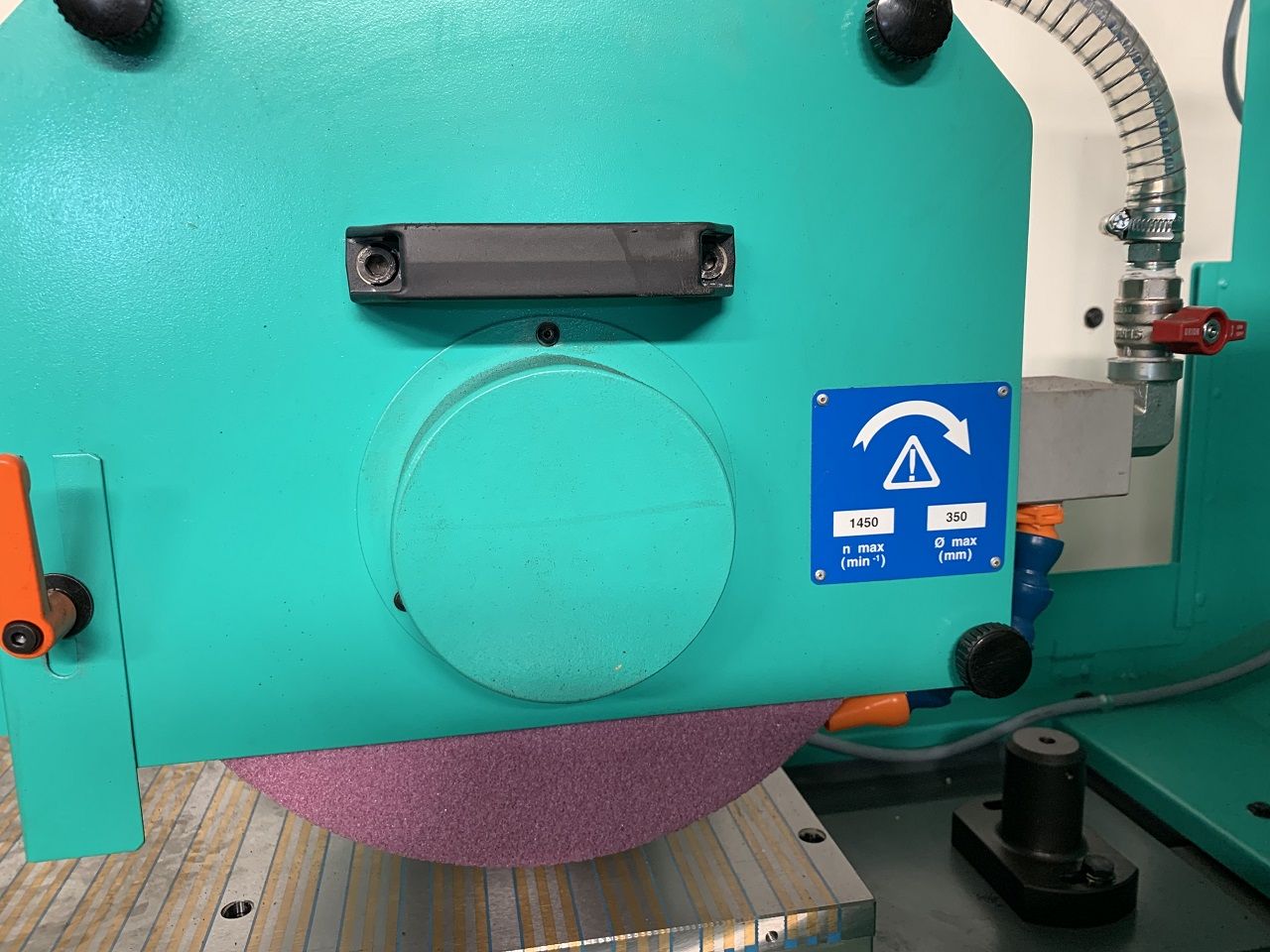

| Wheel dimensions | � 350x25 � 50 x �127 mm |
| Noise level | <76 dB |
| Installed power without optional | 9 kW |
| Basic machine Description : | |
| Hydraulic power unit | |
| Electronic hand wheel for axes control Y and Z | |
| Operation hour counter installed in the electronic cabinet | |
| Axes lubrication | |
| Wheel flange assembly | |
| Sheel guard | |
| Wheel flange pullout | |
| Wheel balancing shaft | |
| Standard grinding wheel for untampered and unhardened steel and unhardened grey cast iron. | |
| Holder for wheel dresser mounted on the table (wihout diamond) | |
| Set of service spanners | |
| Oil to air heat exchanger for hydraulic power unit, recommended for continuous grinding jobs. | |
| Electro permanent magnetic chuck with electronic control, comprising adjusting device for the attraction power from 20 % to 100 % and for demagnetization ; dimension 600x300x70 mm / transversal polarity | |
| Coolant cleaner with paper web, manual rewinding provided with pump and self priming, filtering capacity 50L / min., tank capacity 180 L | |
| Machine color : RAL white 9002 | |
| Mobile parts : special green Pantone 3268C | |
| errors and omissions excepted-data given without obligation | |
