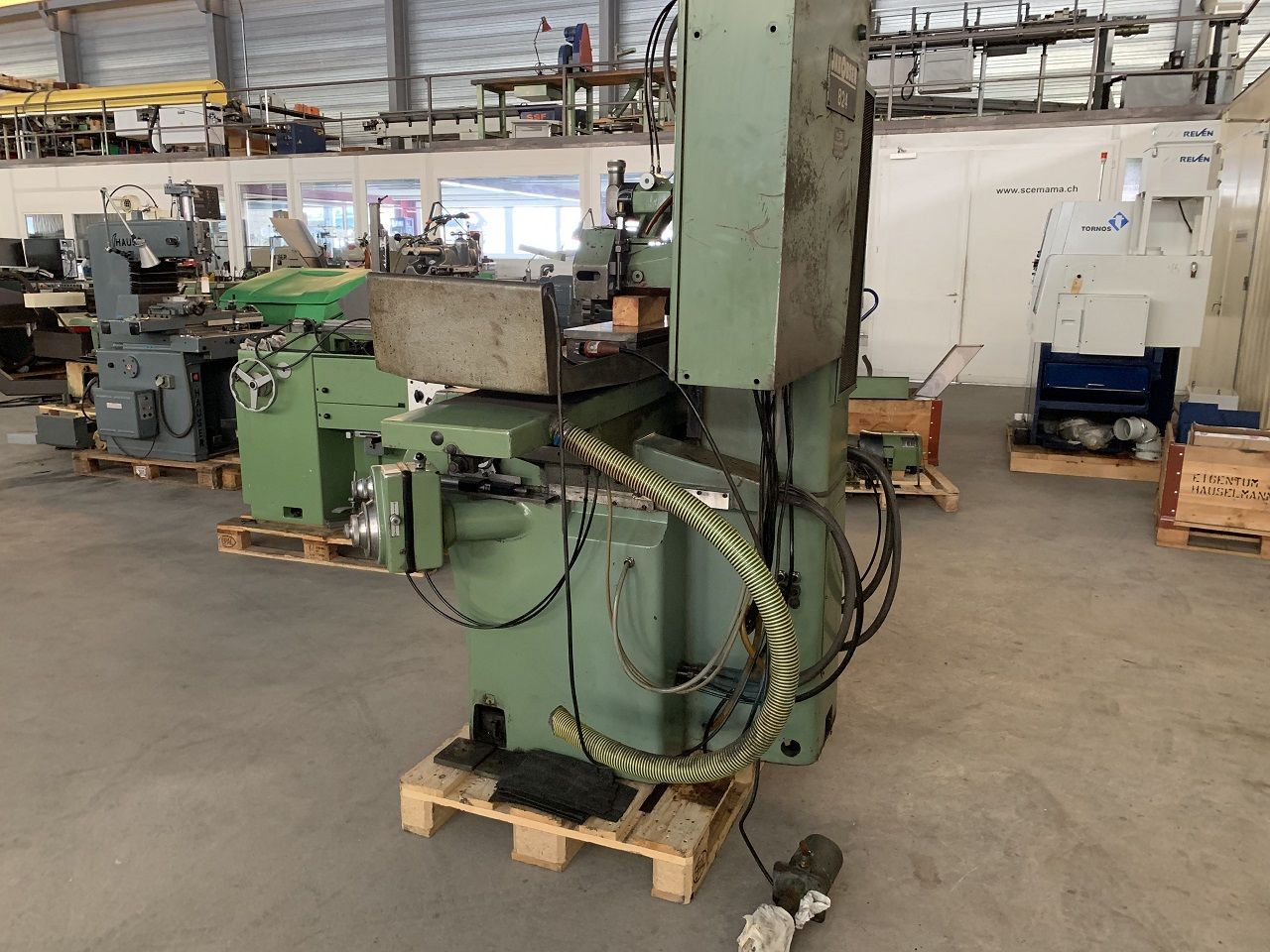

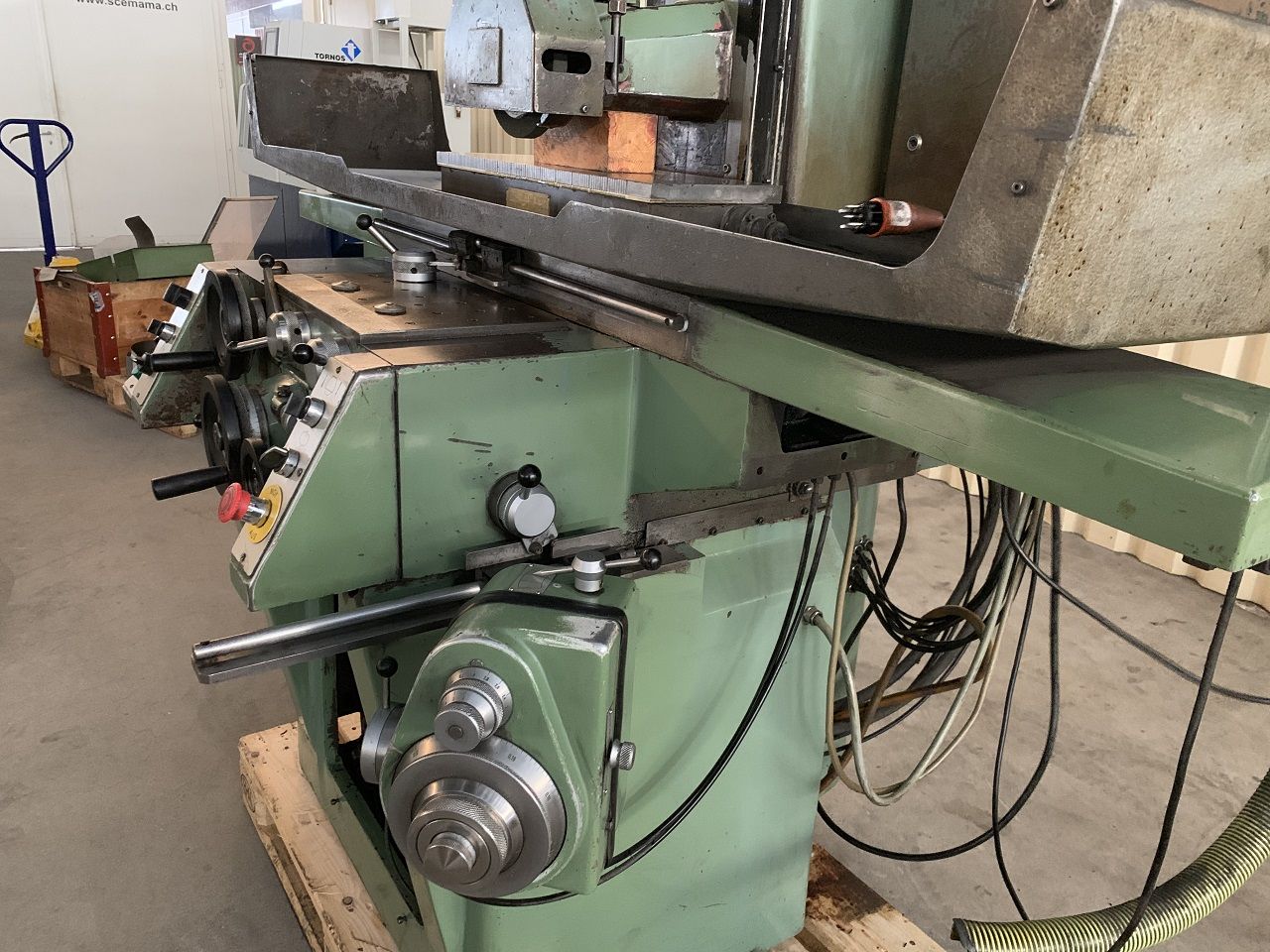

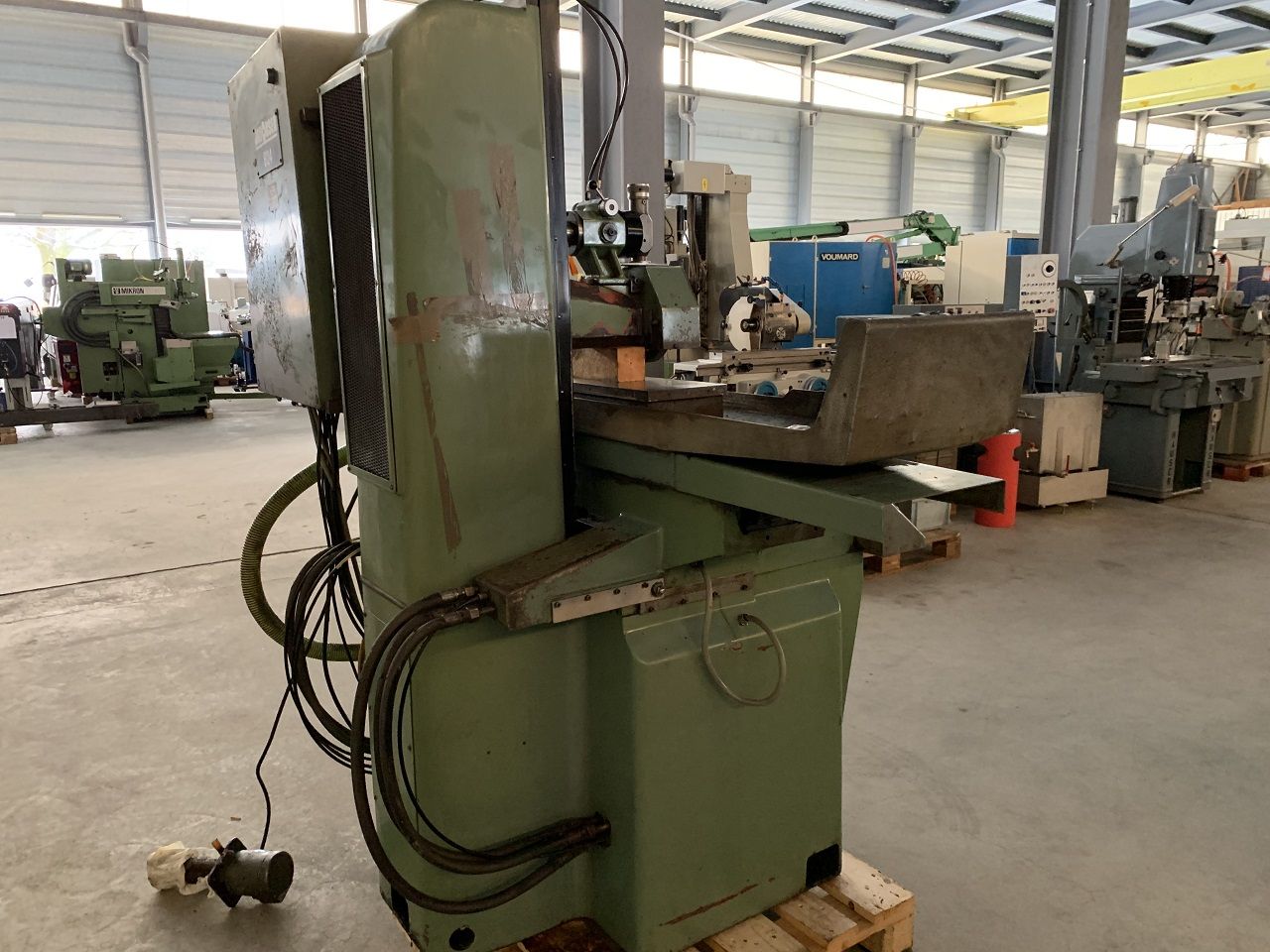

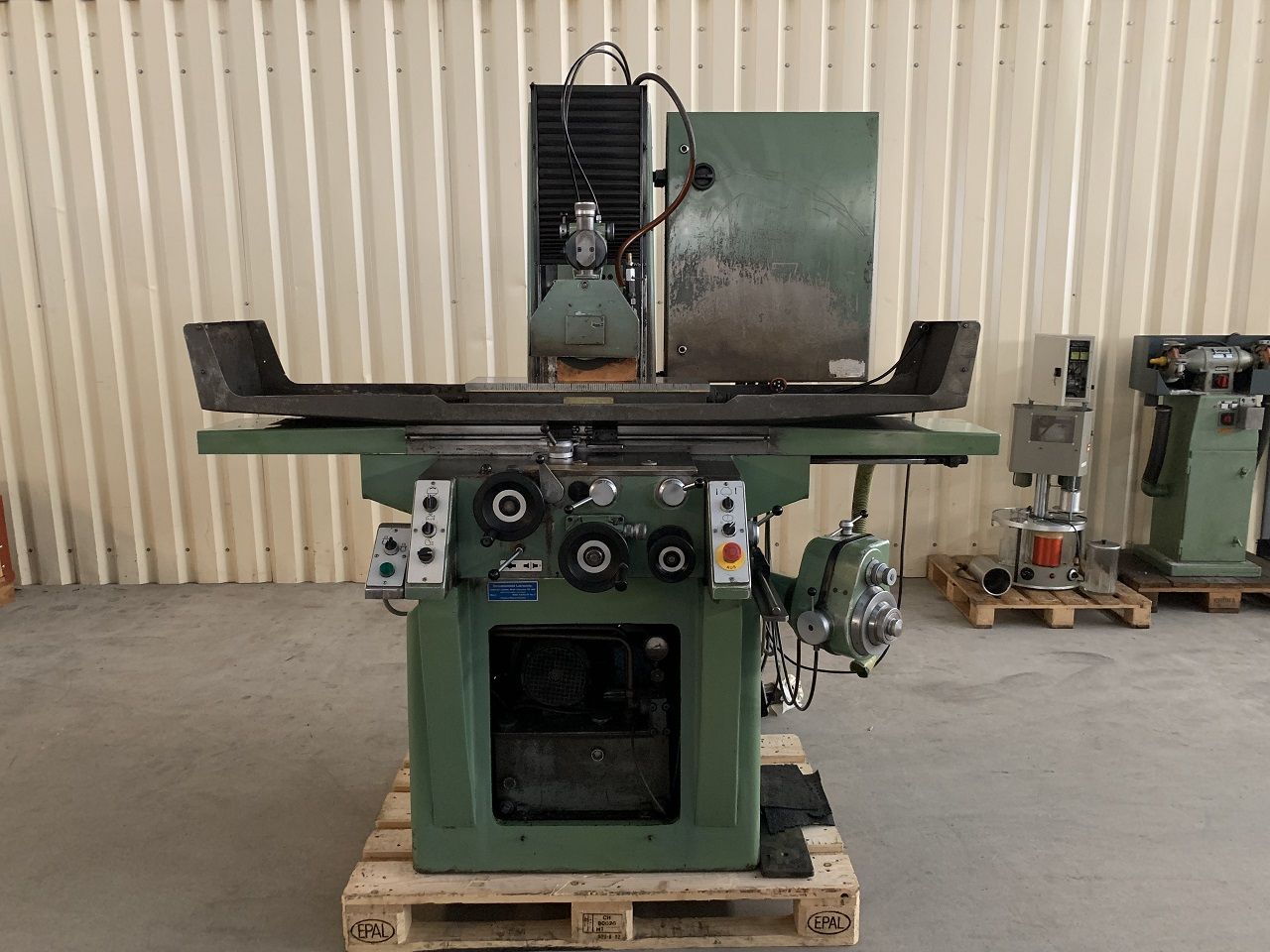

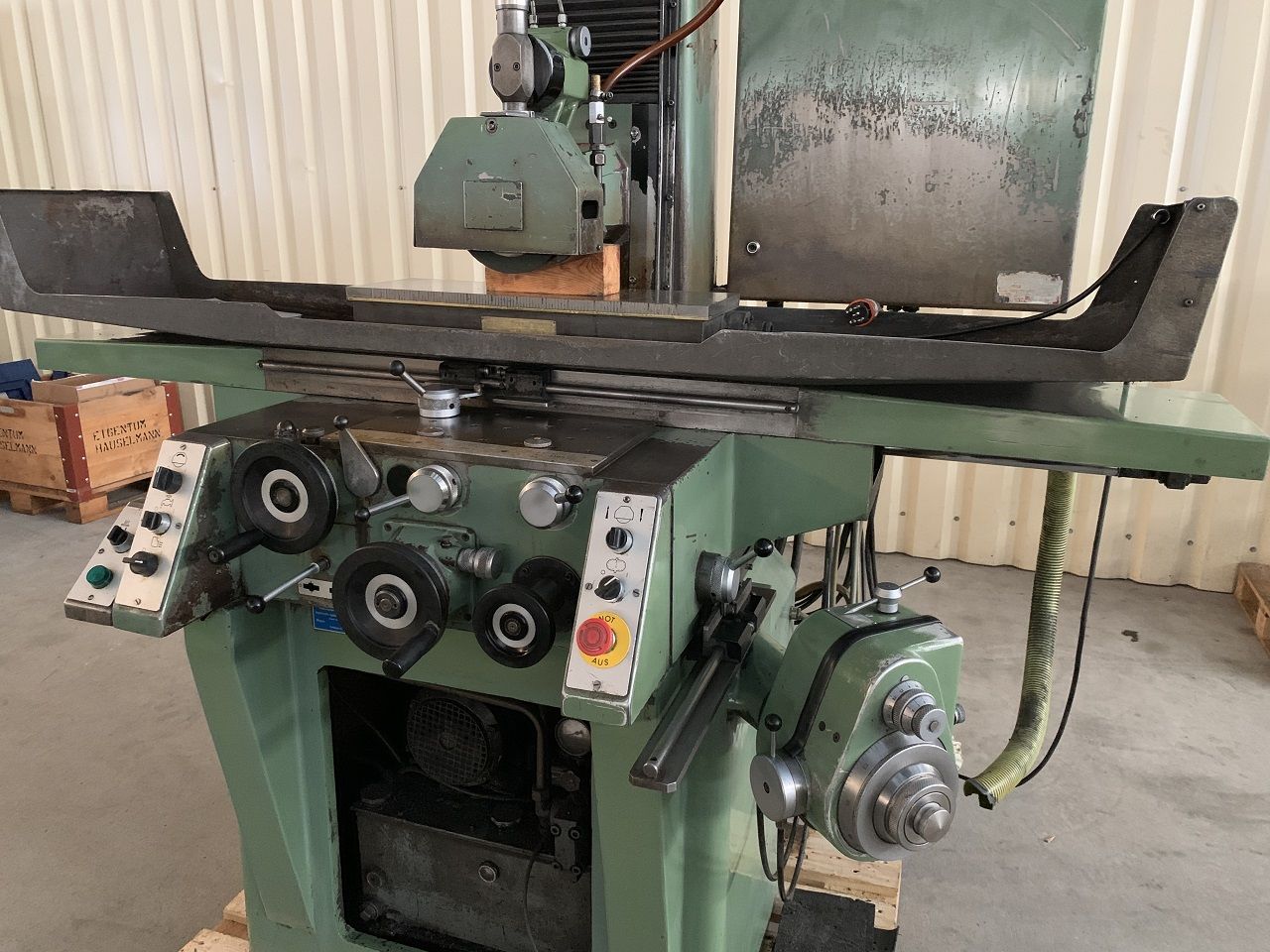

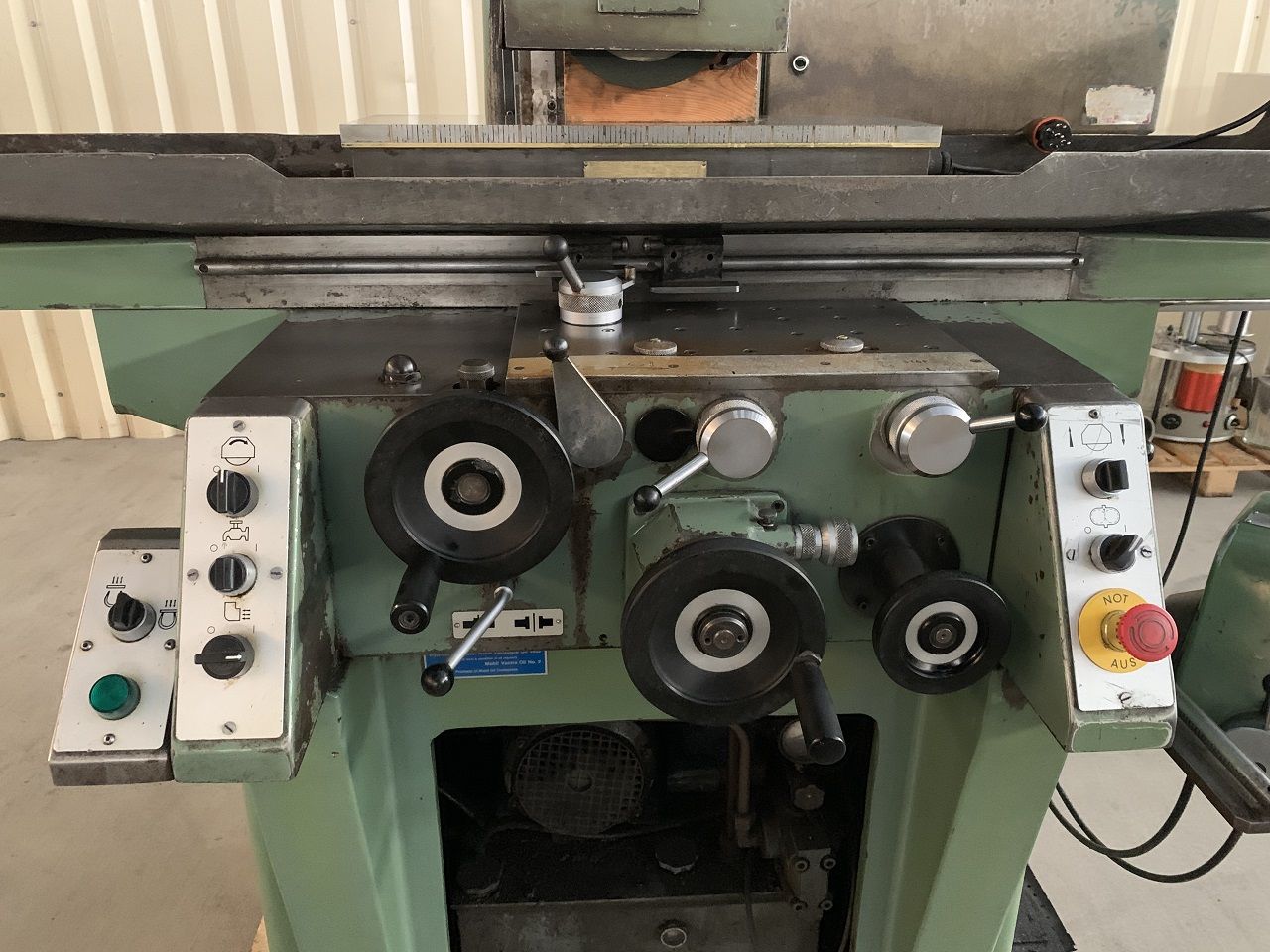

Surface Grinders/SURFACE GRINDING MACHINE JAKOBSEN TYPE SJ-824

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Grinding

Subcategory:
Surface Grinders

Manufacturer:
GRINDING

Model:
SURFACE GRINDING MACHINE JAKOBSEN TYPE SJ-824

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

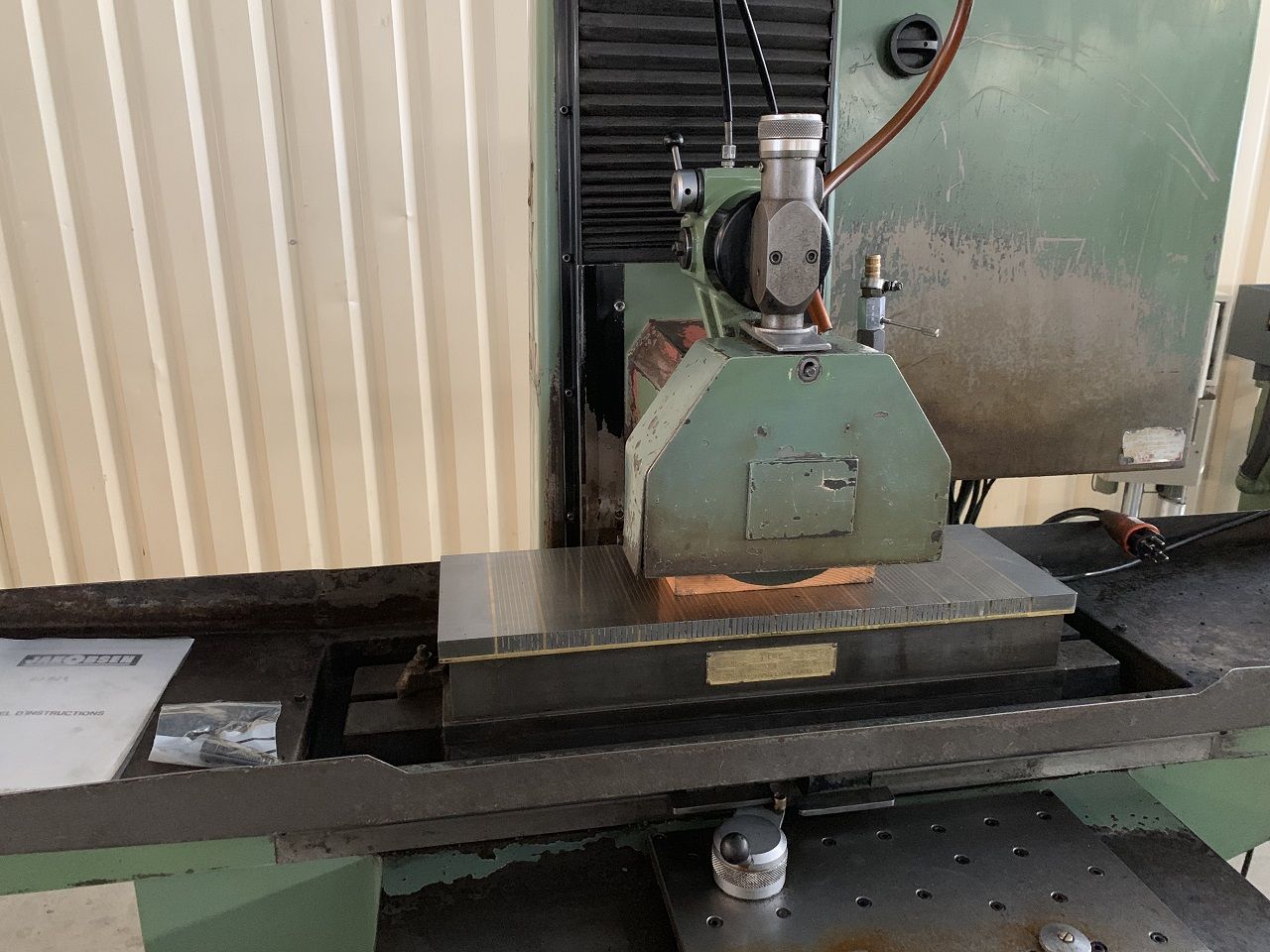

<section id="description"> <div class="detail_title_1"> <h1>SURFACE GRINDING MACHINE "JAKOBSEN" TYPE SJ-824</h1> </div> <p> <b>Reference</b>: 2180240 </p> <p>electro-magnetic plate Braillon 600x200 mm., diamond trueing device, 1 flange, coolant tank by decantation</p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing number</td><td></td></tr><tr><td> Manufacturing year</td><td></td></tr><tr><td> Manufacturing origin</td><td>Denmark</td></tr><tr><td> Voltage</td><td>380/50/3</td></tr><tr><td> Netweight</td><td>1700 kg</td></tr><tr><td> Custom position</td><td>8460.29 20</td></tr><tr><td> Colour</td><td></td></tr><tr><td> Dimensions</td><td>2650x1750x1950 mm</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Grinding surface</td><td>600x250 mm</td></tr><tr><td>Longitudinal travel</td><td>700 mm</td></tr><tr><td>Cross travel</td><td>255 mm</td></tr><tr><td>Max distance between table and wheel-spindle centre</td><td>550 mm</td></tr><tr><td>Clamping surface of table</td><td>600x200 mm</td></tr><tr><td>Longitudinal speed</td><td>30 m/min</td></tr><tr><td colspan="2">Cross travel</td></tr><tr><td>Automatic cross travel, stepwise, variable up to</td><td>1-20 mm</td></tr><tr><td>Automatic cross travel, continuous, variable up to</td><td>990mm/min</td></tr><tr><td>Manual cross travel</td><td>1/10/100 micron</td></tr><tr><td colspan="2">Vertical travel</td></tr><tr><td>Automatic vertical travel, incremental</td><td>1-99 micron</td></tr><tr><td>Fast vertical speed</td><td>0,3 m/min</td></tr><tr><td>Manual vertical travel</td><td>1/10 micron</td></tr><tr><td colspan="2">Grinding-wheel</td></tr><tr><td>Standard</td><td>200x25x76,2 mm 9x1,5x3 mm</td></tr><tr><td>Speed @ 50 Hz</td><td>2800 rpm</td></tr><tr><td>@ 60 Hz</td><td>3400 rpm</td></tr><tr><td colspan="2">Motors</td></tr><tr><td>Grinding wheel</td><td>2.2 kW 3.0 HP</td></tr><tr><td>Hydraulic pump</td><td>1.5 kW 2.0 HP</td></tr><tr><td>Fast descent</td><td>0.37 kW 0.5 HP</td></tr><tr><td colspan="2">errors and omissions excepted data given without obligation</td></tr></tbody></table></div> </section>.
