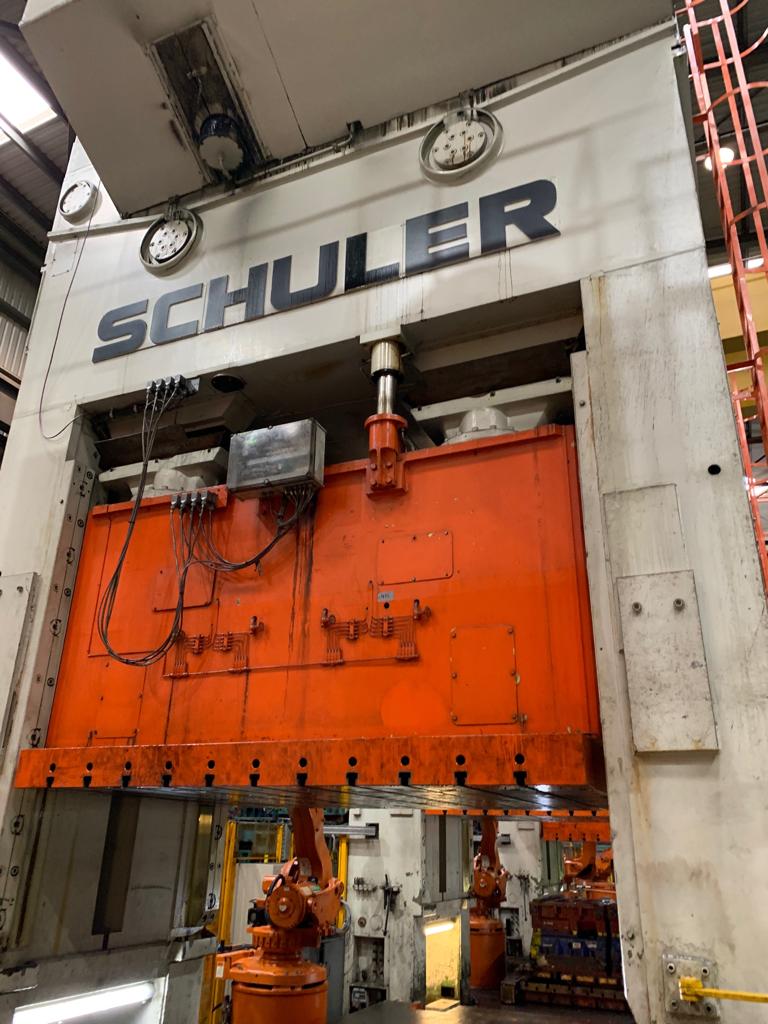

SCHULER EB 4-500-3-0.85

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Schuler

    Model:

  • SCHULER EB 4-500-3-0.85

    Condition:

  • Used

    YOM:

  • NA

    Control:

  • NA

    Price:

  • POA

    Country:

  • Germany
DESCRIPTION
  • Pressure total: 500 ton Ram
  • stroke: 850 mm
  • Slide adjustment: 350 mm
  • Shut height (stroke down, adjustment up): 1200 mm
  • Free frontal opening L-R: 3110 mm
  • Table surface area : 3000 x 1800 mm
  • Slide area: 3000 x 1800 mm
  • Number of strokes: 9 - 18 s.p.m.
  • Die cushion capacity in table: 130 ton
  • Die cushion stroke: 250 mm
  • Table height over floor: 475 mm
  • Die weight at the ram max.: 10 ton
  • Die Weight total: 25 ton
  • Height over floor approx.: 9170 mm
  • Weight of machine approx.: 180 ton
  • No. of moving bolster: 1 pcs.
  • Standard configuration: pneumatic cushion cylinder moving bolster fron to back
.
