MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

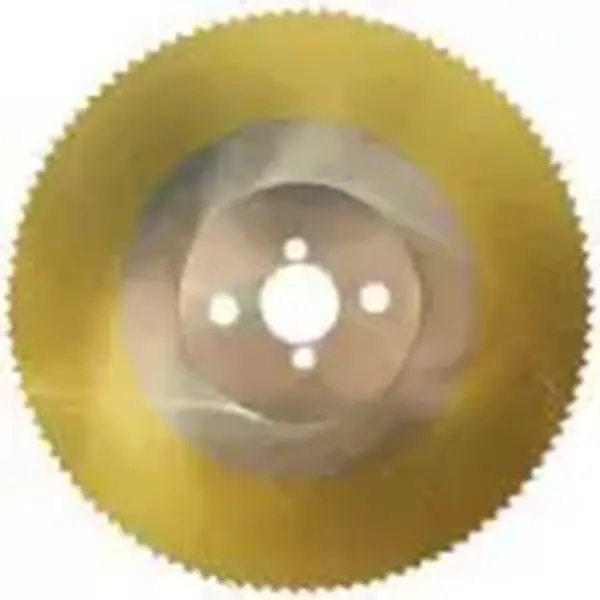

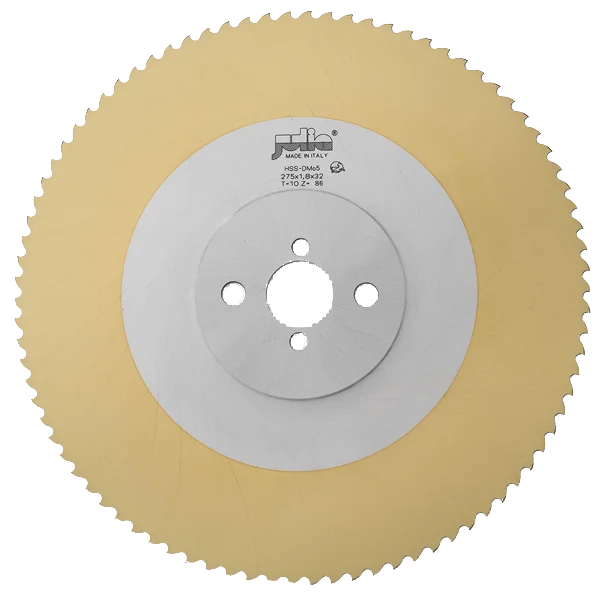

  • Circular saw blade HSS coated – Julia – Yellow Tiger
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Circular saw blade HSS coated with a thickness of 3 µm of Titanium based, obtained with a process temperature of approx. 490°C. It guarantees a friction coefficient of 0.47 and a max. oxidation temperature of 640°C. The hardness of the coated surface reaches 2.480 Vickers (HV 0.05). Its low thermal conductivity grants a high thermal shield to the substrate. Suitable for cutting low-alloy construction steels with an efficient cooling system. Not suitable for brass, copper and bronze.
+ request more information
