MACHINE INFORMATION AND SPECIFICATION
- Model:
- High-speed radial drill
DESCRIPTION

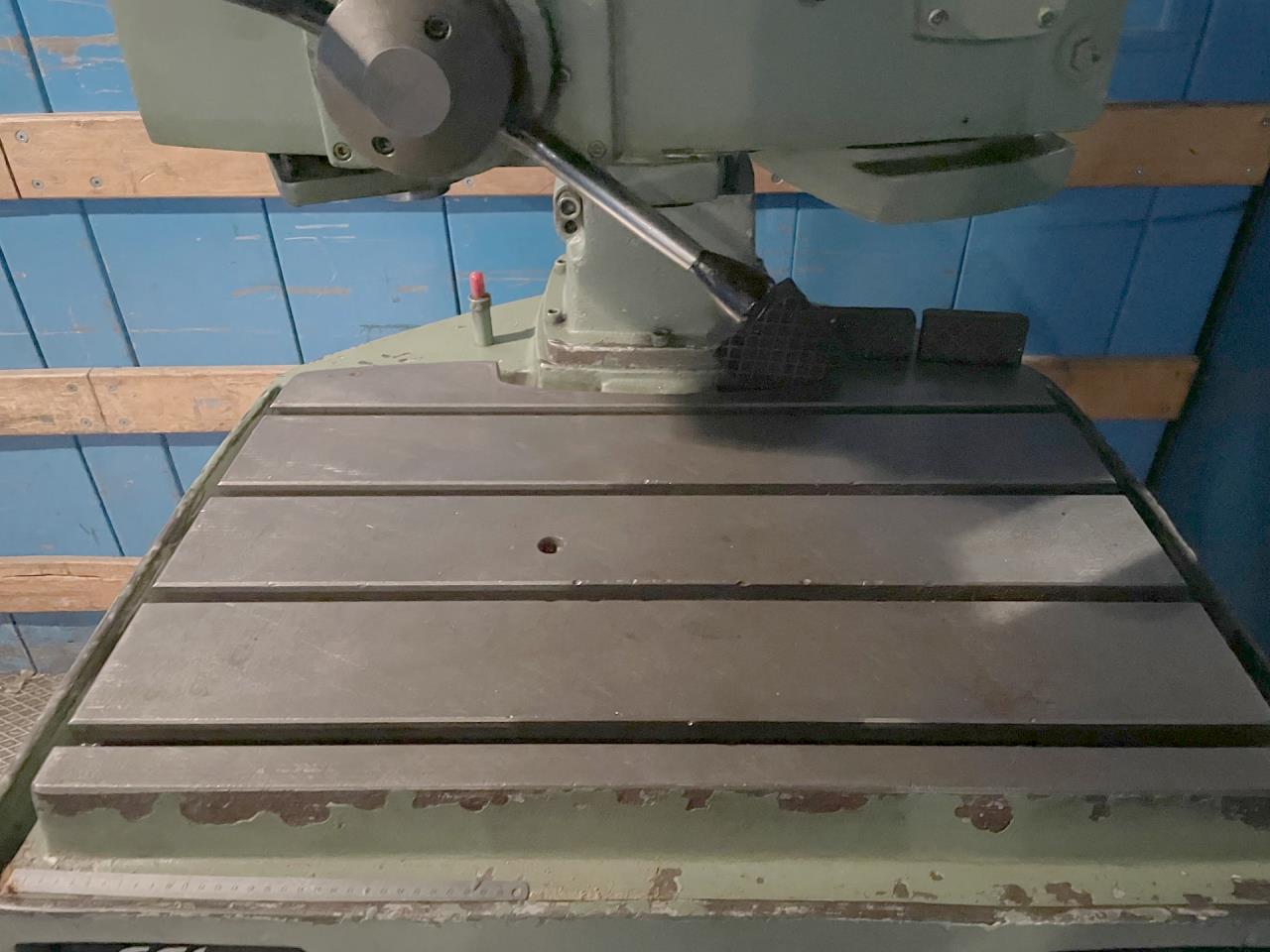

{"Drill capacity in steel": "30 mm", "Drill capacity in cast-iron": "32 mm", "Max. taping diameter M": "20", "Depth of throat": "170 - 580 mm", "Table length": "880 mm", "Table width": "585 mm", "Number of T-channels": "4", "T-channel width": "18 mm", "Distance of the T-slots": "150 mm", "Taper in spindle": "4 MT", "Spindle stroke": "150 mm", "Spindle speeds:": "", "number (steps)": "3", "from": "0.1 mm/r", "up to": "0.22 mm/r", "Feeds:": "", "Distance from drill-plate": "", "to spindle: min.": "210 mm", "max": "590 mm", "Column diameter": "160 mm", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "1.4 / 1.0 kW", "Length": "880 mm", "Width": "700 mm", "Height": "2030 mm"}
