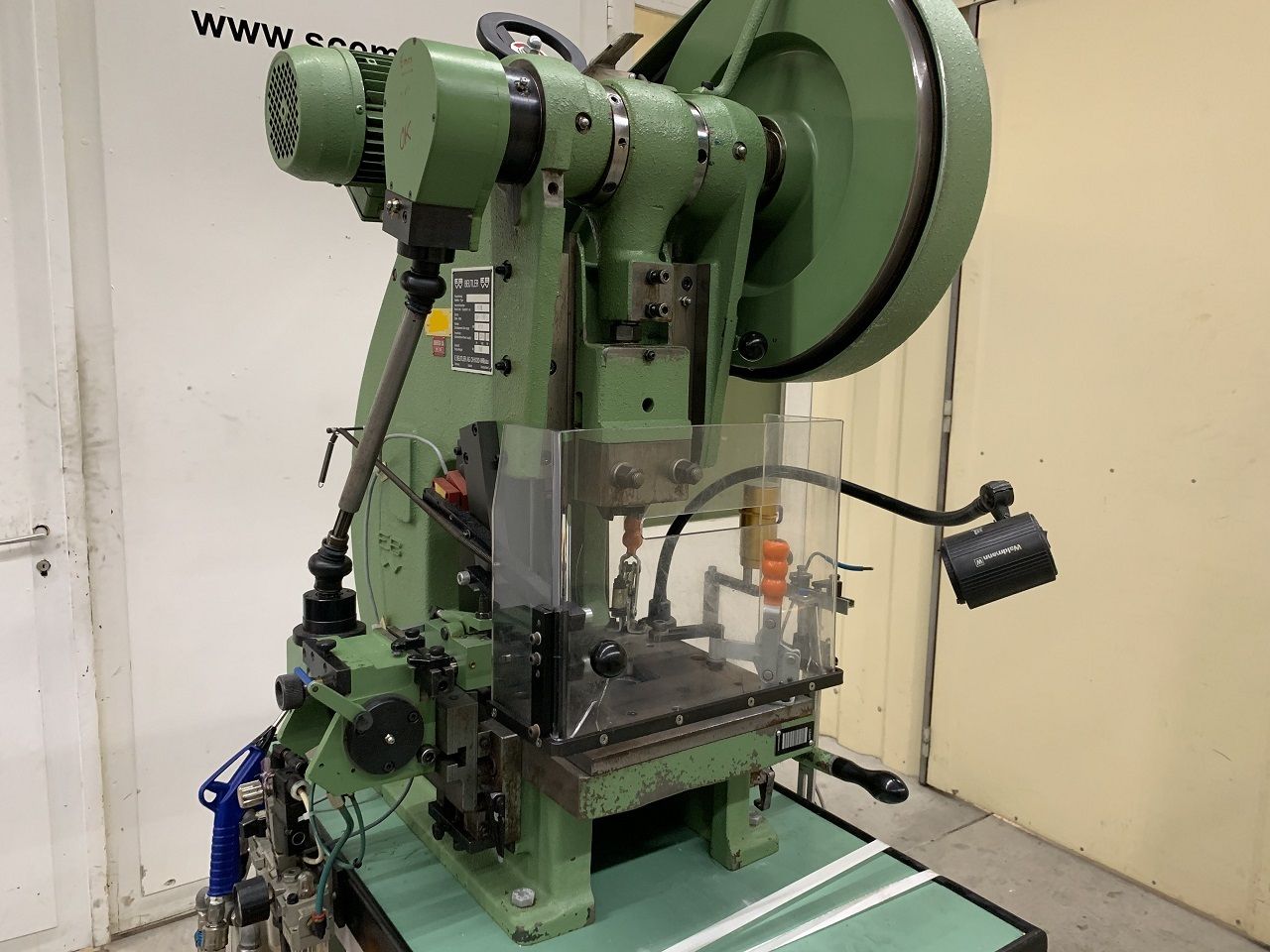

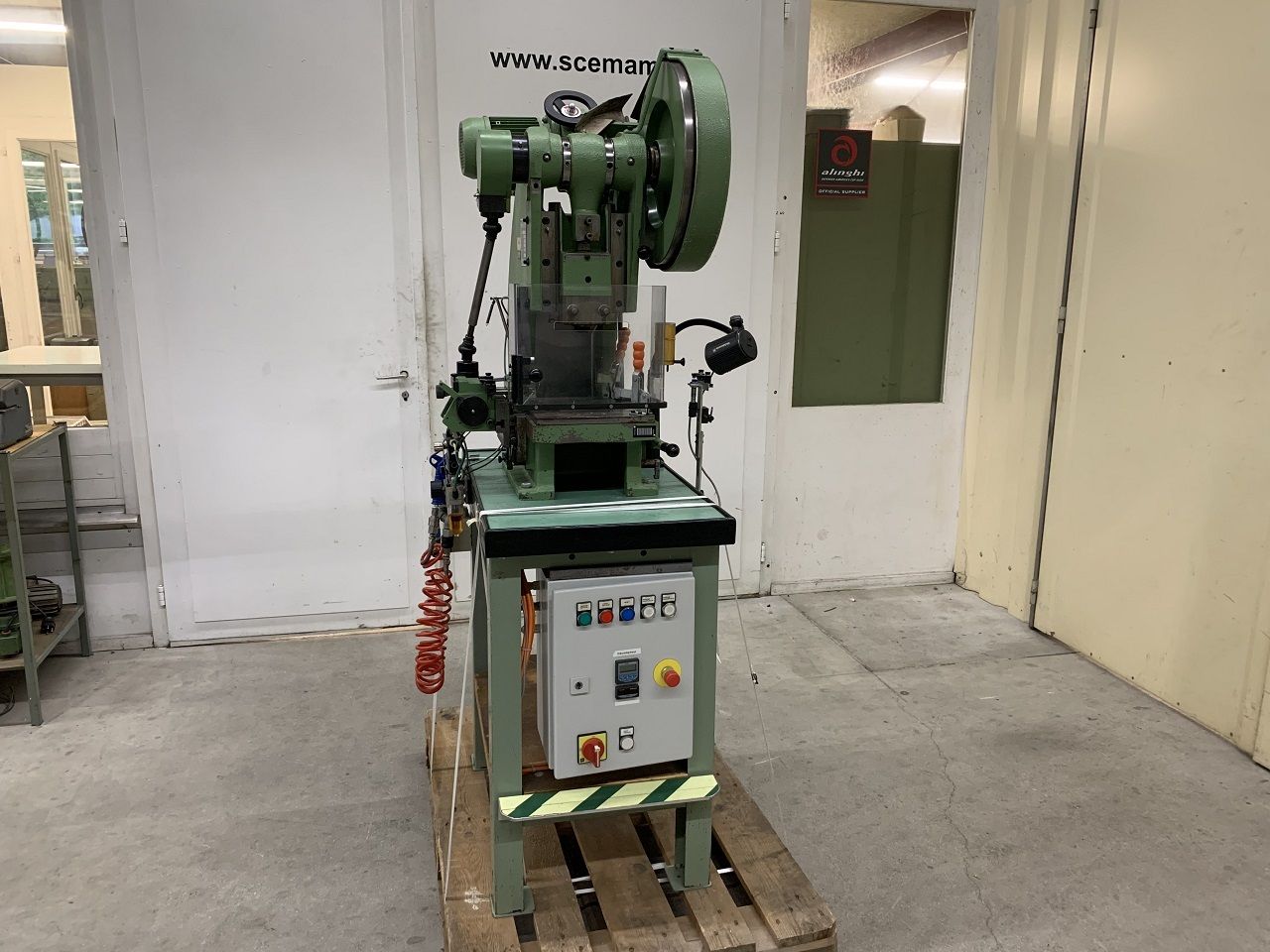

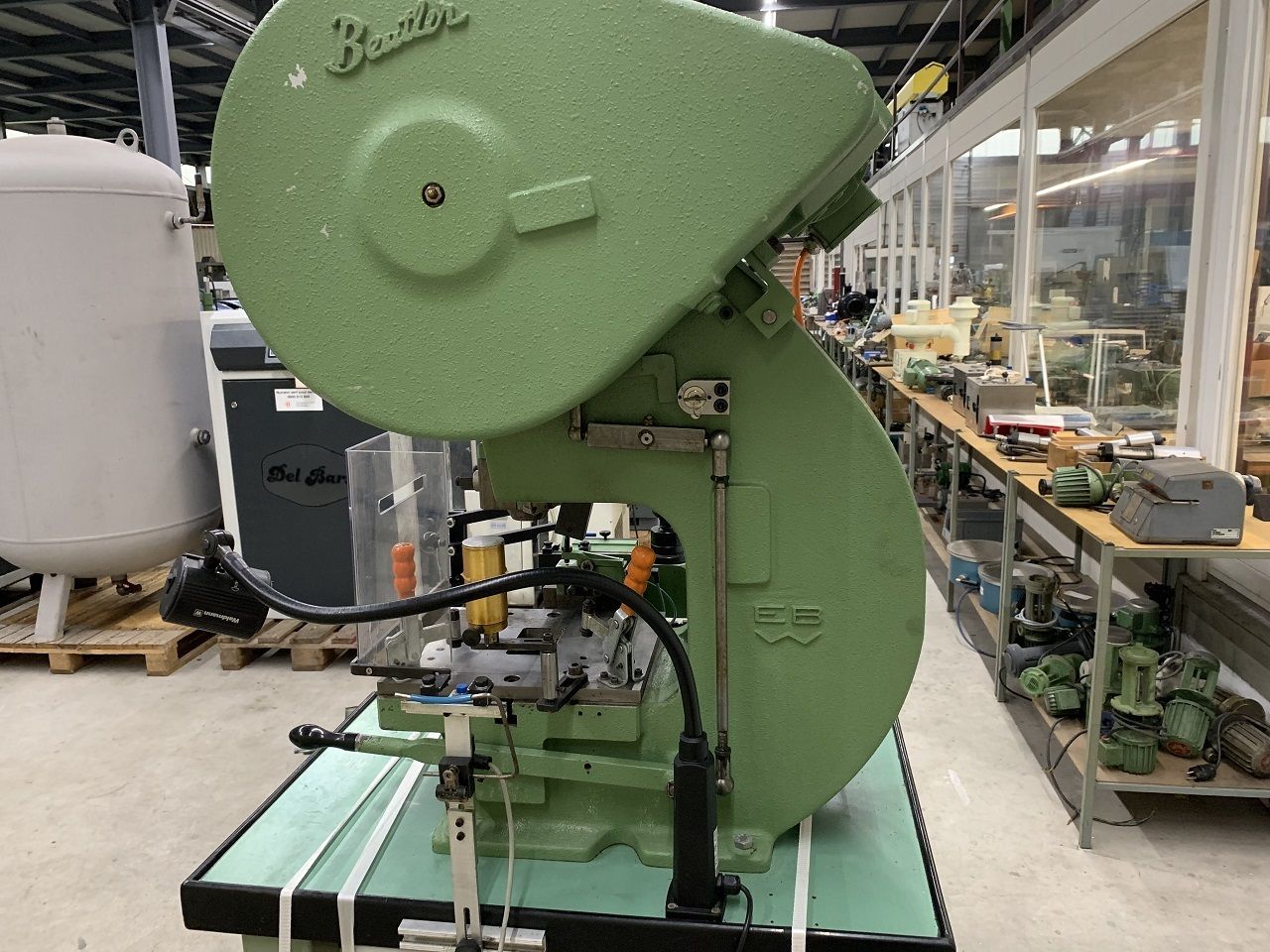

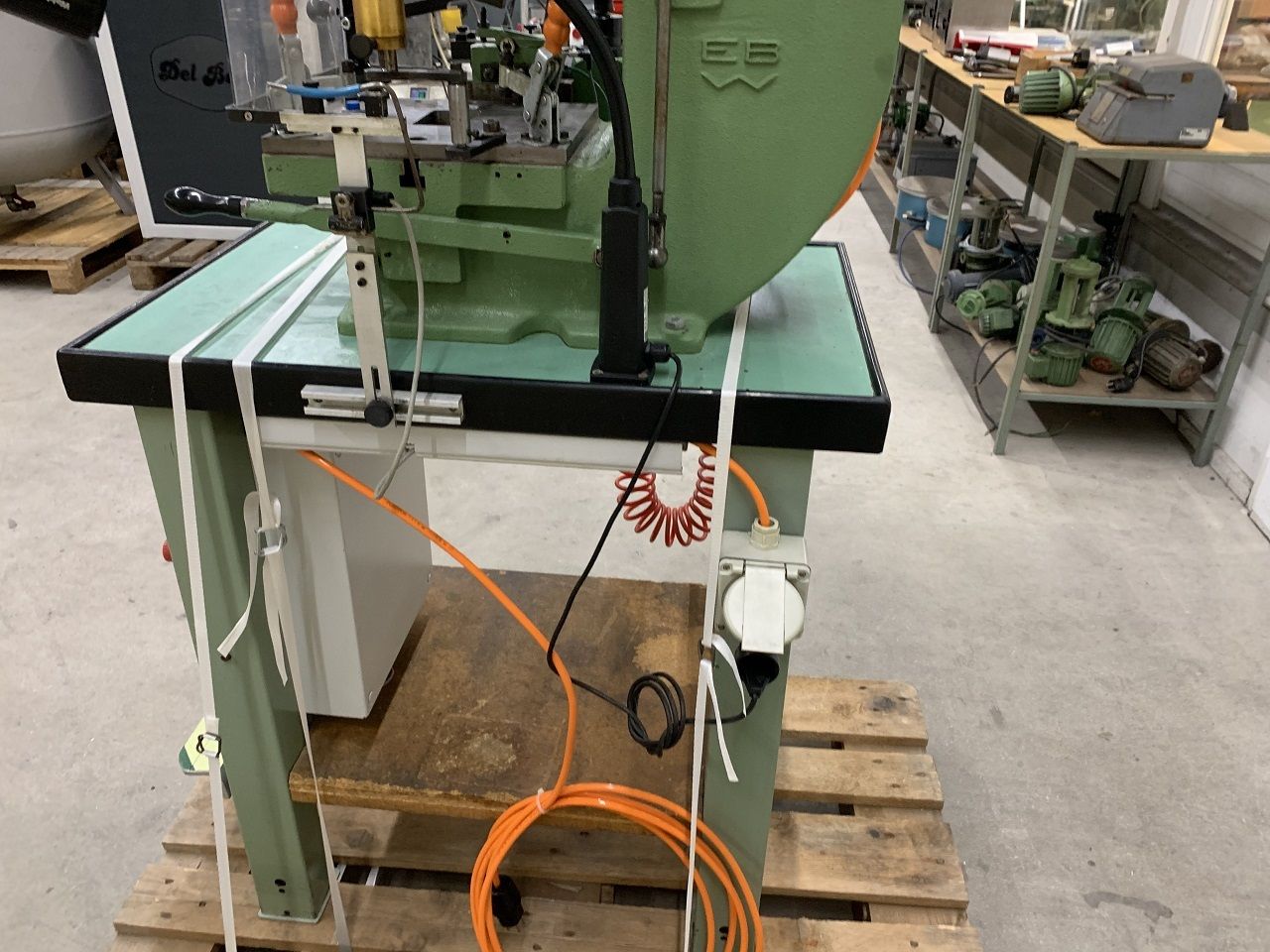

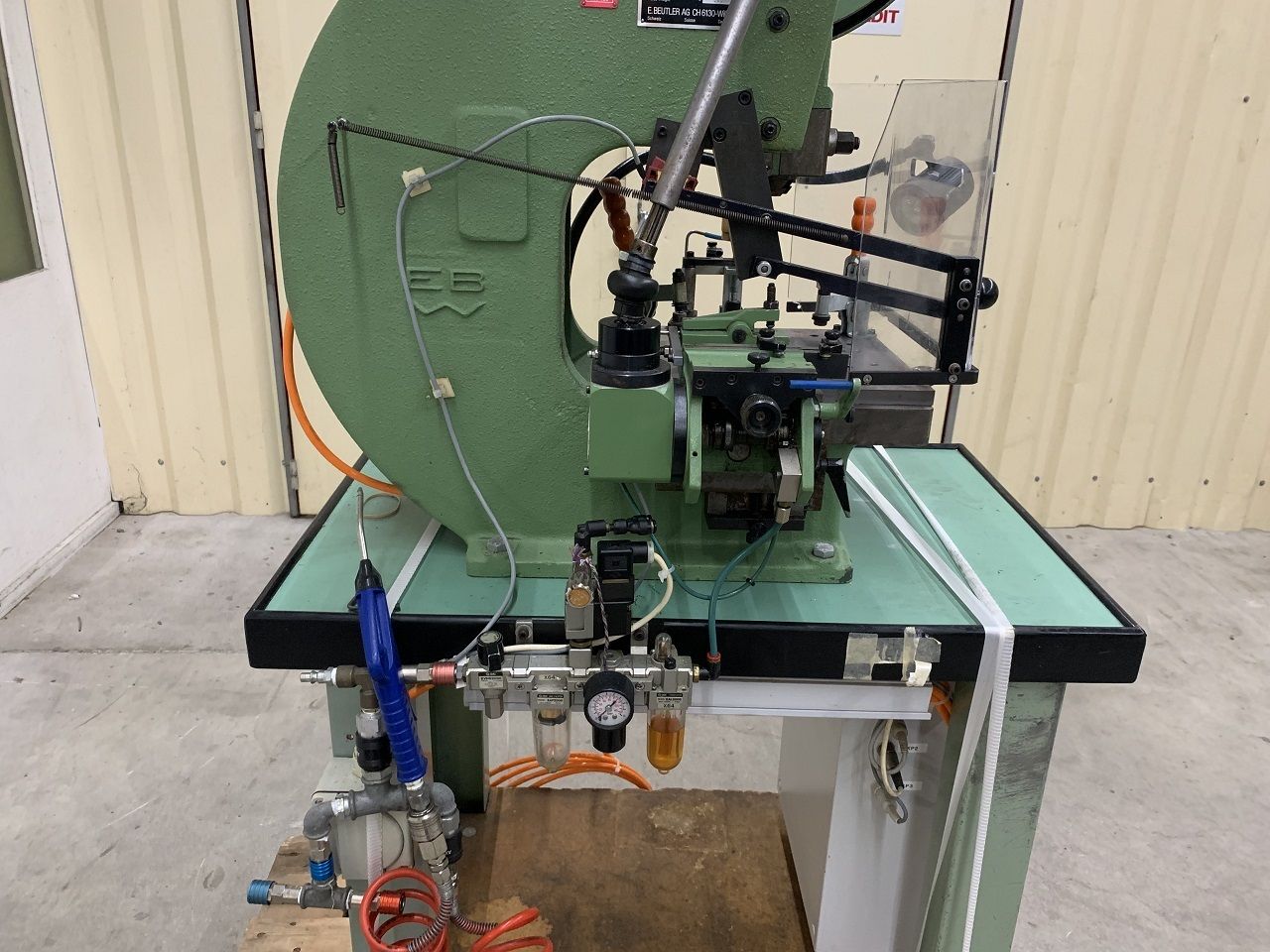

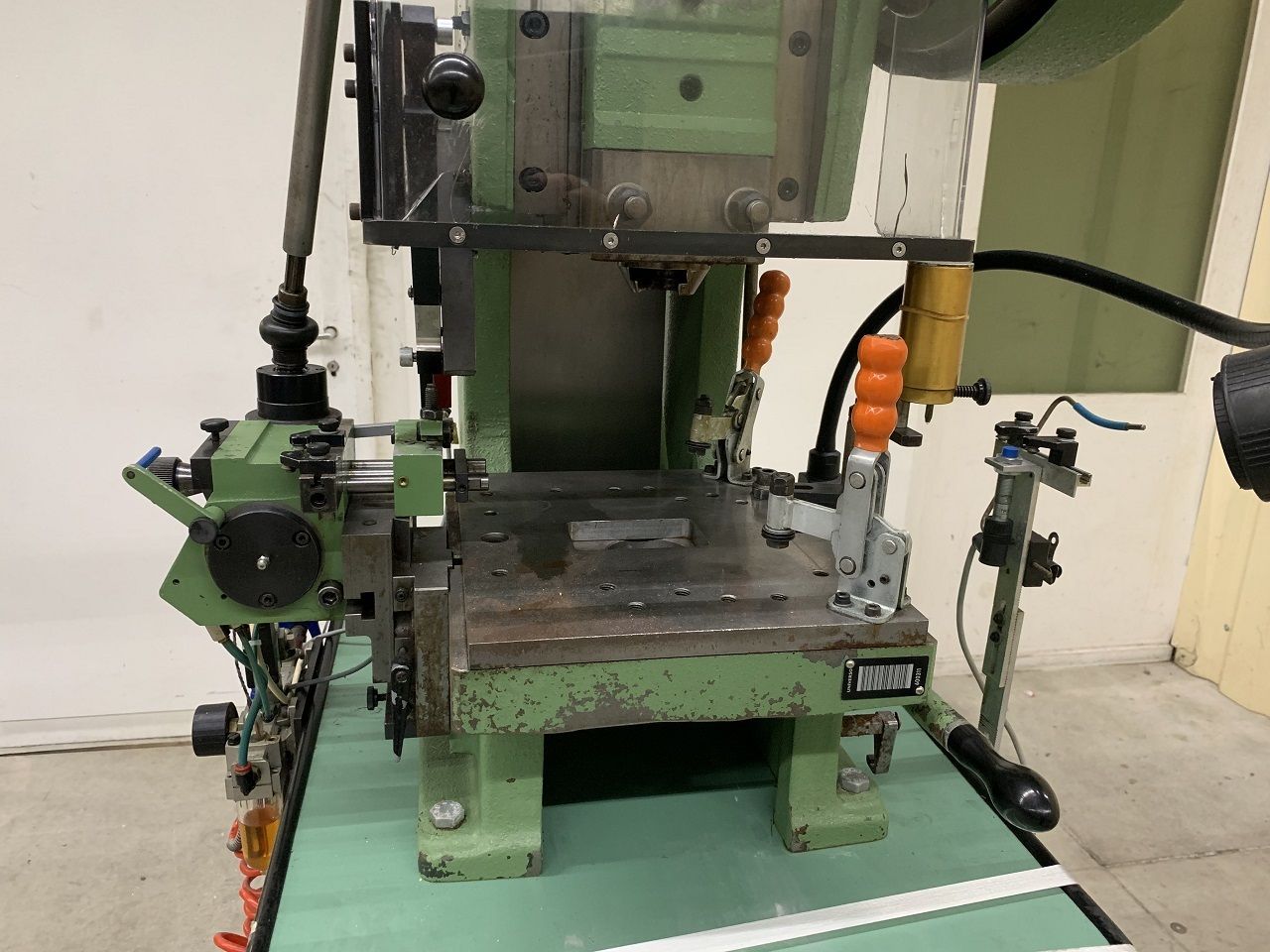

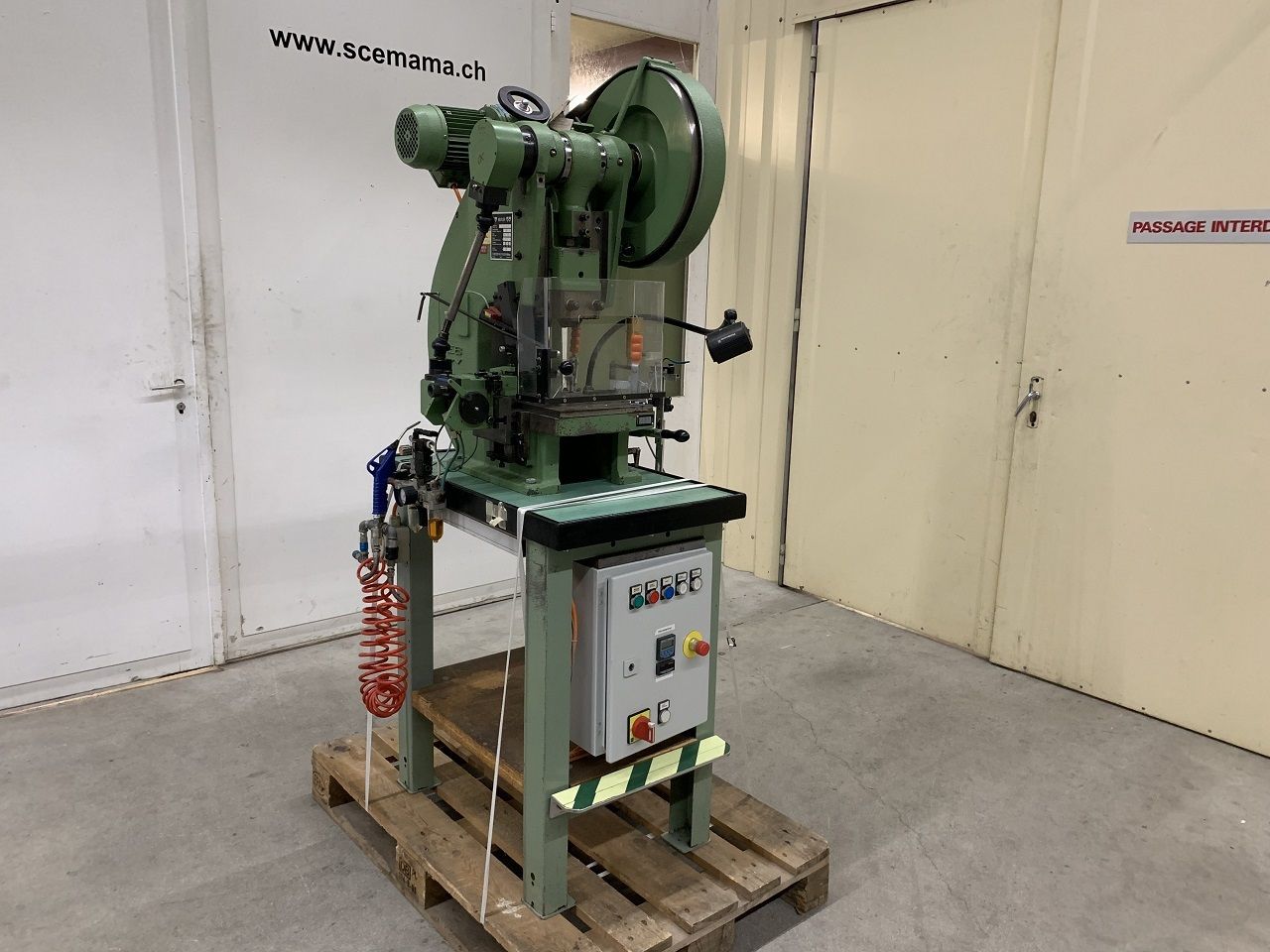

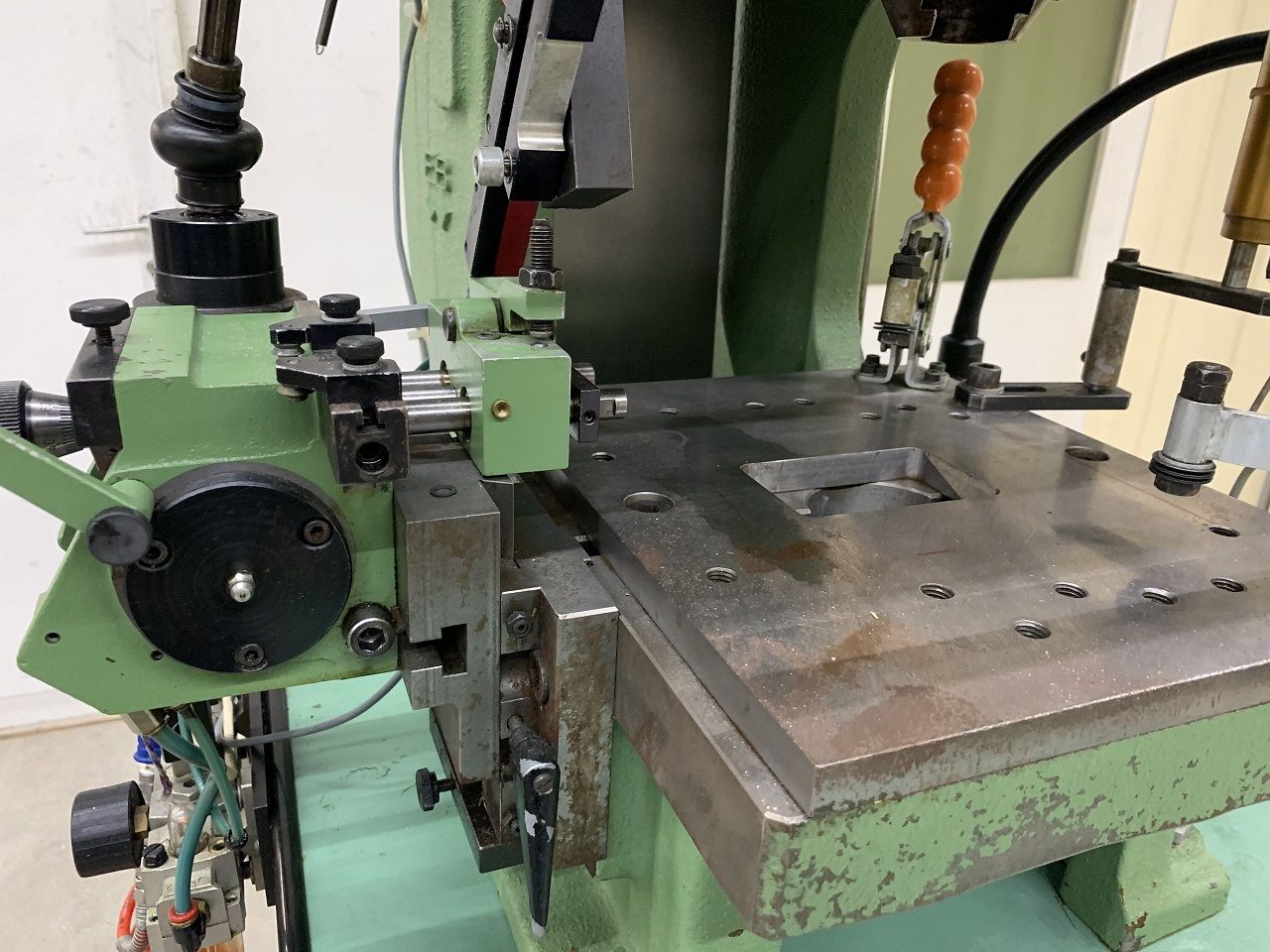

<h1>EXCENTRIC PRESS BEUTLER D8-200</h1>
</div>
<p>
<b>Reference</b>: 2190094
</p>
<p> </p>
<hr>
</section><br/><section id="details">
<h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing origin</td><td>Swiss</td></tr><tr><td>Voltage</td><td>380/50/3</td></tr><tr><td>Netweight with motor, without pillar</td><td>245-295 kg</td></tr><tr><td>Netweight of standard pillar</td><td>95 kg</td></tr><tr><td>Custom position</td><td>8462.9930</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA TYPE D-8 / D8-200</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Pressure exerted (maximum)</td><td>8 tons</td></tr><tr><td colspan="2">Max. cross section area of blank (shearing strength</td></tr><tr><td> 40 kg/mm2</td><td>200 mm2</td></tr><tr><td>Standard fixed stroke</td><td>20 mm</td></tr><tr><td>Variable stroke, standard range</td><td>4-36 mm</td></tr><tr><td>Variable stroke, extra wide range</td><td>8-50 mm</td></tr><tr><td>Distance from underside of slide to table, slide up</td><td>220 mm</td></tr><tr><td>Thickness of bolster plate</td><td>42 mm</td></tr><tr><td>Standard opening in bolster plate, dia.</td><td>50 mm</td></tr><tr><td>Opening in table, dia.</td><td>60 mm</td></tr><tr><td>Hole in slide for top tool shank, dia. X depth</td><td>38x60 mm</td></tr><tr><td>Adjustment of slide</td><td>70 mm</td></tr><tr><td>Area (underside) of slide face</td><td>105x90 mm</td></tr><tr><td>H.P. to drive</td><td>1/3</td></tr><tr><td>Flywheel, dia. X width</td><td>410x85 mm</td></tr><tr><td>Speed of flywheel</td><td>180 RPM</td></tr></tbody></table><h3>TECHNICAL DATA TYPE D-8 :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Depth of throat (dist. Back from center of slide)</td><td>100 mm</td></tr><tr><td>Width of opening through back</td><td>170 mm</td></tr><tr><td>Area of bed</td><td>270x190 mm</td></tr></tbody></table><h3>TECHNICAL DATA TYPE D8-200 :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Depth of throat (dist. Back from center of slide)</td><td>200 mm</td></tr><tr><td>Width of opening through back</td><td>160 mm</td></tr><tr><td>Area of bed</td><td>270x300 mm</td></tr><tr><td colspan="2">errors and omissions excepted data given without obligation</td></tr></tbody></table></div>
</section>.
