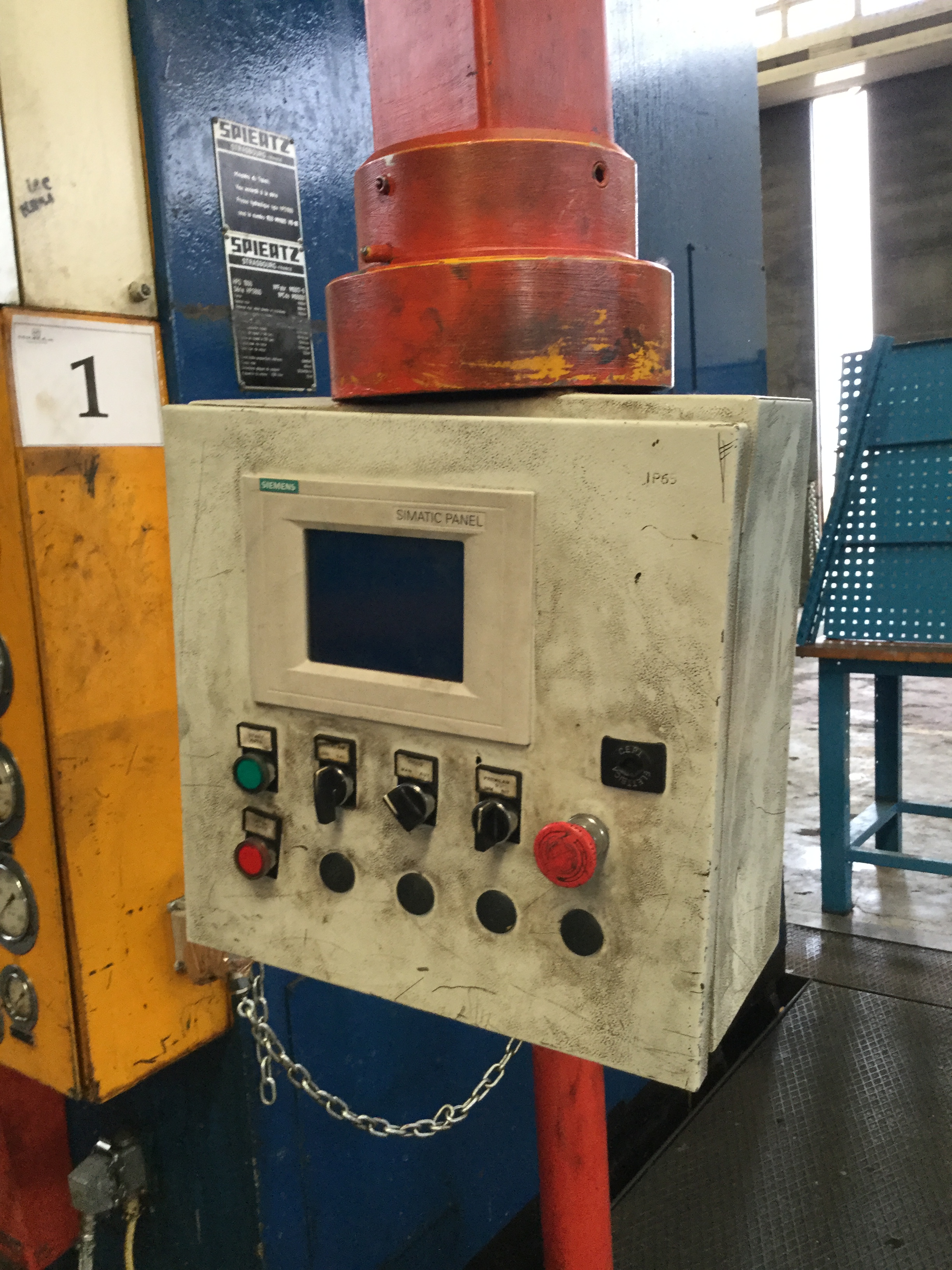

SPIERTZ
08590
SERIES HPS 800
HYDRAULIC DOUBLE COLUMN
Thrust 800 + 200 ton
Table dimensions 3200x2000 mm
Slide stroke 1000
Slide dimensions mm 3200x2000
Cushion 480 ton - stroke mm 400
Approach speed mm/s 400
Return speed mm/s 121
Working speed mm/s 11/800 ton.
Working speed mm/s 20/500 ton.
Return force kN 1323
Overall dimensions: height 7700 mm
Motor power kW 100
Electrical system SIEMENS
USED MACHINE
IMS
09934
C-FRAME PRESSES
Free passage between the uprights mm: 220
Distance between the connecting rod axis and the uprights (recess) mm: 160
Hammer dimensions mm: 250x130
Worktop dimensions mm: 500x310
Minimum distance between work surface and hamm...
OMCN
09740
HYDRAULIC WITH MOVABLE PISTON
Power Ton 300
Distance between frames mm 1500
Gap mm 910
Piston stroke mm 500
Rapid control unit flow rate at 1' lt. 80
Slow control unit flow rate at 1' lt. 7.5
Rapid stem speed 1' mm 950
Slow stem speed 1' m...
