MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • PRESS MIOS T105-TR
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

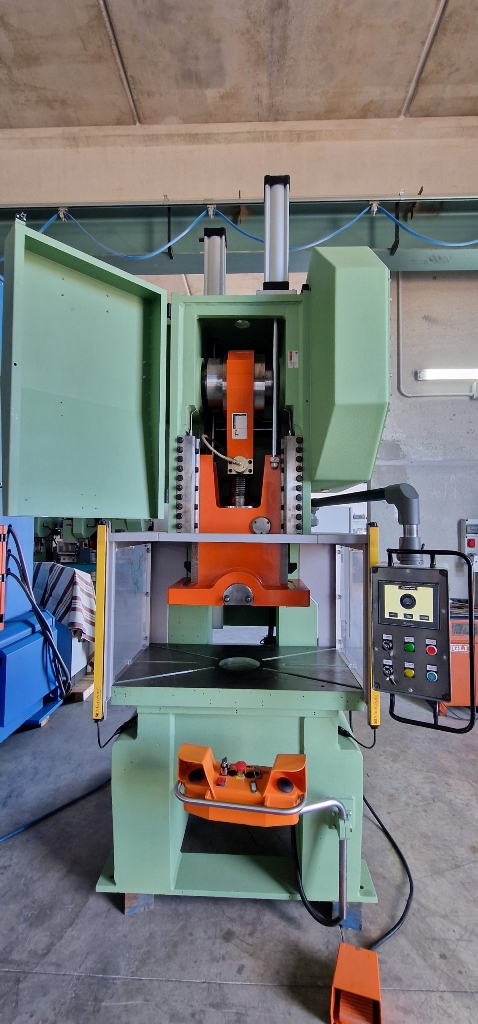

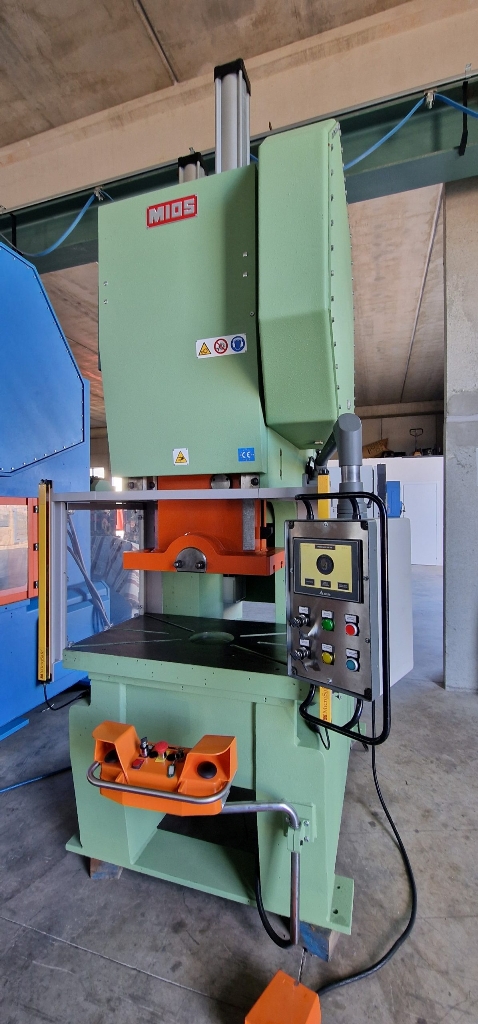

MIOS 09938 C-FRAME PRESSES Nominal force: kN 1050 Mass: Kg. 7,100 Nominal number of strokes: 60 min. Operating air pressure: BAR 4.3÷5.5 Installed power: KW 7.5 Min./max. stroke: mm.15/140 Projection: mm310 Min./max. distance between table and ram: 340/480 Ram hole: mm.50 Ram adjustment: mm.100 Air consumption: Lt 1.1 Stop position: P.M.S Voltage: V 380 Frequency: 50Hz Auxiliary voltage: V 24 Motorized ram adjustment Hydraulic overload Machine equipped with photoelectric guards. USED MACHINE
