MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Meddings
  • Model:
  • Used Meddings M4 Pillar Drill (4758)
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

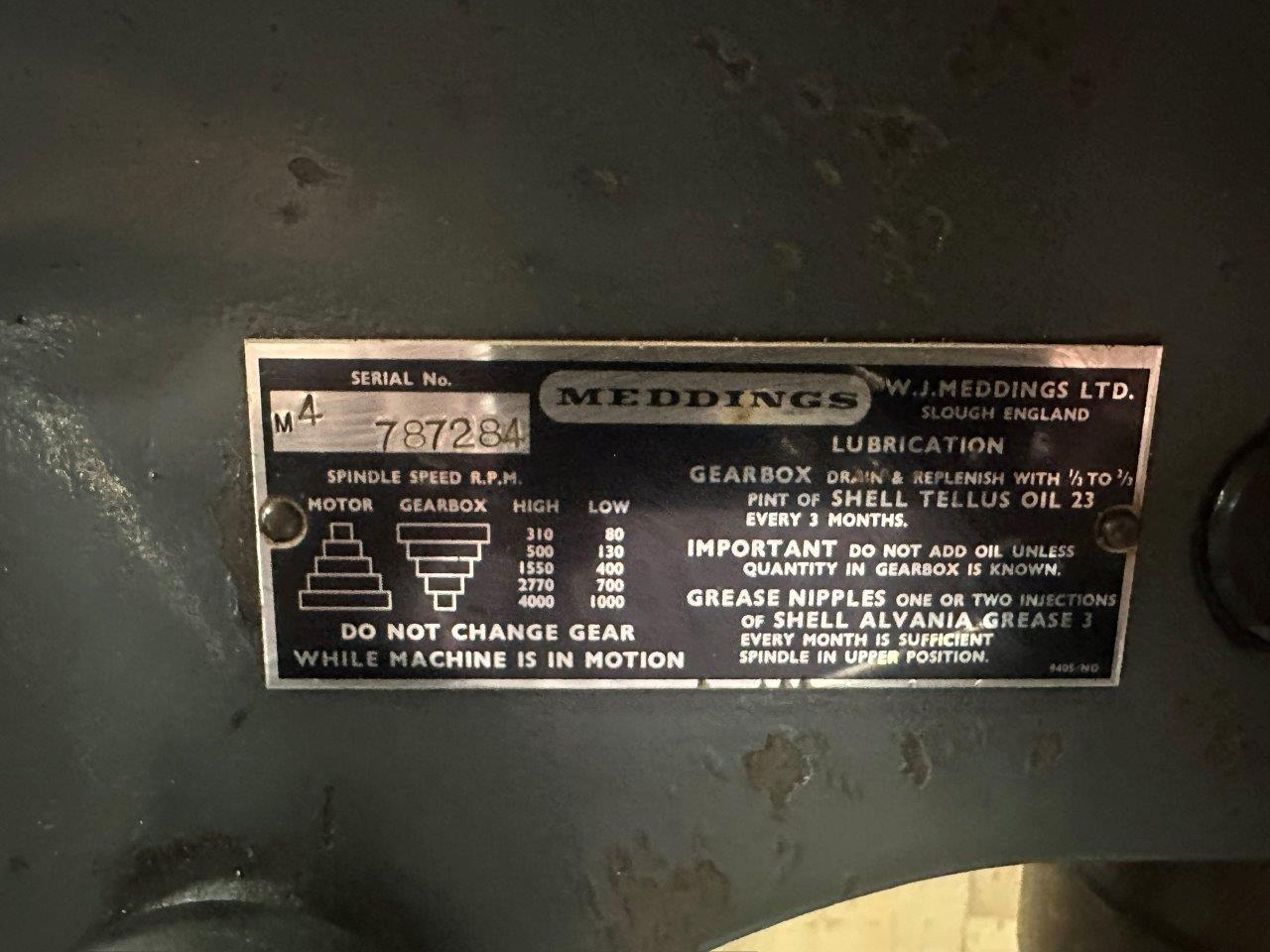

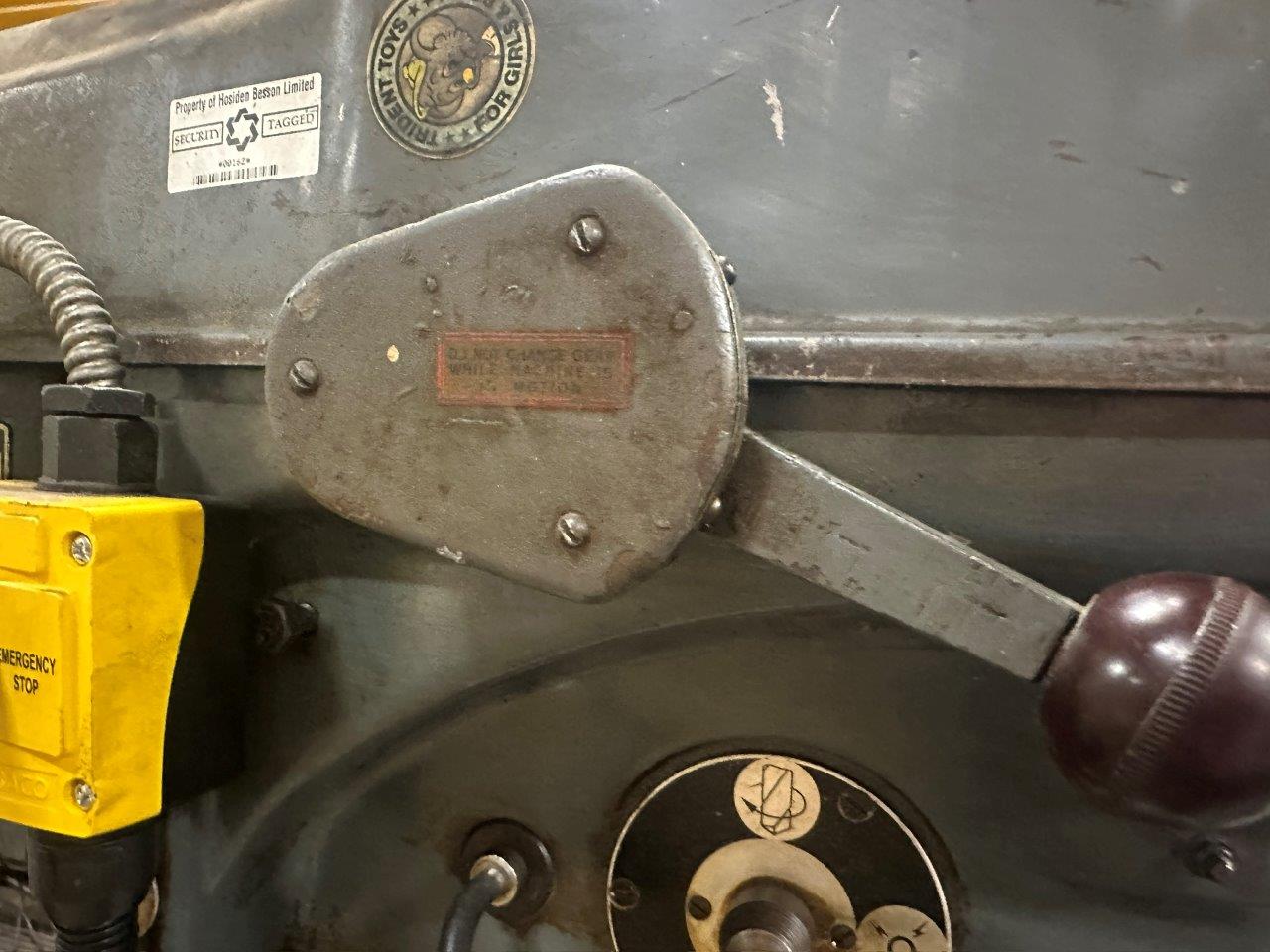

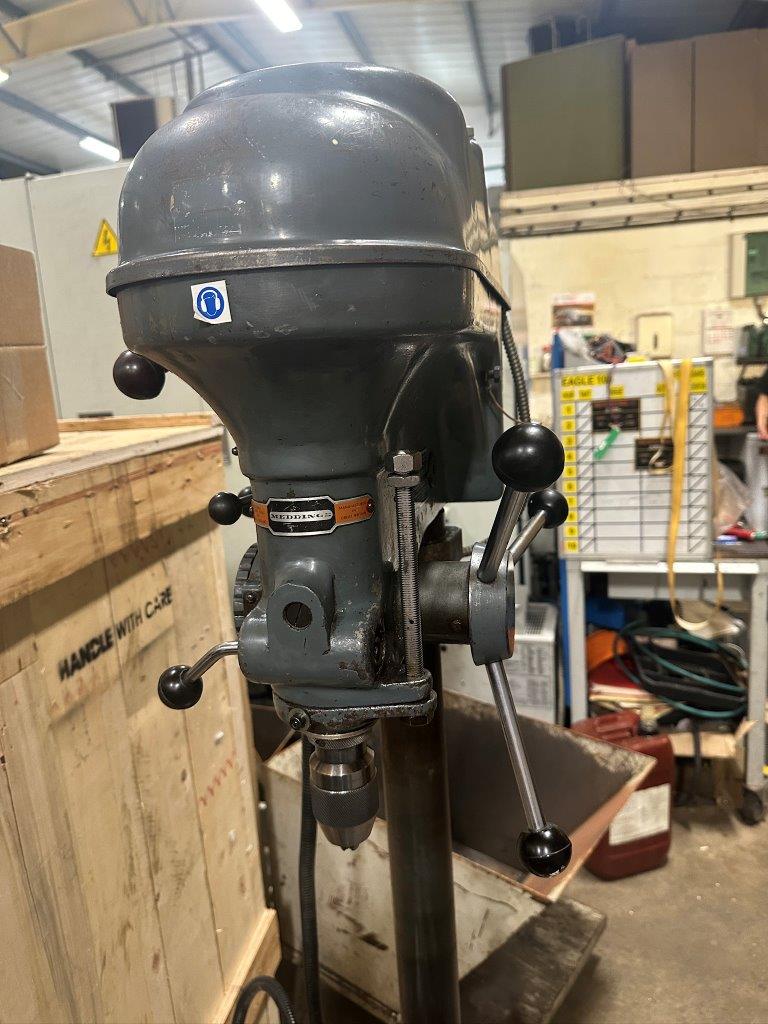

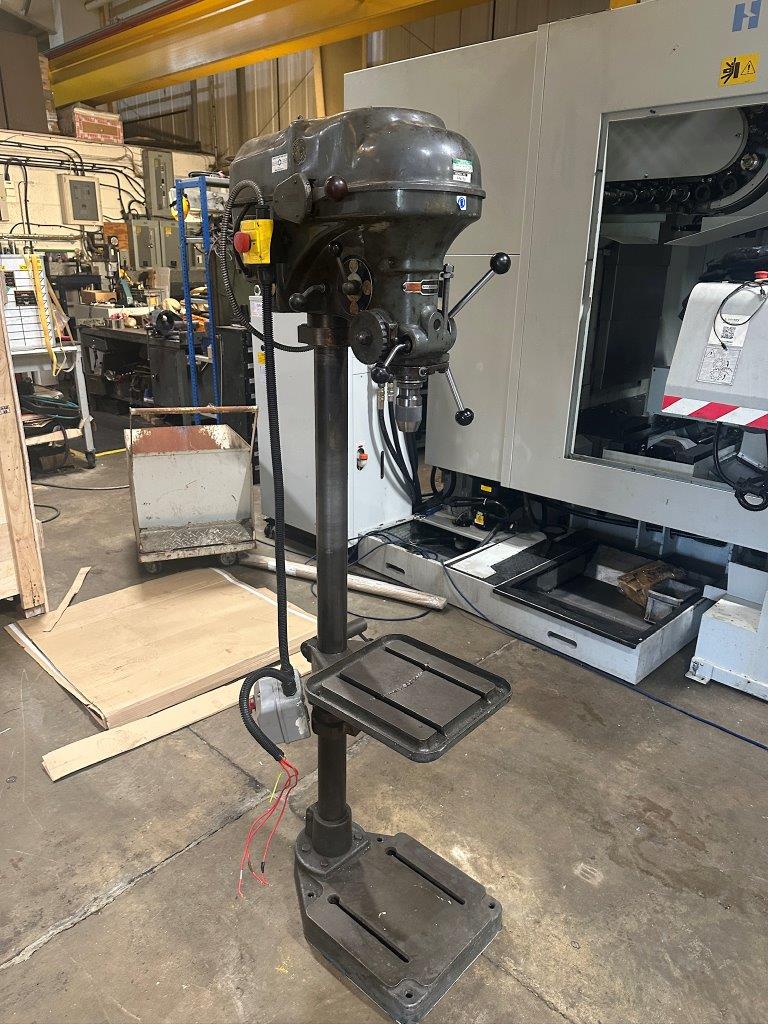

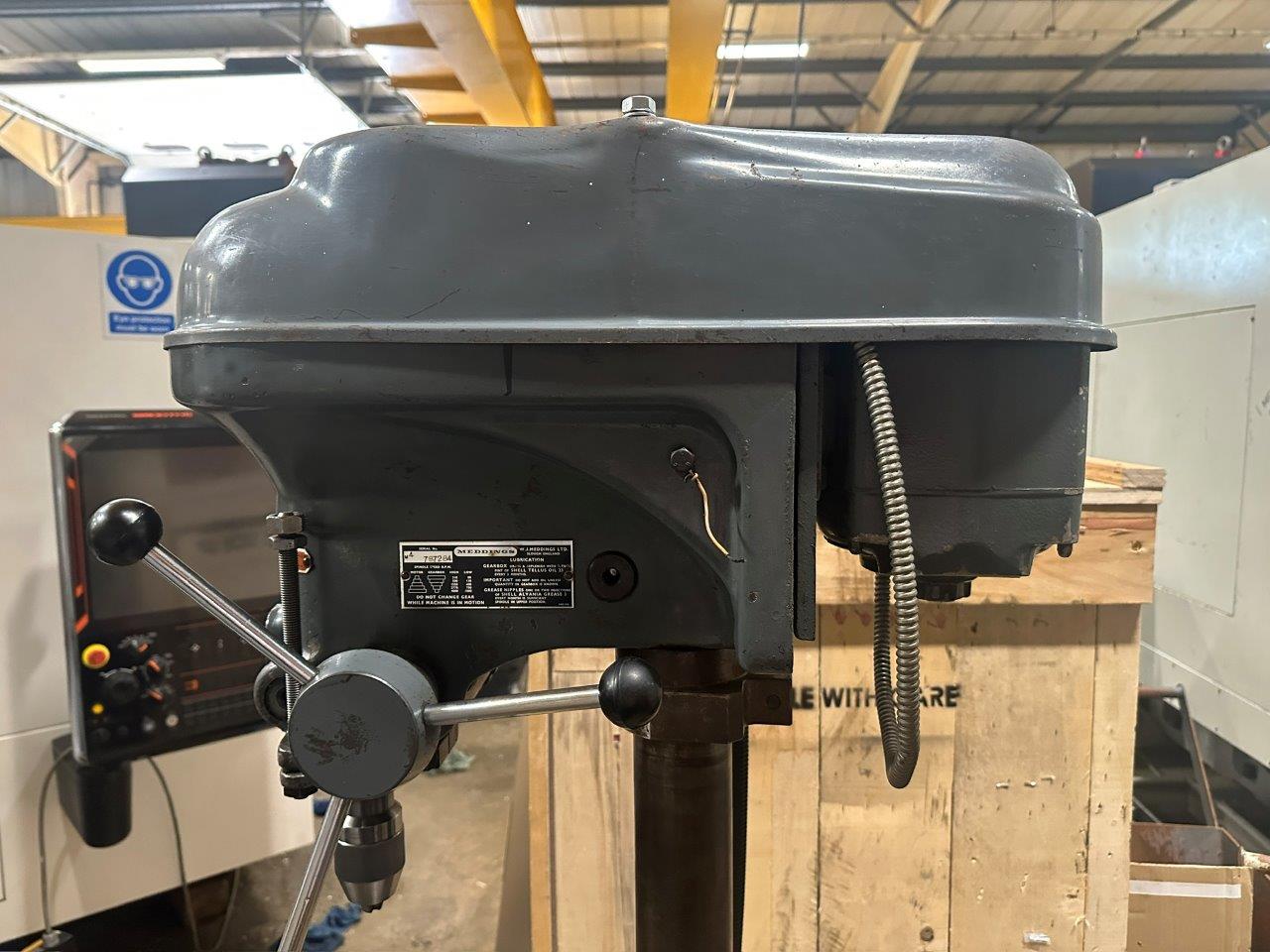

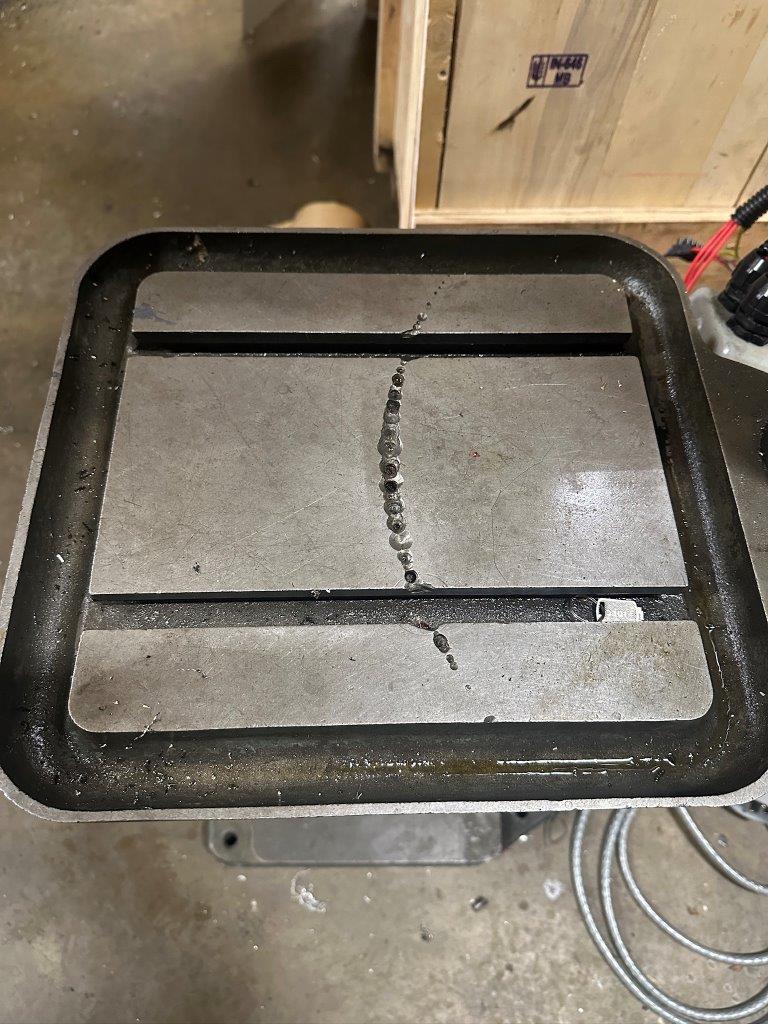

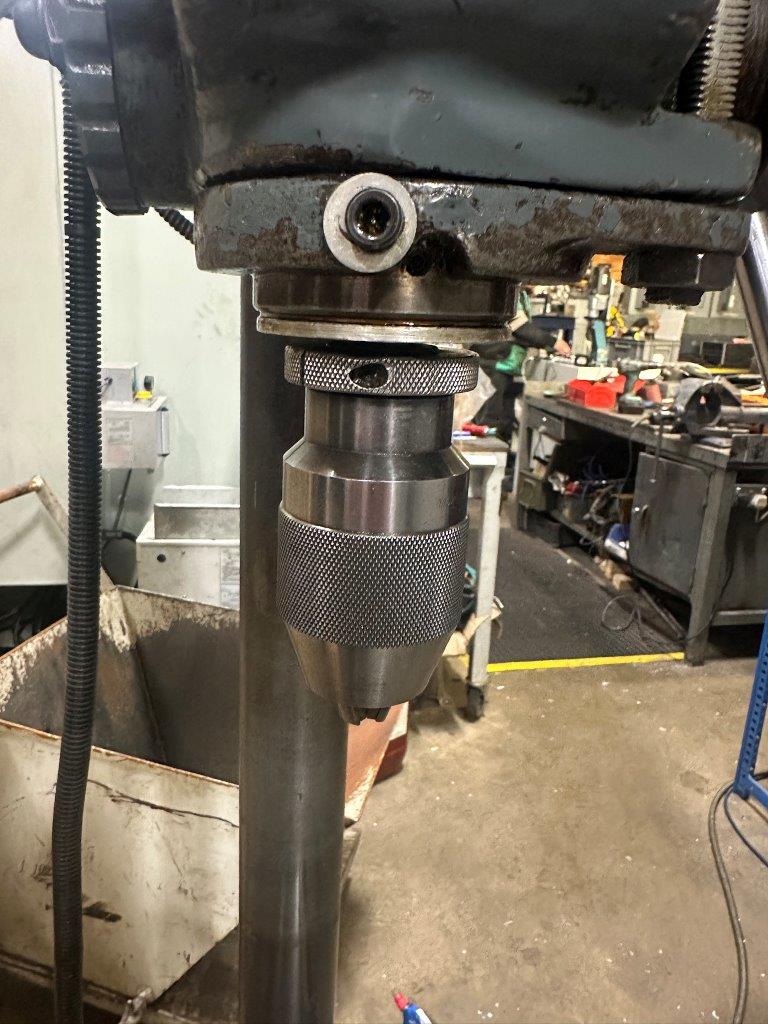

Used Meddings M4 Pillar Drill, 2 speed gearbox, Belt change speed, 2 morse taper spindle, 14" x 13" table (350 x 330mm), 125mm quill travel, 950mm maximum spindle to table, 1,190 maximum spindle to base, 10 speeds, 80 to 4,000RPM, 3/4 Horse Power Motor, 3 phase power supply, complete with drill chuck
