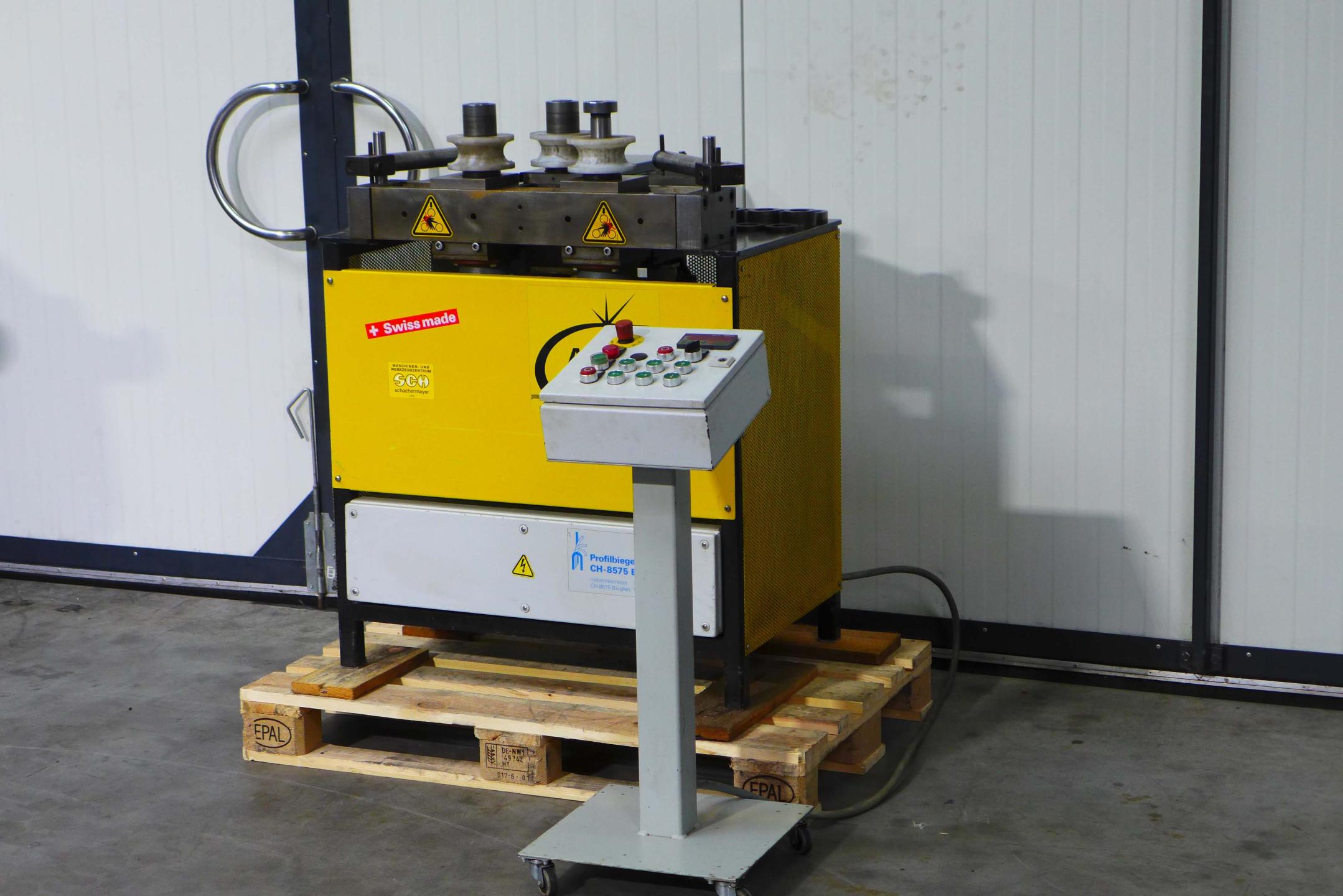

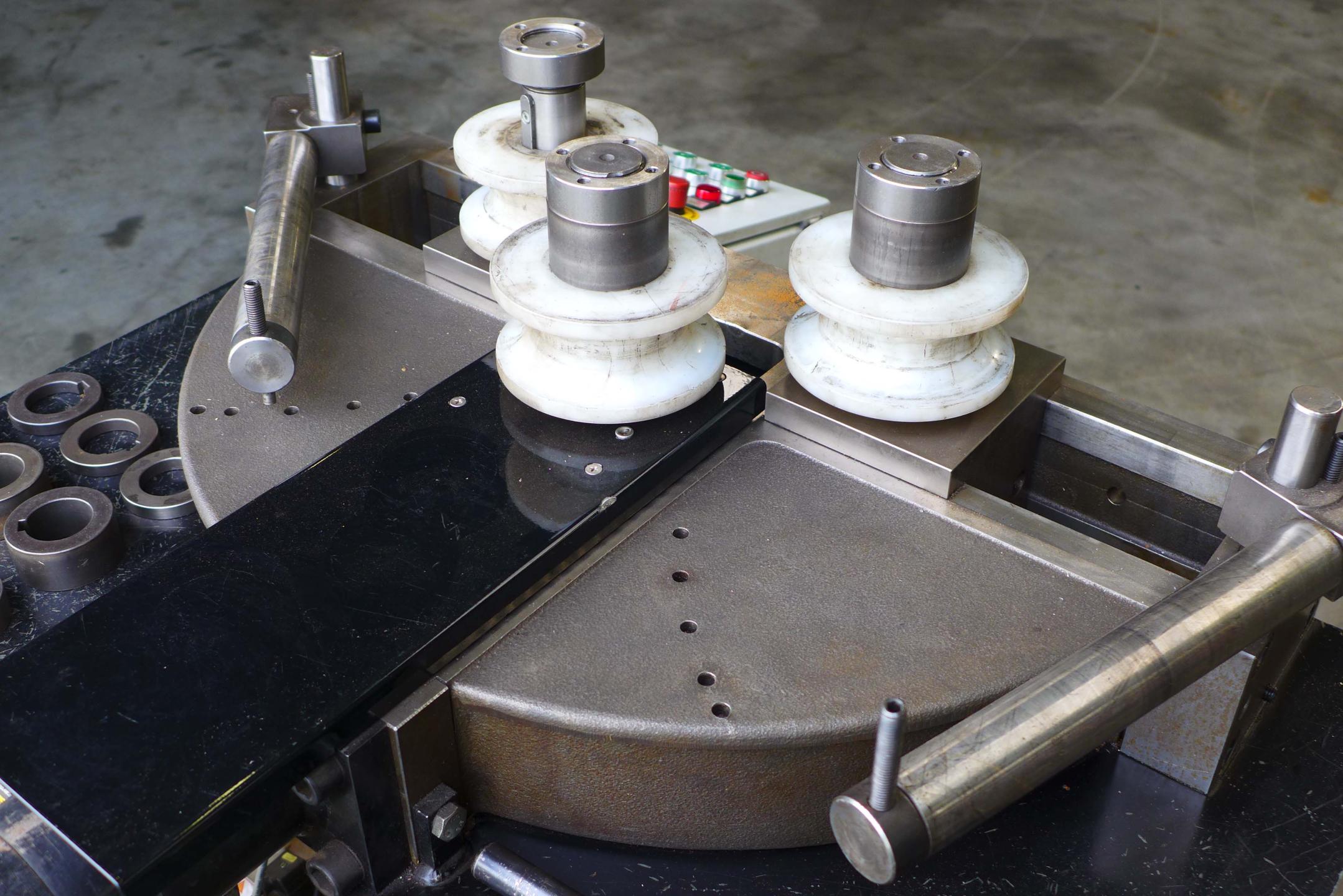

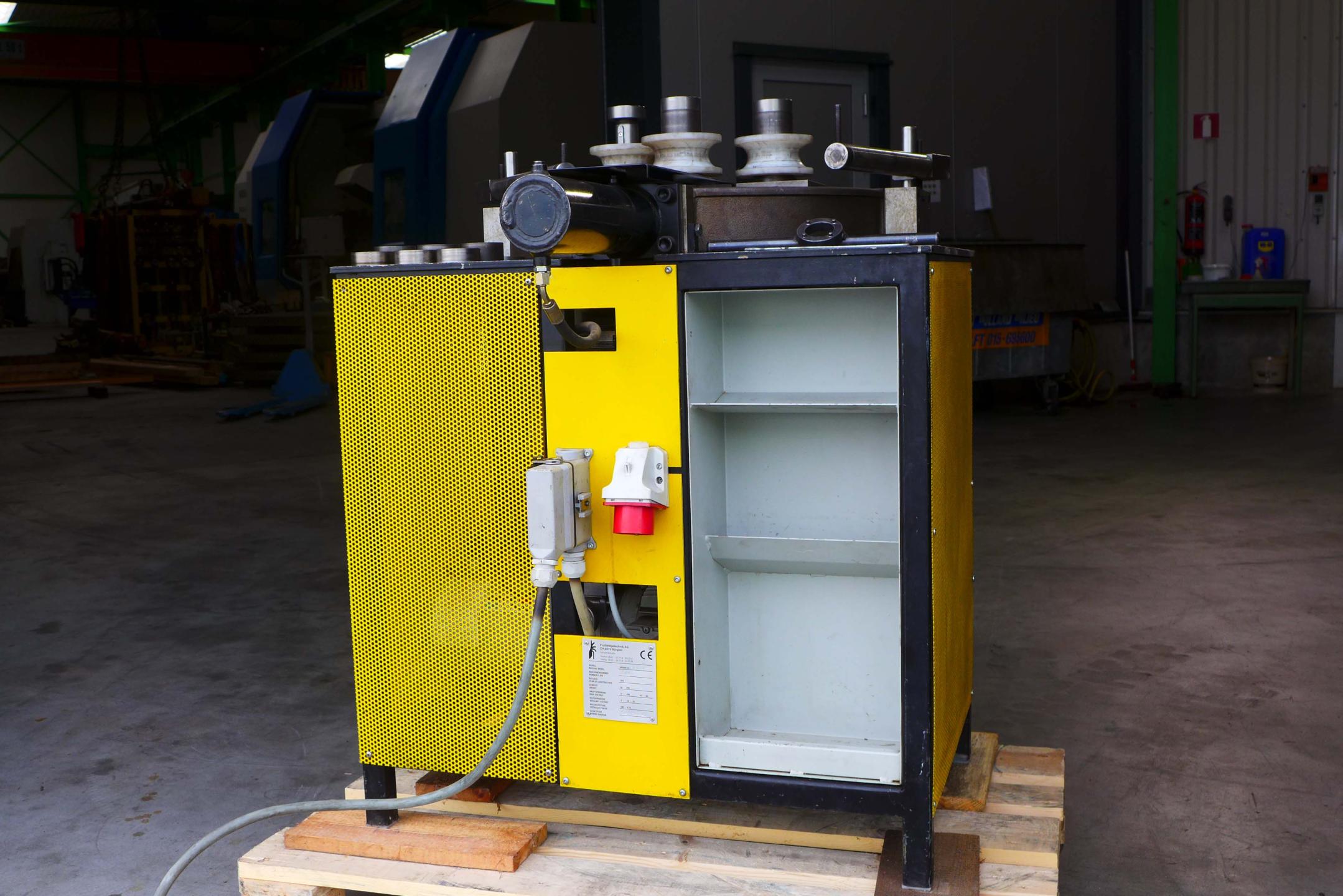

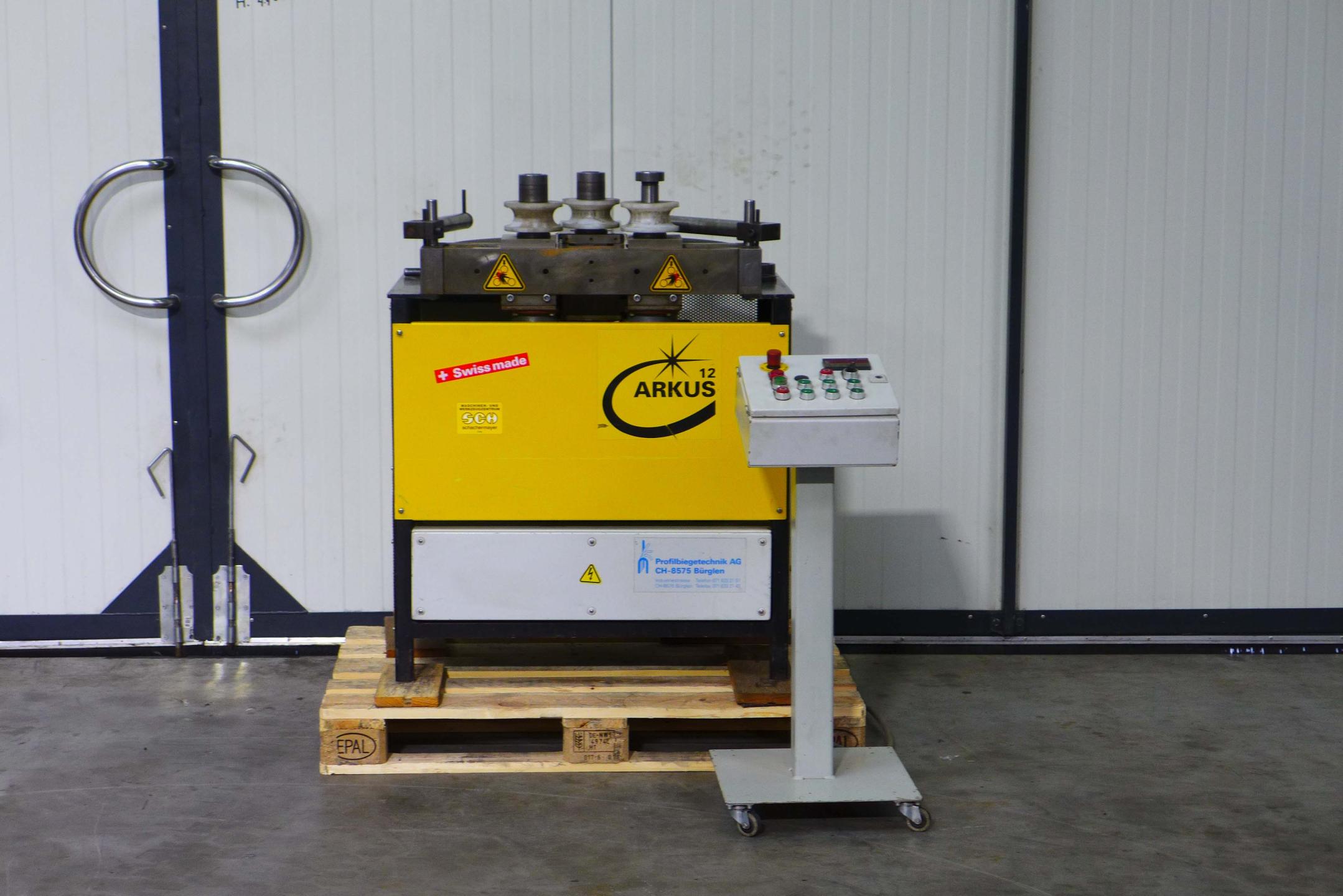

Horizontal and vertical: Horizontal | Shaft Ø: 40mm | Number of rolls: 3 | Horizontal: Yes | Stroke X-Axis: 0 - 200mm | Resistance moment: 500 NmCM³ | Capacity flat: 70 x 12 x R 600mm | Capacity Tube: 60 x R 600Ø x mm | Capacity bar: 30 x 30 x R 300mm | Capacity T-Profile: 60 x 60 x 7 x R 800mm | Working speed: 0 - 18mm/min. | Length: 1200mm | Width: 820mm | Height: 1200mm | Weight: 490kg
Travels X/Y/Z 760/500/510. Spindle center to column 565mm. Spindle nose to table surface 120 ~630mm. Table work area 840 x 500mm. Dimension of T-slot 4 x 18 x 100mm. Max. table load 500kg. Spindle taper BBT-40. Spindle motor – cont./60%/25% (Fanu...
N series is a highly durable standard closed centre chuck.
N series chucks are supplied with a blank drawnut as standard with a set of T-nuts. Kitagawa chucks are manufactured from high grade alloy steel.
