MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

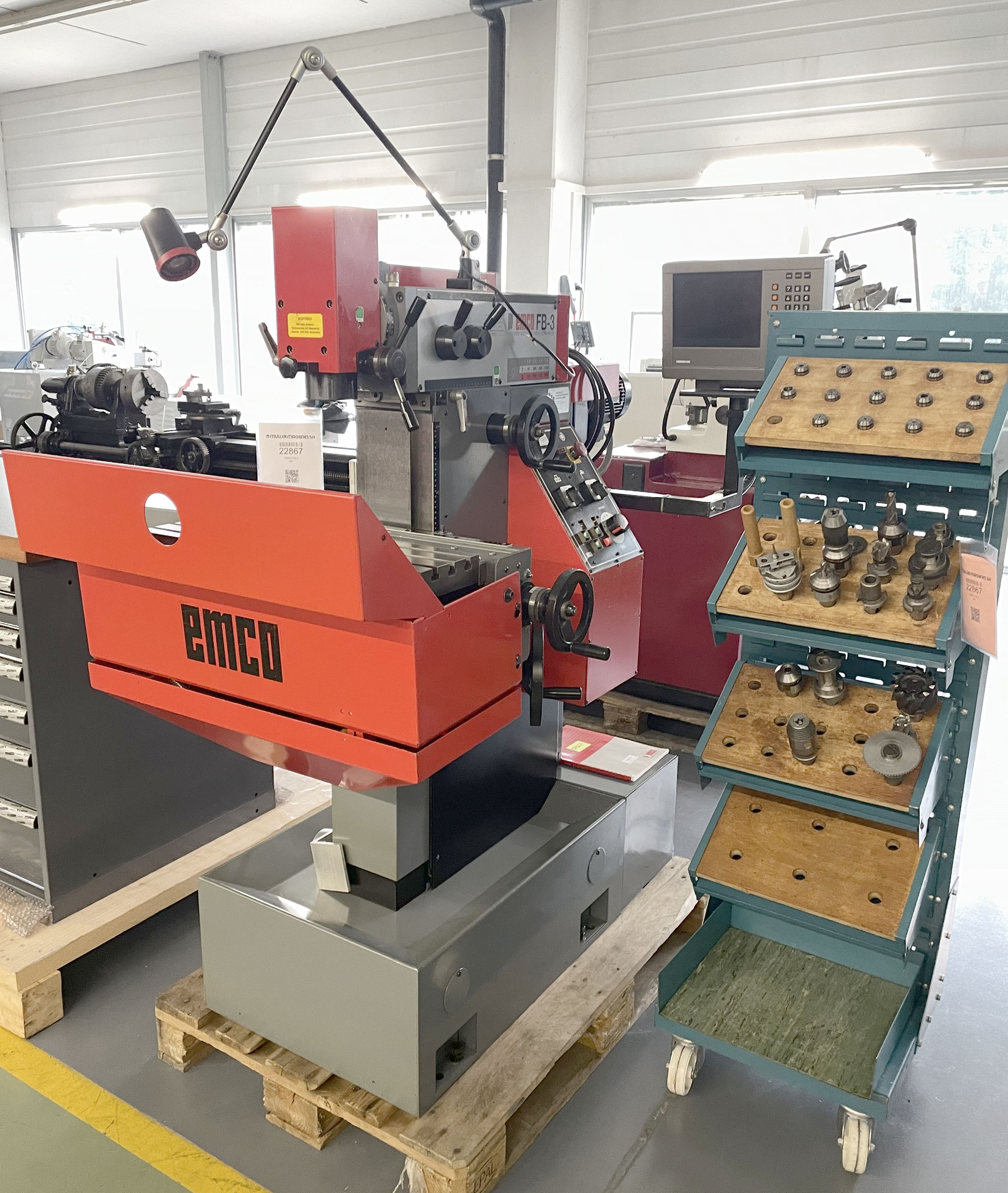

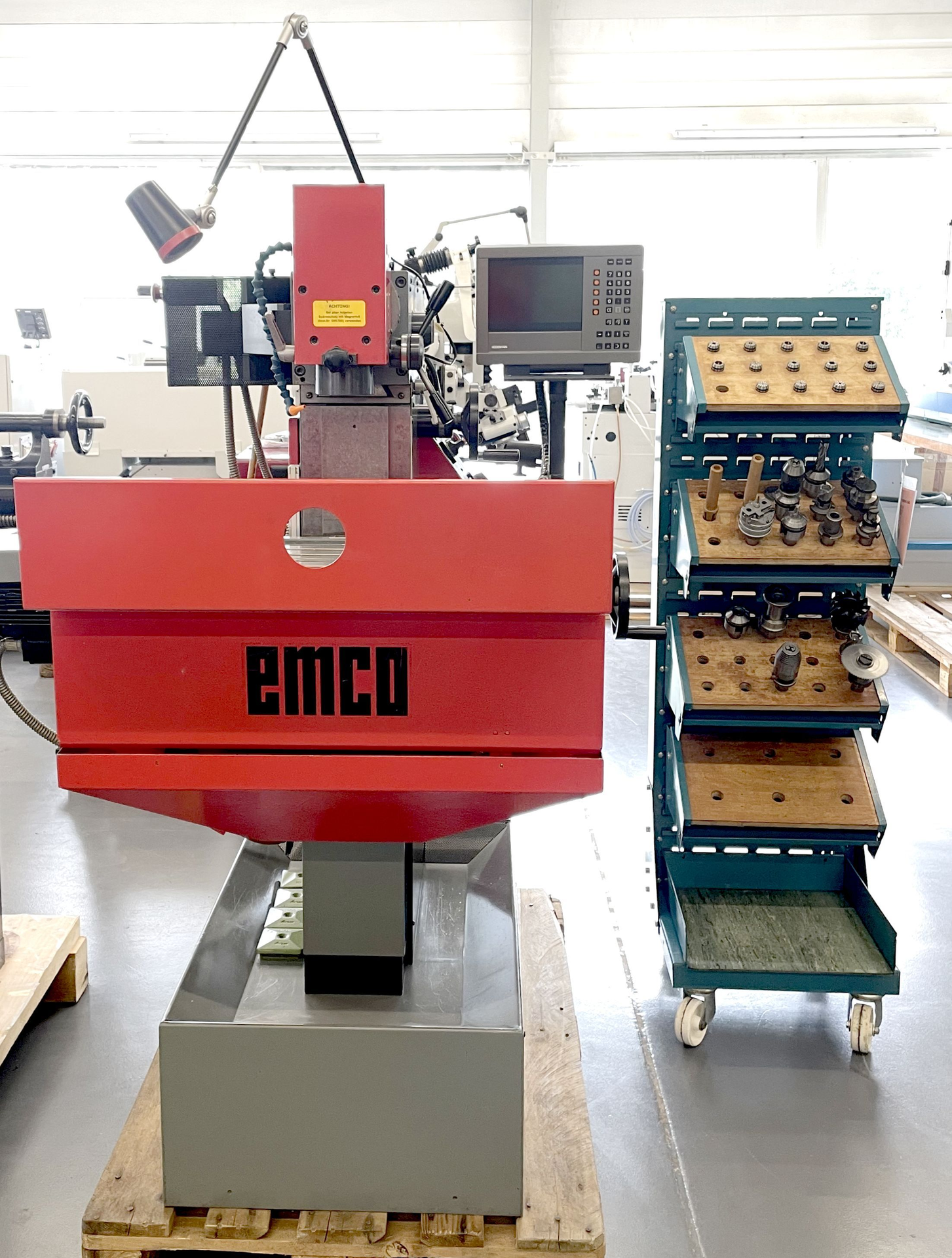

  • 022867 - EMCO FB-3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

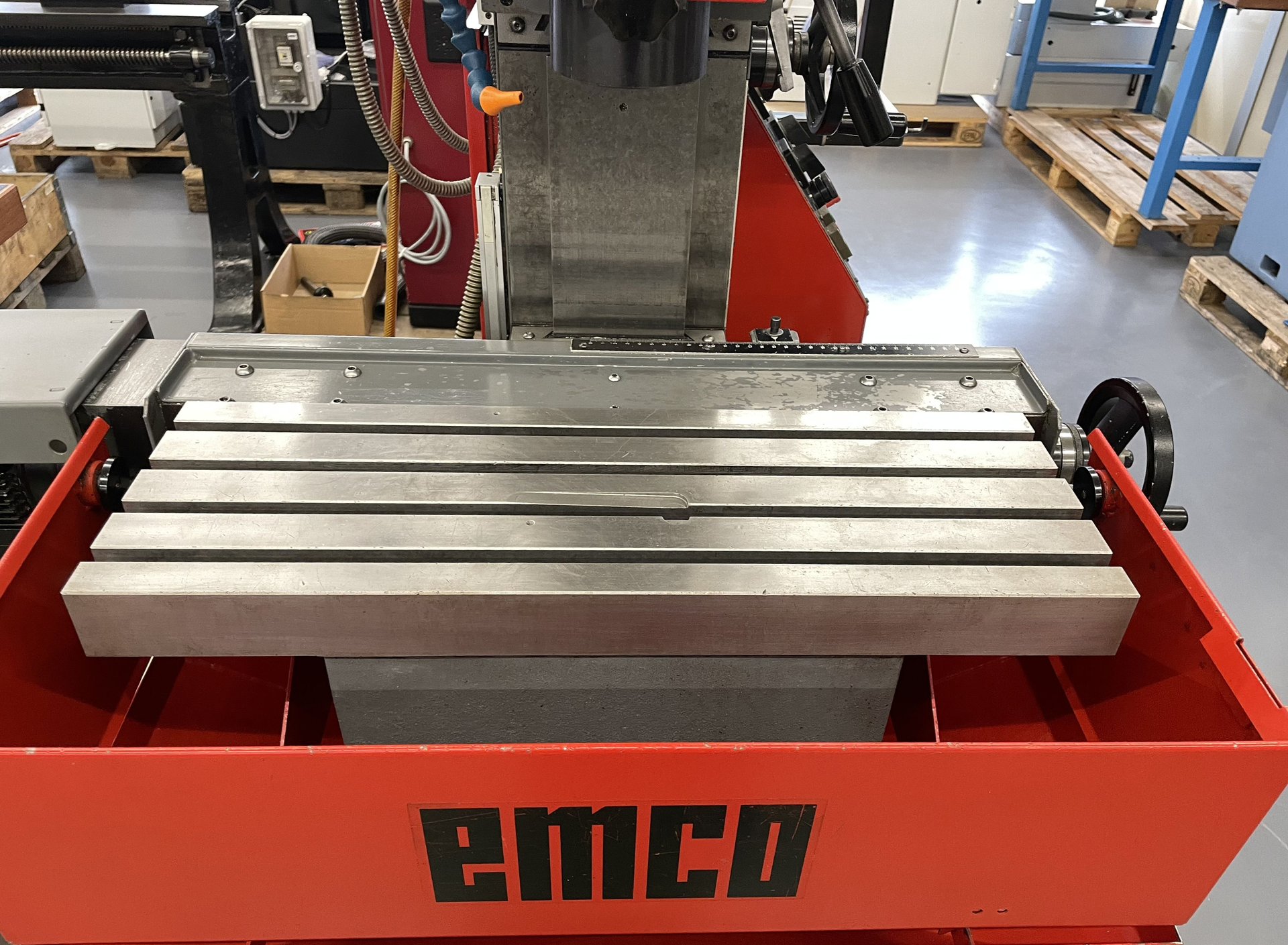

Table length: 600 mm.
Table width: 180 mm.
Number of T-channels: 4.
Longitudinal travel (X-axis): 300 mm.
Transversal travel (y axis): 200 mm.
Vertical travel (z axis): 350 mm.
Spindle stroke: 45 mm.
Table load max.: 50 kg.
number (steps): 6.
from: 80 t/min.
up to: 2200 t/min.
Taper in spindle:: SK 30.
Swivel range Vertical milling head: +/-90 °.
Rapid traverse:: 12 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.1 / 1.4 kW.
Machine's weight about: 500 kg.
Length: 1500 mm.
Width: 1150 mm.
Height: 1550 mm.

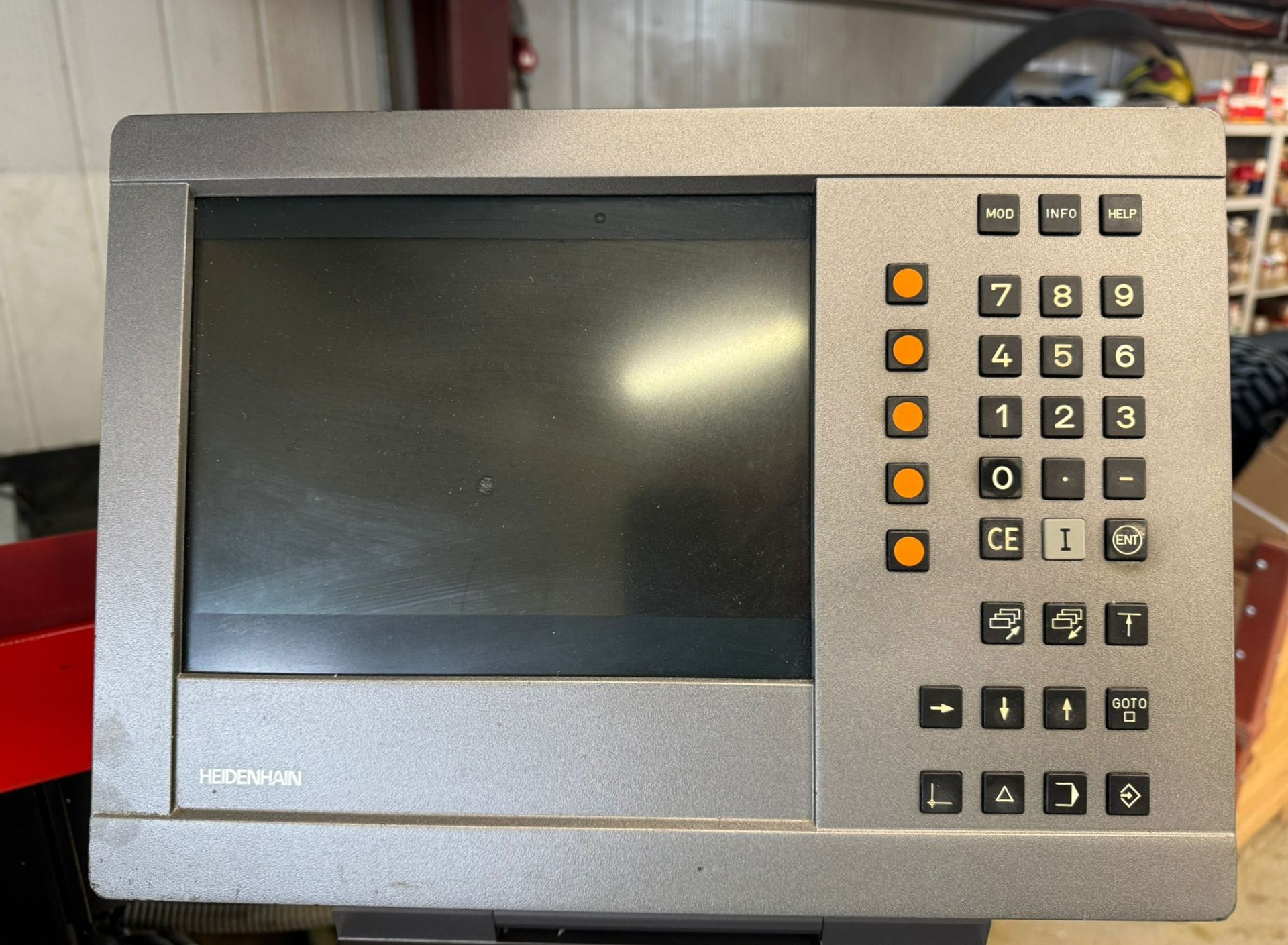

Digital readout number of axis:: 3.
Manufacturer: HEIDENHAIN.
