MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Doosan
  • Model:

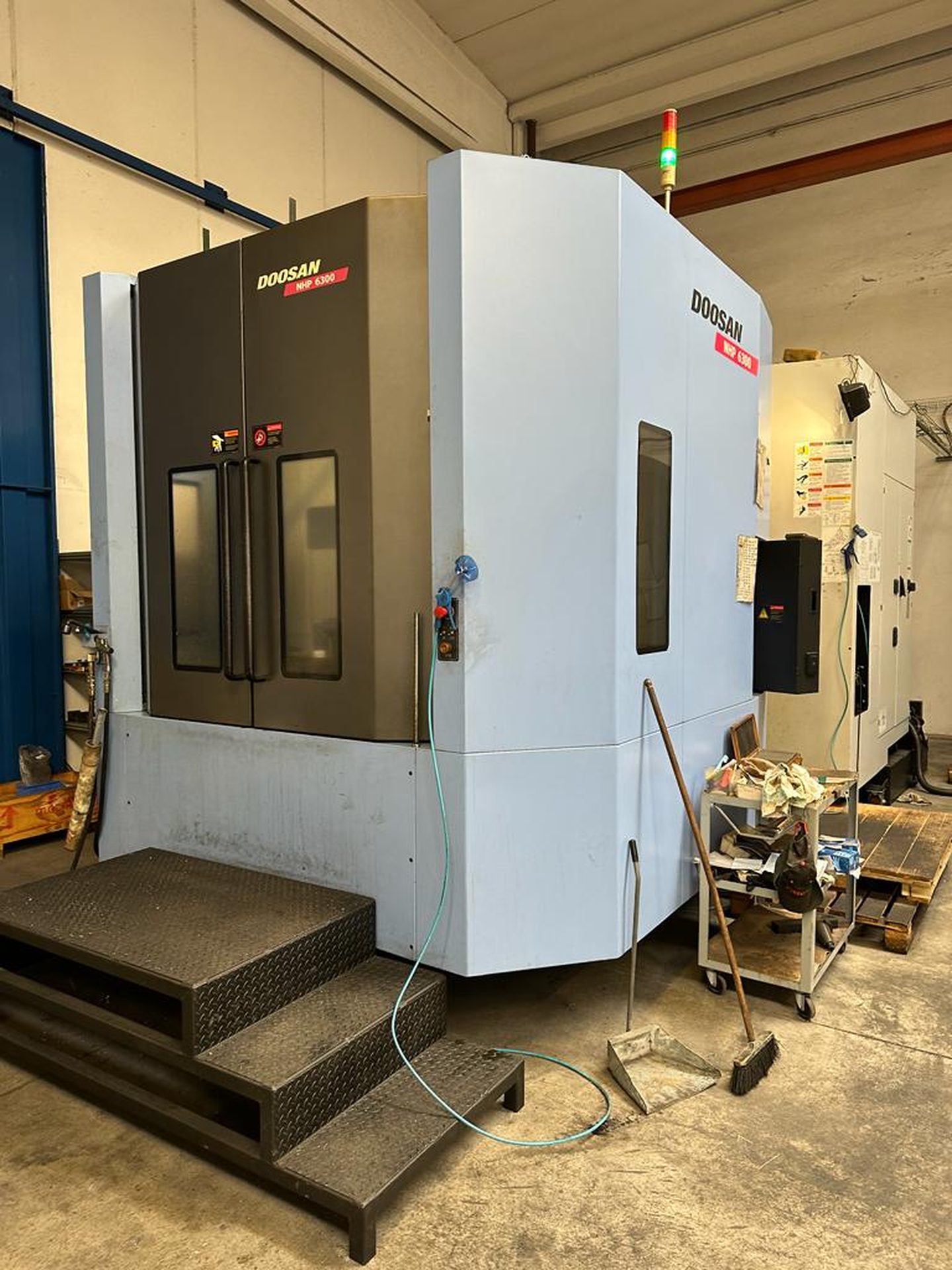

  • 022657 - DOOSAN NHP 6300
  • Condition:
  • 1
  • YOM:
  • NA

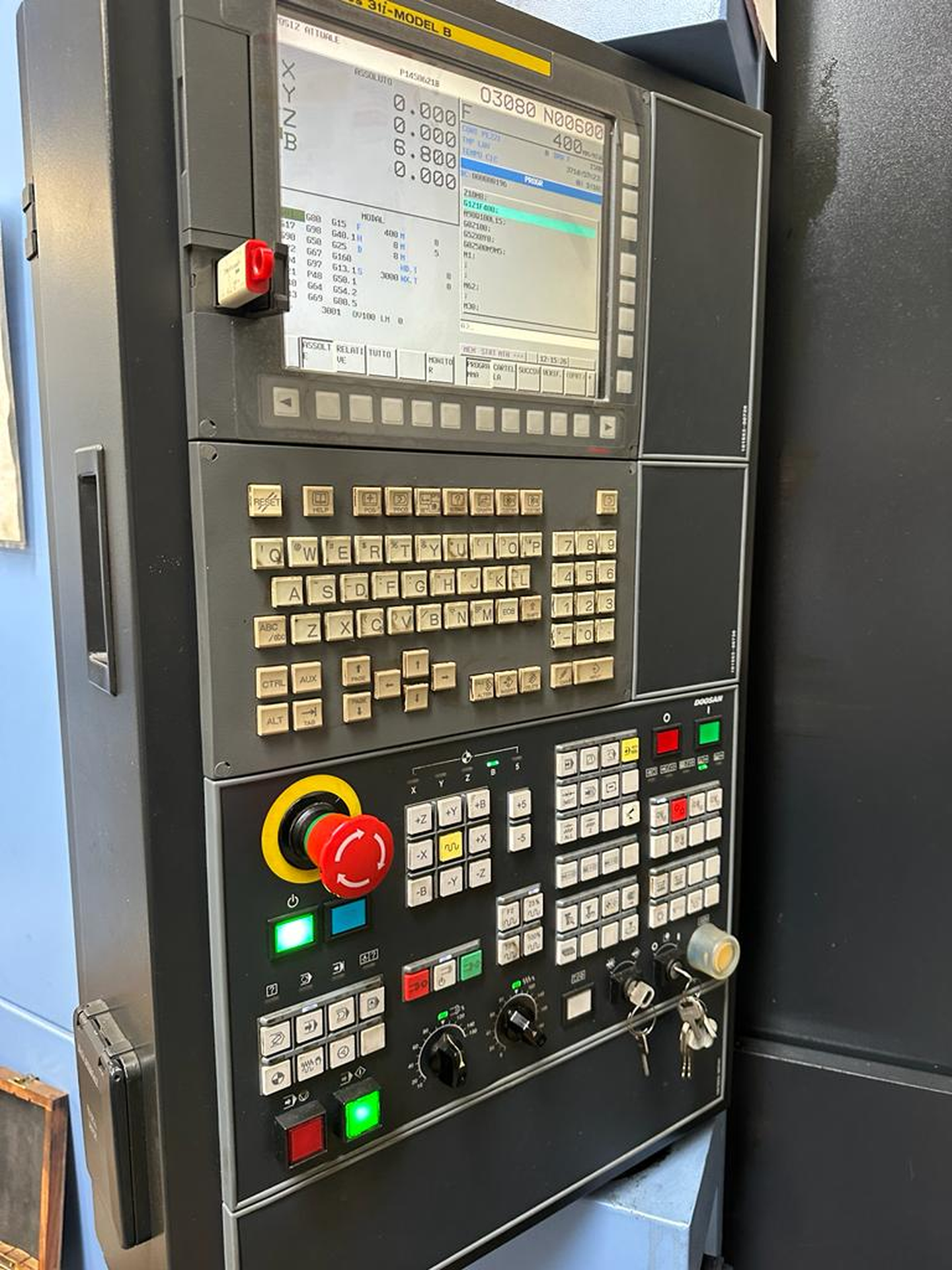

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Longitudinal travel (X-axis): 1050 mm.
Transversal travel (y-axis): 900 mm.
Vertical travel (z axis): 1000 mm.
Height: 3479 mm.
Diameter: 1050 mm.
Table divisions (B): 1 °.
numbers: 2.
Length: 7410 mm.
Width: 3930 mm.
Maximum workpiece weight: 1500 kg.
Time of changing palets: 12 s.

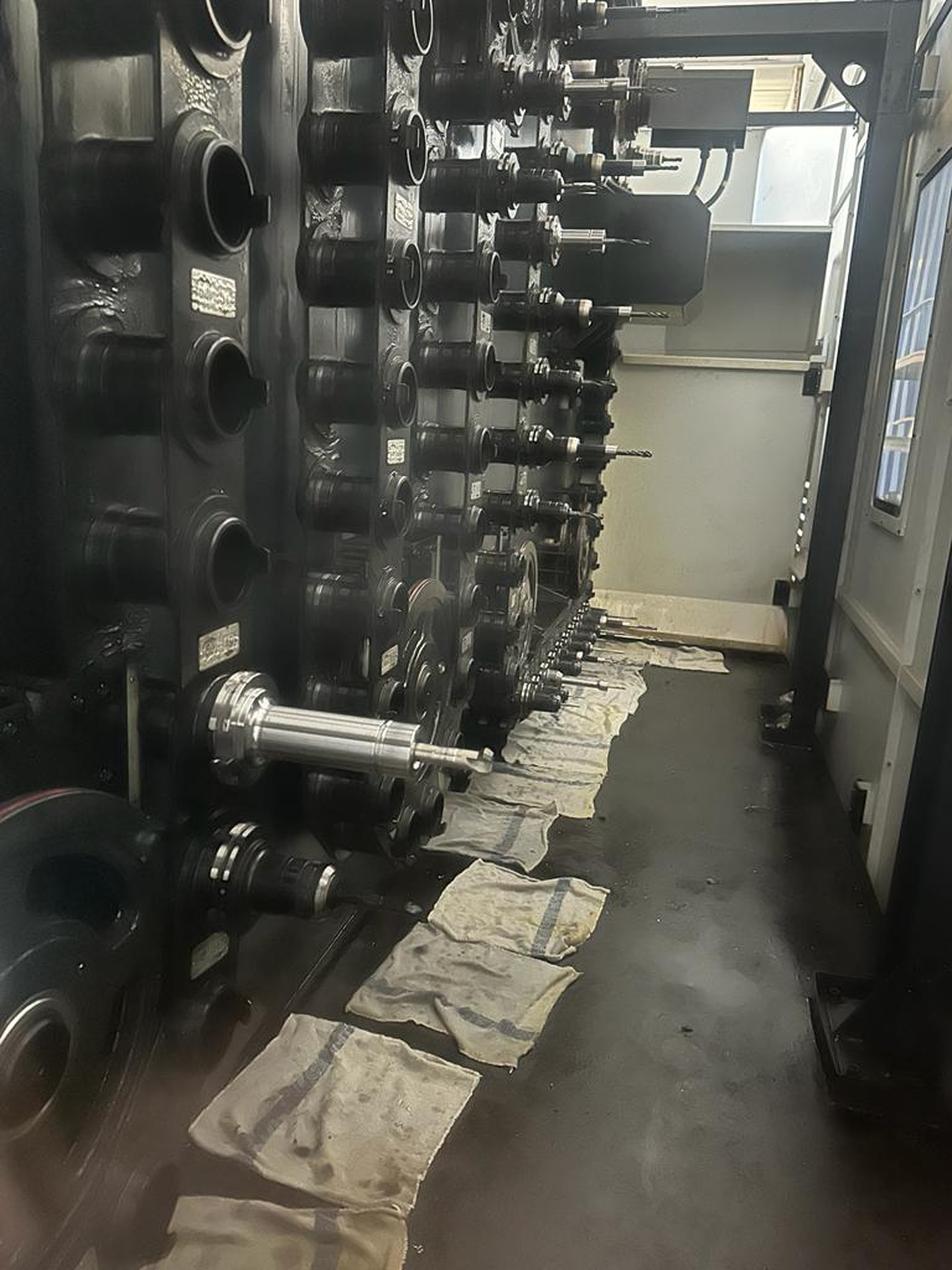

Tool magazine number of tool places: 60.
Tool diameter max.: 125 mm.
Diameter with free adjacent pockets: 320 mm.
Tool lenght: 630 mm.
Max. tool-weight: 25 kg.
Time of tool changing: 2 s.
Average chip-to-chip time: 5 s.
Spindle nose: ISO: 50.
spindle to table: 75 - 975 mm.
from: 40 t/min.
up to: 10000 t/min.
Rapid traverse:: 60 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 18.5 / 22 kW.
Machine's weight about: 18000 kg.

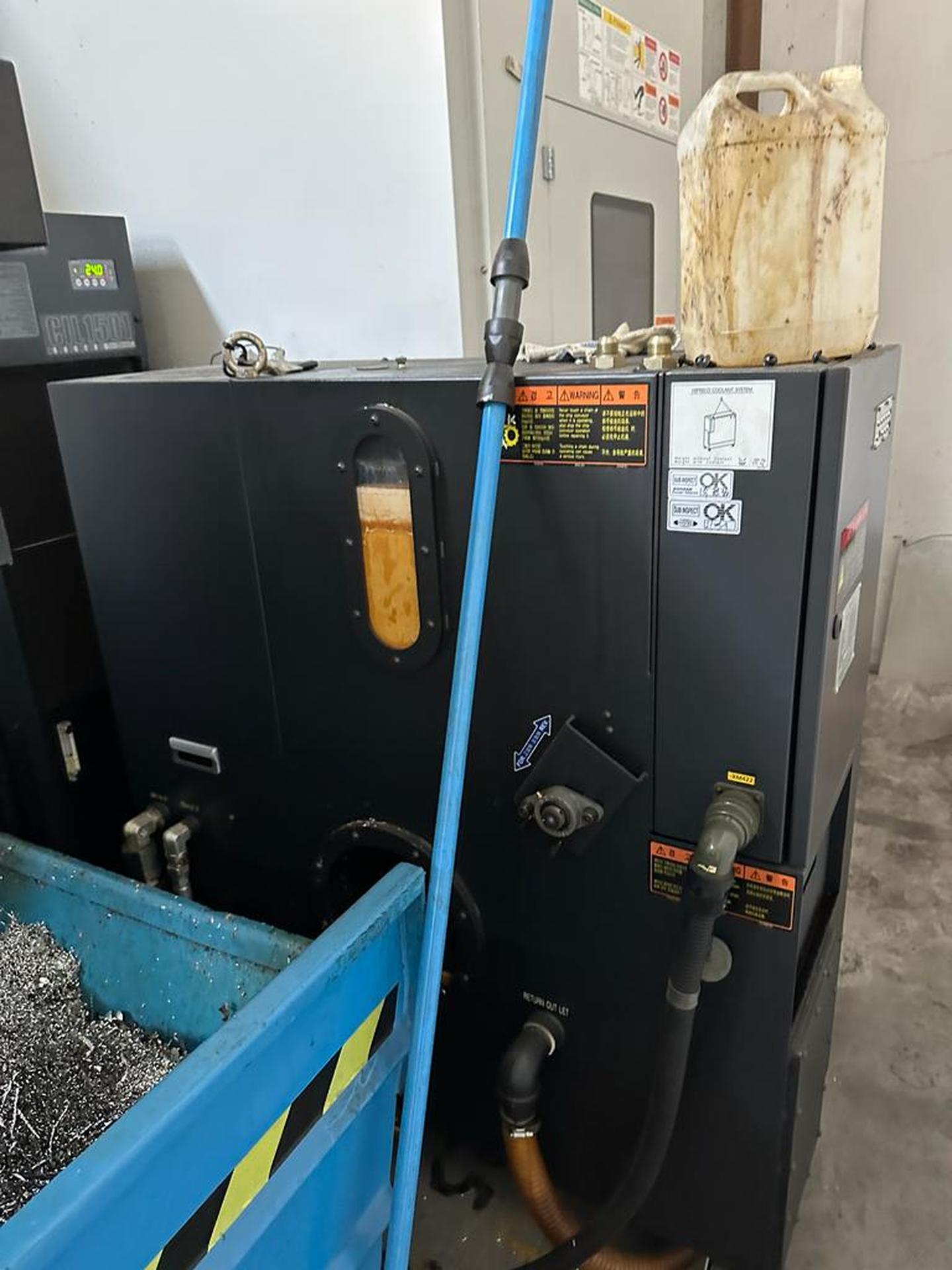

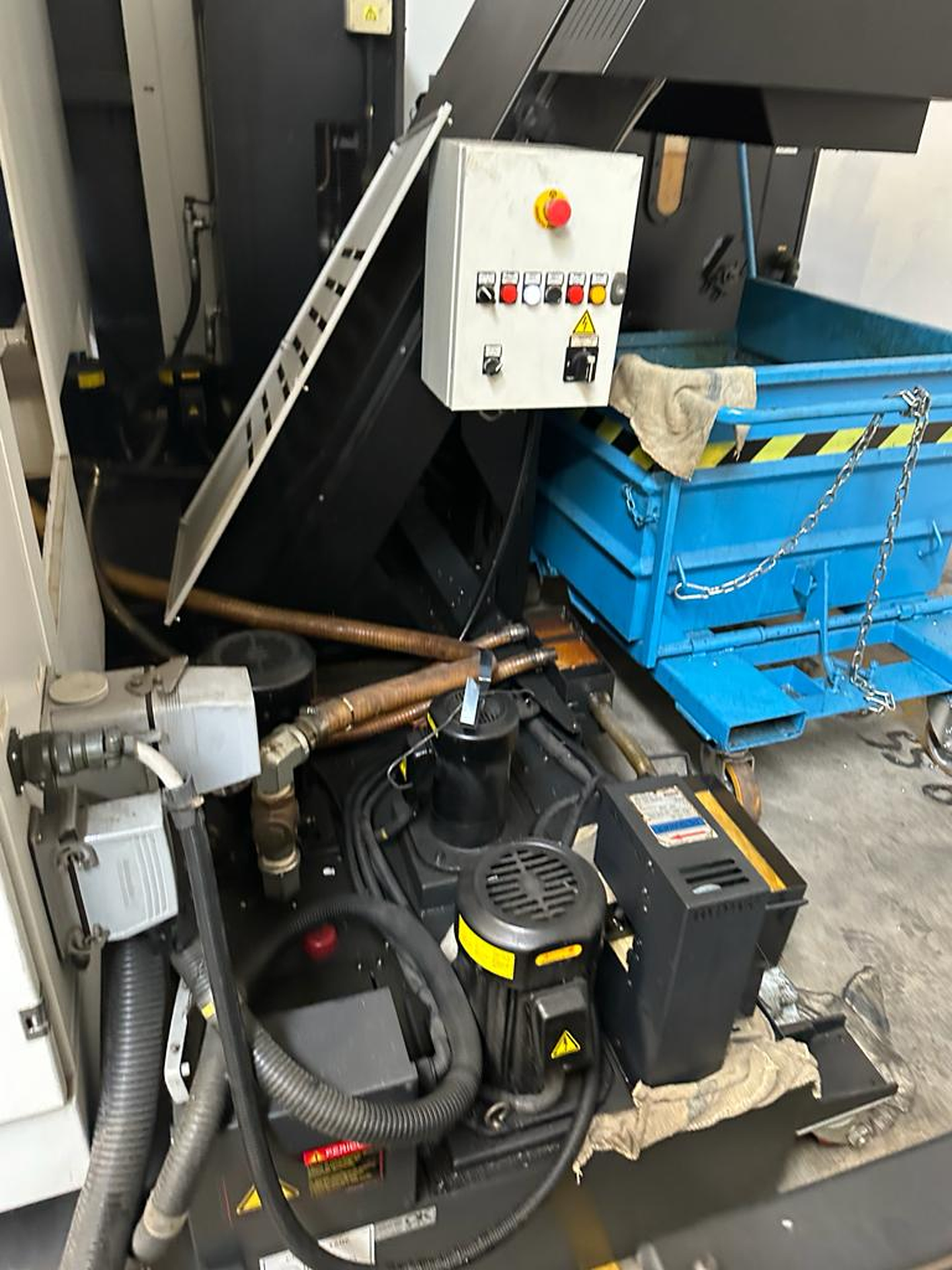

Coolant system: 925 l.
Coolant through spindle (cts): 70 bar.
