MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • VARI
  • Model:

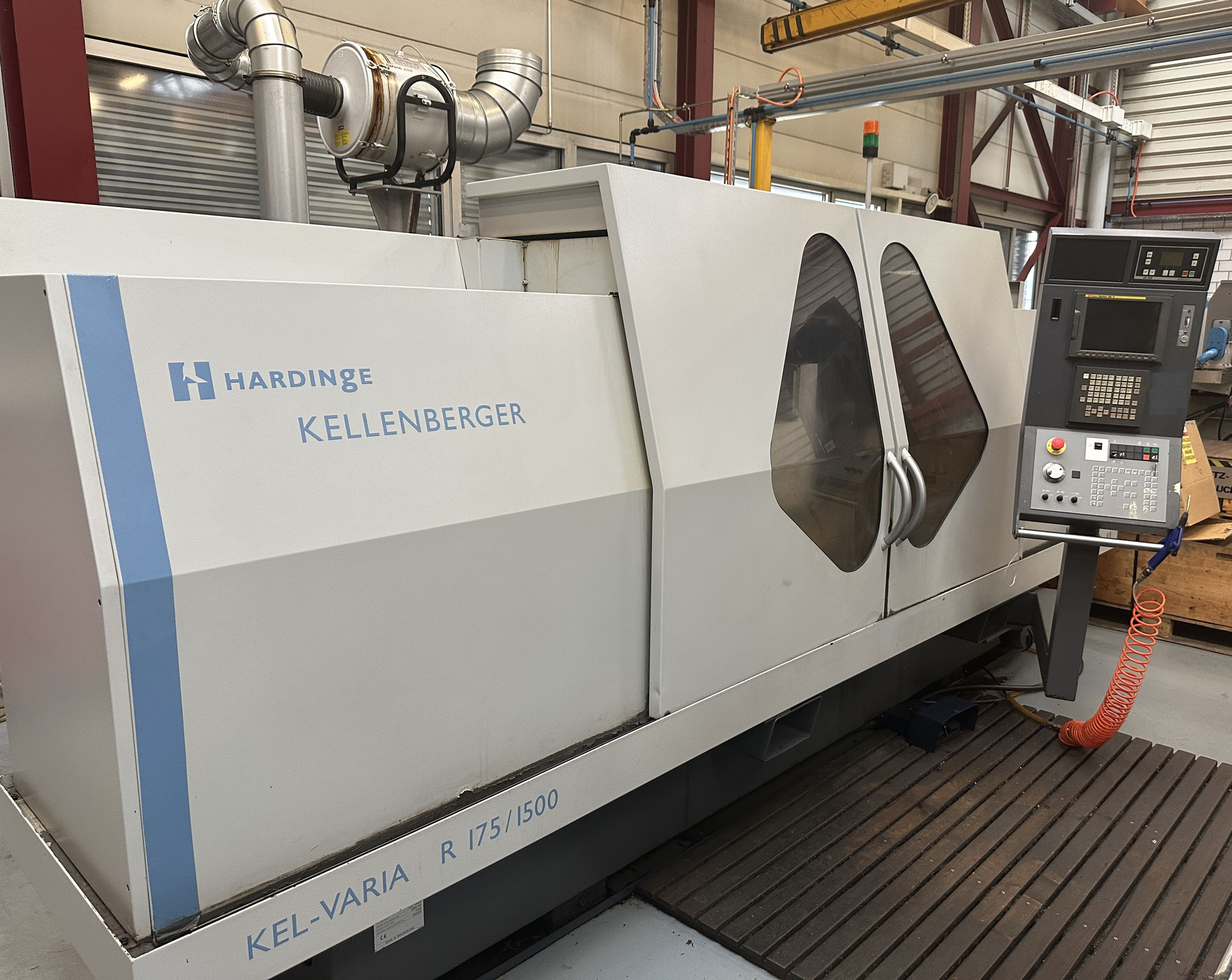

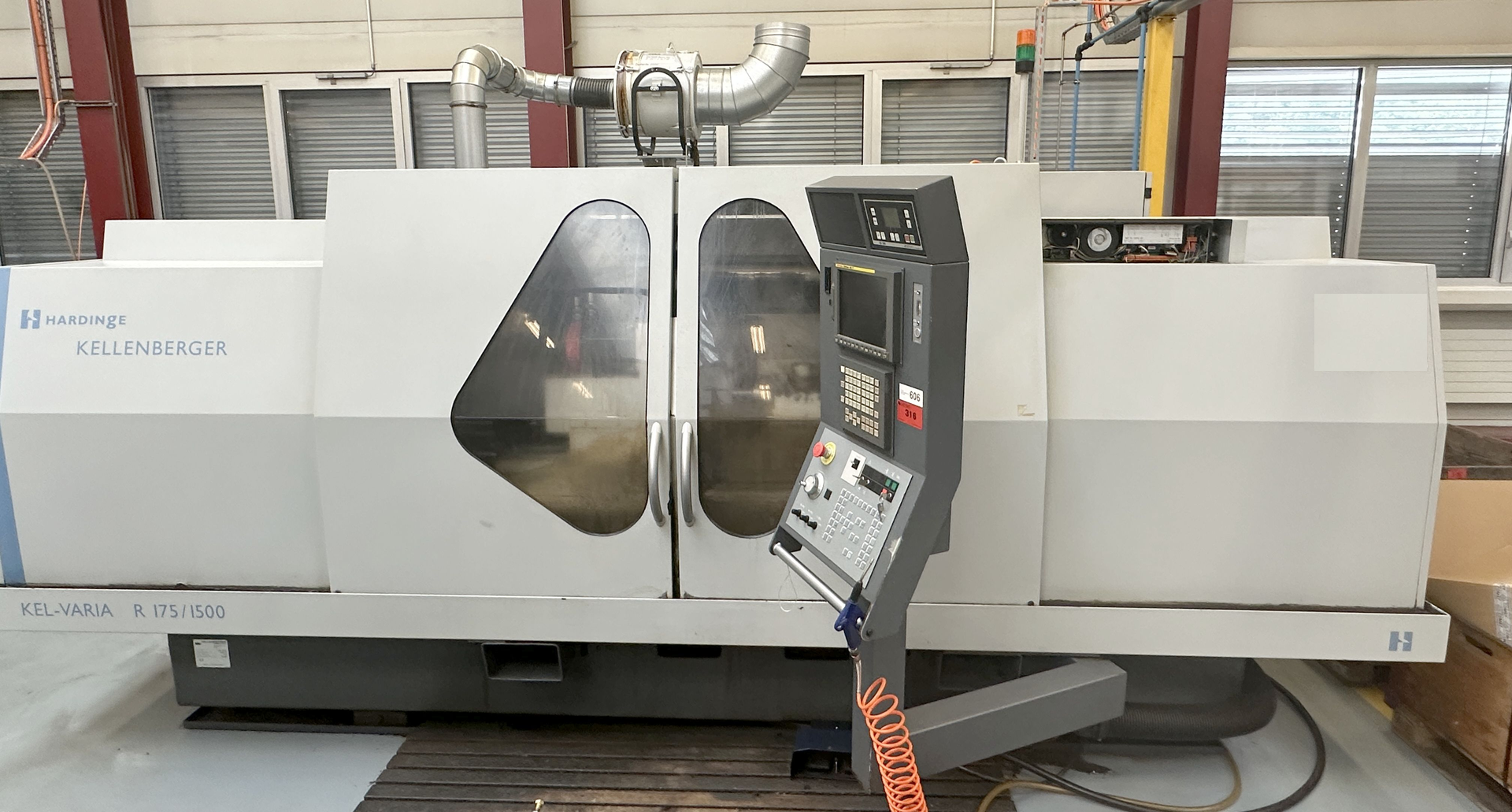

  • 022455 - KELLENBERGER KEL-VARIA R175 x 1500
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 1500 mm.
Z axis: 1650 mm.
Workpiece weight on centres max.: 150 kg.
Diameter: 400 mm.
Width: 2300 mm.
Bore: 127 mm.
B axis resolution max.: 2.5 °.
from: 8 t/min.
up to: 800 t/min.

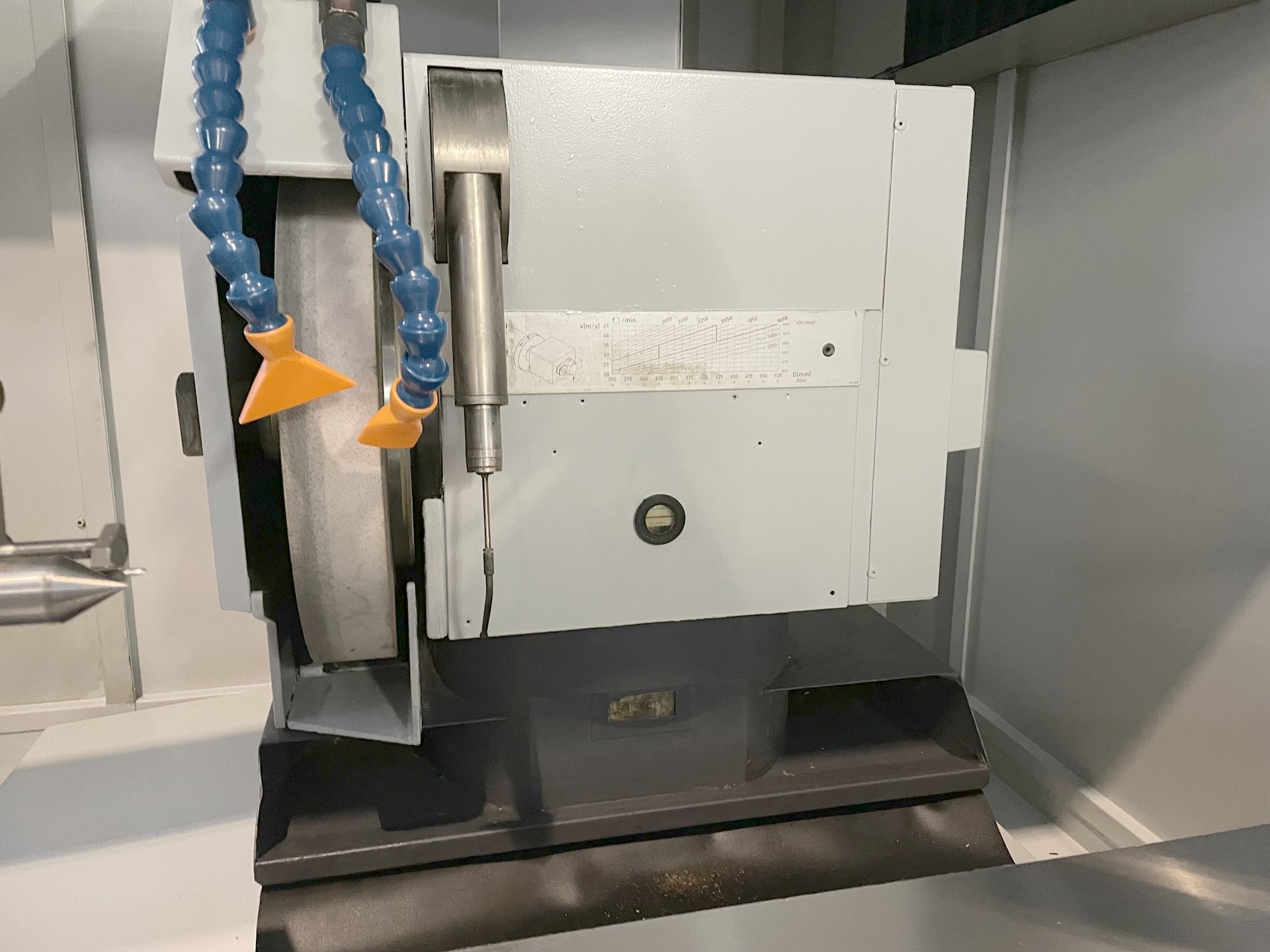

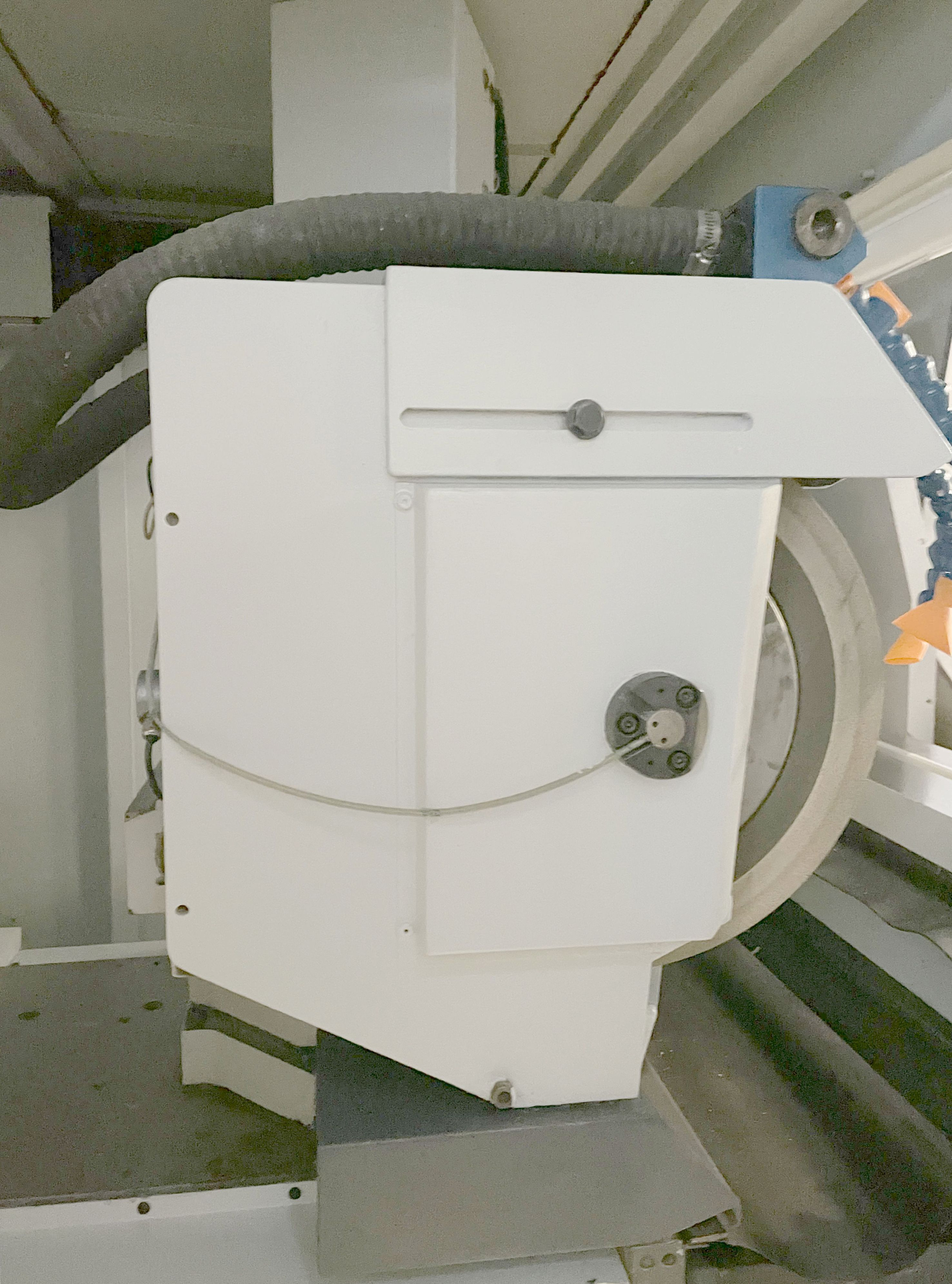

Rotatable grinding spindle head (b-axis): +30° / -210 °.
Peripheral speed: 45 m/s.
Max. travel: 320 mm.
Feed range: 7500 mm/min.
Swivelling range: -10 / +100 °.
Internal mounting cone: 5 CM.
External short tapered mount: DIN 55026 Gr. 5.
Permitted load capacity: 160 Nm.
Taper in tailstock:: 4 CM.

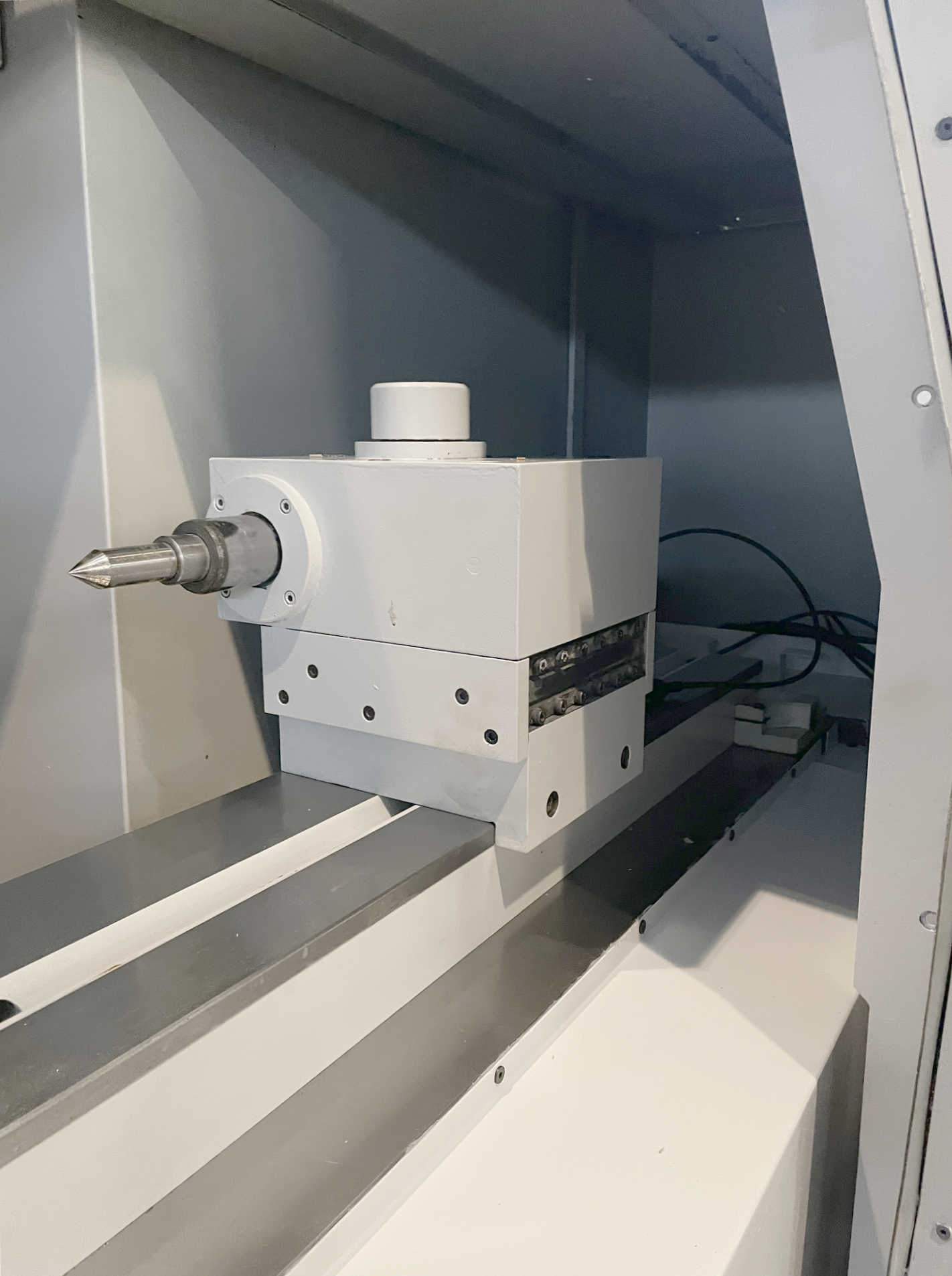

Tailstock travel of barrel: 50 mm.
Rapid motion: 15 m/min.
Max. table angular displacement: 7 °.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 7.5 kW.
Workpiece spindle motor: 2 kW.
Machine's weight about: 6000 kg.
Length: 4700 mm.
Height: 2000 mm.

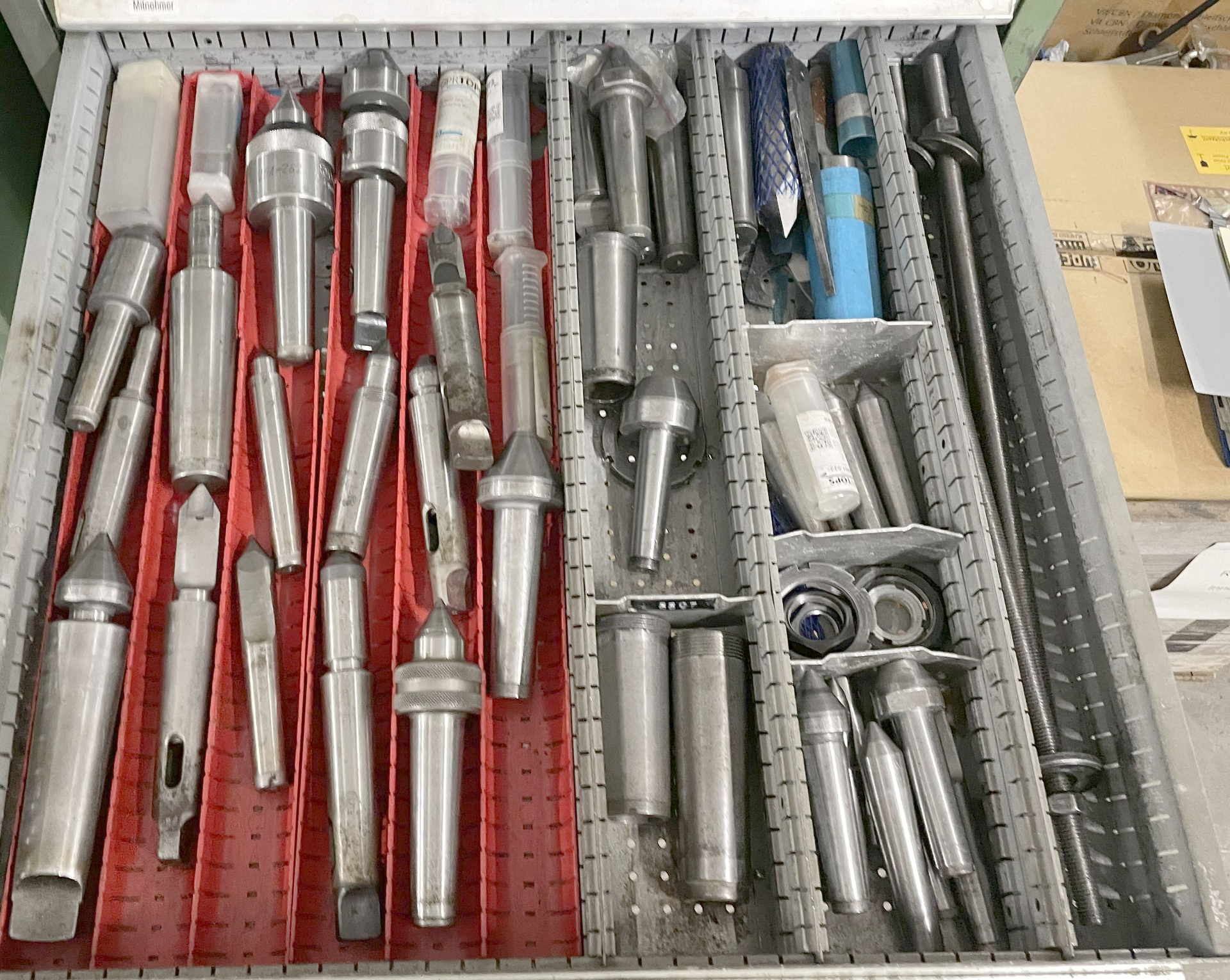

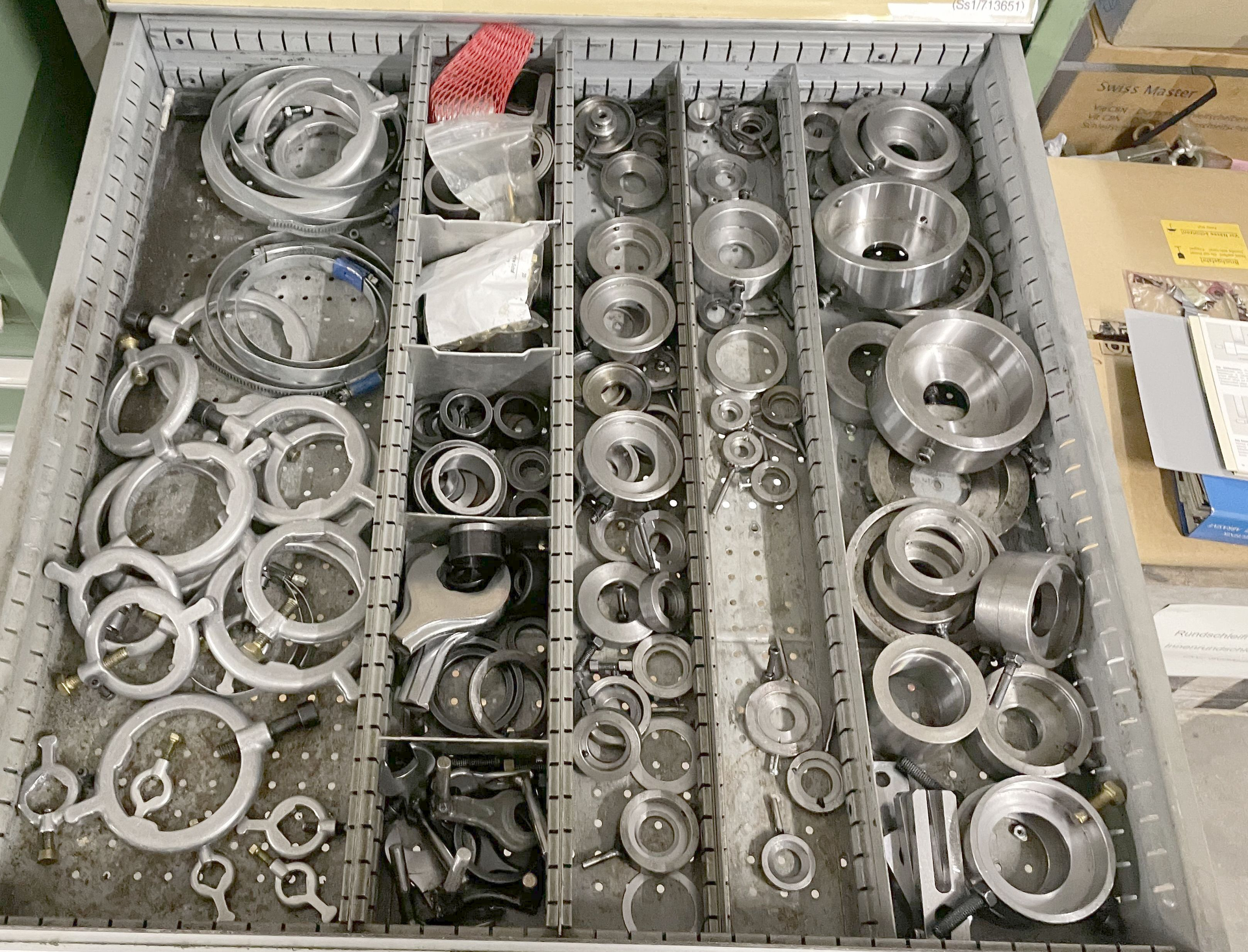

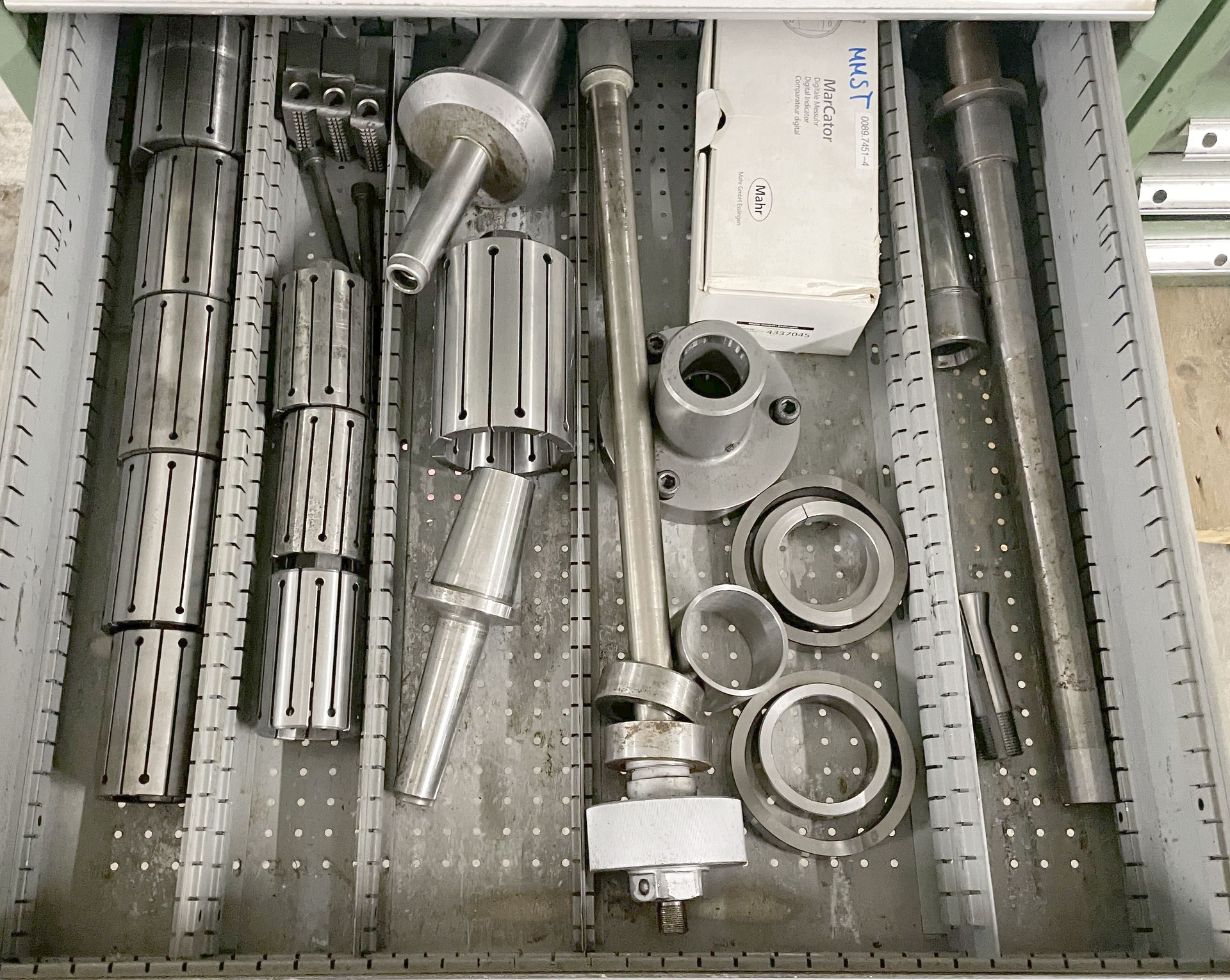

Tool cabinet: 2x.
