MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIYANO
  • Model:

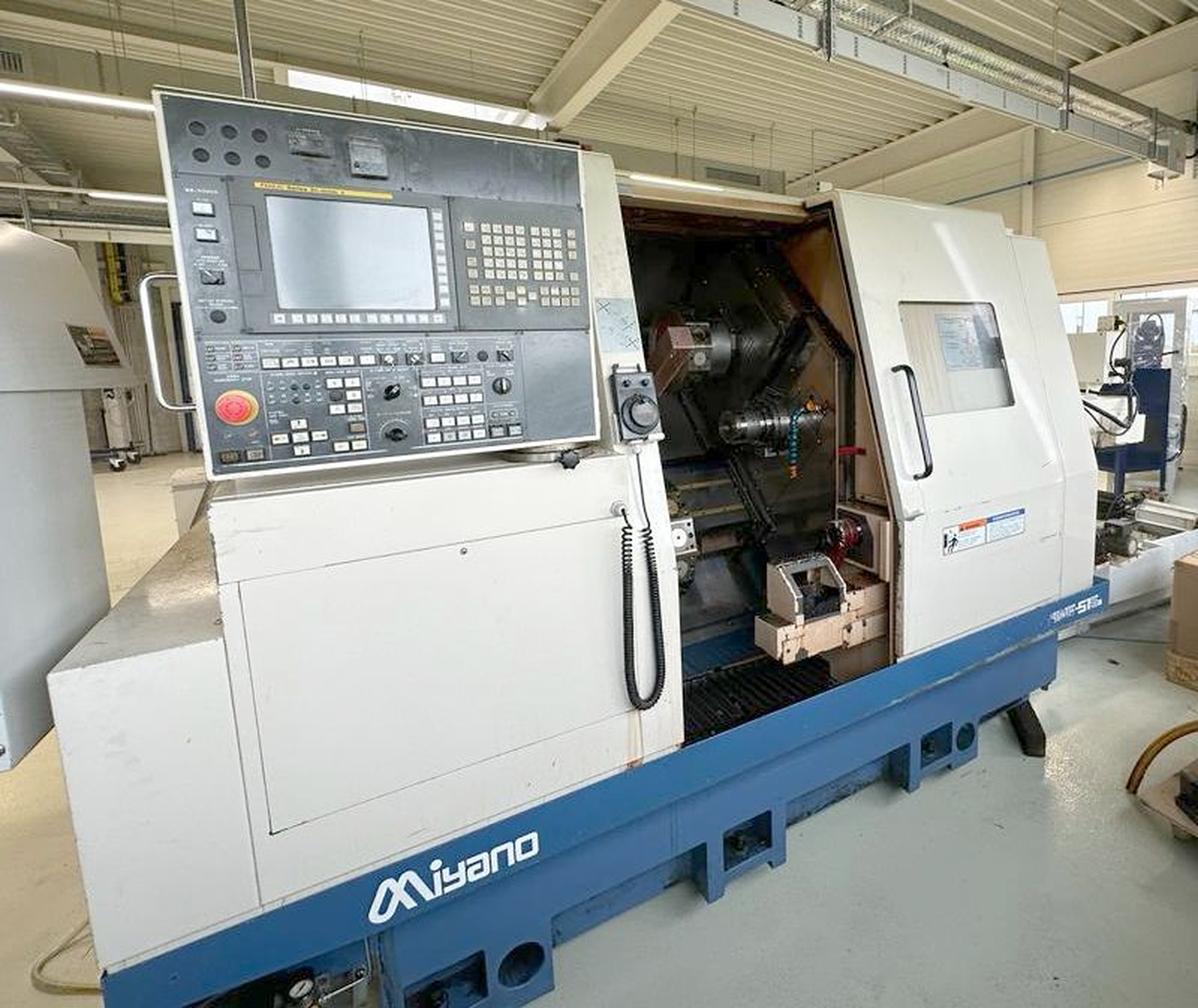

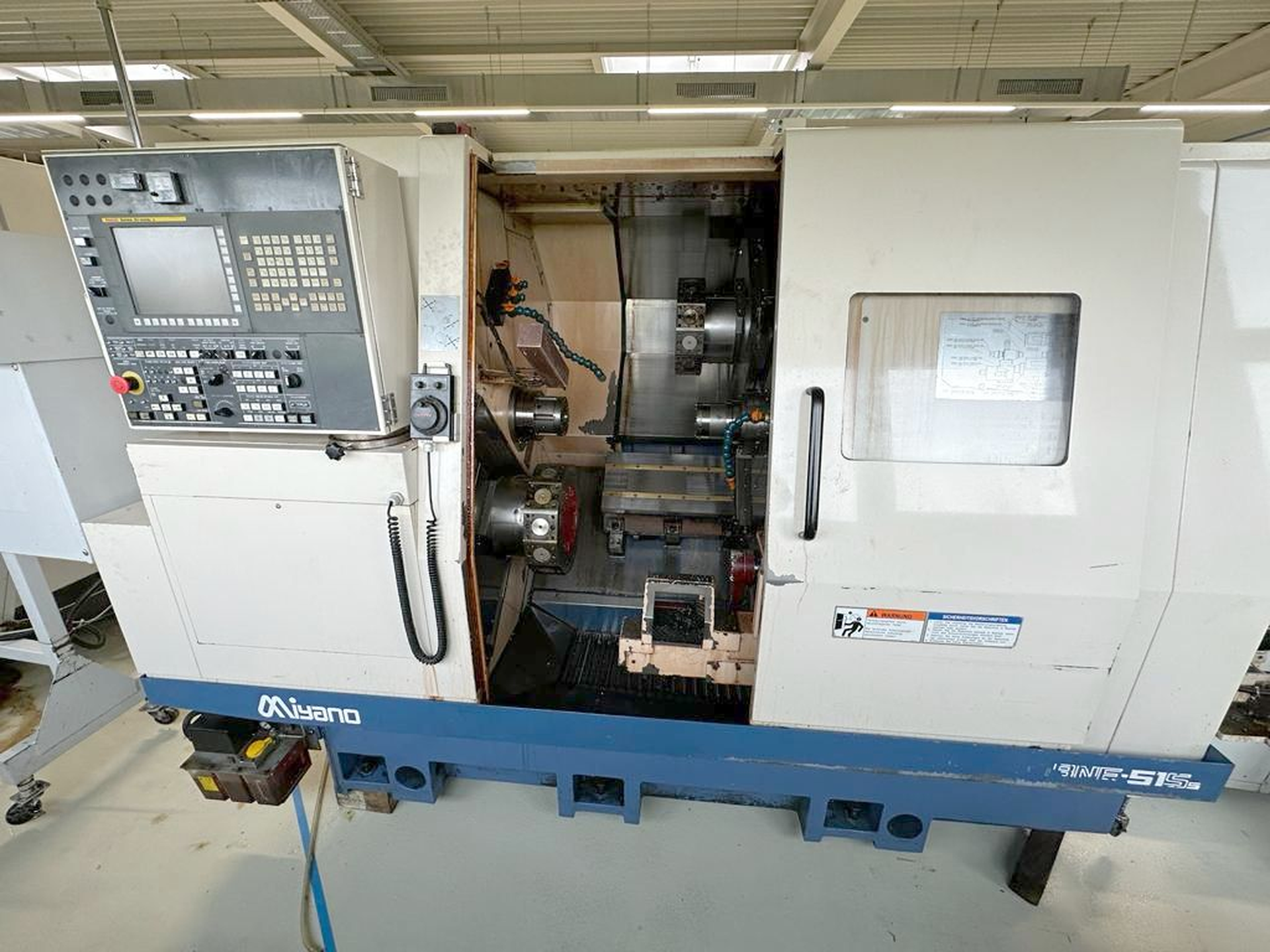

  • 022222 - MIYANO BNE-51 S5
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

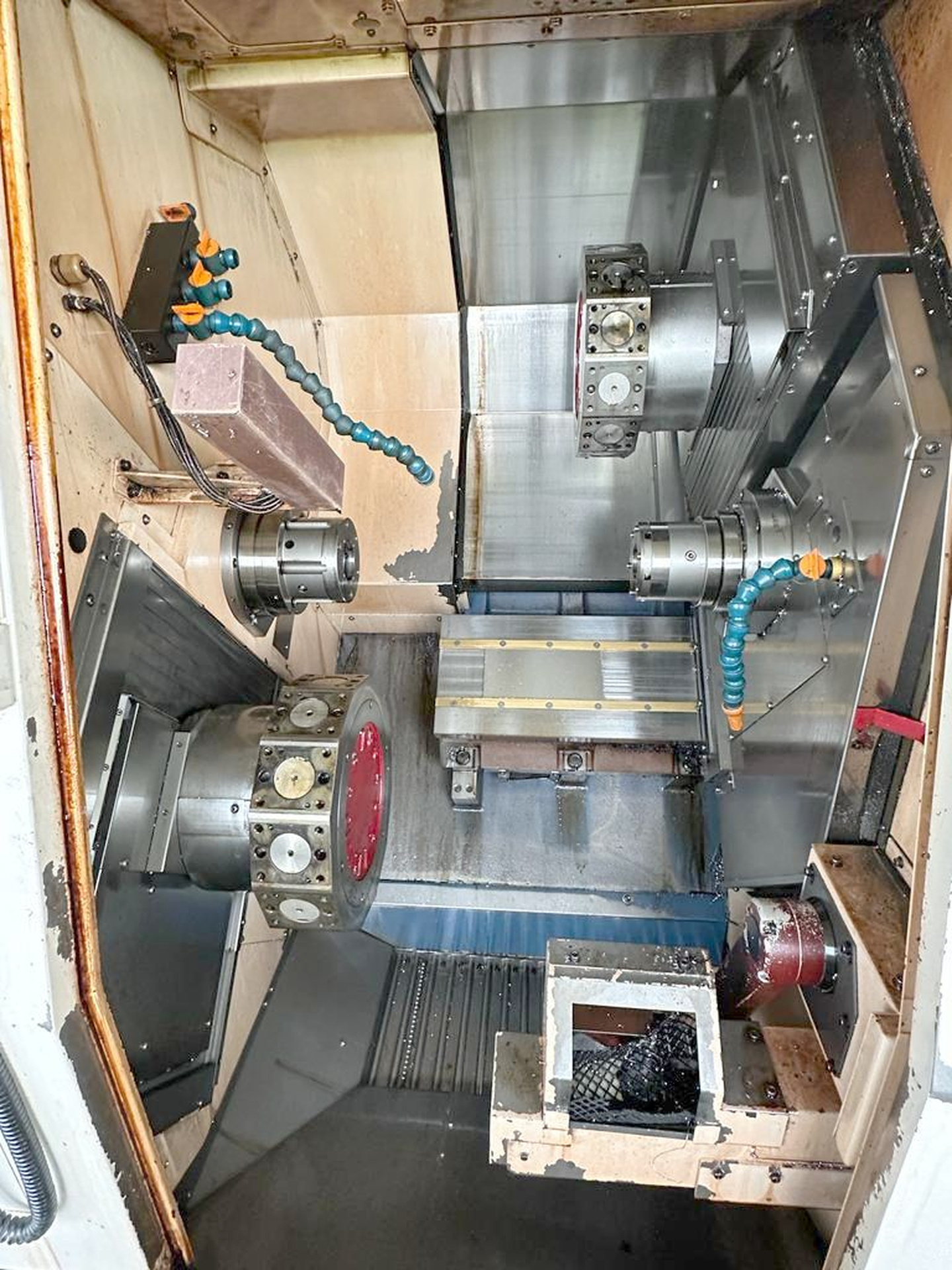

Number of spindles: 2.

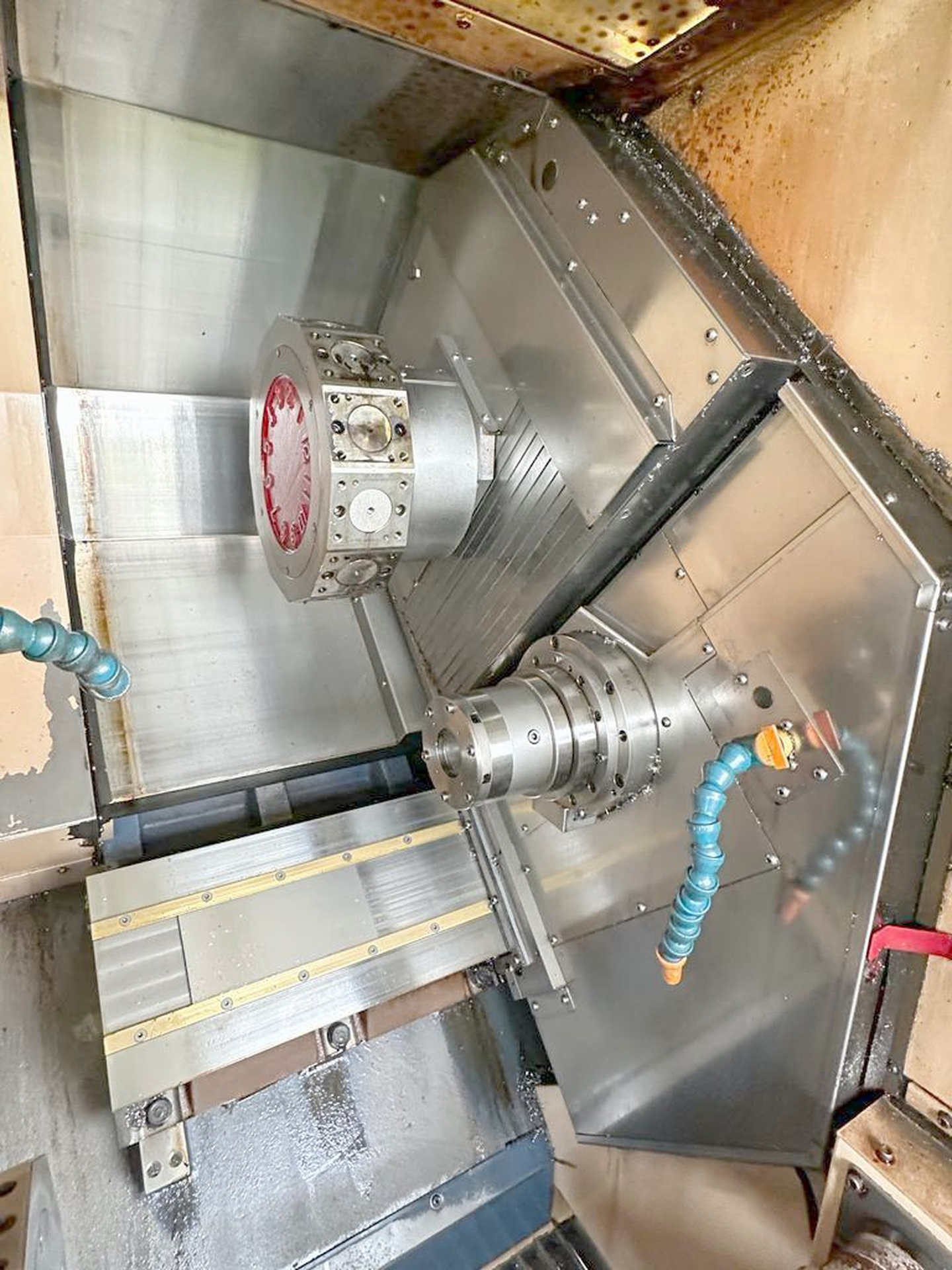

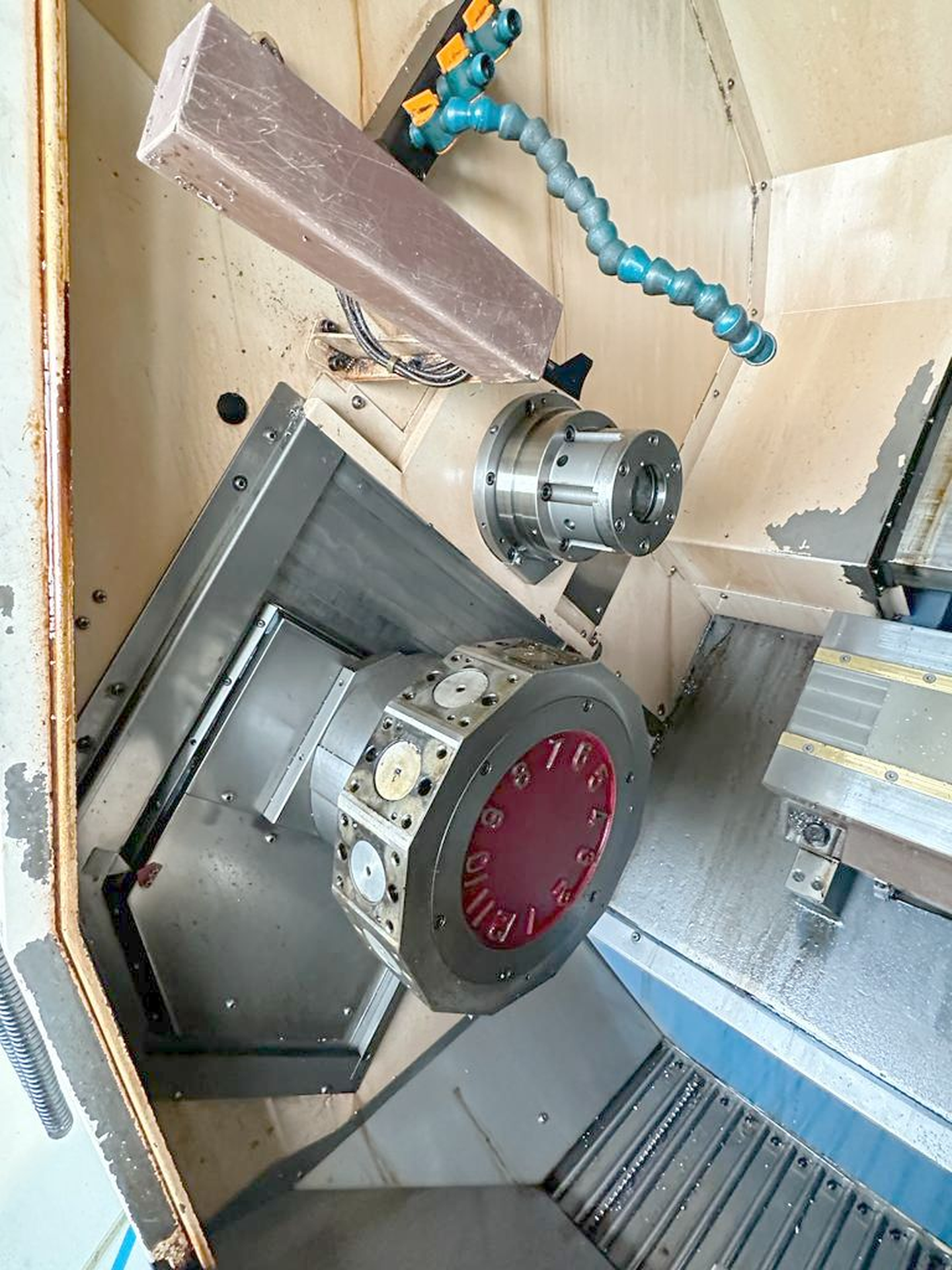

Number of revolvers: 2.
Maximum turning length: 90 mm.
Number of positions turret 1: 12.
Number of positions turret 2: 12.
Driven tools turret 1: 12.
Driven tools turret 2: 12.
Spindle speeds: 0 - 4000 t/min.
Tool shank cross section: 20 mm.
Power of driven tools: 2.5 kW.
Max. drill capacity: 13 mm.
Max. taping diameter M: 8.
X axis: 145 mm.
Z axis: 380 mm.
Spindle hole: 52 mm.
Max. bar diameter: 51 mm.
C axis (spindle,resolution): °.
from: 0 t/min.
up to: 5000 t/min.
Spindle power: 11 / 15 kW.
max. speed: 7000 t/min.
Max. turning diameter: 41 mm.
Back spindle stroke: 450 mm.
Power of back spindle: 3.7 / 5.5 kW.
Feeds: 0.0001 - 60 mm/min.
Rapid traverse X: 18 m/min.
Rapid traverse Z: 20 m/min.
Spindle run time: 39000 Heures.
Air connect: 6 bar.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 44 kVA.
Machine's weight about: 7800 kg.
Length: 2690 mm.
Width: 2080 mm.
Height: 1925 mm.
