MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

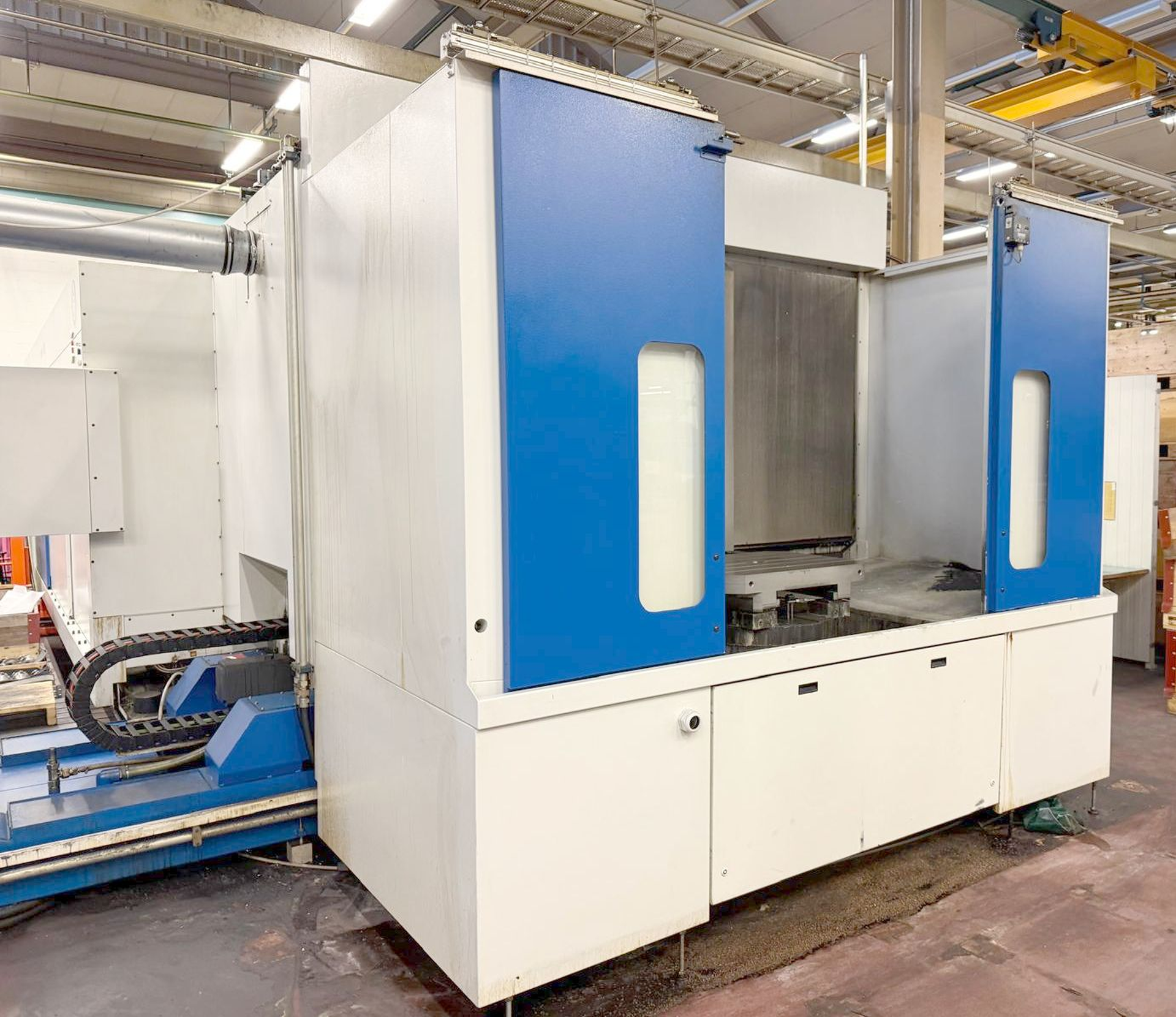

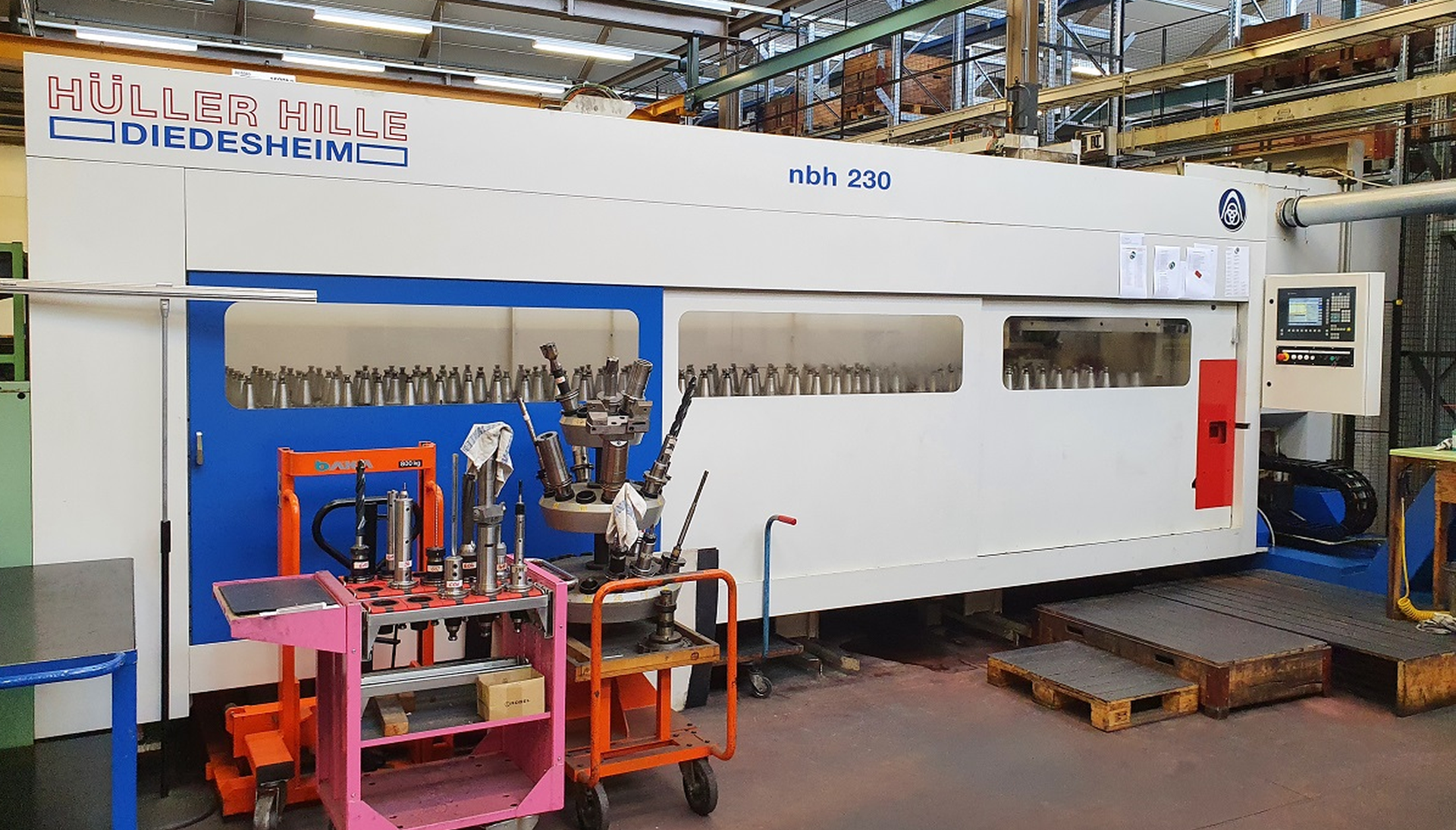

  • 021836 - HÜLLER HILLE NBH 230
  • Condition:
  • 1
  • YOM:
  • NA

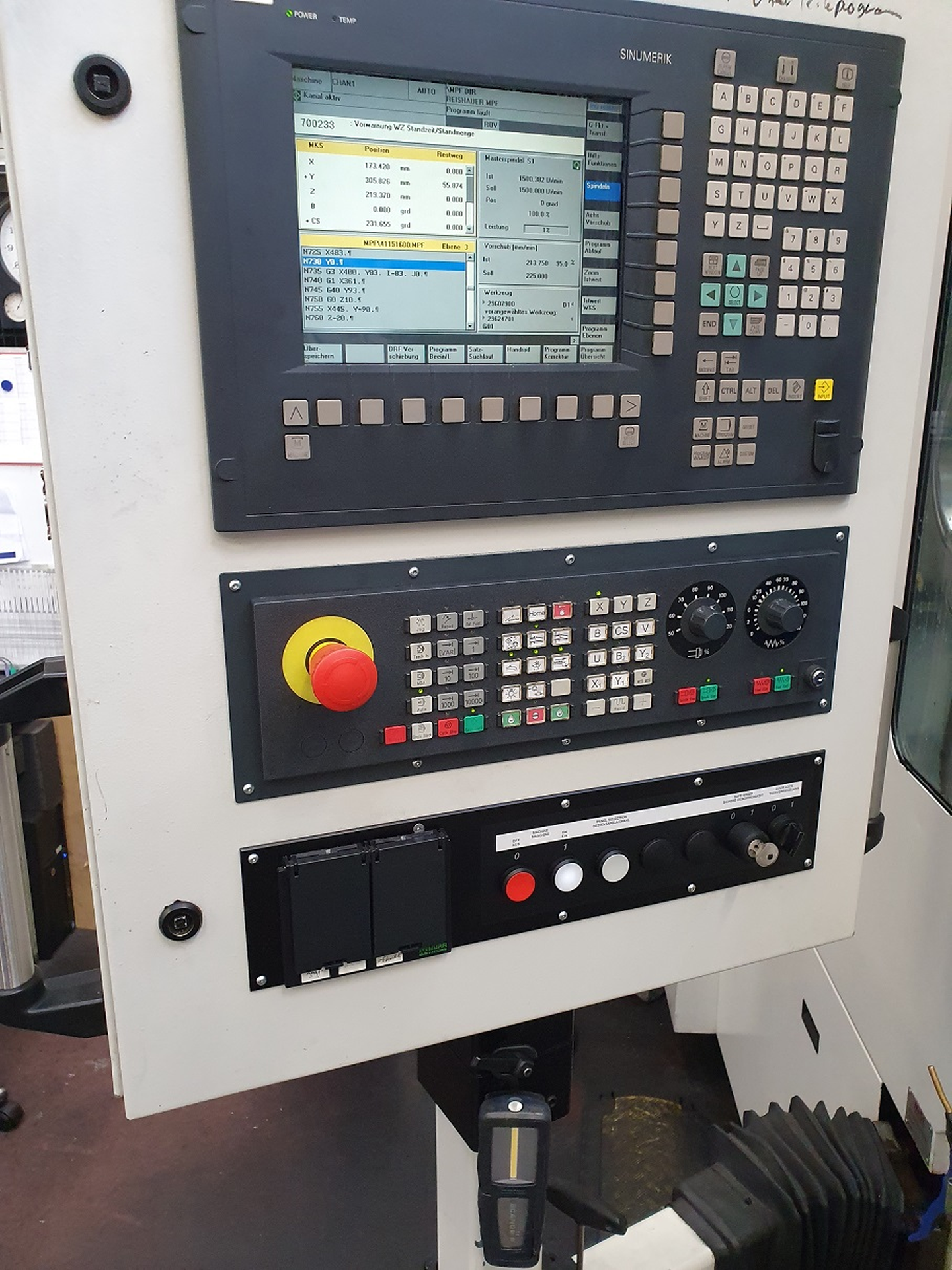

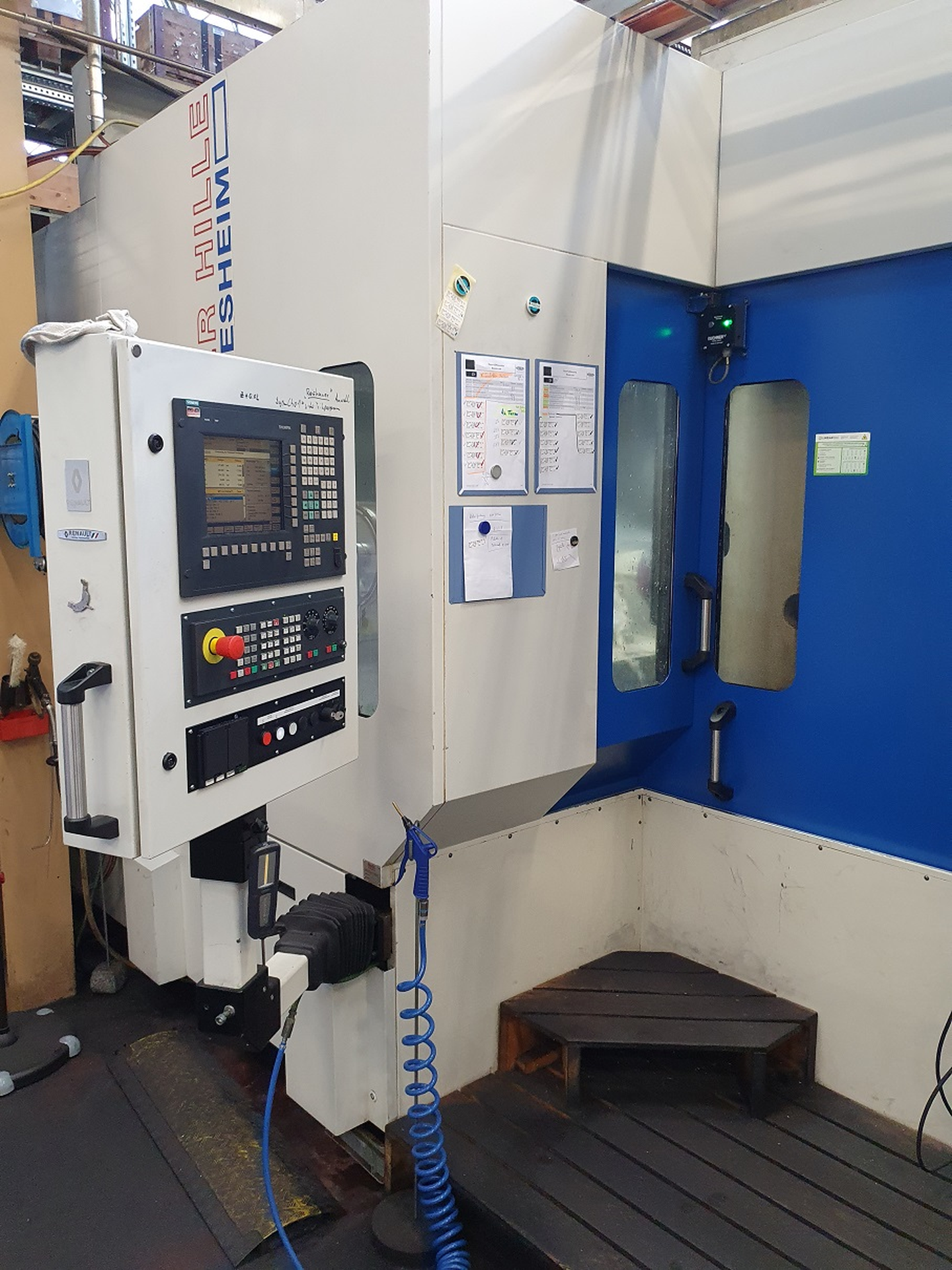

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

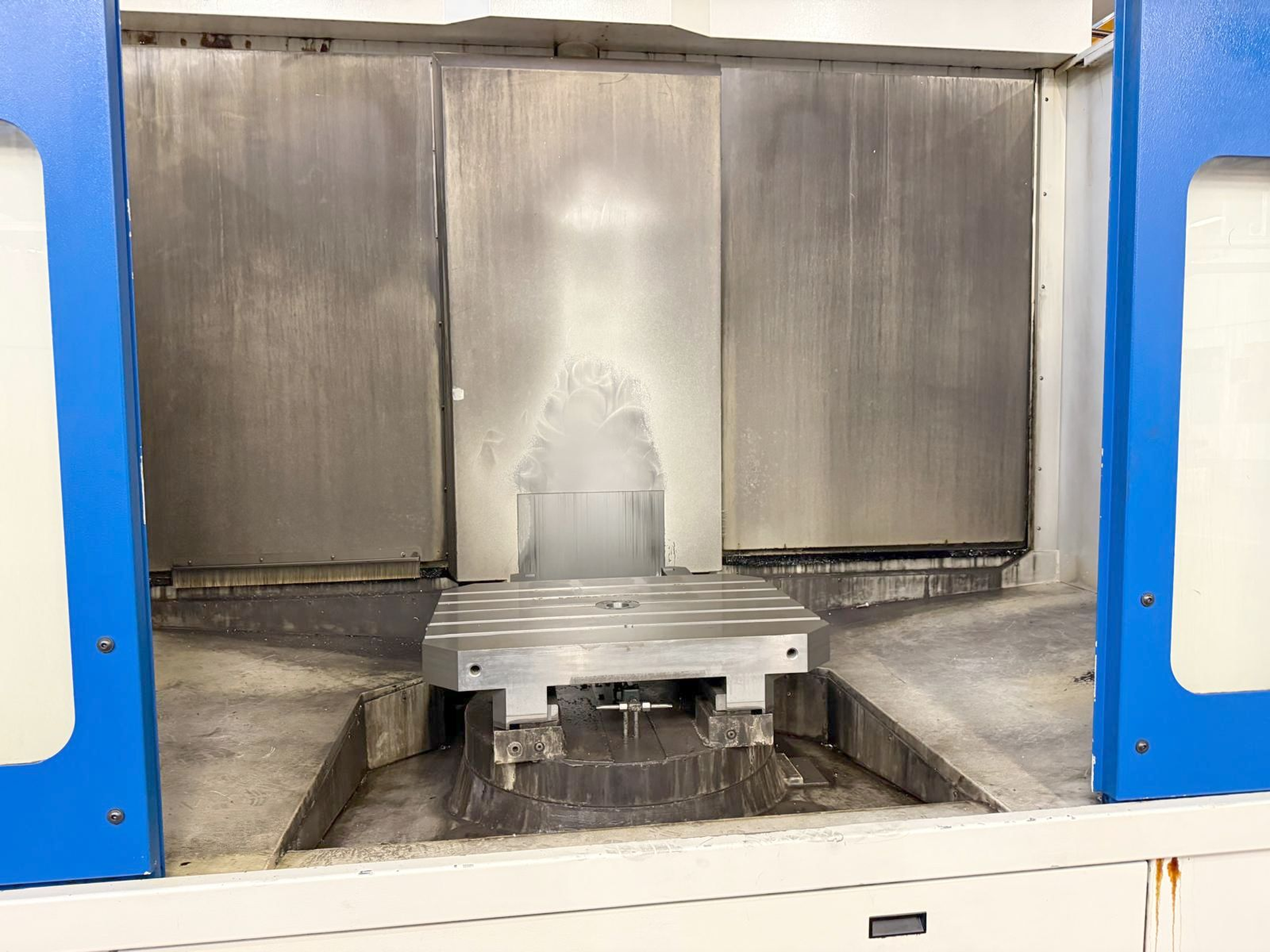

Number of tables: 2.
Maximum swing circle of up to: 1200 mm.
Longitudinal travel (X-axis): 1200 mm.
Transversal travel (y-axis): 1000 mm.
Vertical travel (z axis): 1200 mm.
Table speed: 15 t/min.
Holding torque of the table: 10000 Nm.
Tilting moment: 29000 Nm.
Length: 10000 mm.
Width: 6000 mm.
Time of changing palets: 16 s.
Transport weight: 1200 kg.

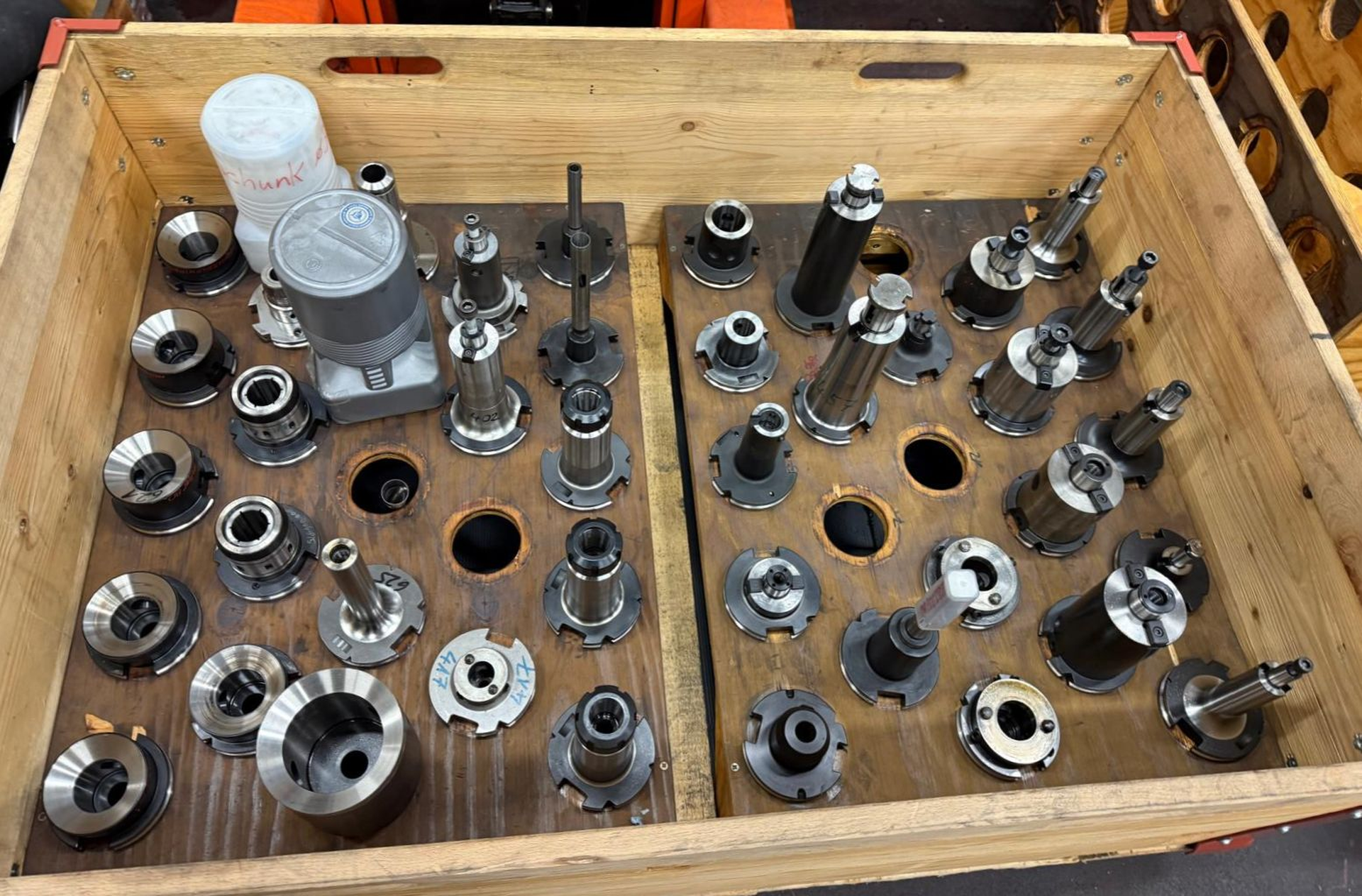

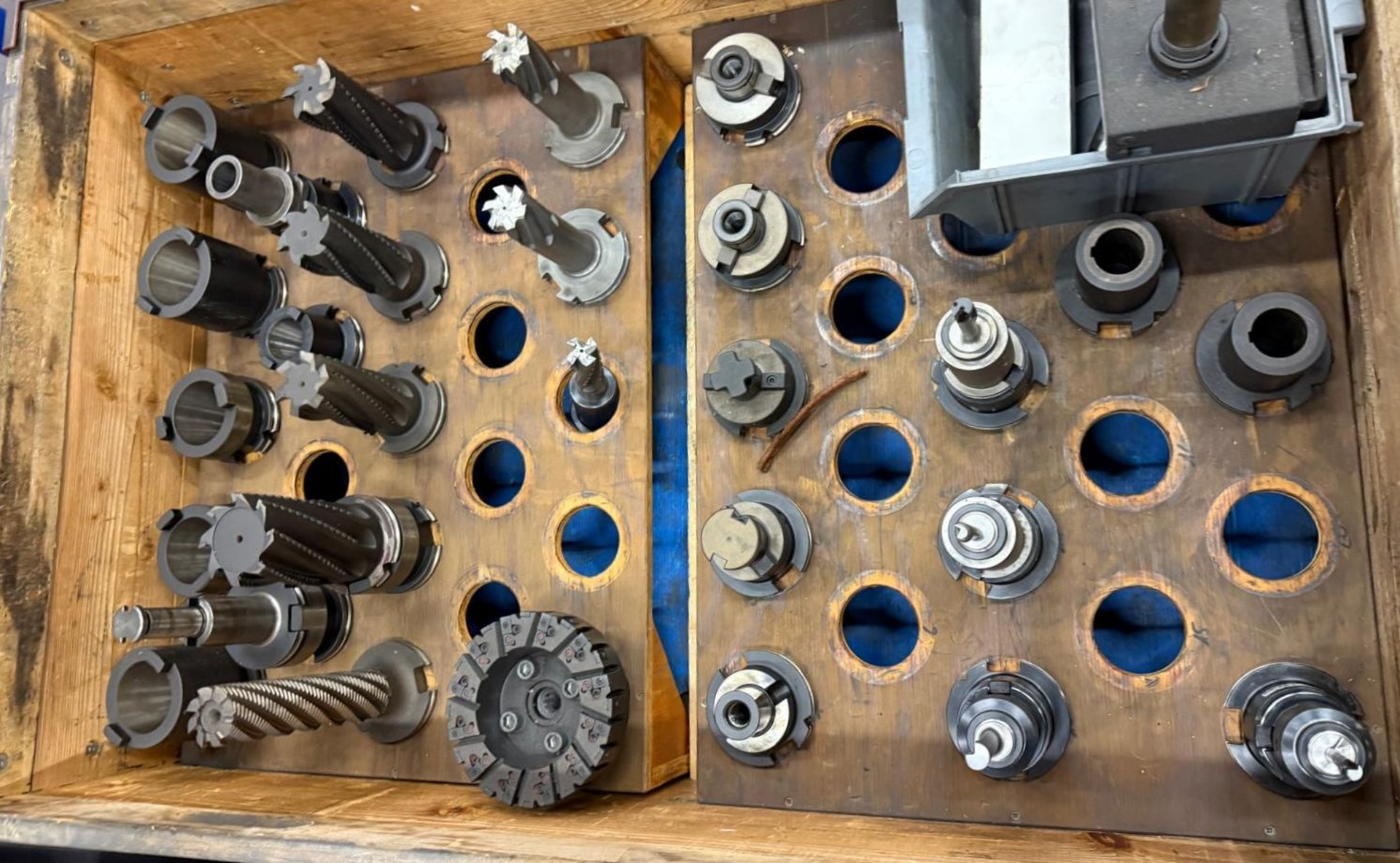

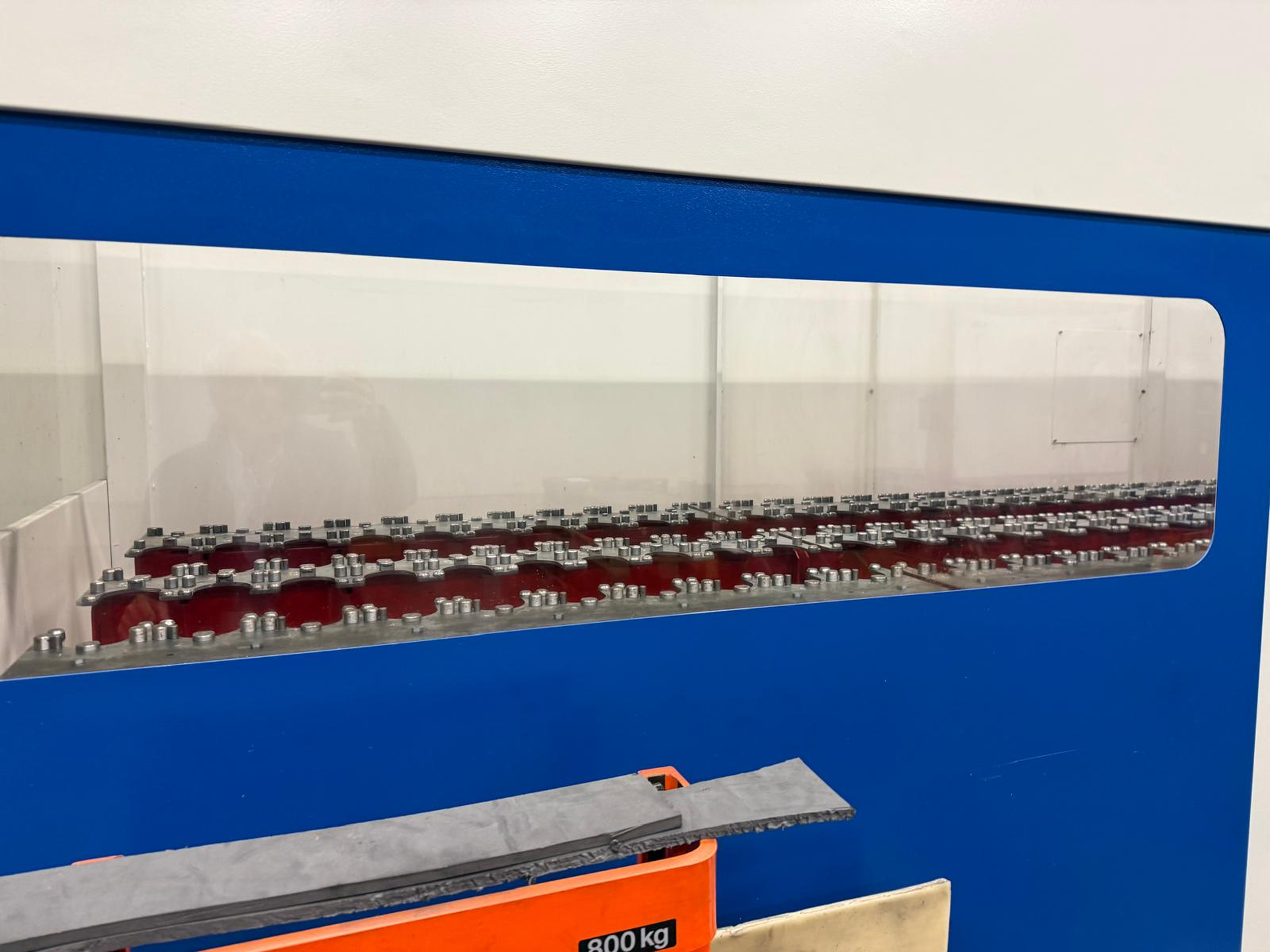

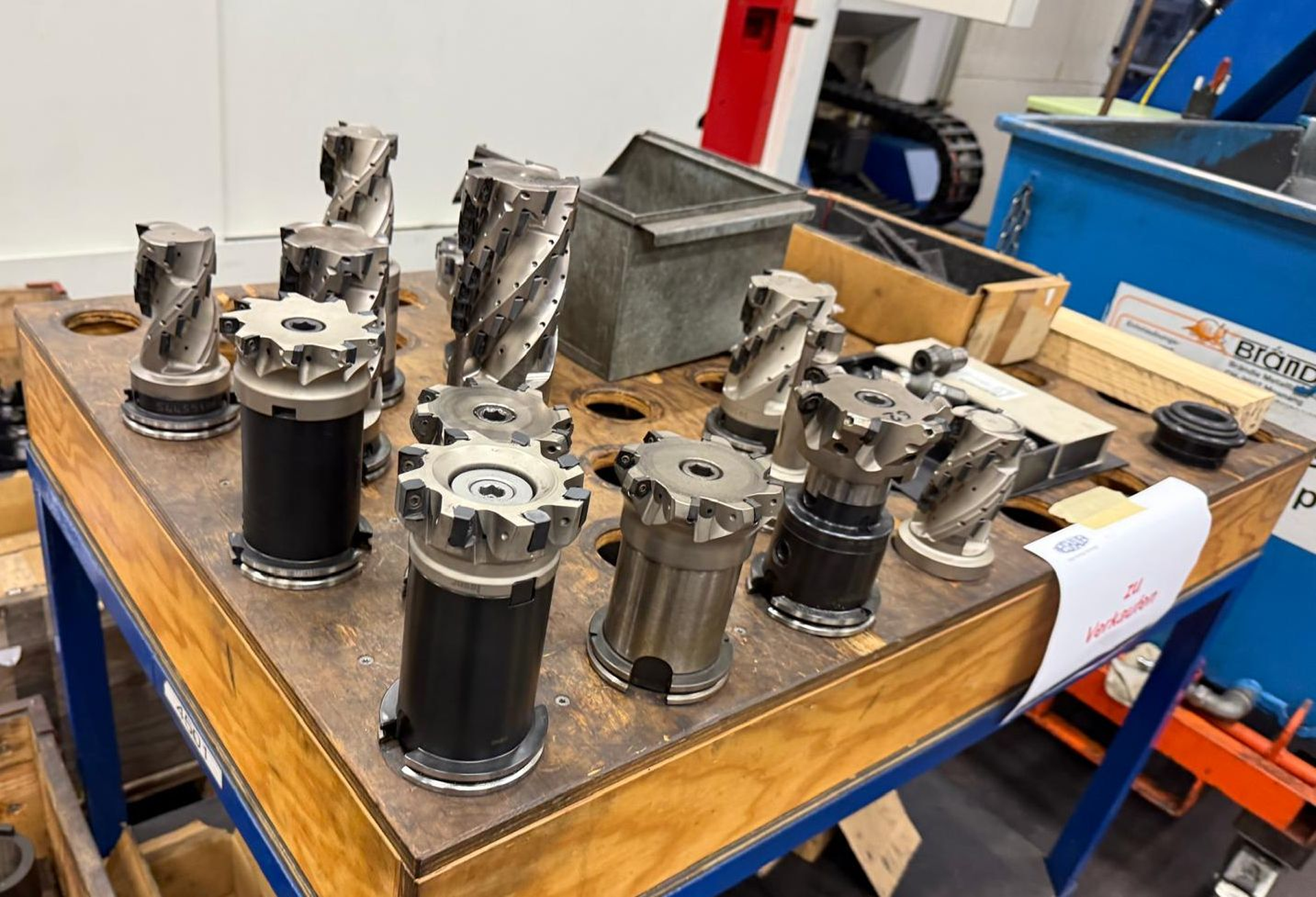

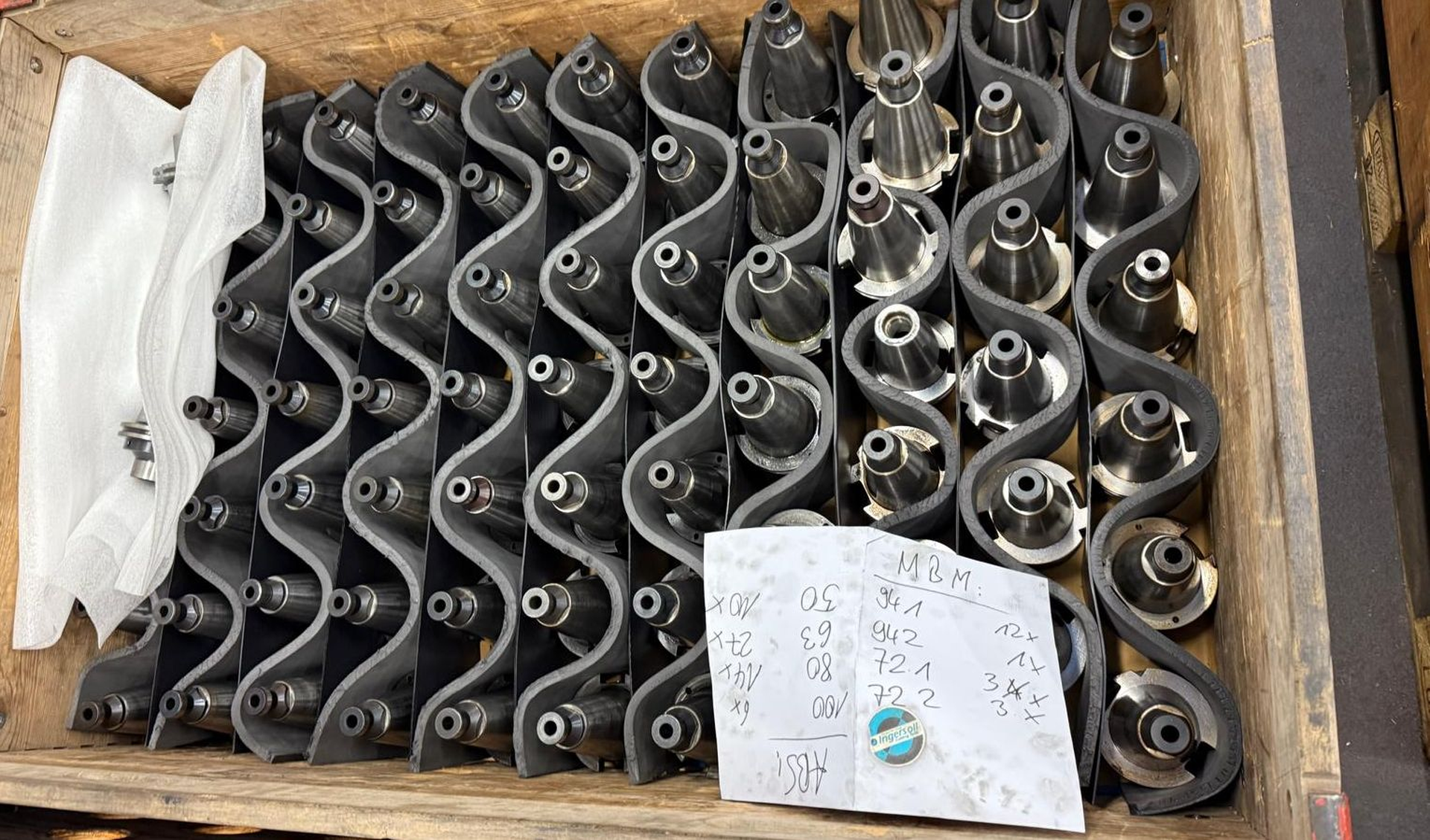

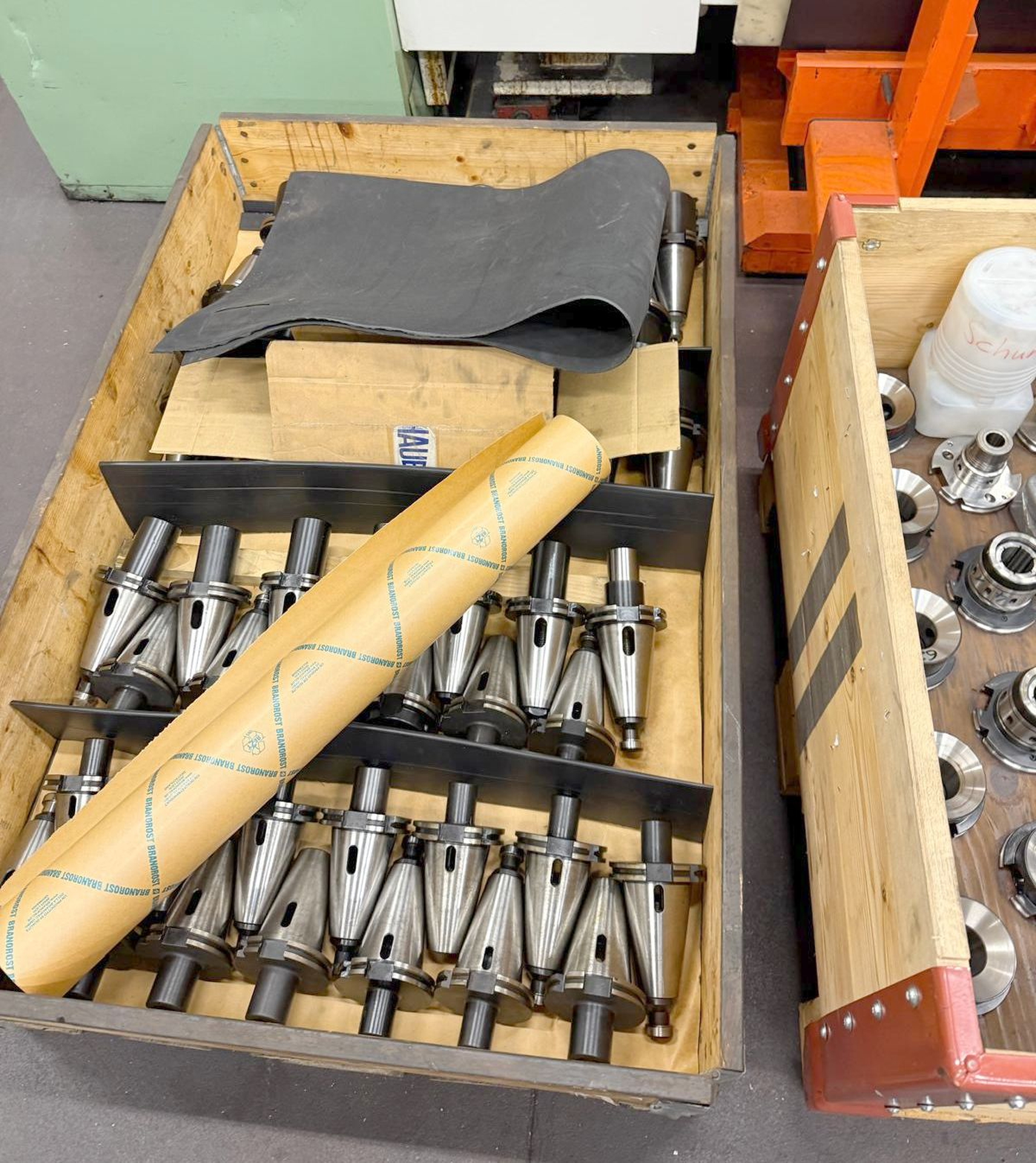

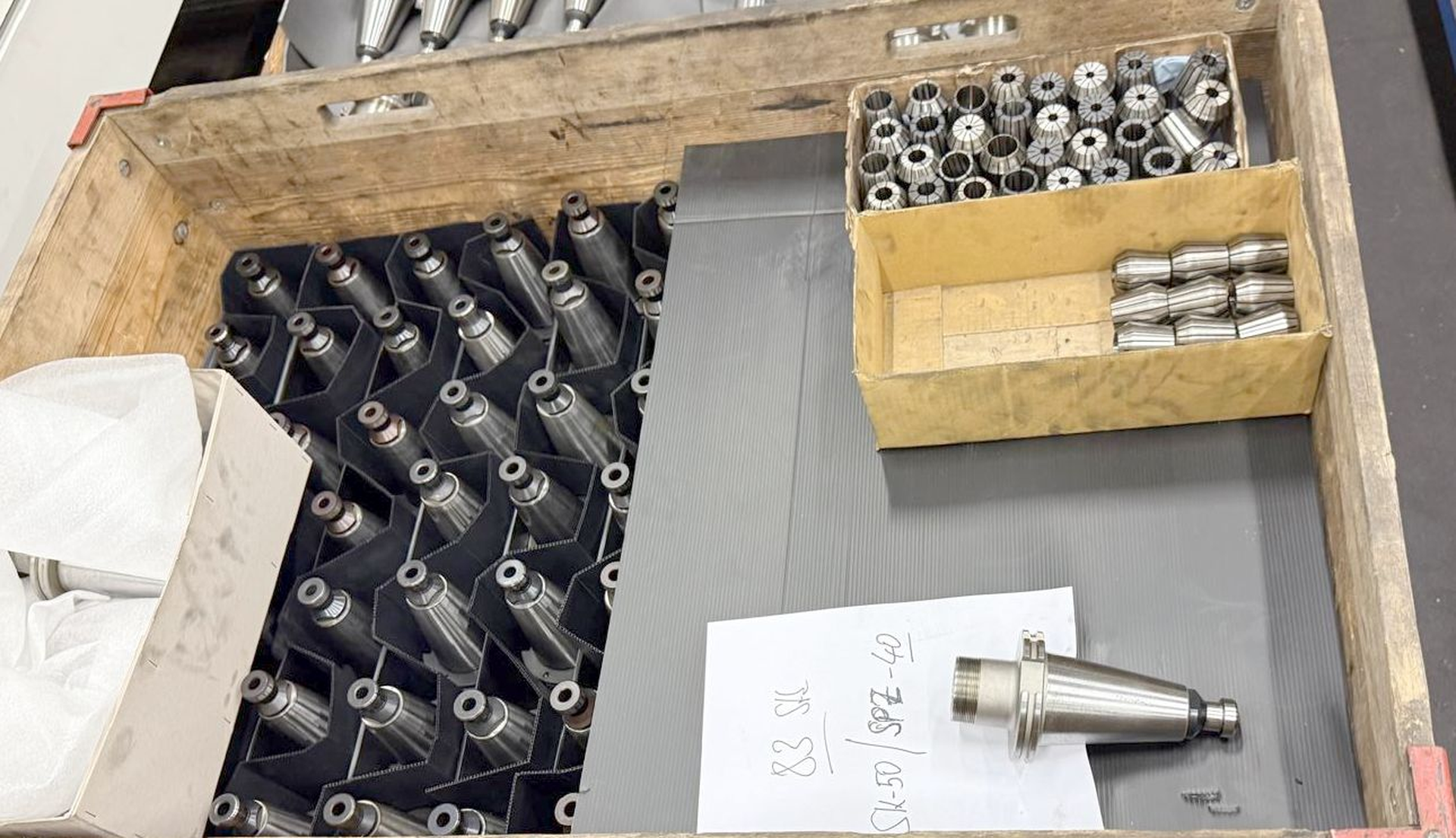

Number of tools: 250.
Tool diameter max.: 125 mm.
Diameter with free adjacent pockets: 250 mm.
Tool lenght: 650 mm.
Max. tool-weight: 40 kg.
Time of tool changing: 2.5 - 4.5 s.
Average chip-to-chip time: 7 - 9 s.

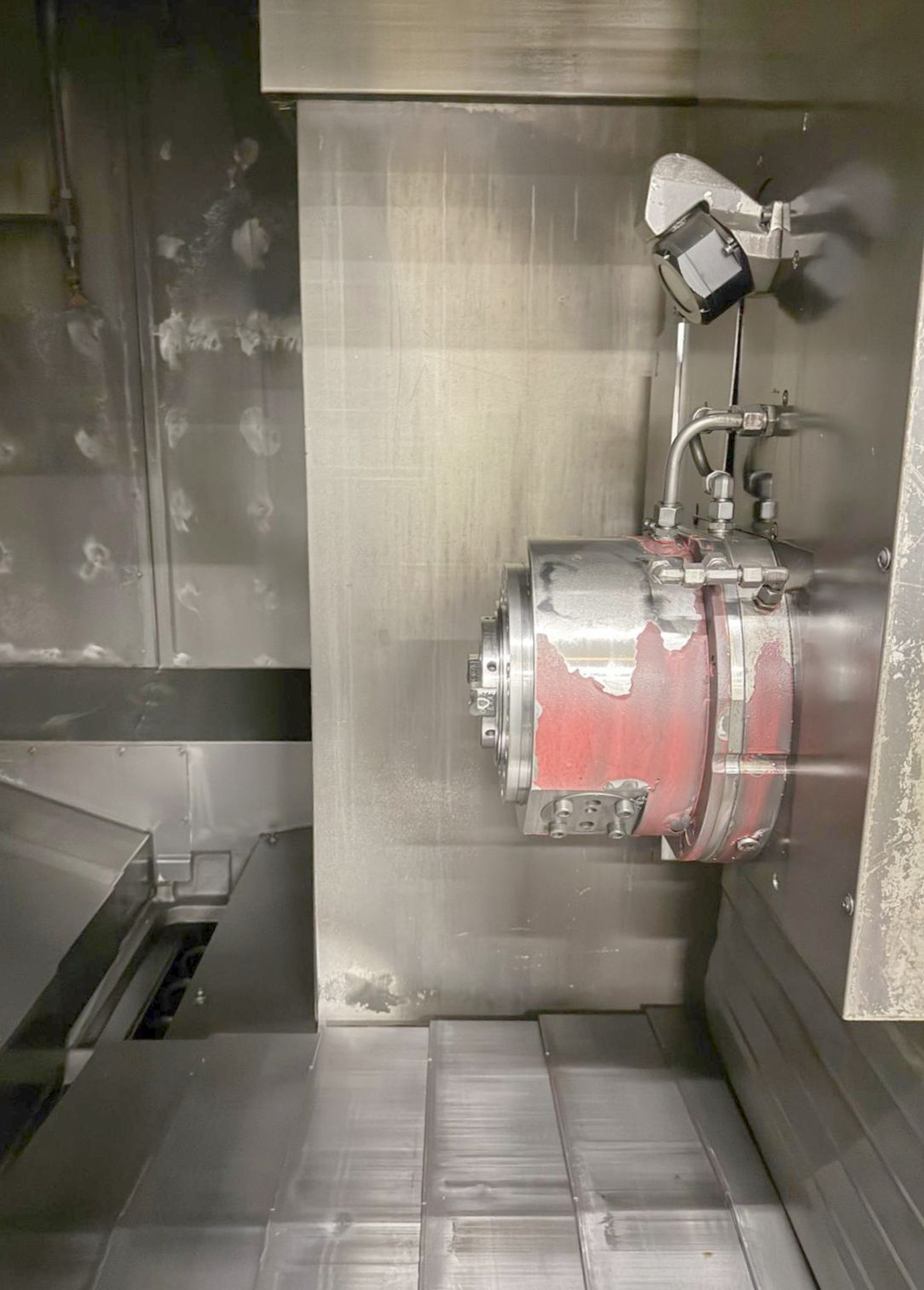

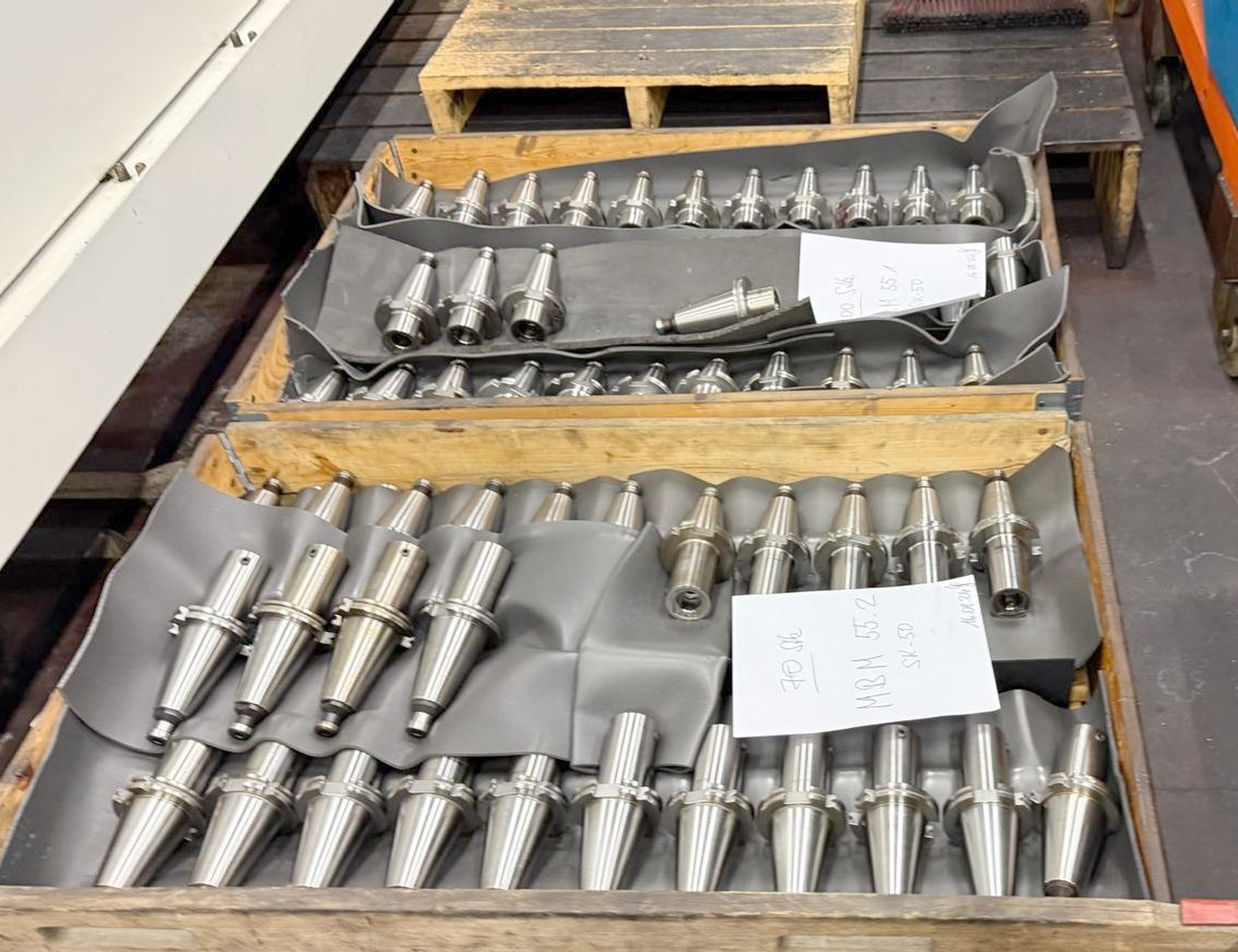

Spindle nose SK: 50 DIN69871.
Distance spindle nose to table: 130 mm.
from: 25 t/min.
up to: 6000 t/min.
Torque max.: 900 / 1130 Nm.
Feed range: 1 - 36000 mm/min.
Rapid traverse:: 36 m/min.
Machine's weight about: 30000 kg.
Height: 3800 mm.

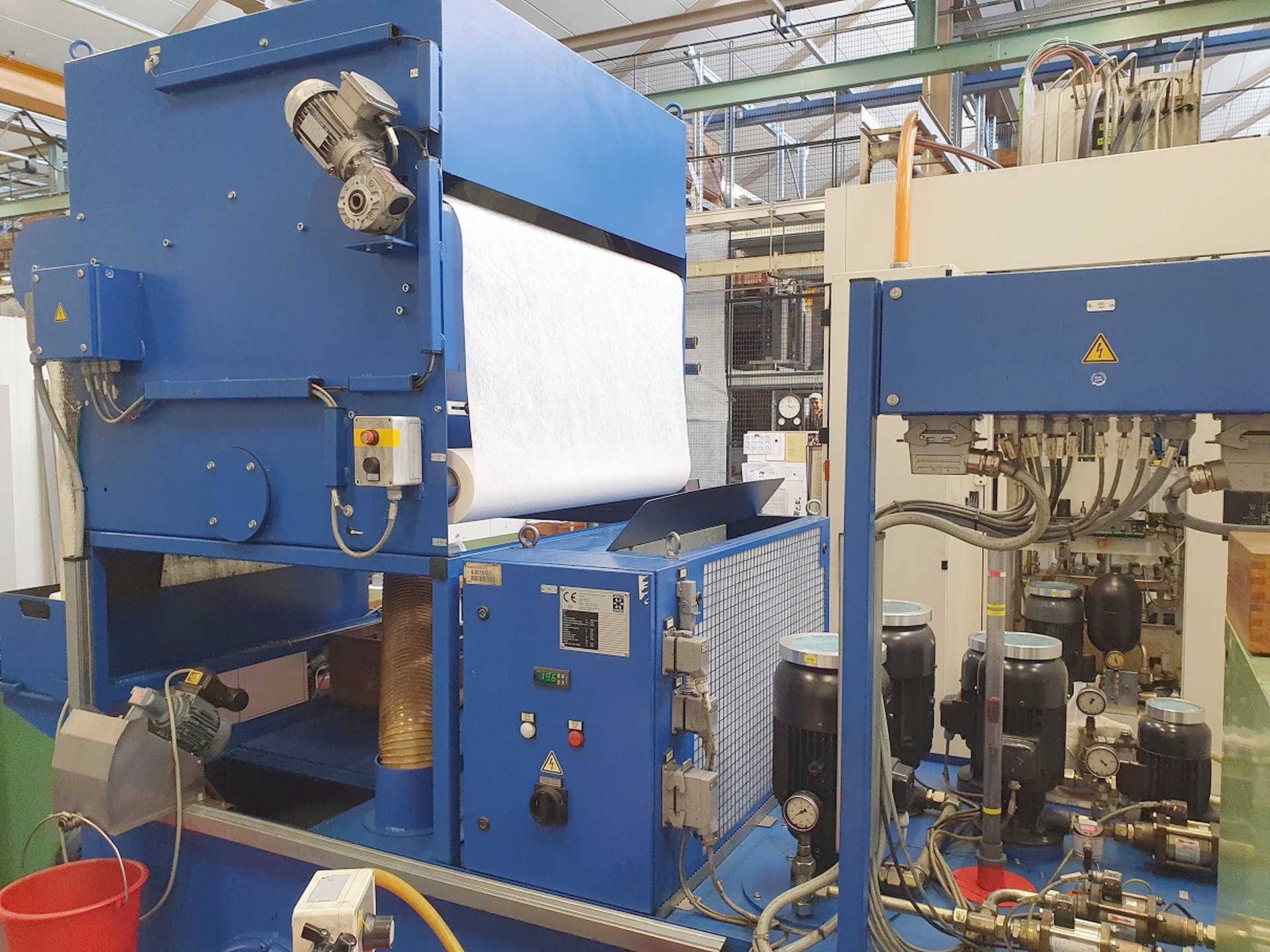

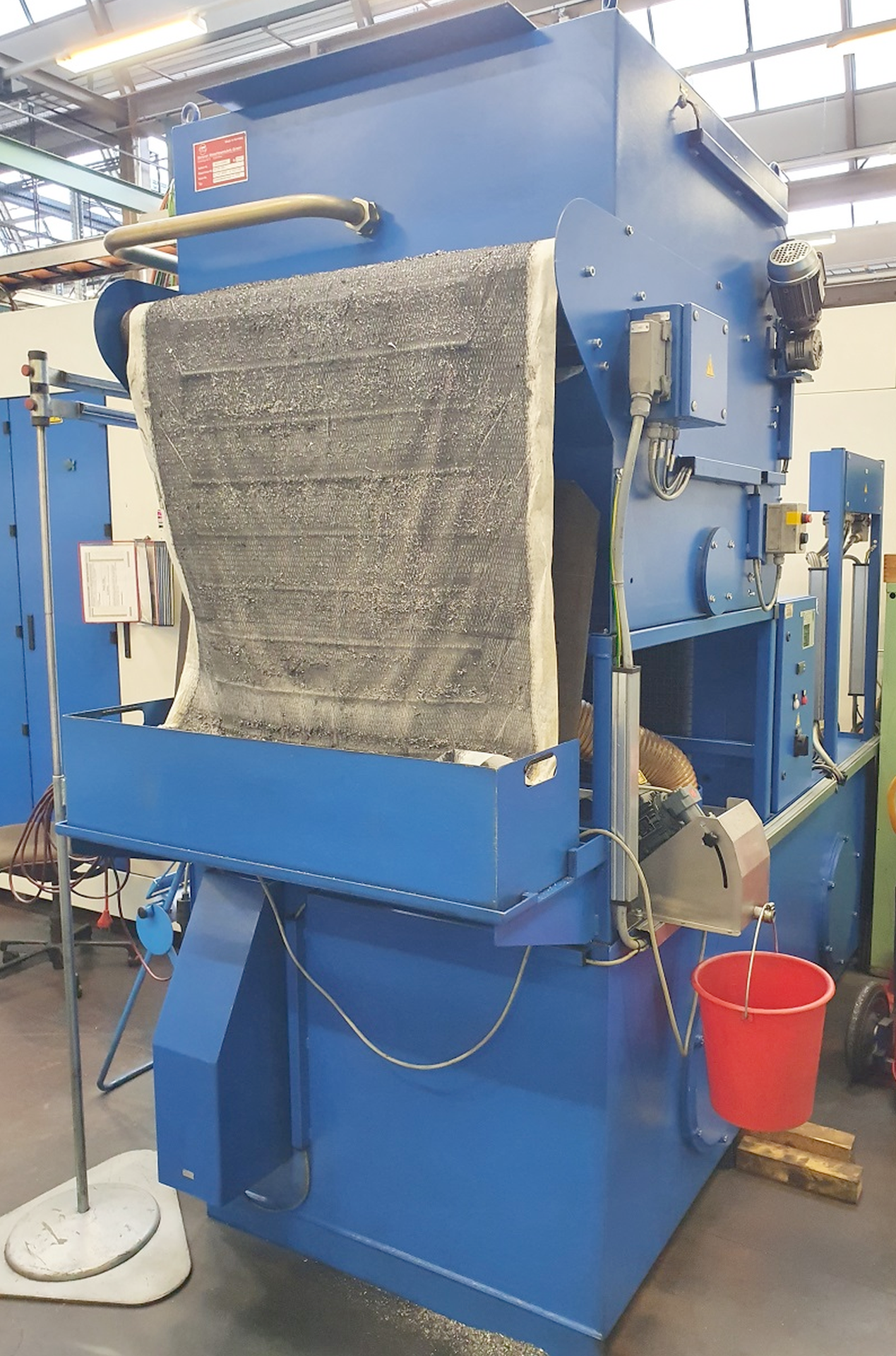

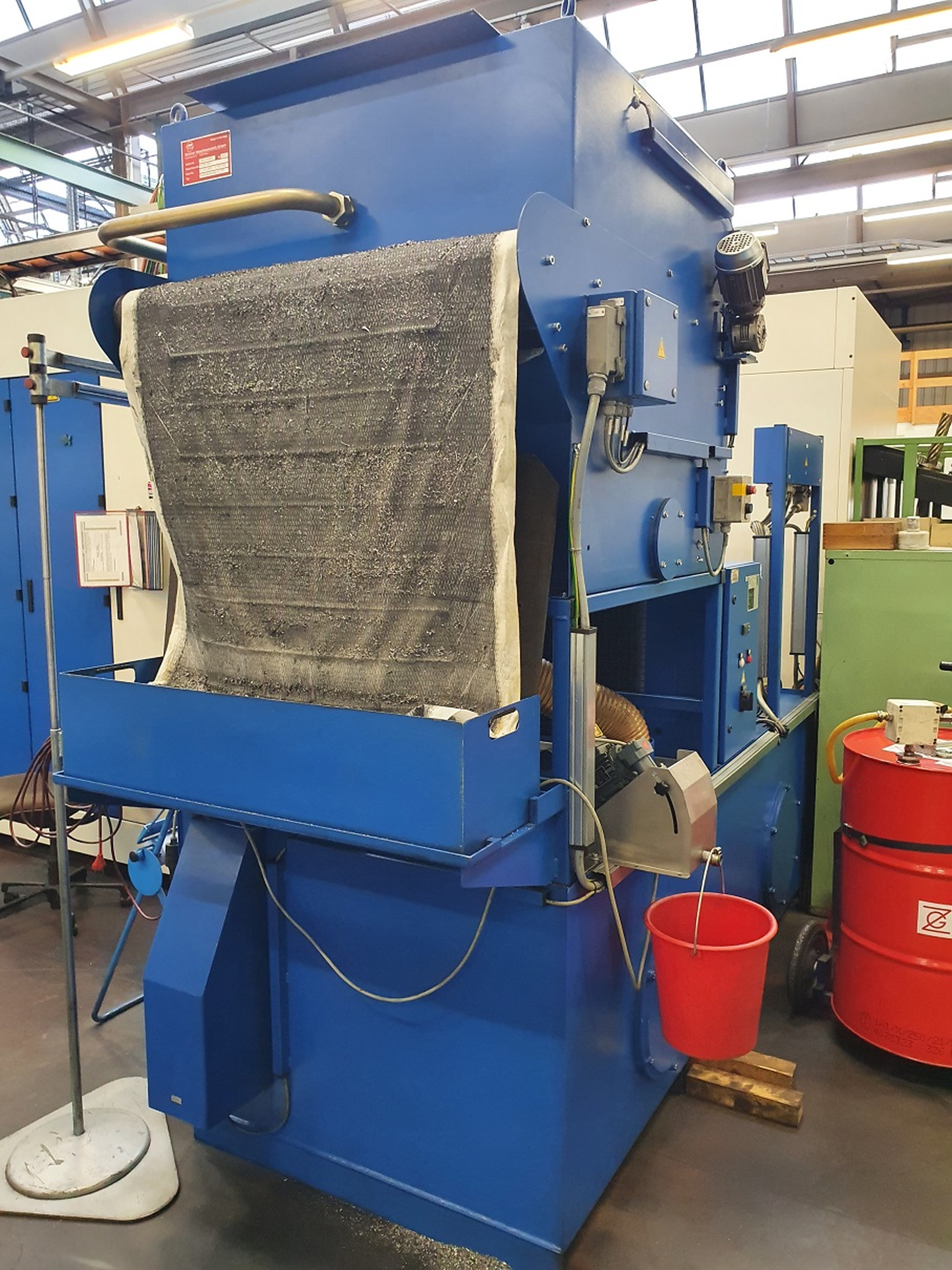

Coolant system: 1250 l.
Booster pump (coolant): 11 bar.
Coolant through spindle (cts): 25 / 50 bar.
Pallets: number: 2.
Spindle refurbished: 2015.
