MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Colchester
  • Model:

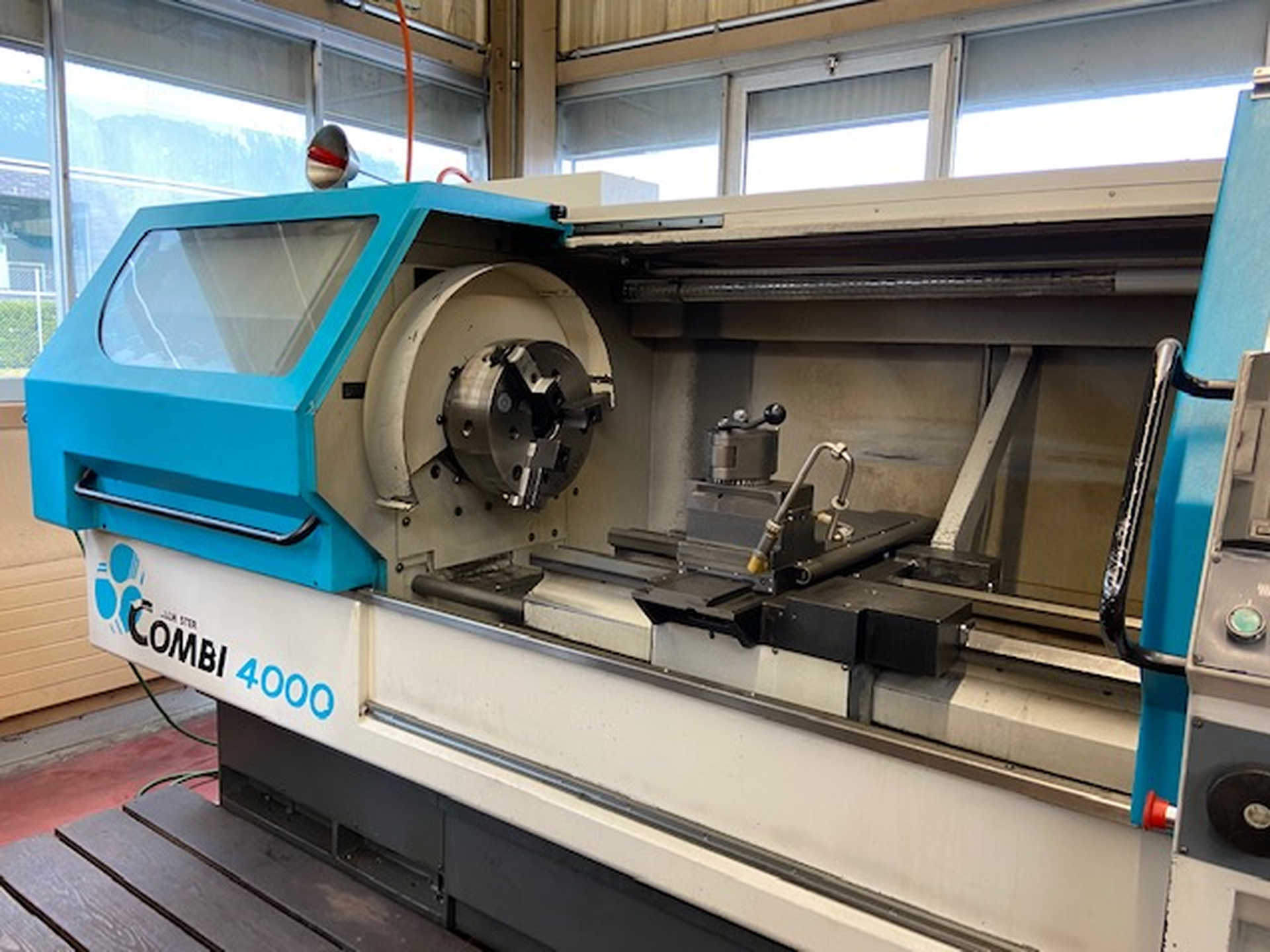

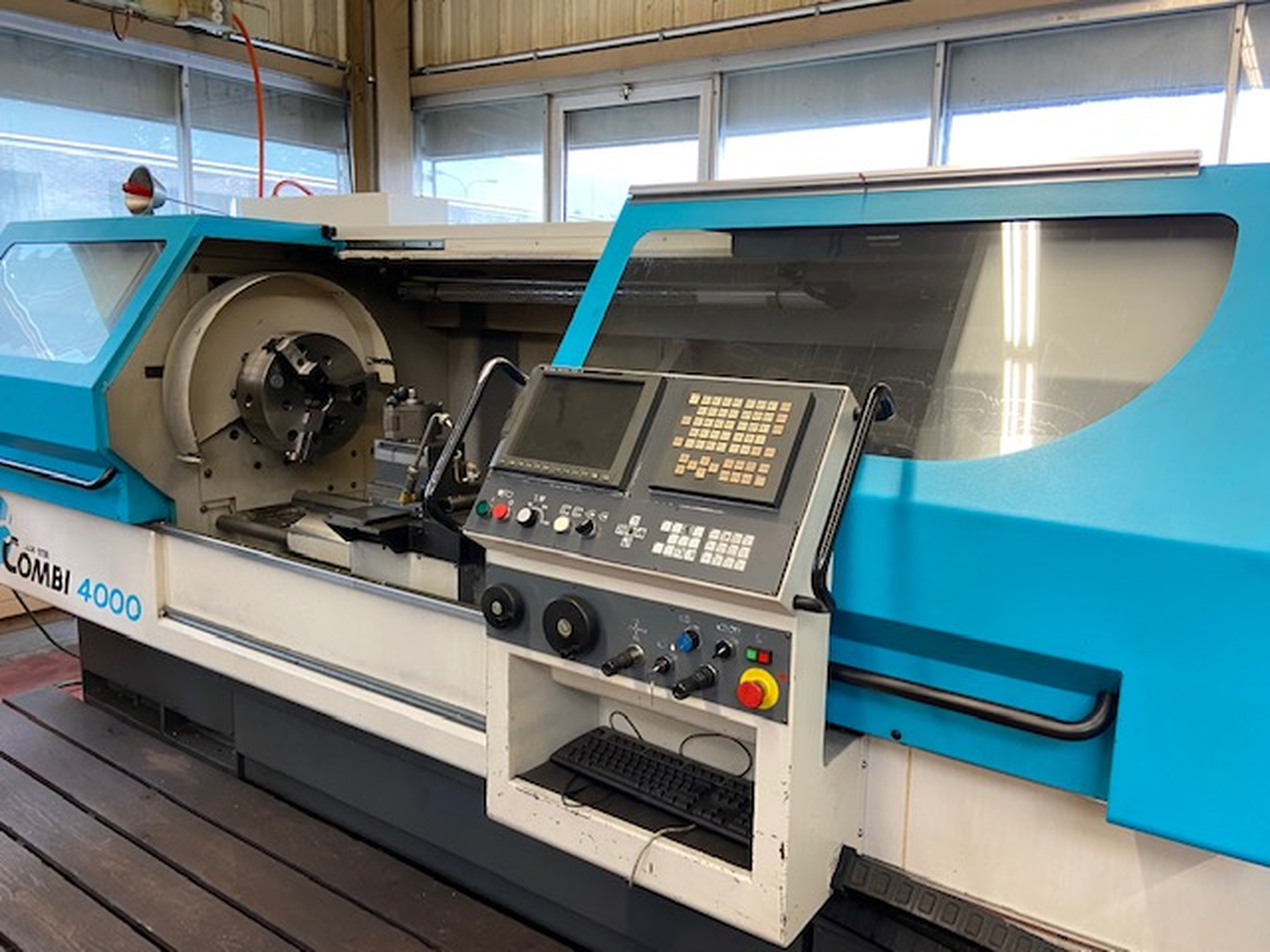

  • 021165 - COLCHESTER COMBI 4000
  • Condition:
  • 1
  • YOM:
  • NA

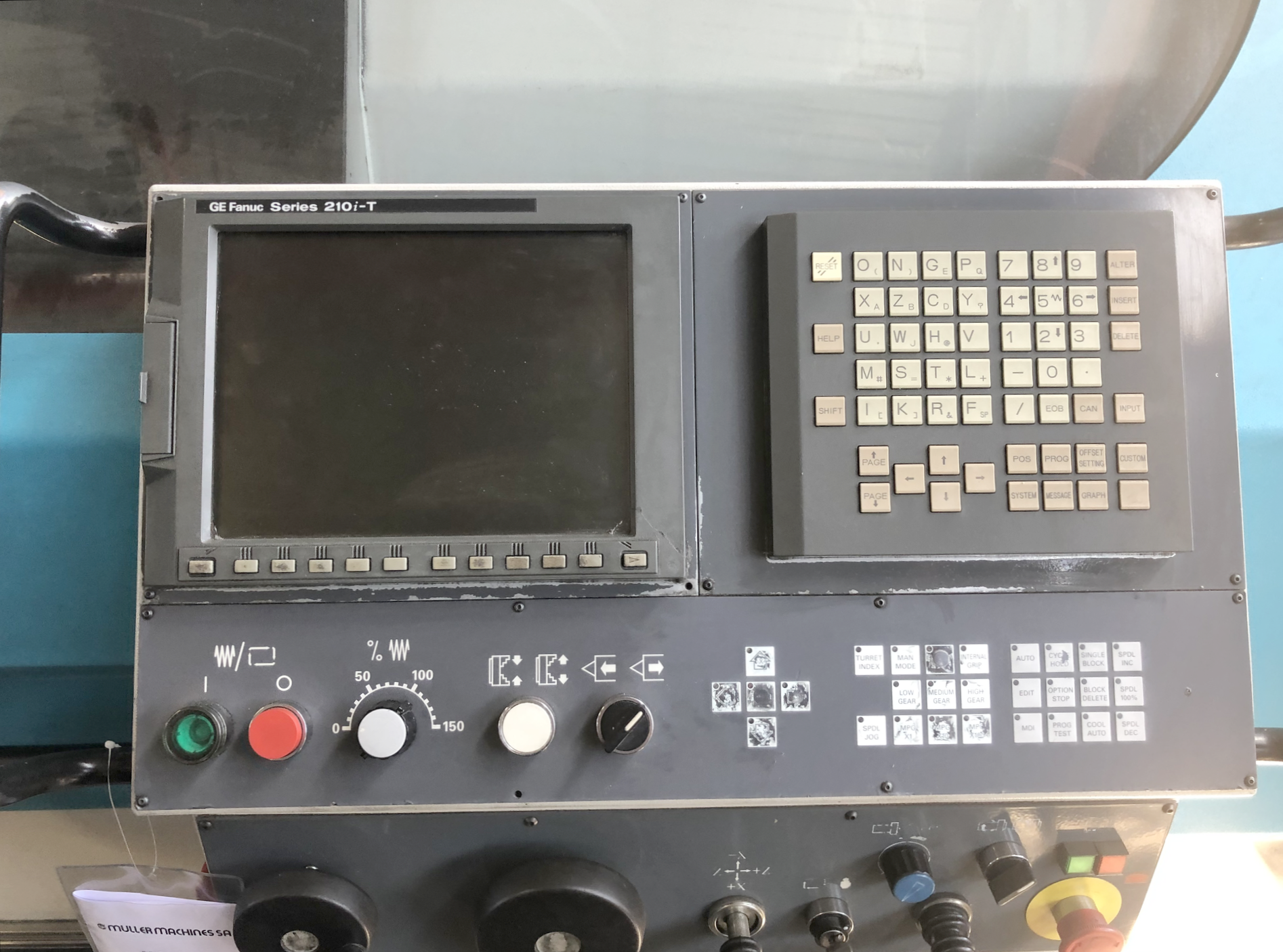

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Distance between centres: 2000 mm.
Turning diameter over cross-slide: 370 mm.
Swing over bed: 554 mm.
Spindle nose: D1-11.
Spindle hole: 104 mm.
Maximum turning length: 2000 mm.
Longitudinal travel (Z-axis): 1920 mm.
Transversal strocke (X axis): 290 mm.
Camlock: D1-6 CAMLOCK.
number (steps): 3.
from: 16 t/min.
up to: 1800 t/min.
Morse taper: 6 CM.

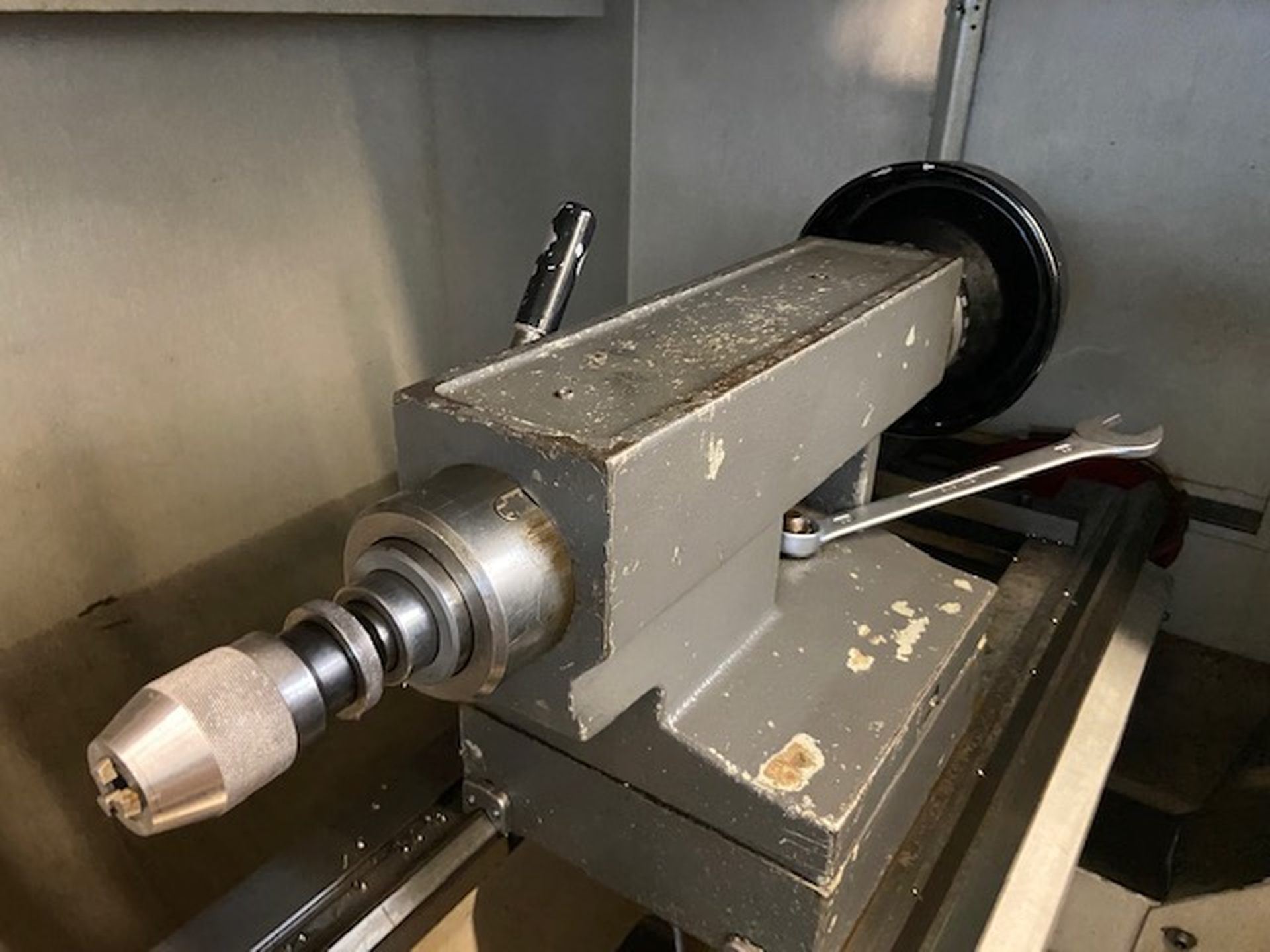

Spindle stroke: 178 mm.
Spindle diameter: 95 mm.
Rapid traverse:: 10 m/min.
Spindle motor: 11 / 7.5 kW.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 4000 kg.
Length: 3300 mm.
Width: 1800 mm.
Height: 1700 mm.

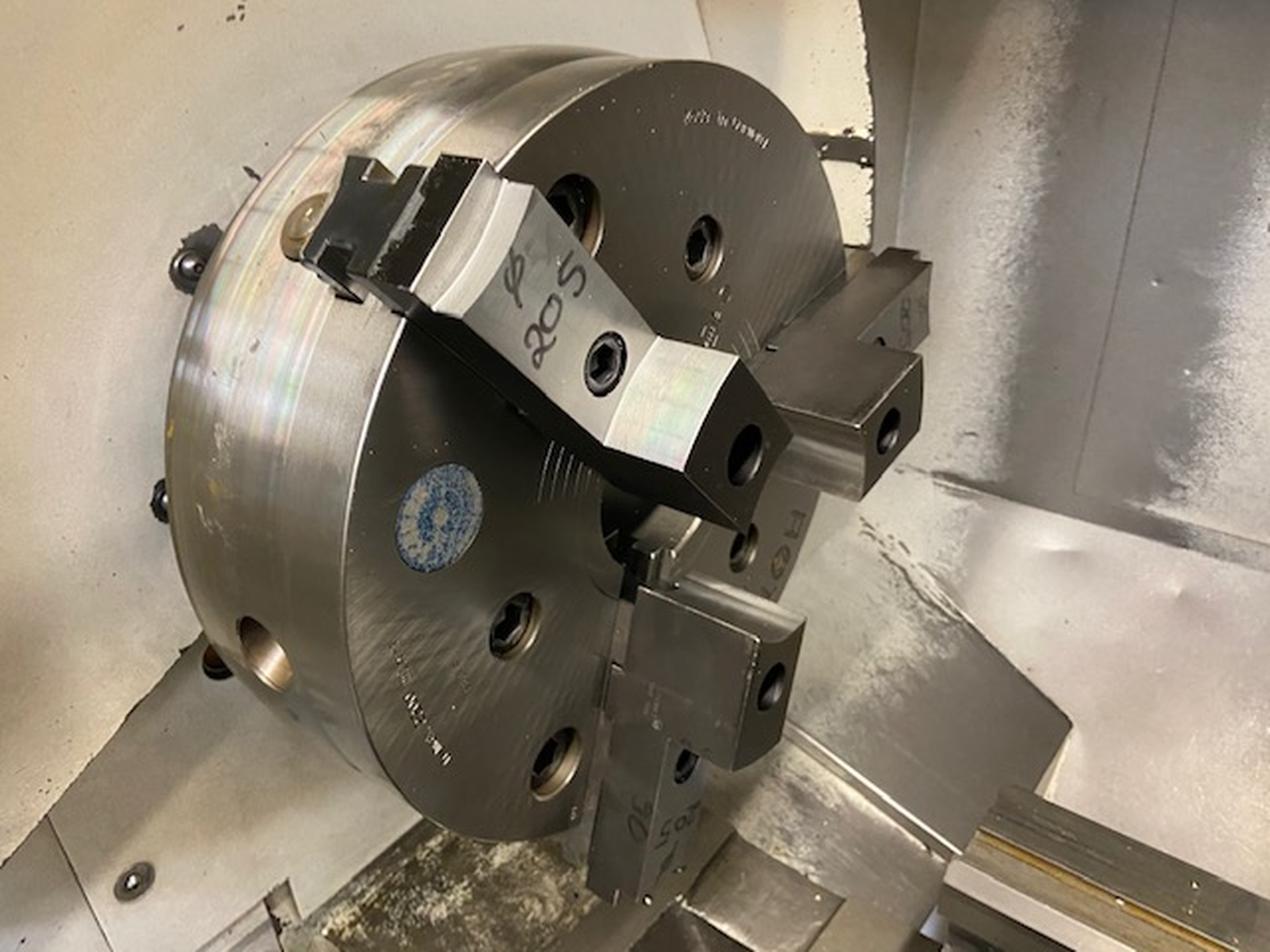

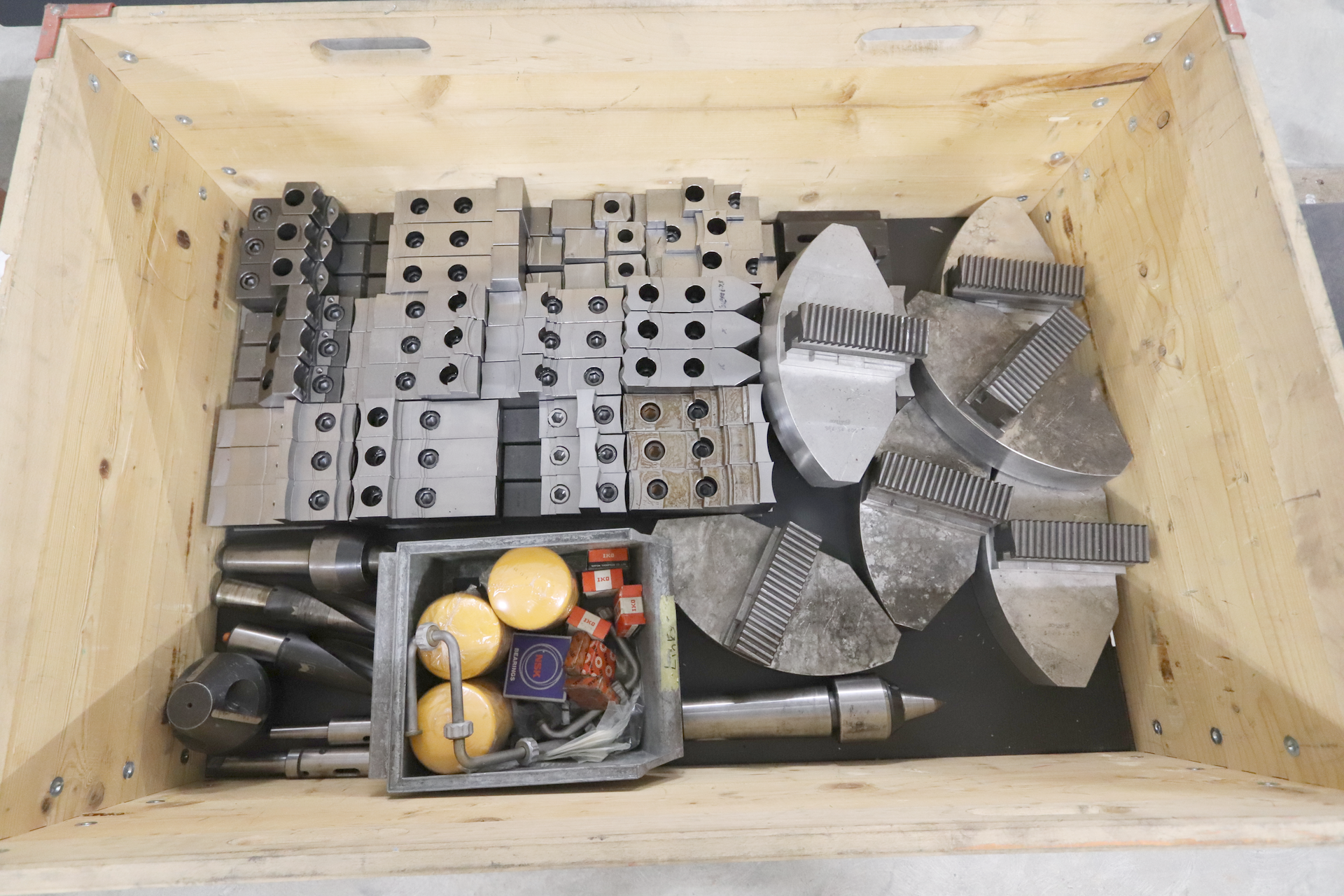

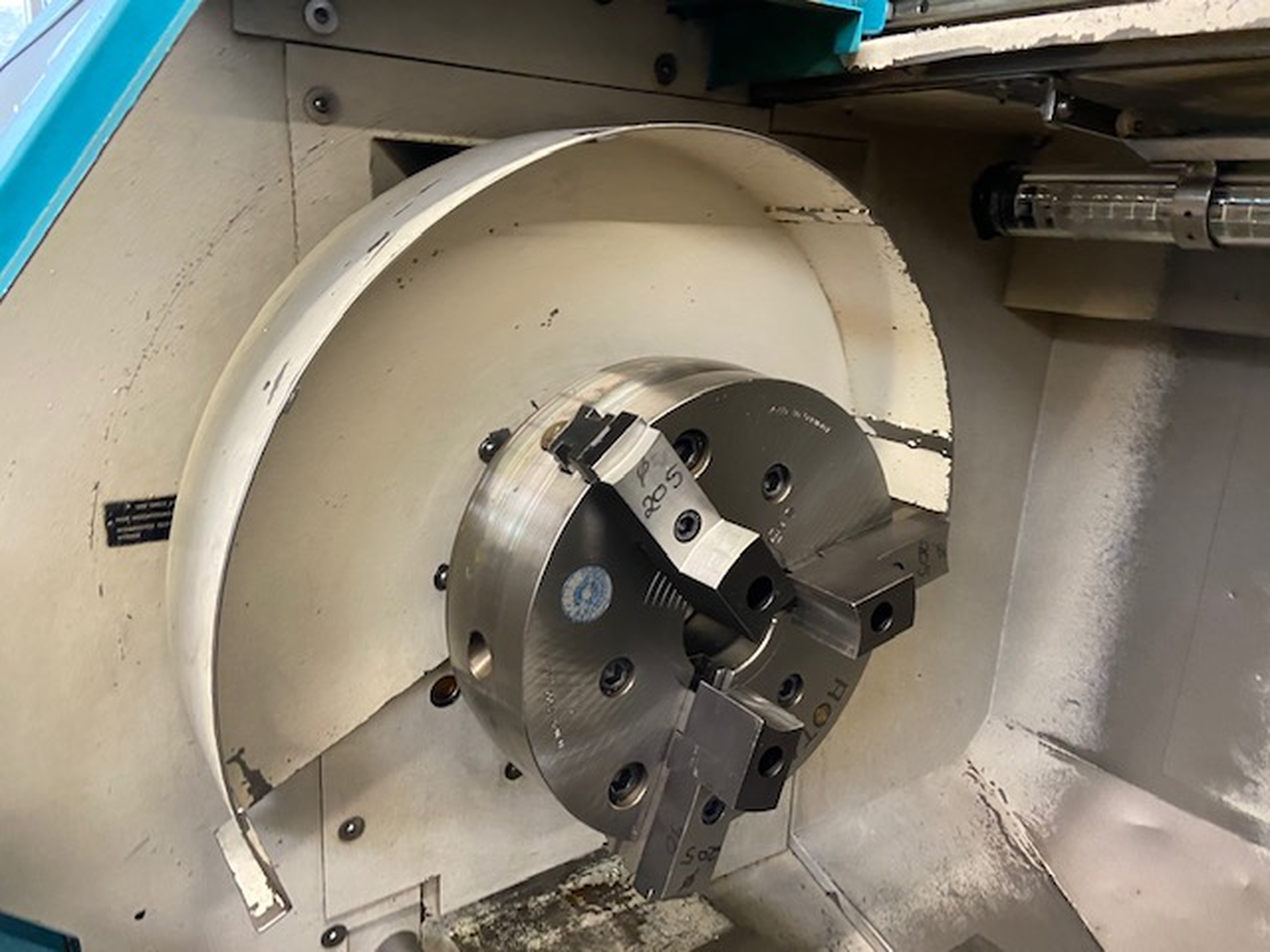

3-jaw chuck diameter: 400 mm.
4-jaw chuck diameter: 700 mm.

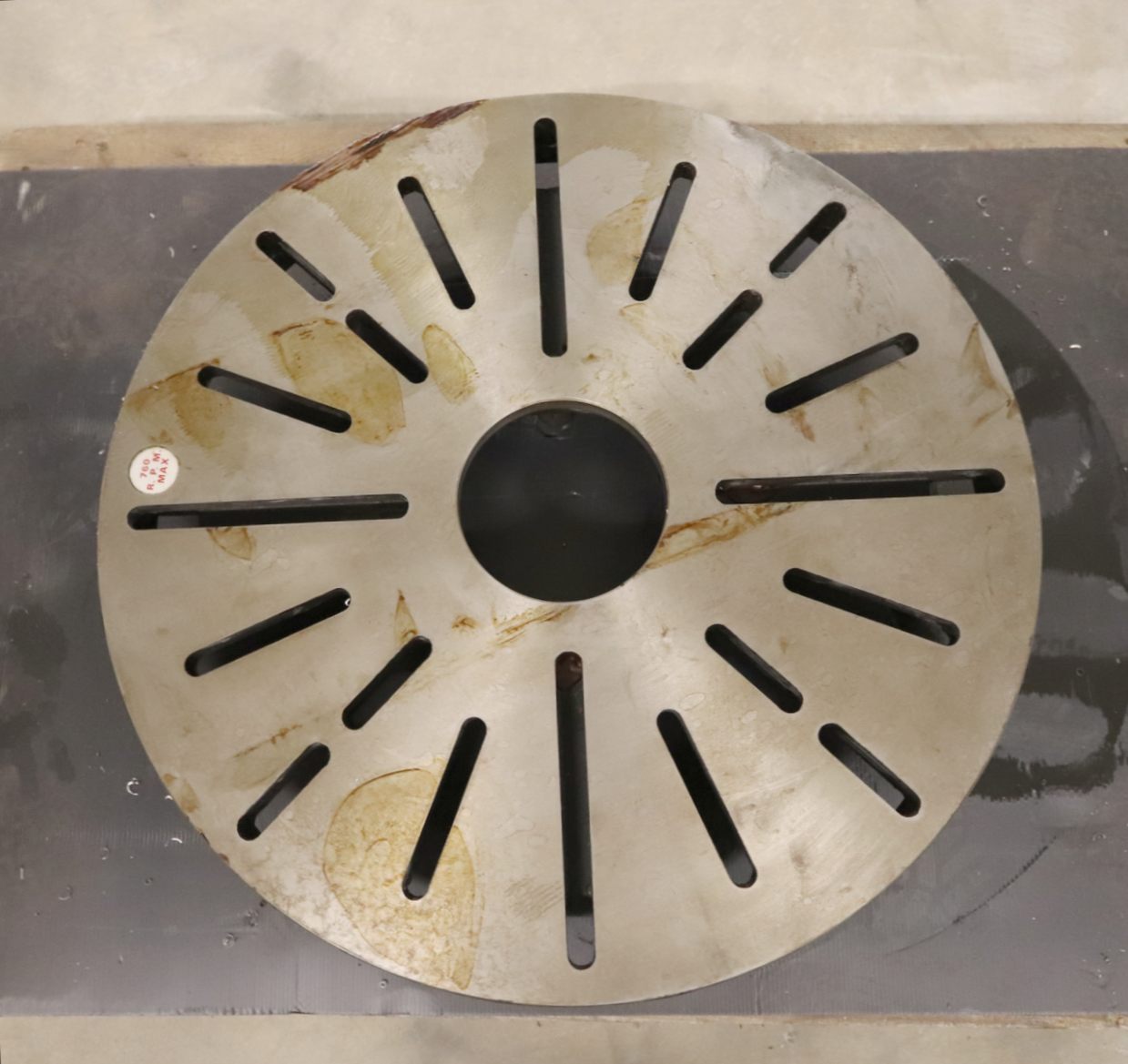

Face plate diameter: 680 mm.

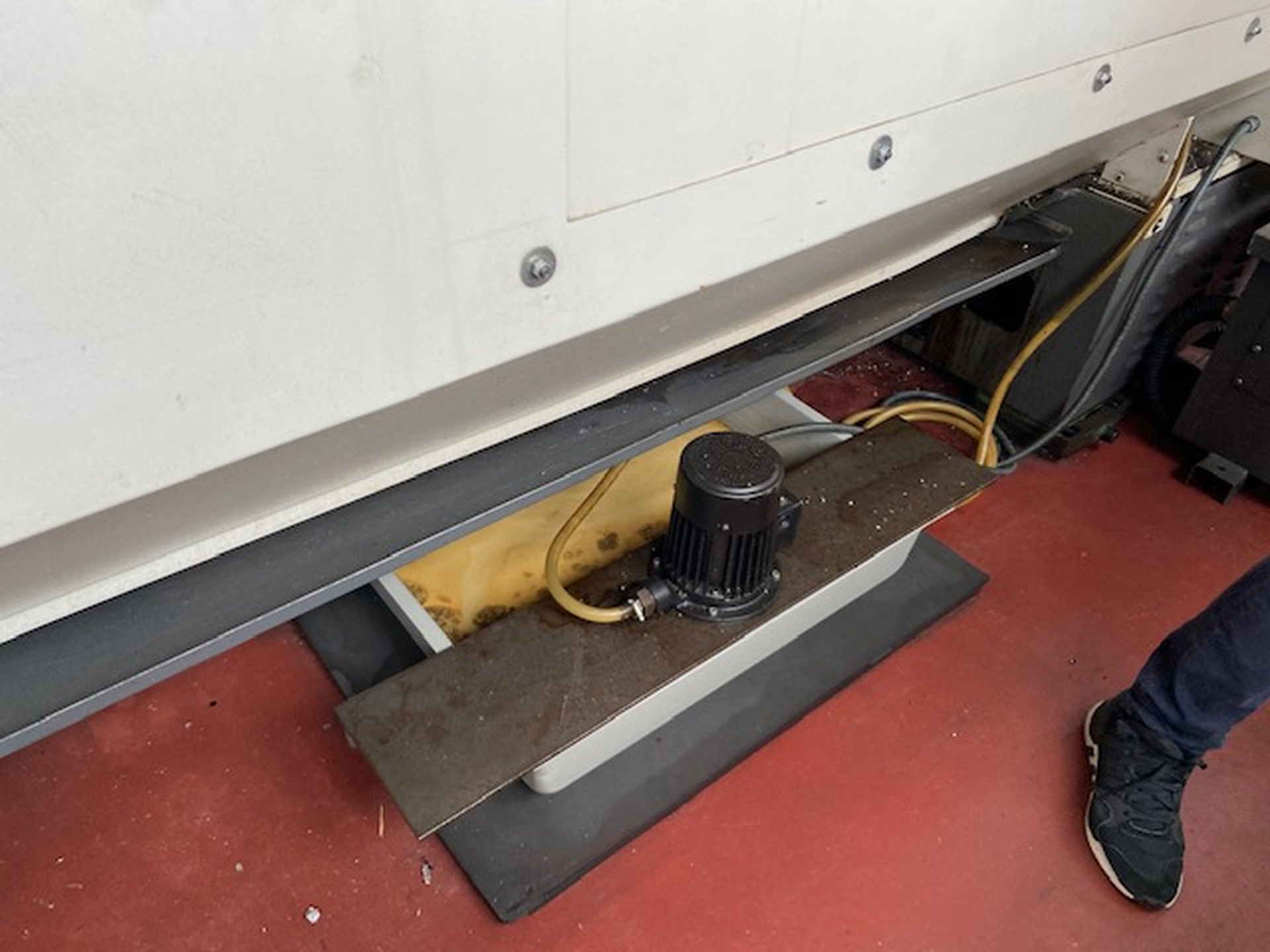

Coolant system: 90 l.

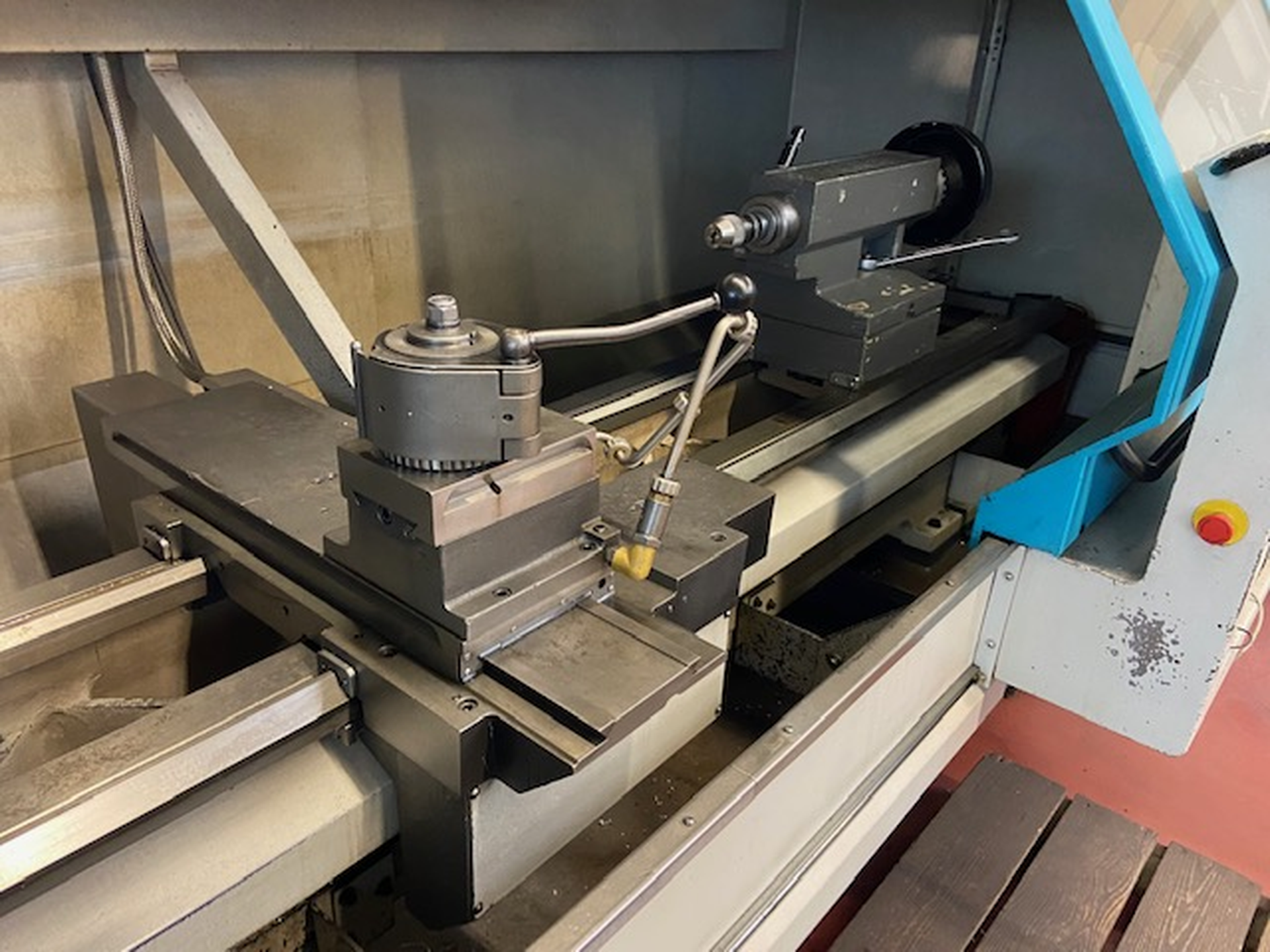

Toolholders: MULTIFIX.
