MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

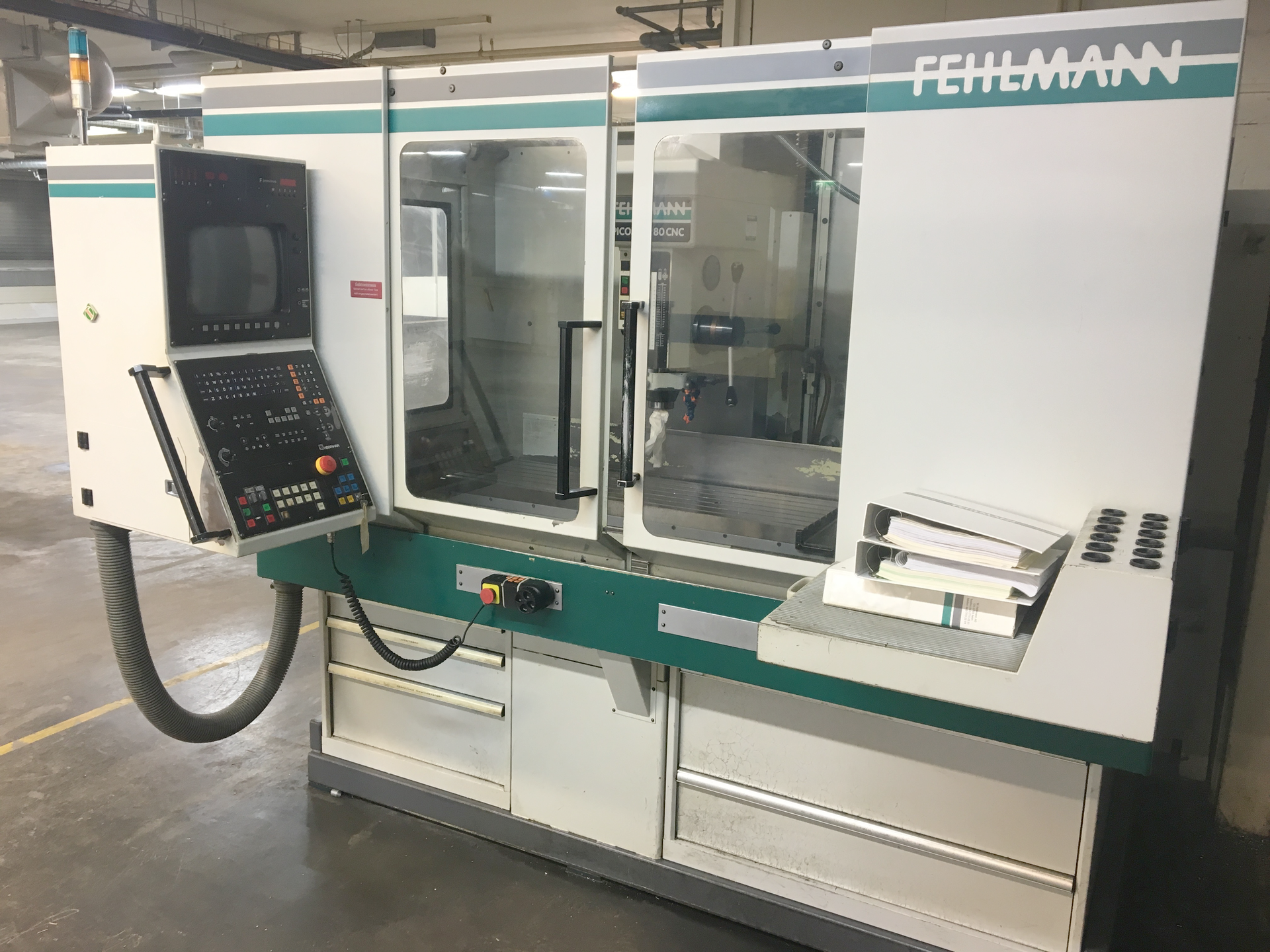

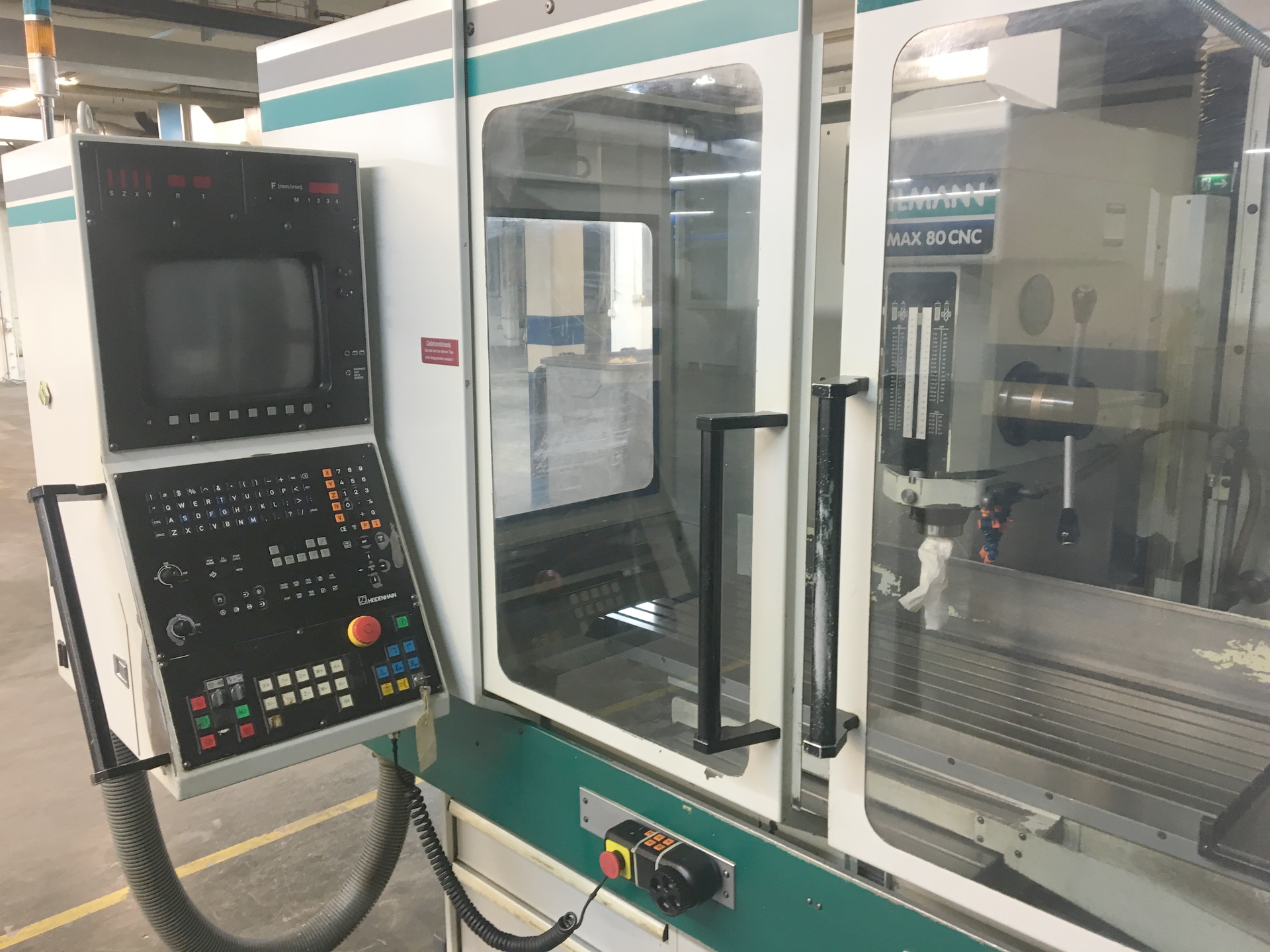

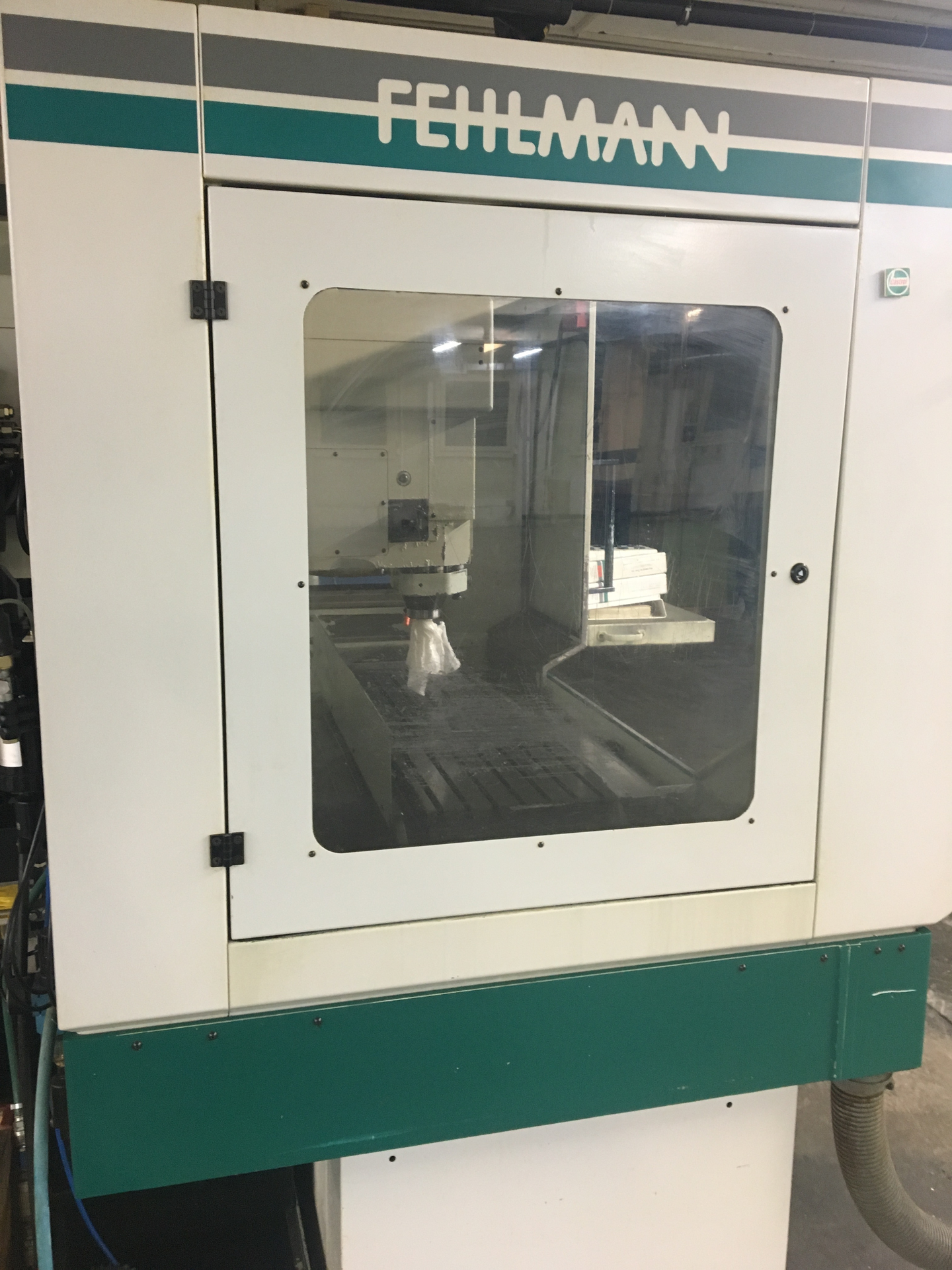

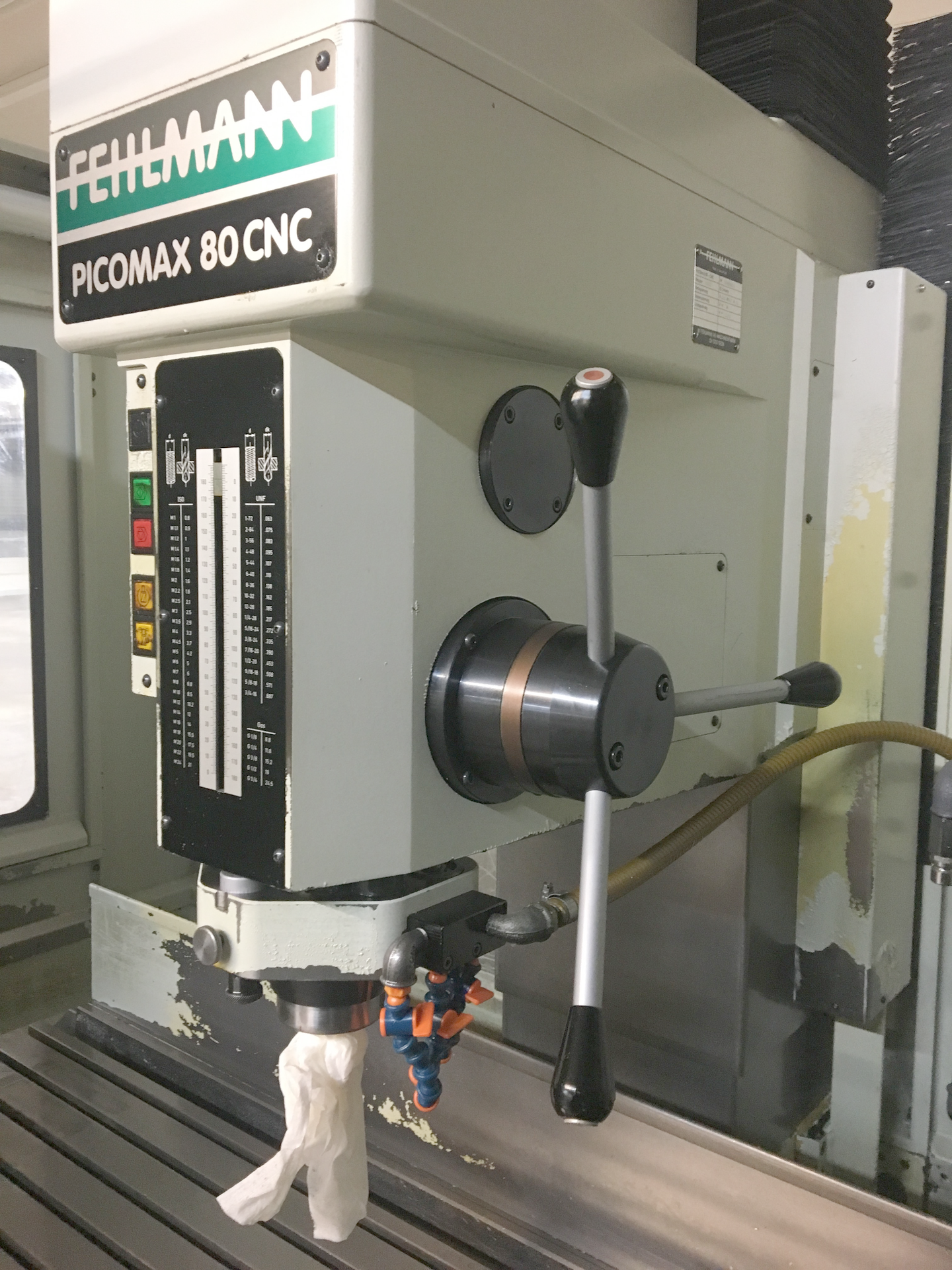

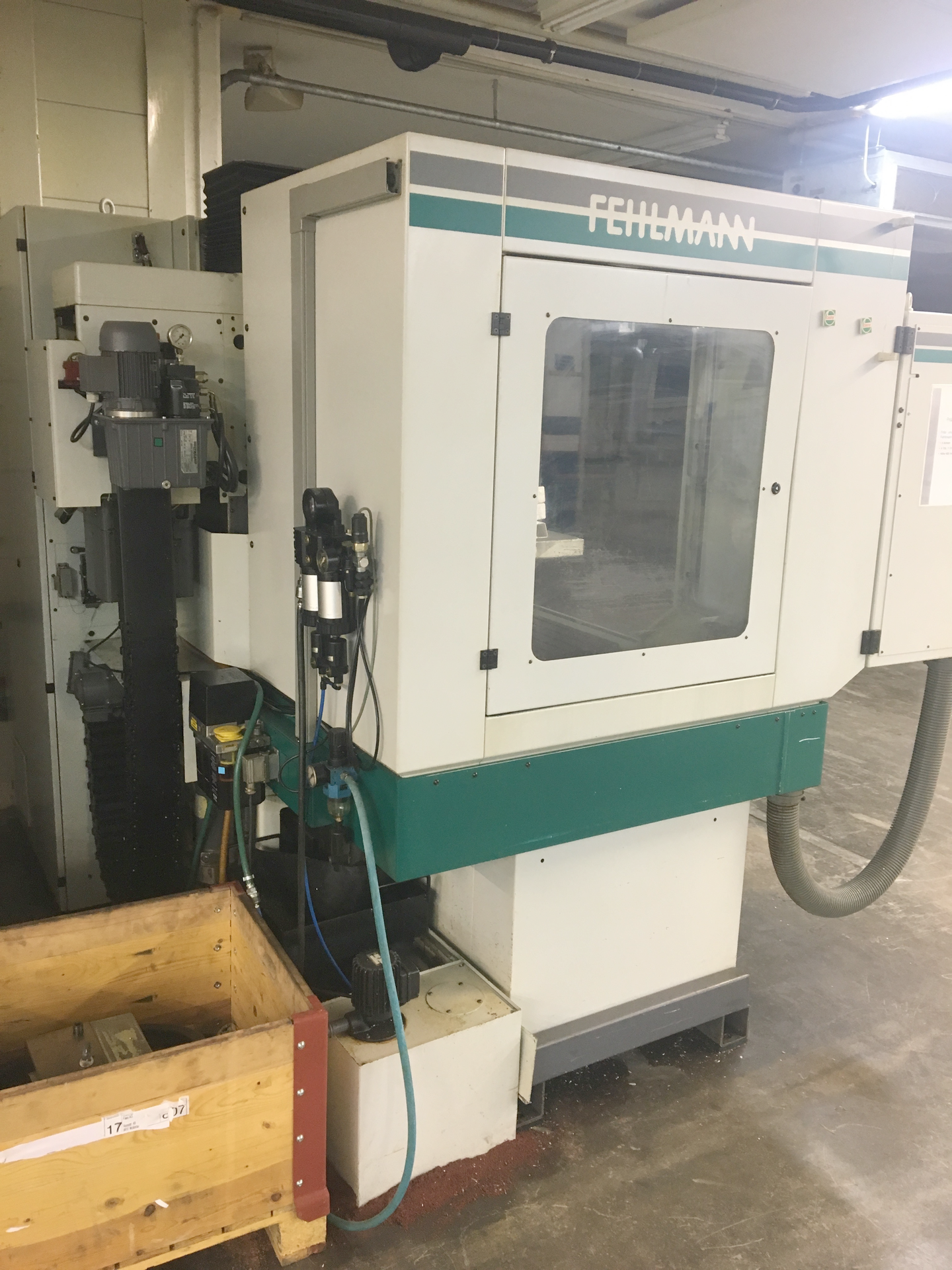

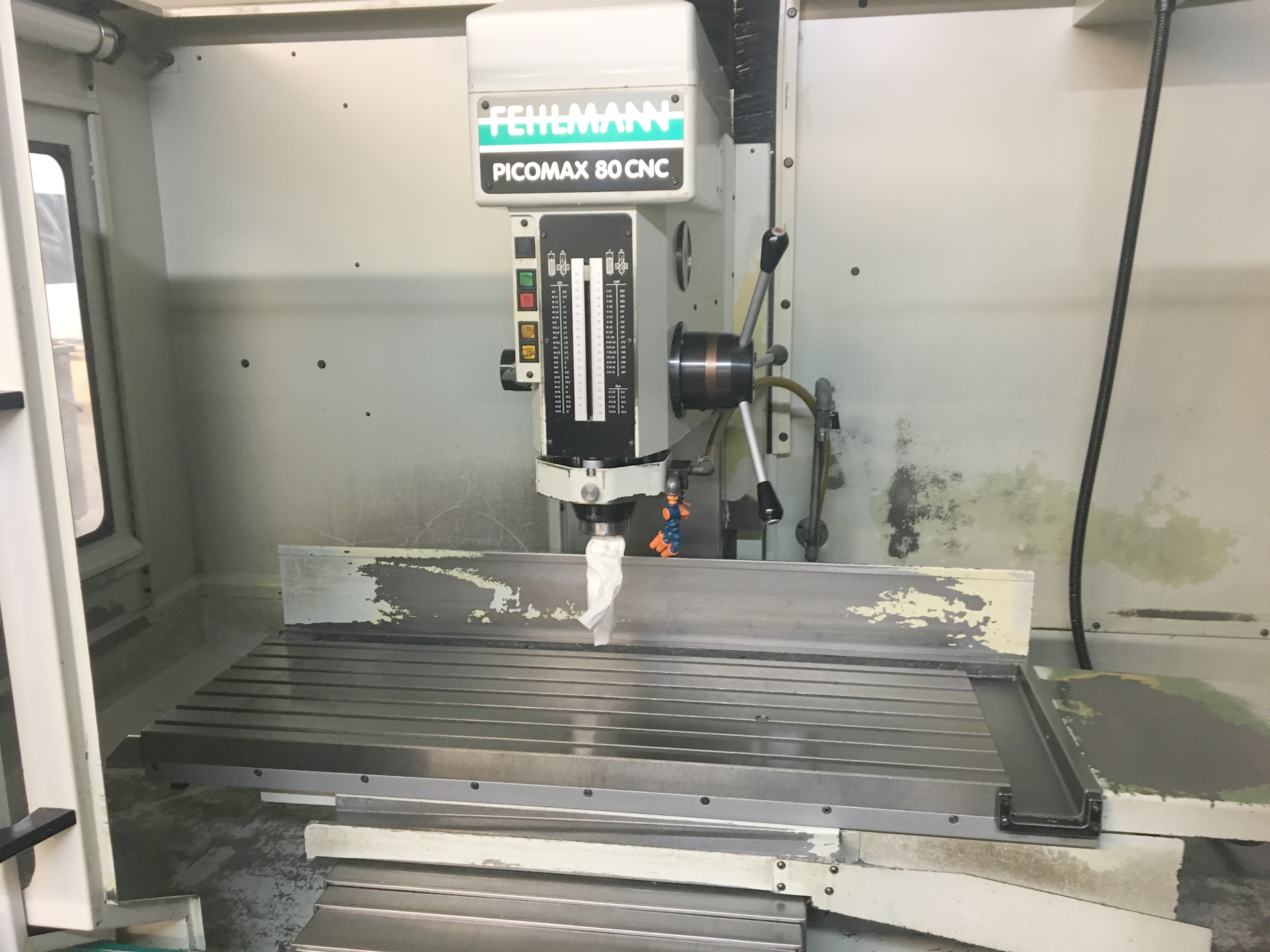

  • 019656 - FEHLMANN PICOMAX 80 CNC 2/3
  • Condition:
  • 1
  • YOM:
  • NA

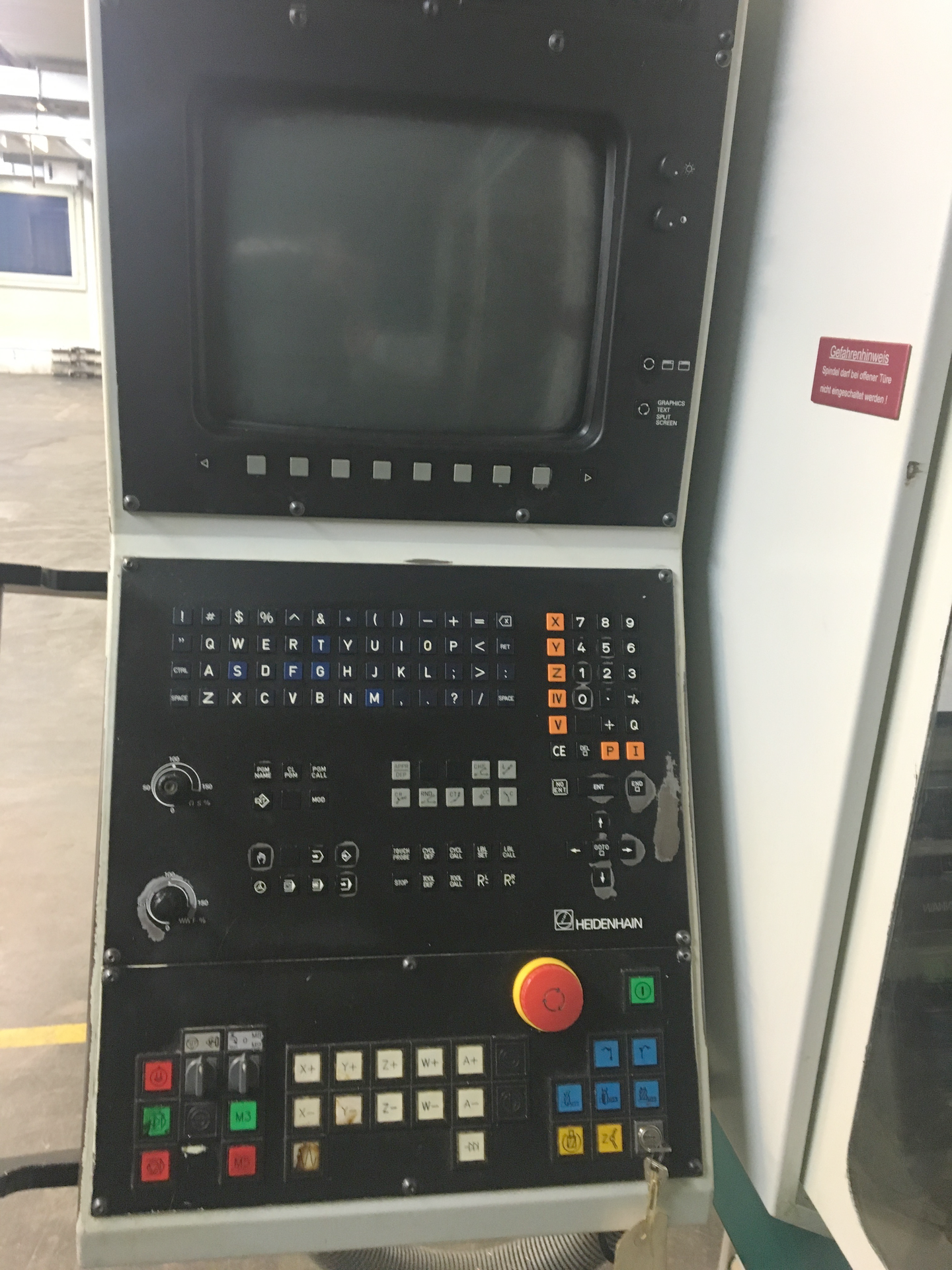

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Spindle nose:: SF 32.
Drill capacity in steel: 30 mm.
Threat cutting in steel M: 24.
Milling capacity: 100 cm3/min.
from: 50 t/min.
up to: 9200 t/min.
Table length: 1230 mm.
Table width: 410 mm.
Number of T-channels: 7.
T-channel width: 12H8 mm.
Distance of the T-slots: 50 mm.
Table load max.: 250 kg.
Height of table above floor: 1010 mm.
Min. distance from table to spindle: 0 mm.
Max. distance from table to spindle: 620 mm.
Depth of throat: 370 mm.
X axis: 1 - 9000 mm/min.
Y axis: 1 - 9000 mm/min.
Spindle stroke (controlled): 170 mm.
Z axis (Spindle stroke manual): 180 mm.
W-axis (machine head travel): 495 mm.
Z axis: 1 - 4000 mm/min.
W axis: 1 - 4500 mm/min.
Rapid traverse X: 9 m/min.
Rapid traverse Y: 9 m/min.
Rapid traverse Z: 4 m/min.

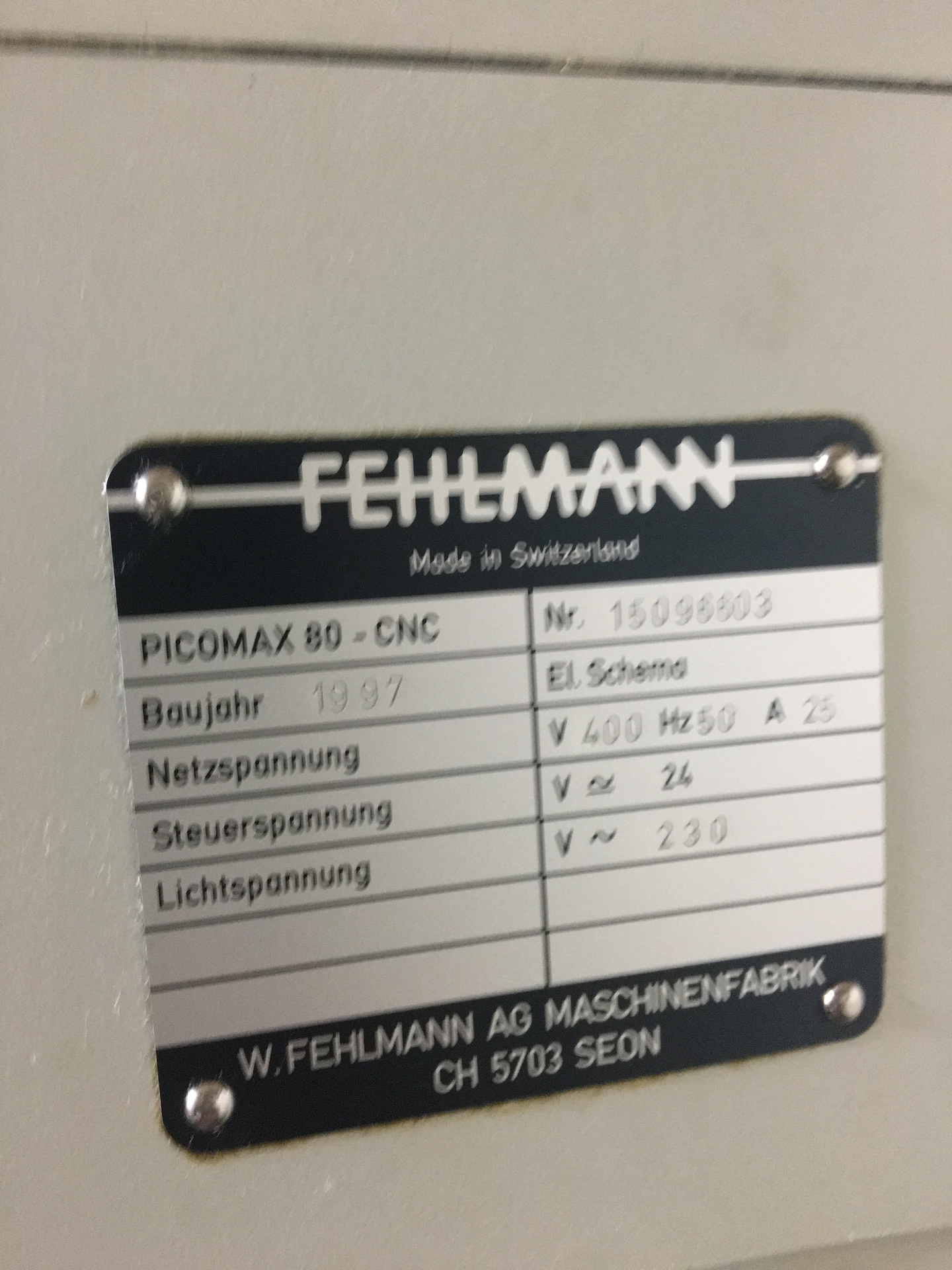

Voltage 50 Hz 3x: 380 Volt.
Power: 16 kW.
Machine's weight about: 3200 kg.
Length: 2500 mm.
Width: 2500 mm.
Height: 2450 mm.

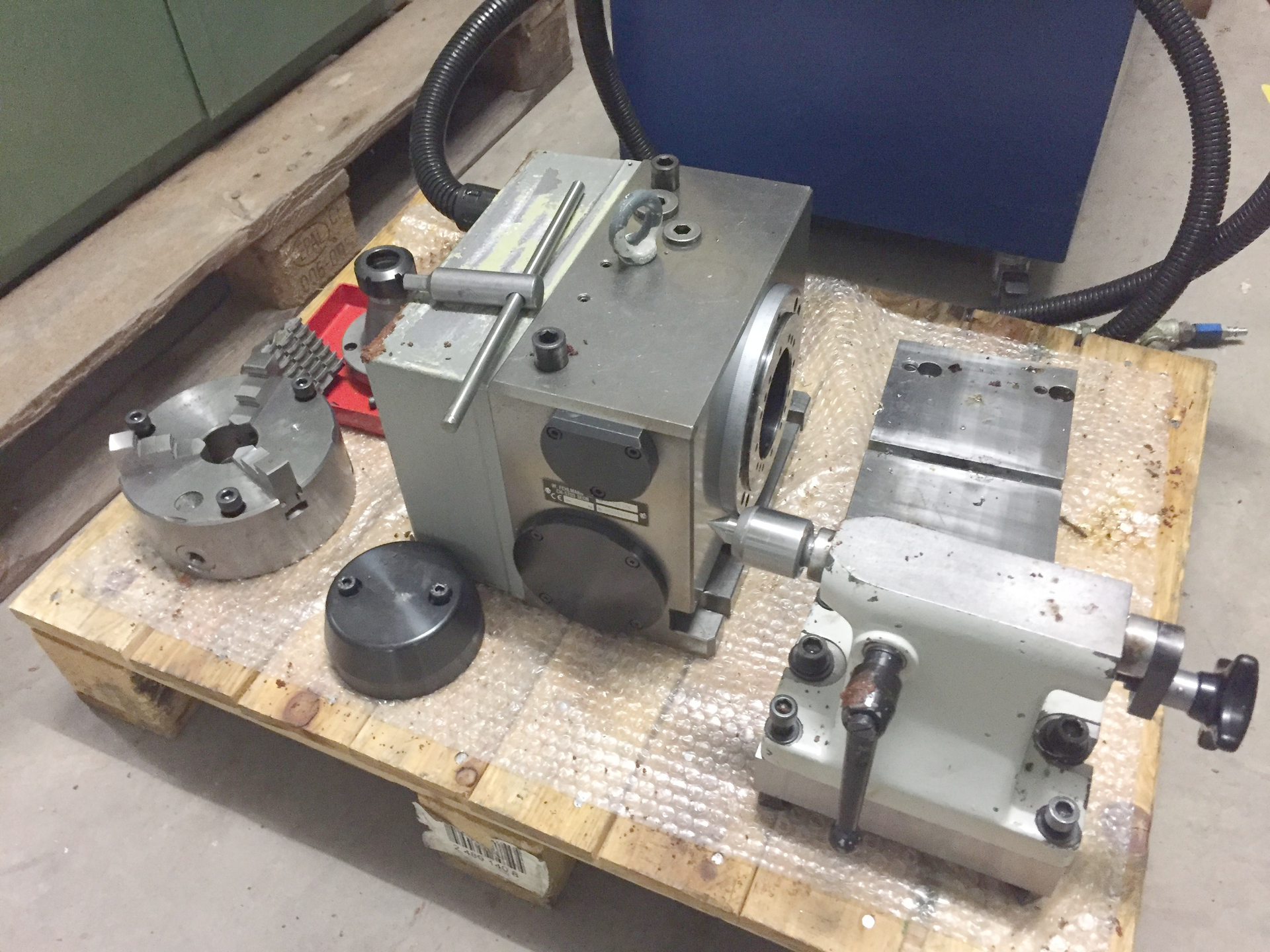

3-jaw chuck diameter: 160 mm.
