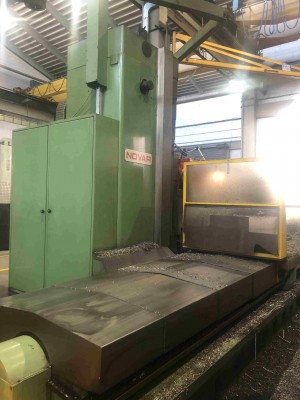

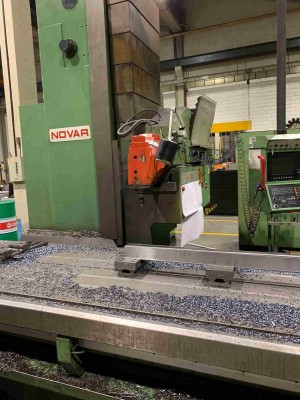

NOVAR
08087
ROTARY TABLE
PARTNER RT 1200
CNC Selca S4045PD
Table size mm 1200x1000
Max load Kg 3500
Axis X mm 1500
Axis Y mm 750
Axis Z mm 1100
Spindle speed rpm 3000
Spindle power 12 Kw
Total power input 30 Kw
EQUIPED WITH:
-Rotary table 4th axis
-A...
ZA
07647
Max drilling on steel mm 50
Threaded capacity mm 25
Arm vertical stroke mm 580
C.M. 5
Spindle stroke 315 mm
Distance between spindle and column max/min 1600/350 mm
Distance from spindle to base max/min mm 1220/350
Spindle speed rpm 25/2000
S...
Table Surface 2000 X 700 mm.
Longitudinal Traverse (X Axis) 2000 mm.
Transversal Traverse (Y Axis) 800 mm.
Vertical Traverse (Z Axis) 800 mm.
Rapid Traverse 12.000 mm/min
Taper ISO 50
Turning Speeds 20 – 3000 rpm
Head Power 17 Kw
Carrying...
