MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Soraluce
  • Model:

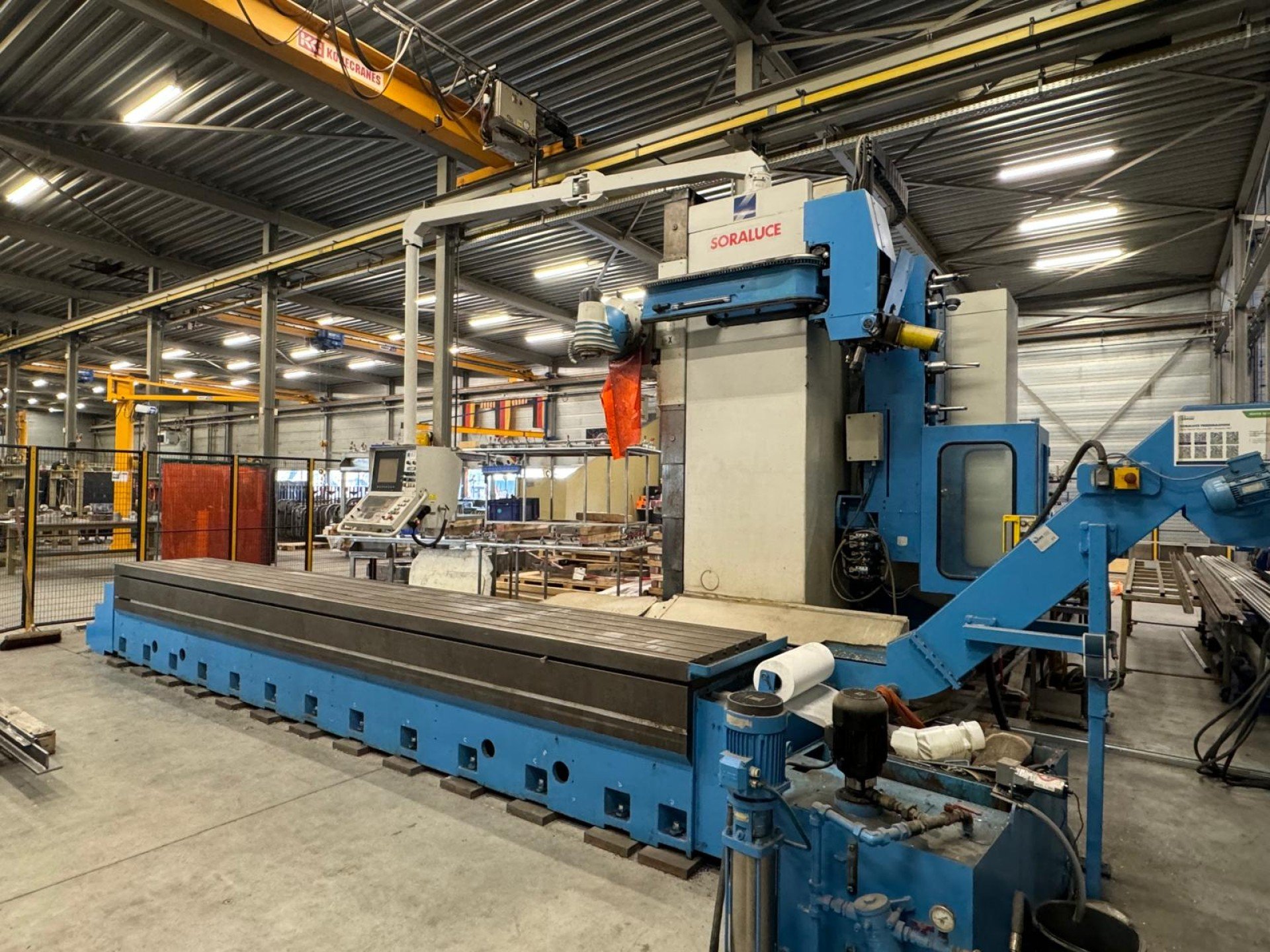

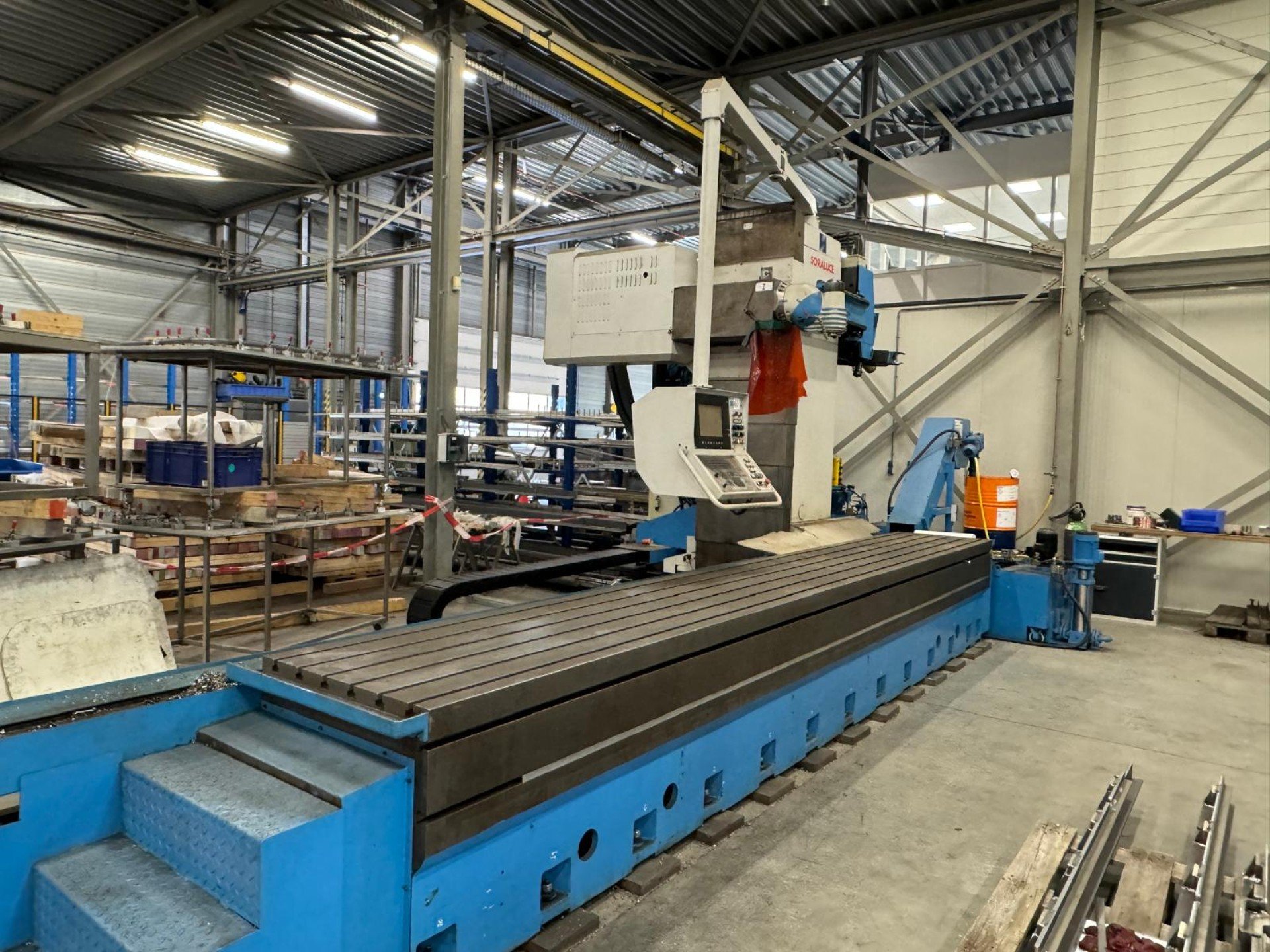

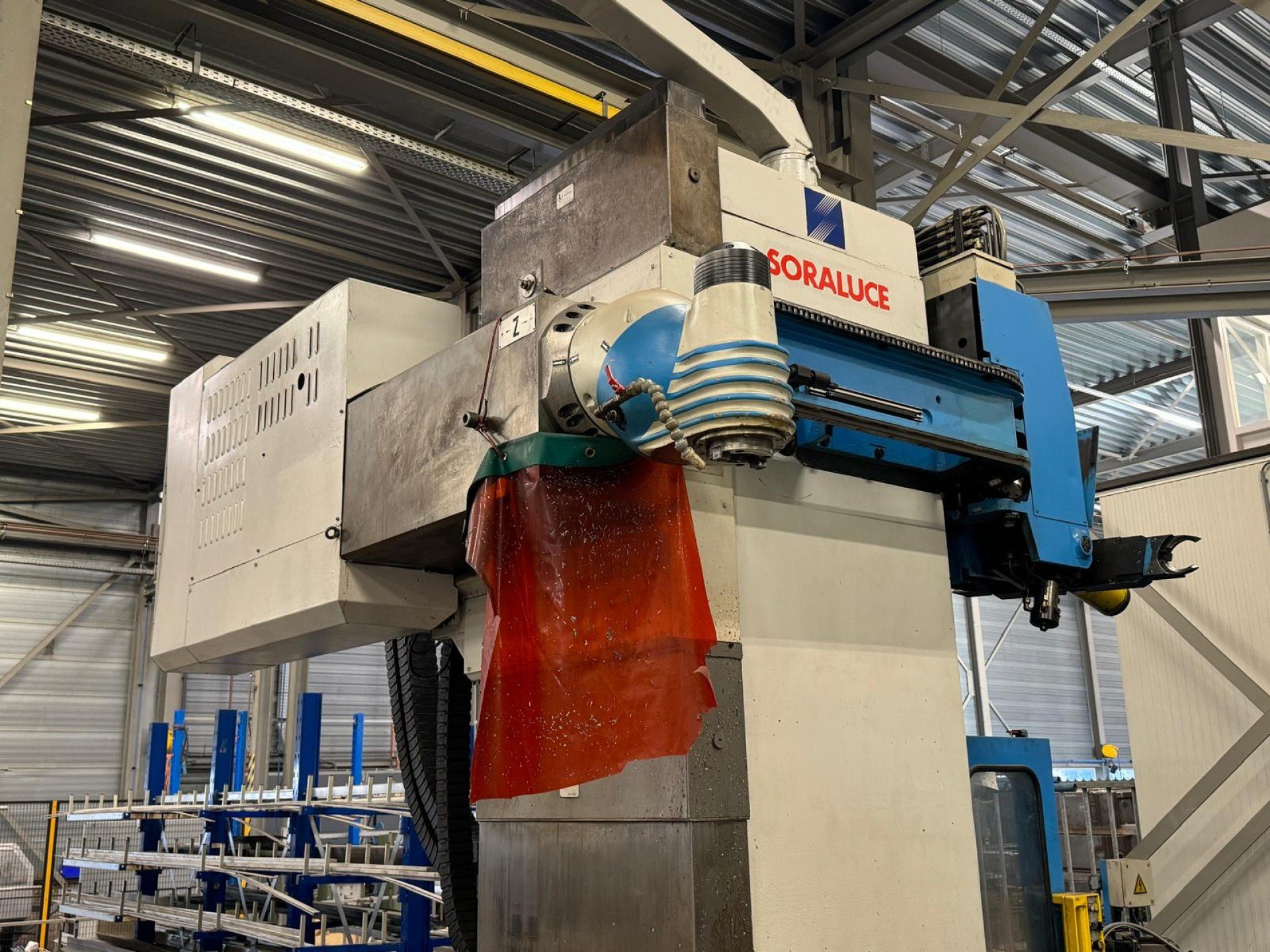

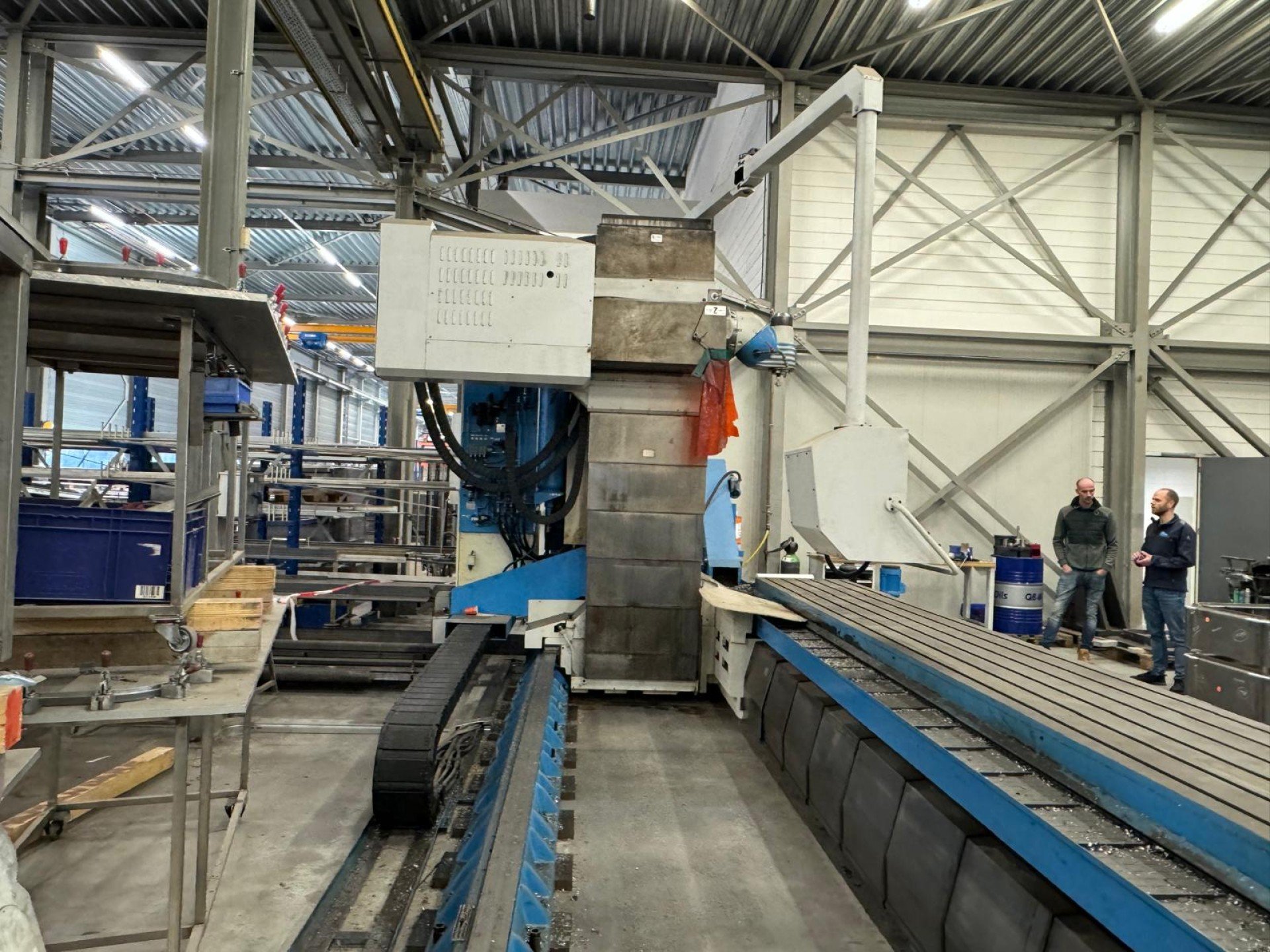

  • SORALUCE - SORAMILL SL 6000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

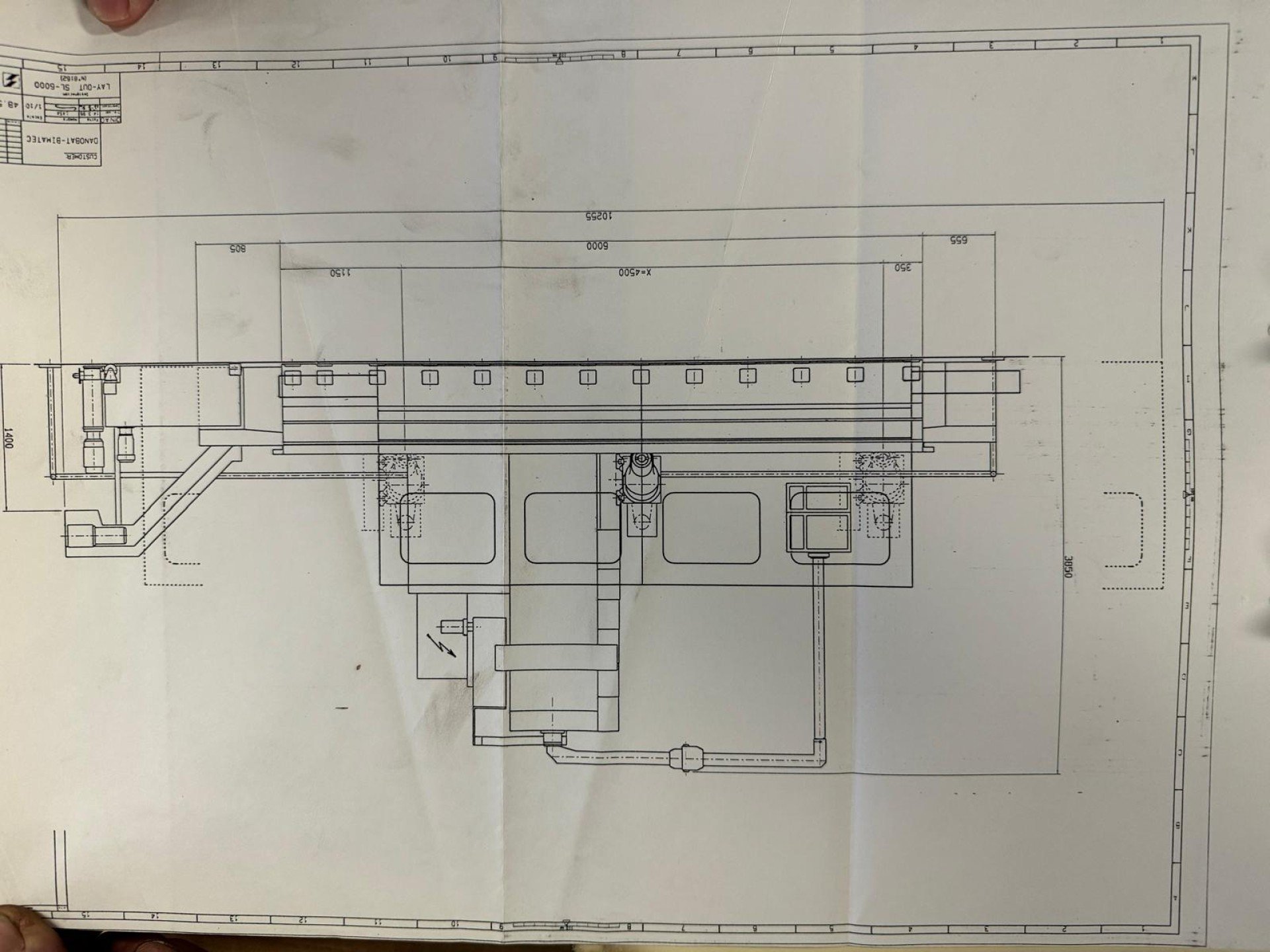

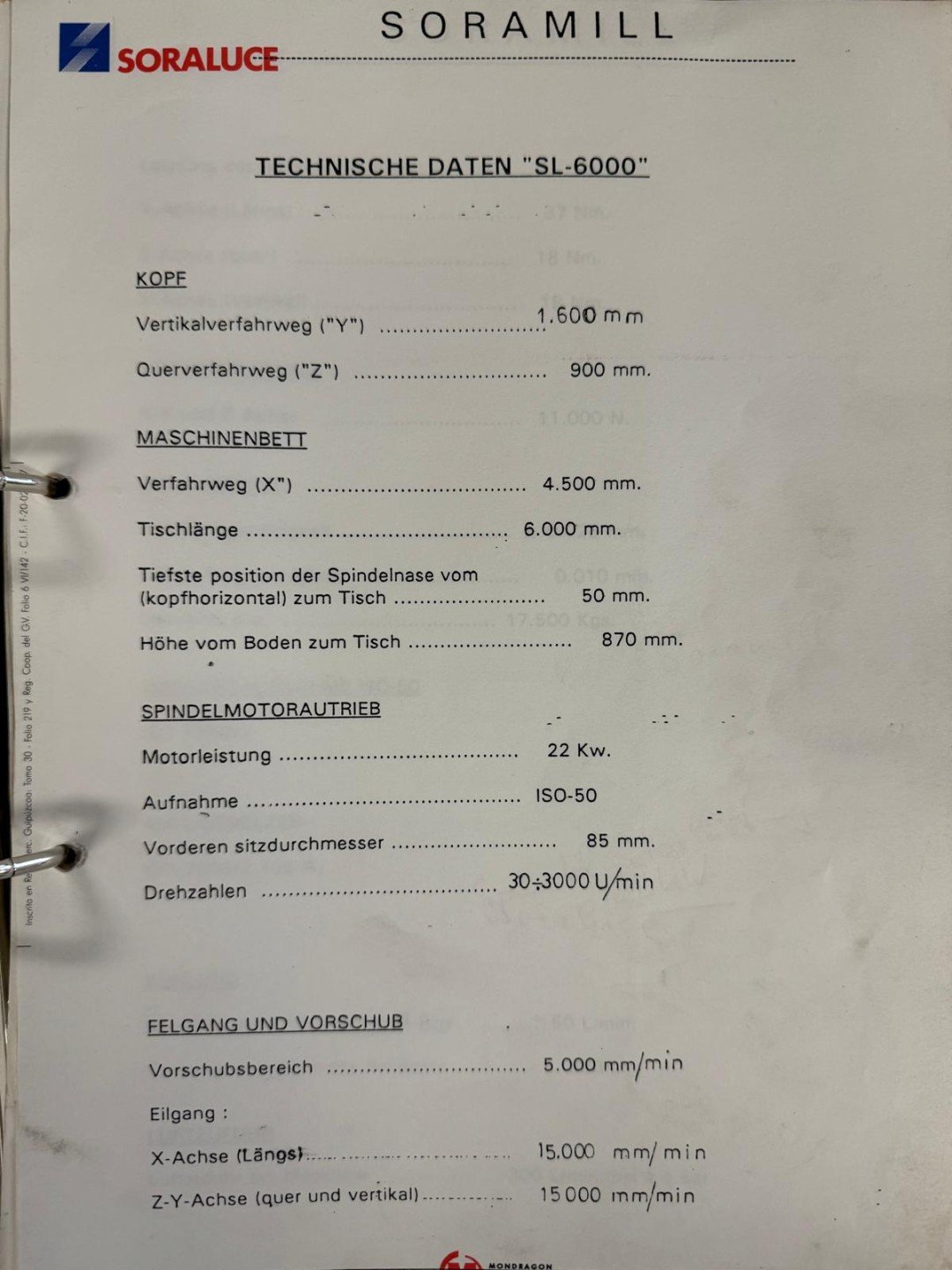

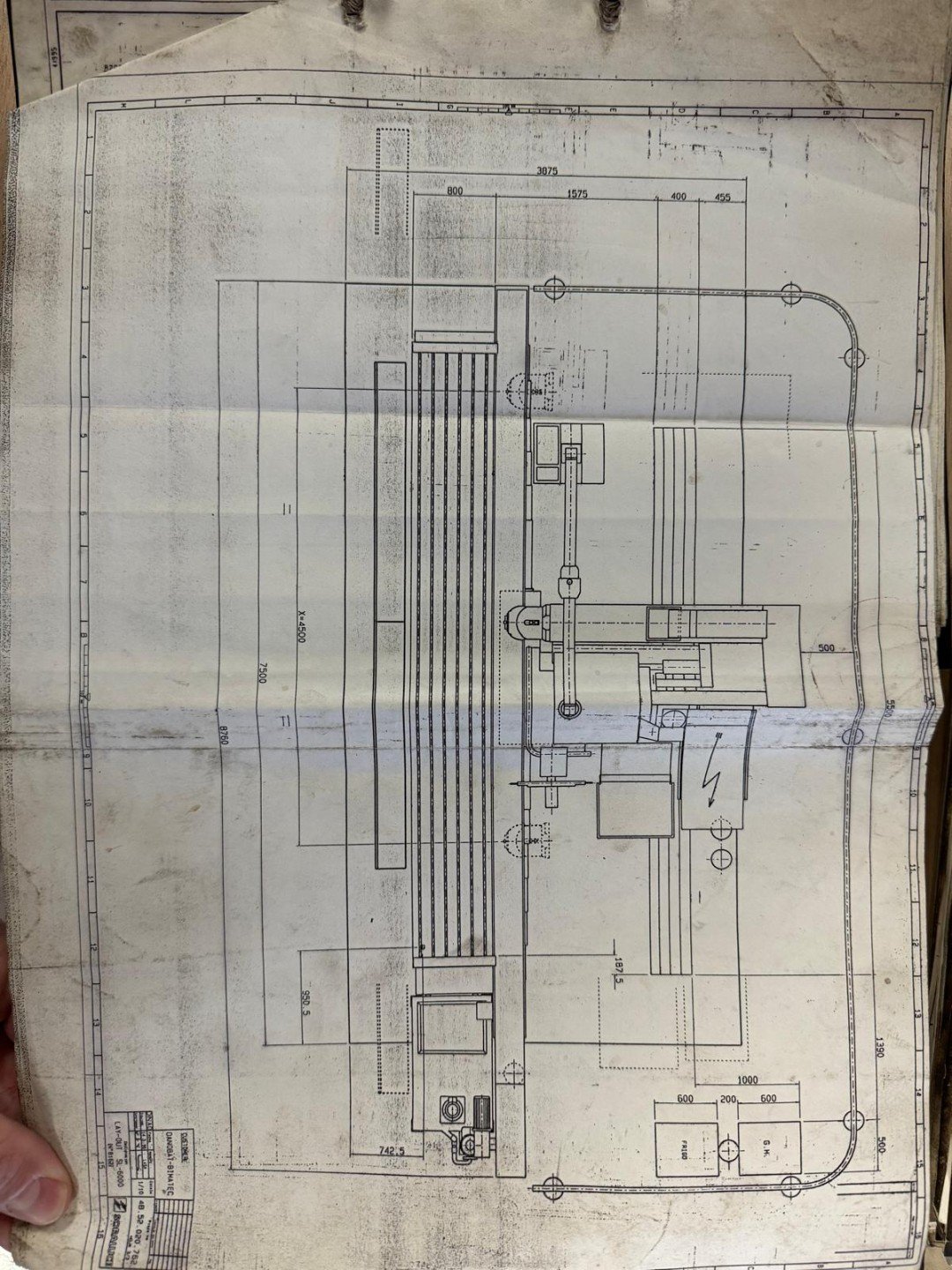

X-Axis: 4500mm | Y-Axis: 1600mm | Z-Axis: 800mm | Table Length: 6000mm | Table Width: 800mm | Table load: 10000 | Power on spindle: 22kW | Spindle speeds: 3000Rpm | Spindle Taper: 50ISO/Bt/Mk | Feed rate X-Axis: 15000mm/min. | Feed rate Y-Axis: 15000mm/min. | Feed rate Z-Axis: 15000mm/min. | Control: TNC 426 | Millinghead auto-index: 2.5 x 2.5° | Length: 10255mm | Width: 3875mm | Height: 3850mm | Weight: 24000kg
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    Mach4Metal

    • Contact Name
    • Mach Metal
    • Contact Number
    • +31 (0)316 247 123
