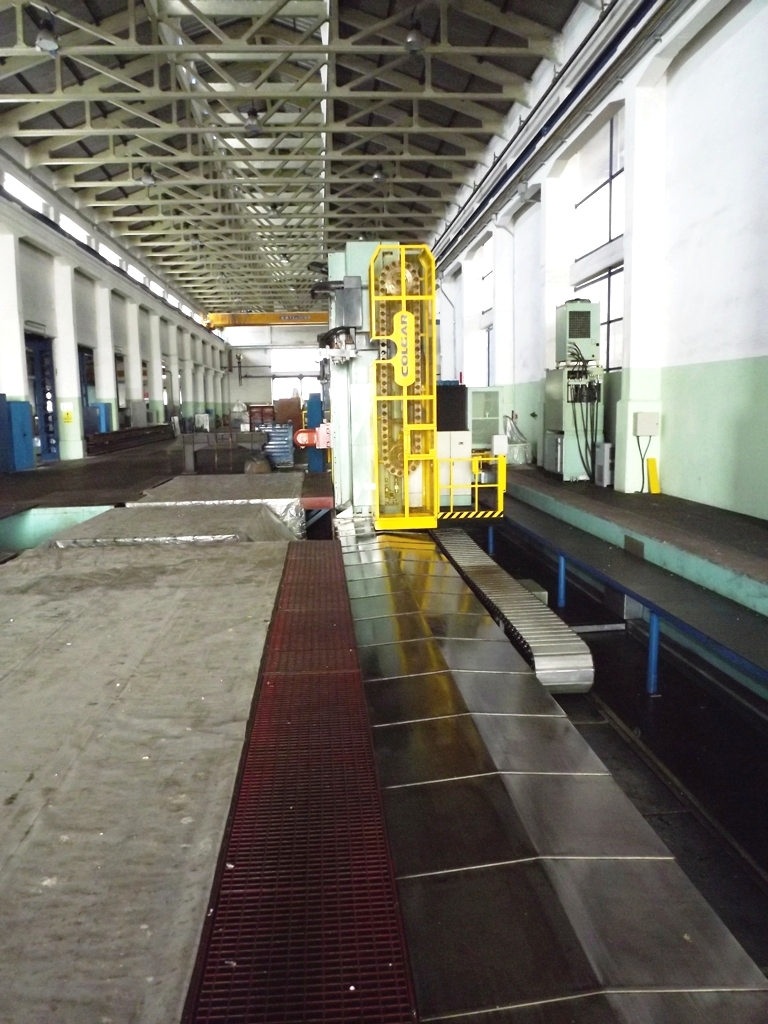

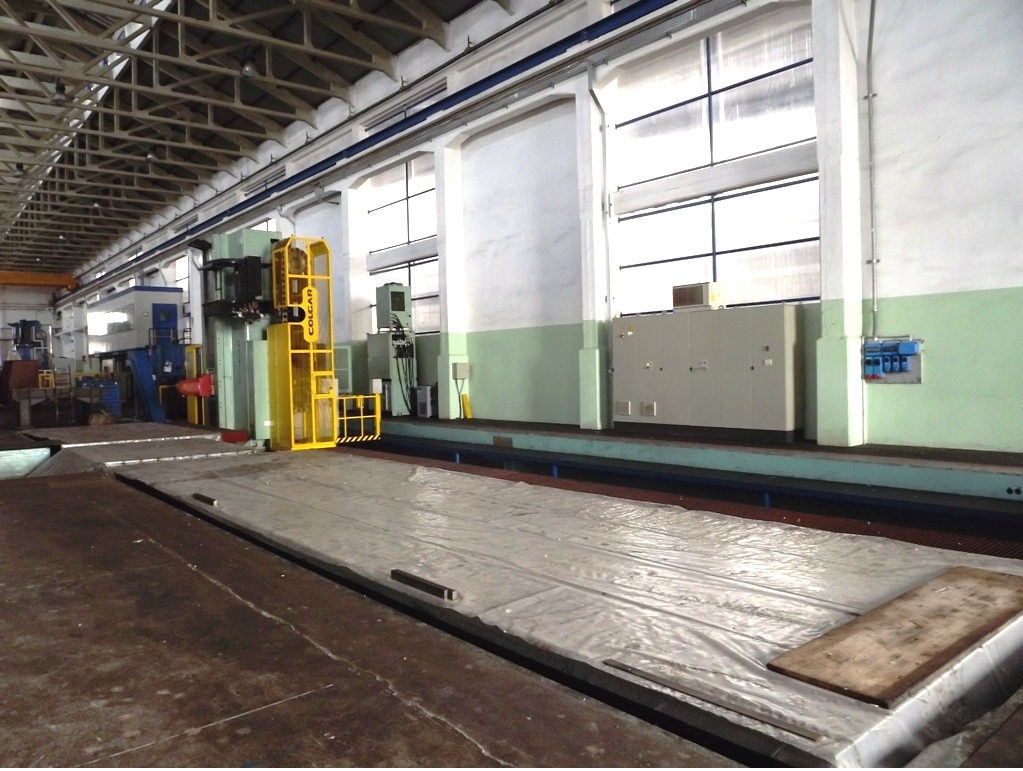

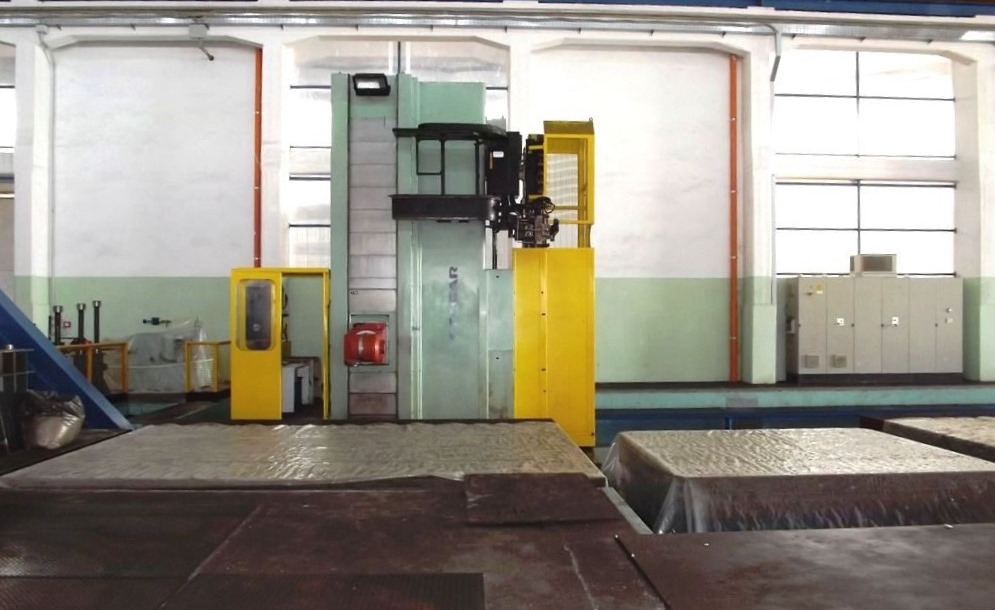

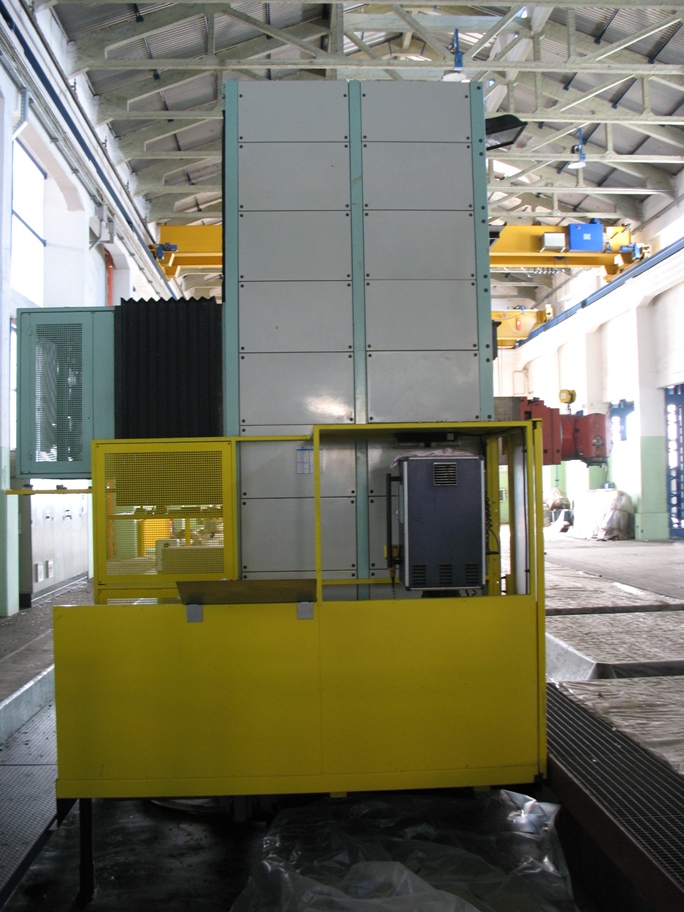

COLGAR
06112

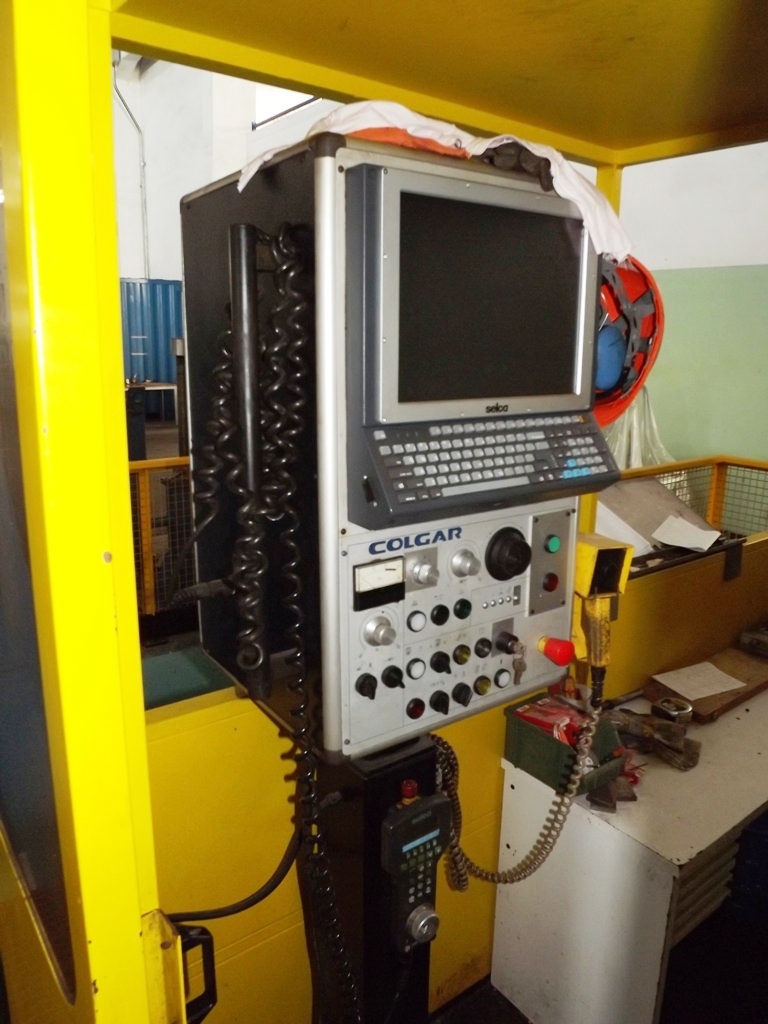

CNC SELCA S4045R
AXIS:
Longitudinal axis X column mm 14.000
Max vertical axis Y of head mm 3.000
Cross axis Z mm 1.250
Cross W axis boring spindle mm 700
RAM SIZE:
mm 410x505
SPINDLE:
Boring spindle diameter mm 140
Spindle taper ISO 50
Spindle speed rotation g/min 5+2950
-constant torque g/min 5+168
-constant power g/min 168+2950
-max torque Nm 2500
FEEDRATES HYDROSTATIC GUIDEWAYS:
Working feedrates axis X,Y,W,Z mm/min 0.5-6000
Rapid axis X,Y,Z mm/min 18.000
Rapid axis W mm/min 10.000
Working thrust kg 2000
MOTORS POWER:
Spindle motor in continuous (S1%) C.A. kW 42
Spindle motor axis (C.A.) cad. Nm 50
Auxiliaries motors kW 4.5
EQUIPED WITH:

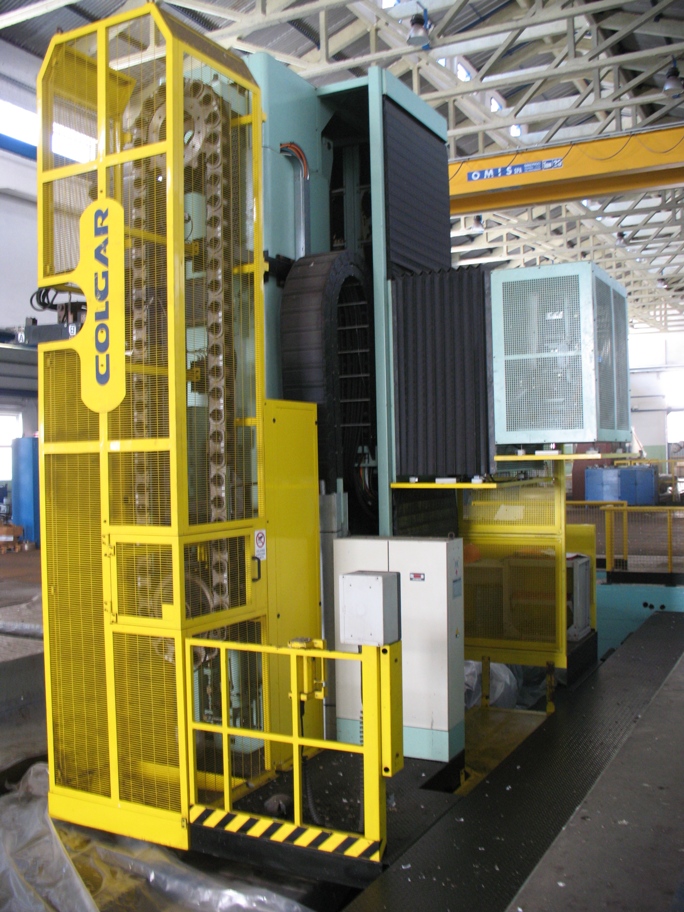

Automatic tool change 60 positions

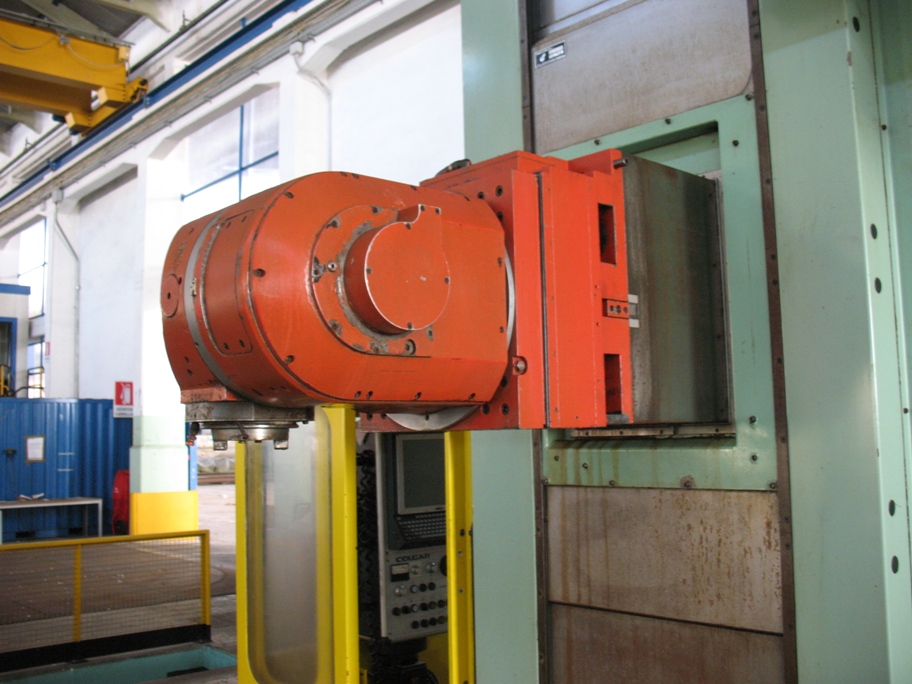

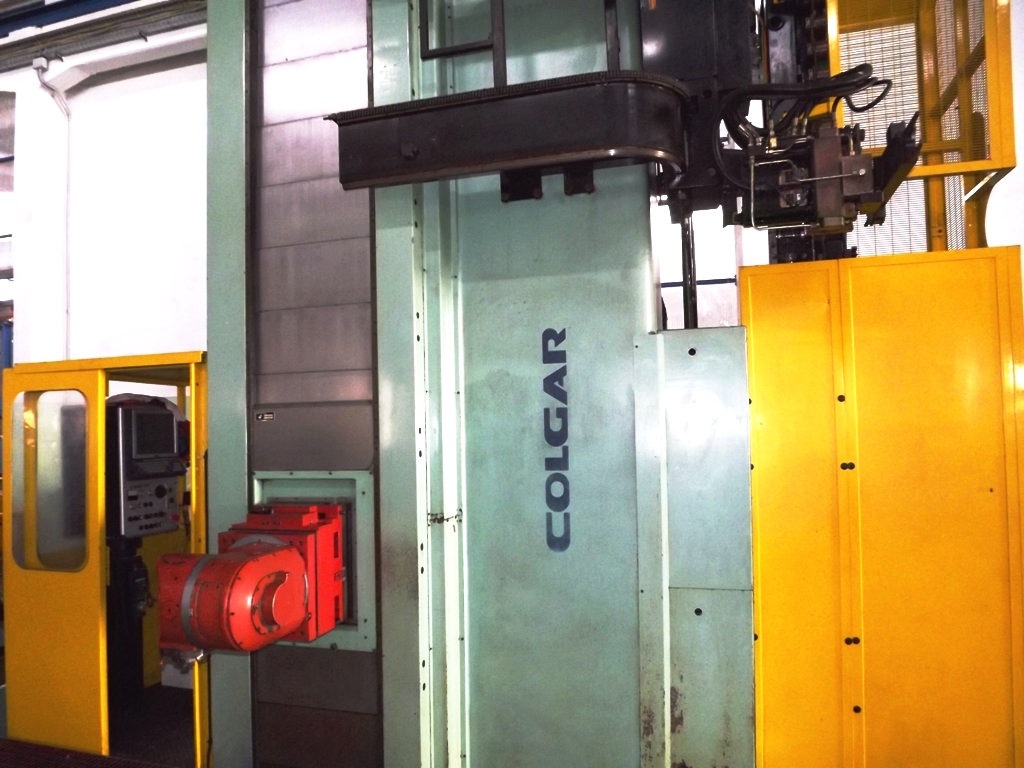

Automatic orthogonal head TABR80 - 1°/1° - kW 30 - Nm 800 - Rpm 2500
Coolant system for head + spindle
Boring quill
TABLE NOT INCLUDED
Clamping plate mm 12.000x3000xH 350
USED MACHINE
ONLY 213 WORKING HOUR
