TOS
07297
CNC HEIDENHAIN TNC 426 C
TECHNICAL DETAILS:
- Table size 2.000 x 1.000 mm
- Axis X 2.000 mm
- Axis Y 1.000 mm
- Axis Z 1.400 mm

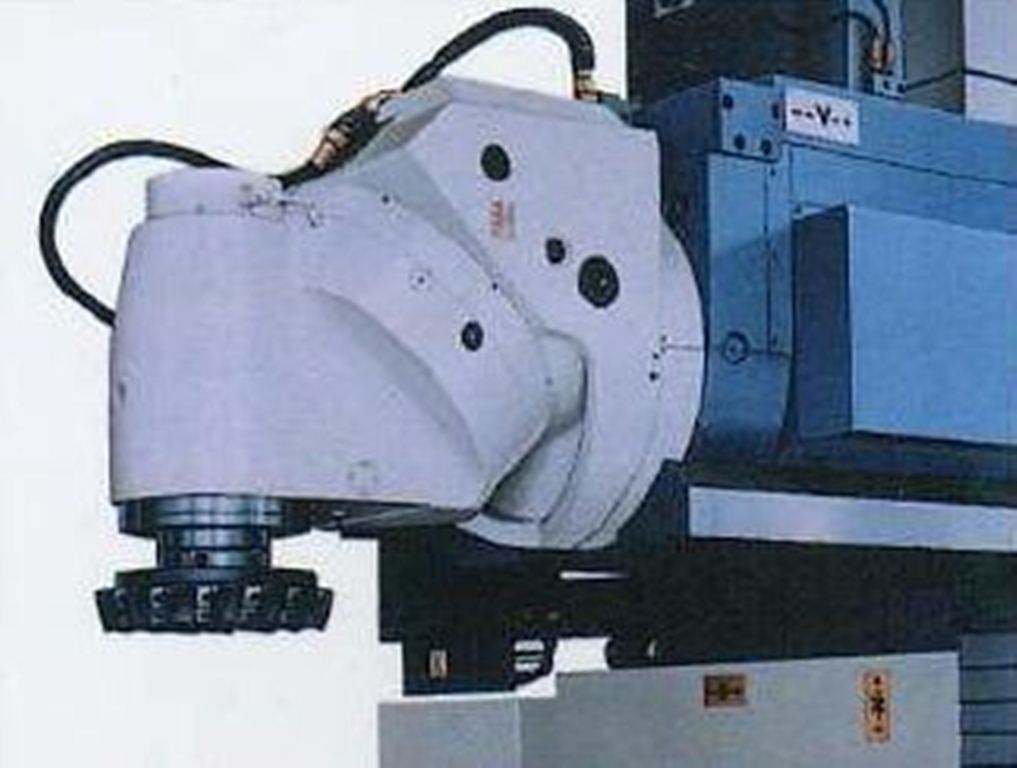

- Head type “O” automatic rotation in vertical and horizontal position with automatic adjustment - indexing every 2,5 degrees
- Drives INDRAMAT for spindle and axis
- Linear scales Heidenhain for linear axis
- Safety guards EC CONFORMITY
- Pearlitic cast iron casting, hardened and ground to obtain max precision hardness and firmness in the time
- Wide dimensioned Guideways, hardened and ground, counterguide covered with antifriction material, vertical and longitudinal guide equiped with rolling INA
- Ball screws for X , Y and Z axis
- Spindle speed 2 automatic range
- Timed automatic lubrication
- Control panel with moving arm
- Hydraulic circuit for auxiliary functions (setting spindle speed range, tool clamping…)
- Spindle head speed “O” 11-2.500
- Working feedrates 1-5.000 mm/min
- Rapids:
Axis X 15 m/min
Axis Y,Z 10 m/min
- Spindle power AC 22 / 27,5 Kw
- Max feed force longitudinal axis 25.000 N
NEW MACHINE READY DELIVERY
