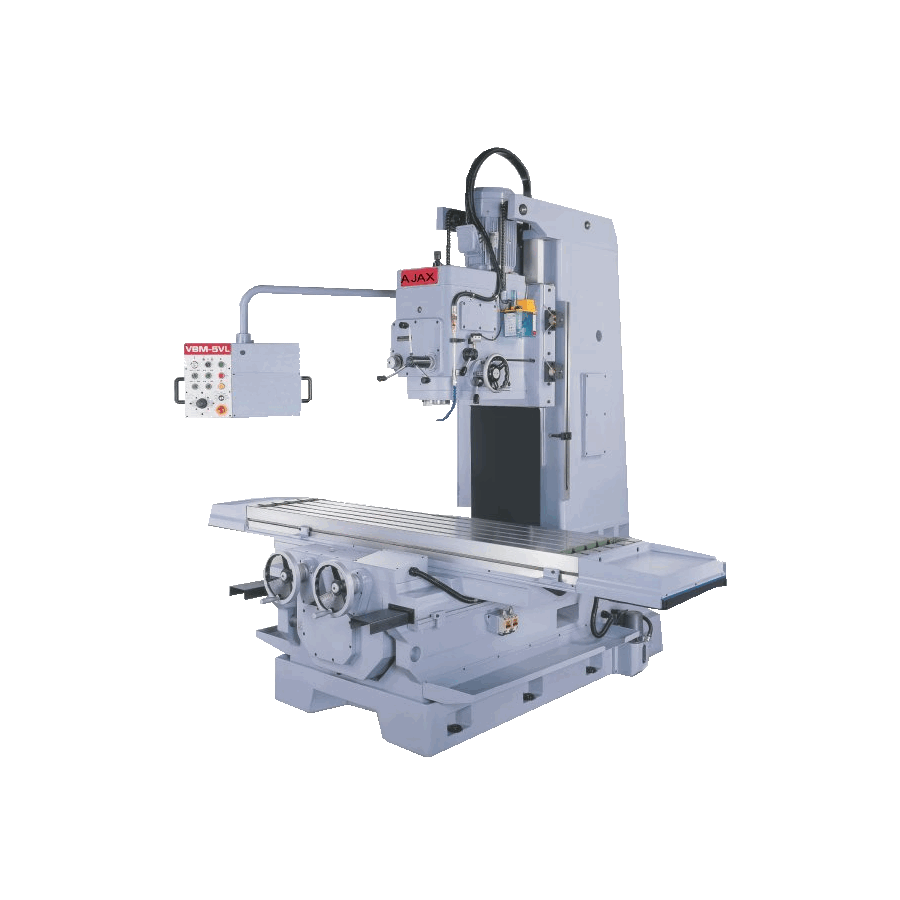

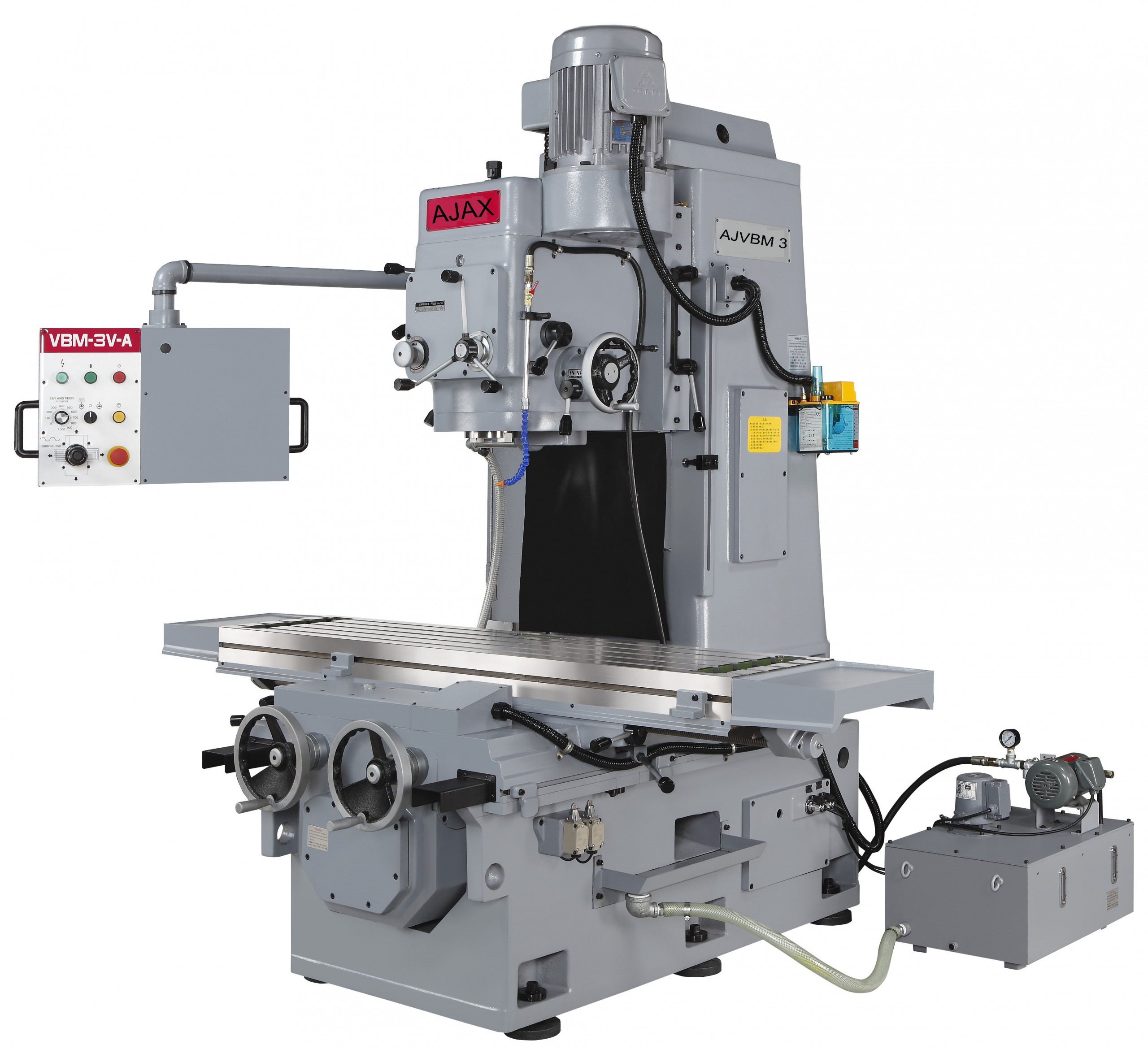

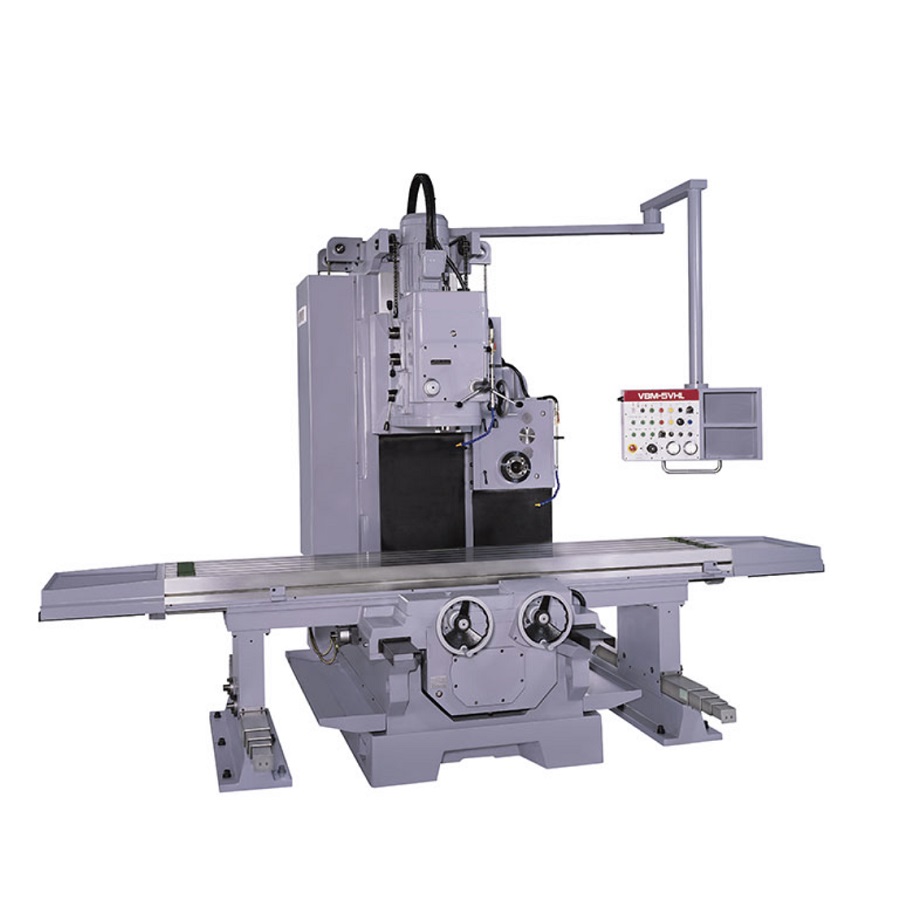

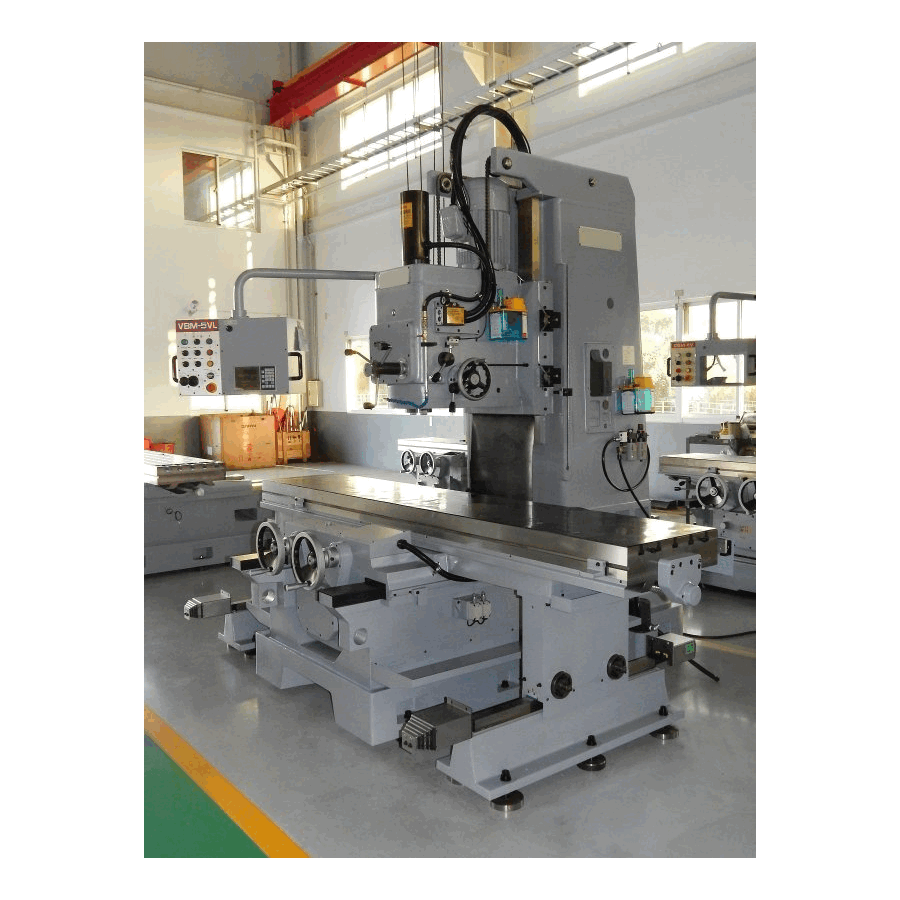

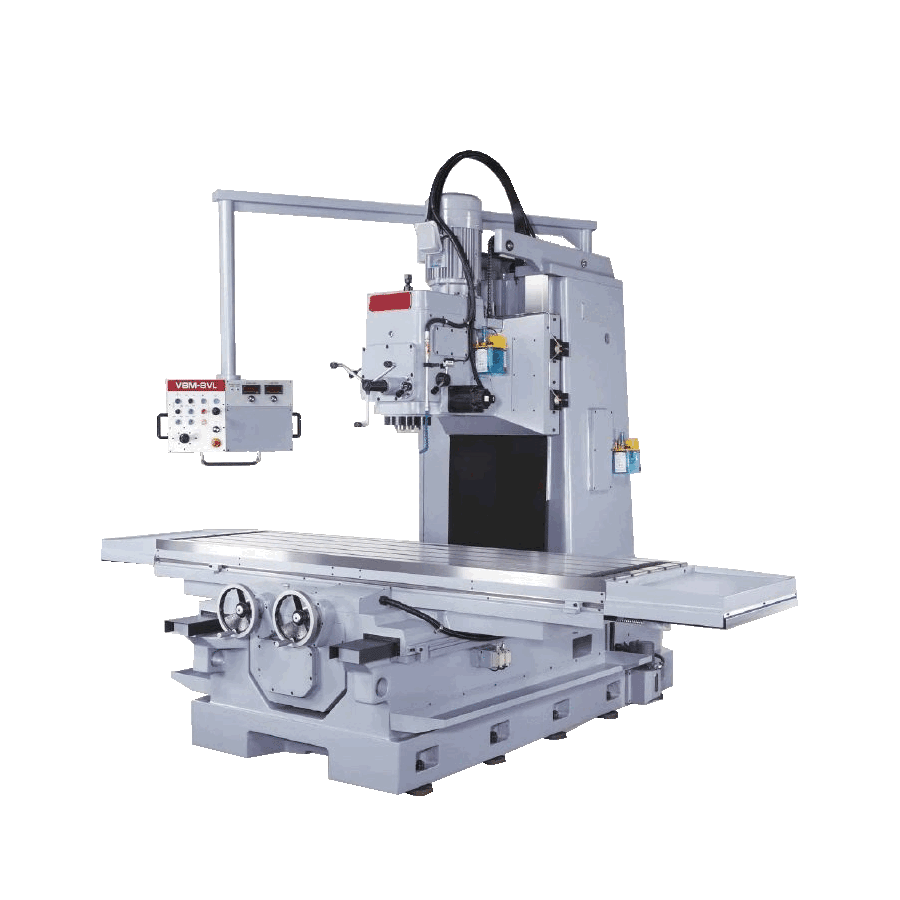

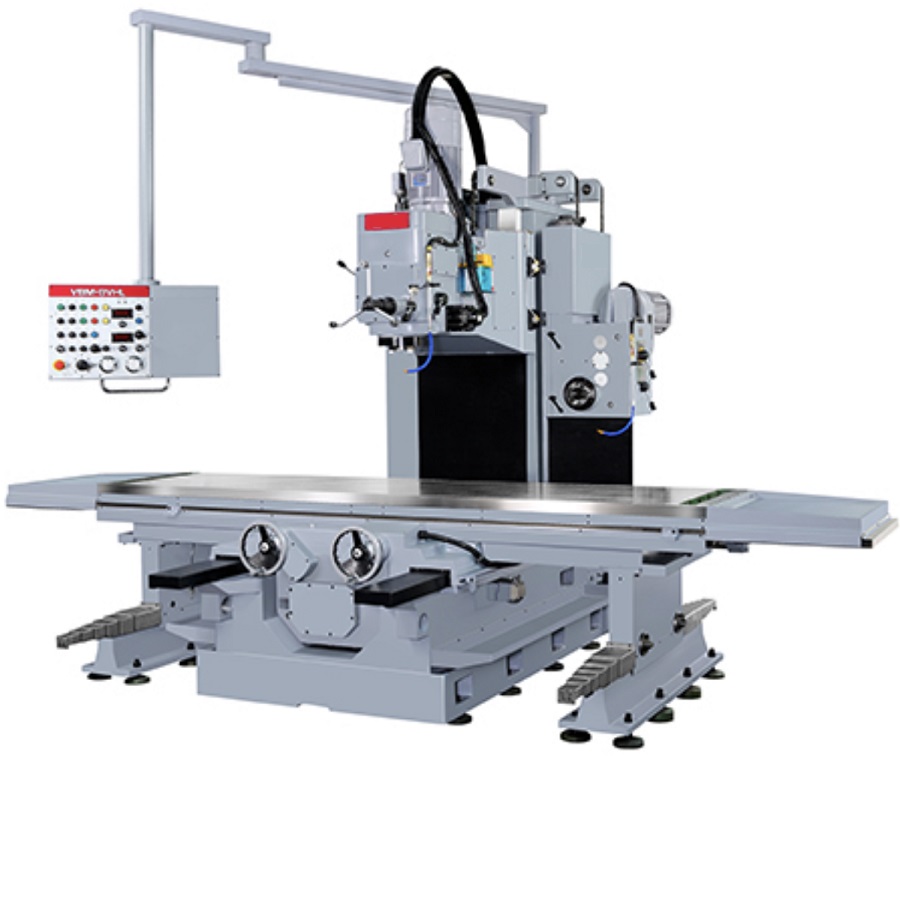

The AJVBM machines are big & heavy duty vertical milling machines, suitable for milling and boring applications. All the axis are driven by low friction ball screws to give better smoother milling with more accuracy. They are pneumatically clamped when not selected. All aur guarded on the table and spindle with interlocks. CE & CA Marked.
INDUMA
08352
WORKTABLE 1500x300 mm
T-SLOT NUMBER 3
T-SLOT WIDTH 16 mm
T-SLOT DISTANCE 55 mm
LONGITUDINAL TRAVEL 1050 mm
TRANSVERSAL TRAVEL 315 mm
VERTICAL TRAVEL 500 mm
SPINDLE TAPER ISO N.5
SPINDLE SPEED N.12 - RPM 30:1500
SPINDLE MOTOR CV 10
APPROX...
