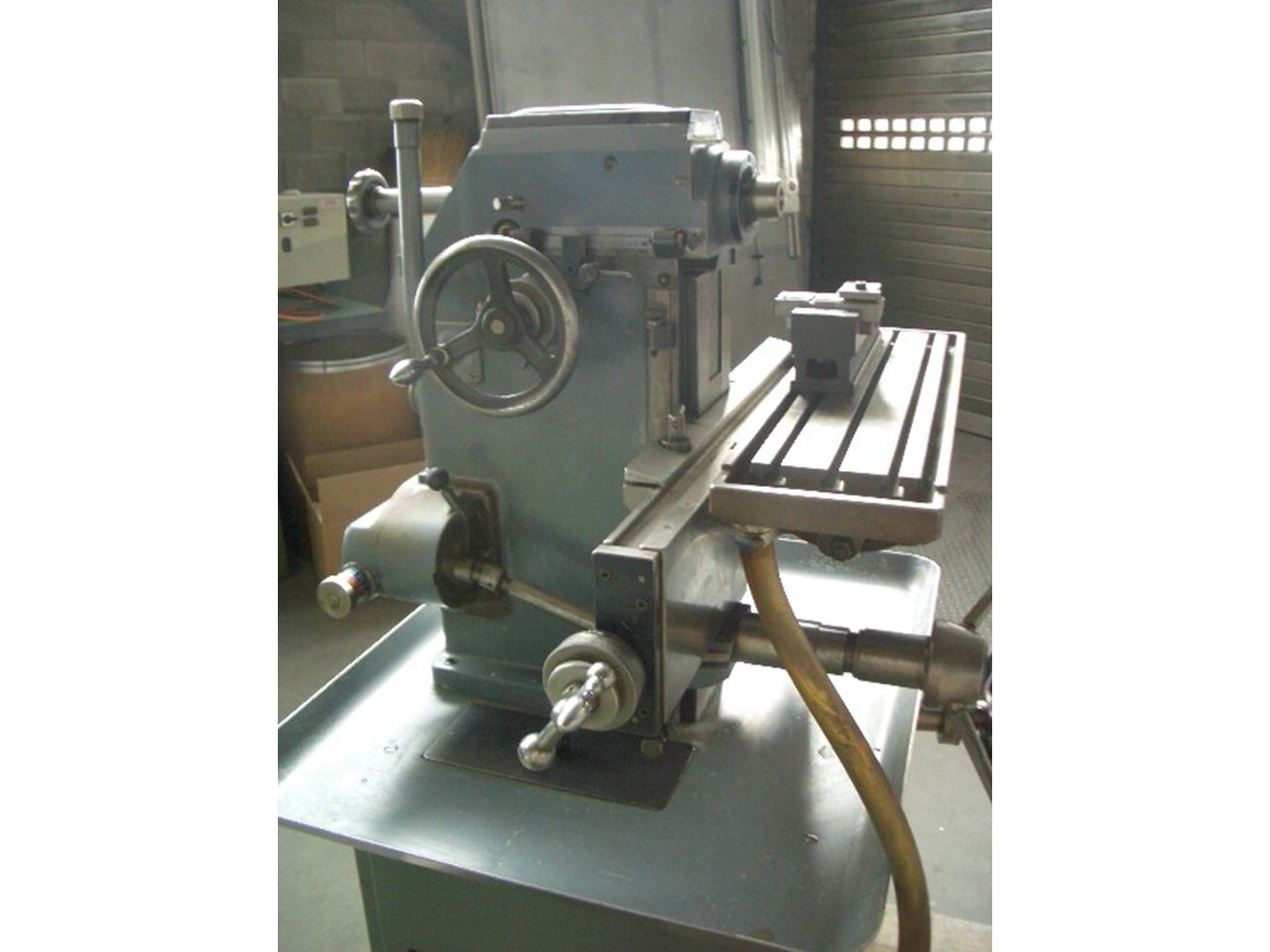

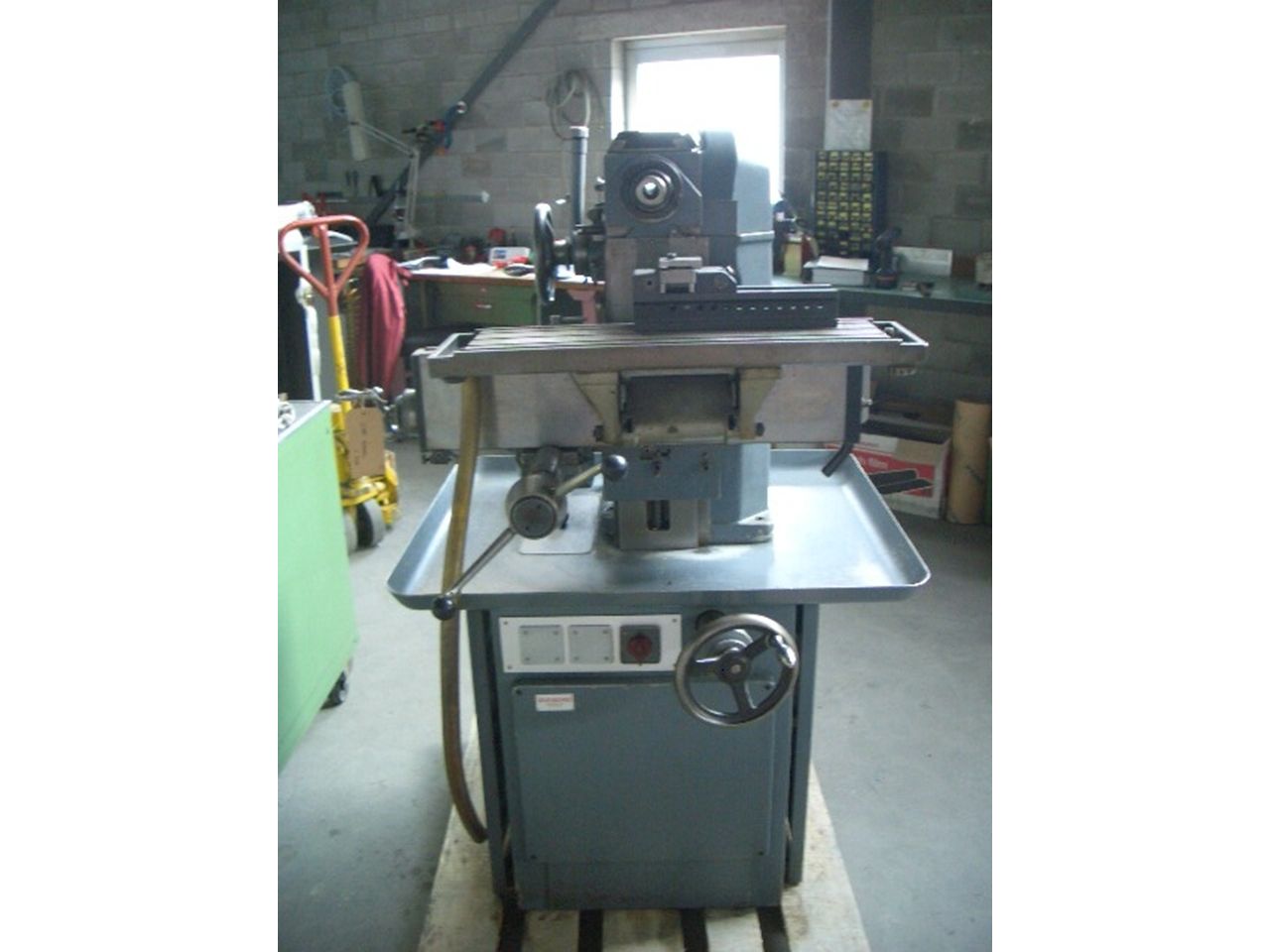

Milling/UNIVERSAL MILLING MACHINE ACIERA F-3

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Milling

Manufacturer:
Universal

Model:
UNIVERSAL MILLING MACHINE ACIERA F-3

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

<section id="description"> <div class="detail_title_1"> <h1>UNIVERSAL MILLING MACHINE "ACIERA" F-3</h1> </div> <p> <b>Reference</b>: 24112024 </p> <p>with tilting table </p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing number</td><td></td></tr><tr><td>Manufacturing year</td><td></td></tr><tr><td>Manufacturing origin</td><td>Swiss</td></tr><tr><td>Voltage</td><td>380 / 50 / 3</td></tr><tr><td>Netweight approx.</td><td>500 kg</td></tr><tr><td>Dimensions</td><td></td></tr><tr><td>Total power</td><td></td></tr><tr><td>Custom position</td><td></td></tr><tr><td>Colour</td><td></td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody></tbody></table><h3>MOTOR</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Power</td><td>0,75 / 2 HP</td></tr><tr><td>Speeds 50 cycle motor</td><td>700/2800 RPM</td></tr><tr><td>Speeds 60 cycle motor</td><td>840/3360 RPM</td></tr></tbody></table><h3>TRAVERSES AND CAPACITY</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manual and powered longitudinal traverse to the table</td><td>300 mm</td></tr><tr><td>Manual vertical traverse to the table</td><td>300 mm</td></tr><tr><td>Manual cross traverse to the headstock</td><td>135 mm</td></tr><tr><td>With intermediate piece</td><td>205 mm</td></tr><tr><td>Working surface of table</td><td>600x205 mm</td></tr><tr><td>4 T-slots DIN 650, width</td><td>10 mm</td></tr><tr><td>Graduations on all feedscrew drums</td><td>0,02 mm</td></tr><tr><td colspan="2">Min./Max. distance between :</td></tr><tr><td> table and orizontal spindle axis</td><td>30-330 mm</td></tr><tr><td> table and vertical spindle nose </td><td>20-320 mm</td></tr><tr><td> with intermediate piece </td><td>100-400 mm</td></tr></tbody></table><h3>HORIZONTAL AND VERTICAL MILLING SPINDLES</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Provision for clamping by W-20 colletson request taper </td><td>ISO 30</td></tr><tr><td> Shank diameter</td><td>20 mm</td></tr><tr><td>Number of spindle speeds</td><td>8</td></tr><tr><td>50 cycle motor</td><td>100-175-300-500-400-700-1200-200 RPM</td></tr></tbody></table><h3>LONGITUDINAL POWER FEEDS</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Number of feeds (in both directions)</td><td>8</td></tr><tr><td>50 cycle motor </td><td>12-19-32-58-48-76-128-232</td></tr></tbody></table><h3>RAPID LONGITUDINAL ADVANCE BY CROSS-HANDLE </h3><table class="table table-striped add_bottom_45"><tbody><tr><td colspan="2">Principle of transmission worm and wormwheel</td></tr><tr><td>1 turn of cross-handle</td><td>12 mm</td></tr><tr><td colspan="2">DIMENSIONS (Total height of machine)</td></tr><tr><td> with headstock cover-plate</td><td>1350 mm</td></tr><tr><td> with prismatic-section overarm</td><td>1400 mm</td></tr><tr><td> with vertical milling head</td><td>1450 mm</td></tr><tr><td> area occupied by machine</td><td>1200x1000 mm</td></tr><tr><td colspan="2">errors and omissions excepted-data given without obligation</td></tr></tbody></table></div> </section>.
