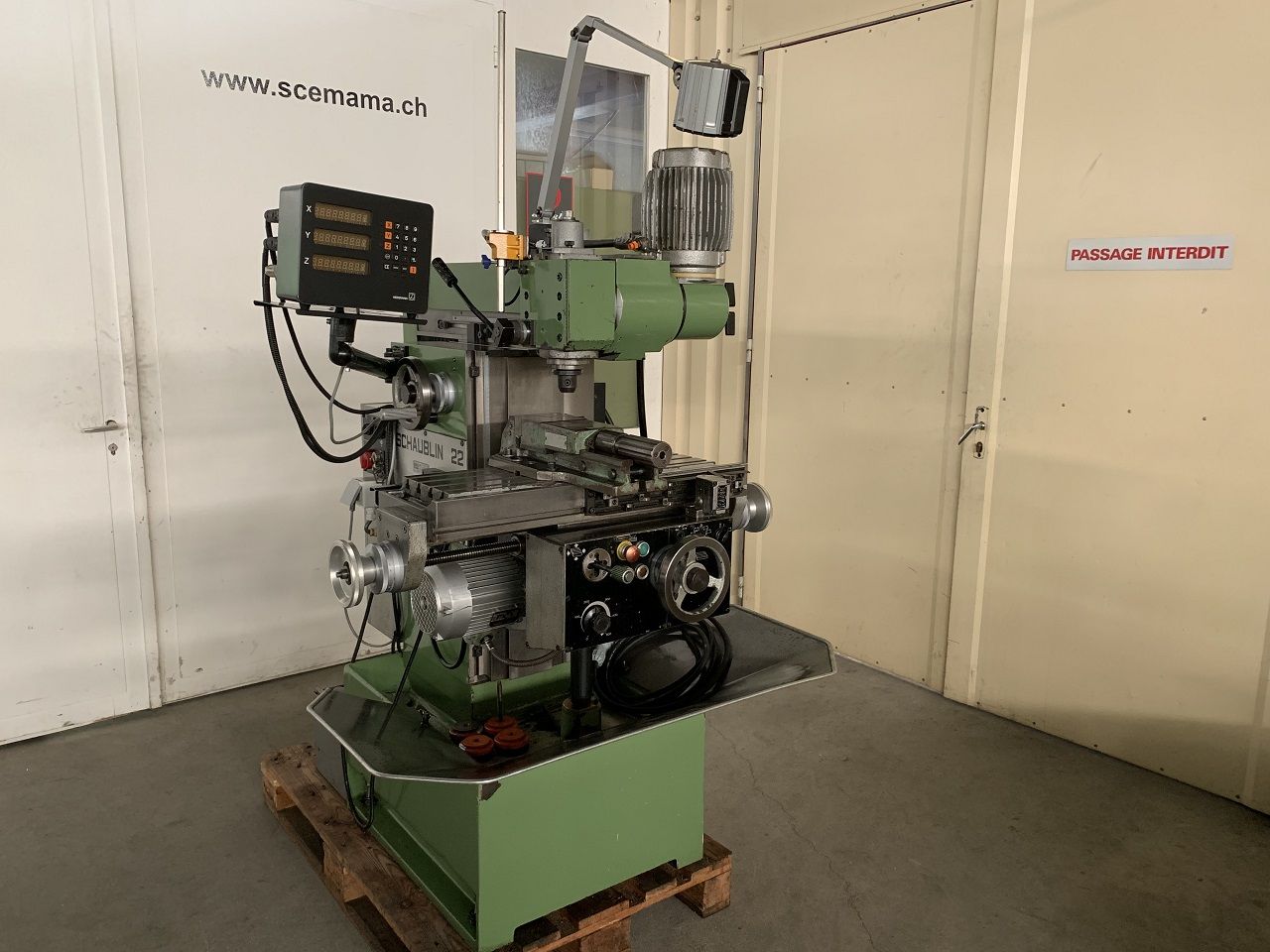

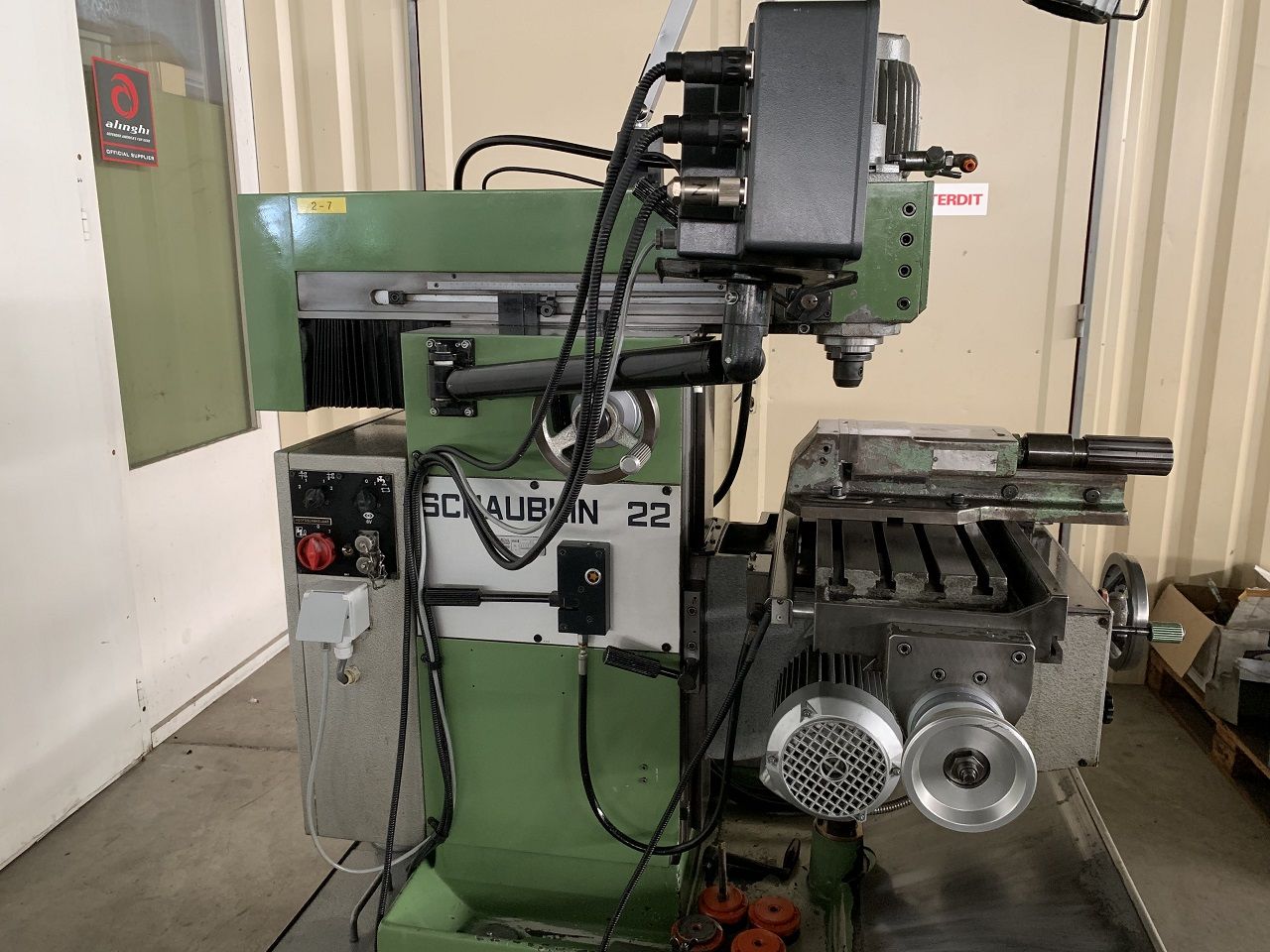

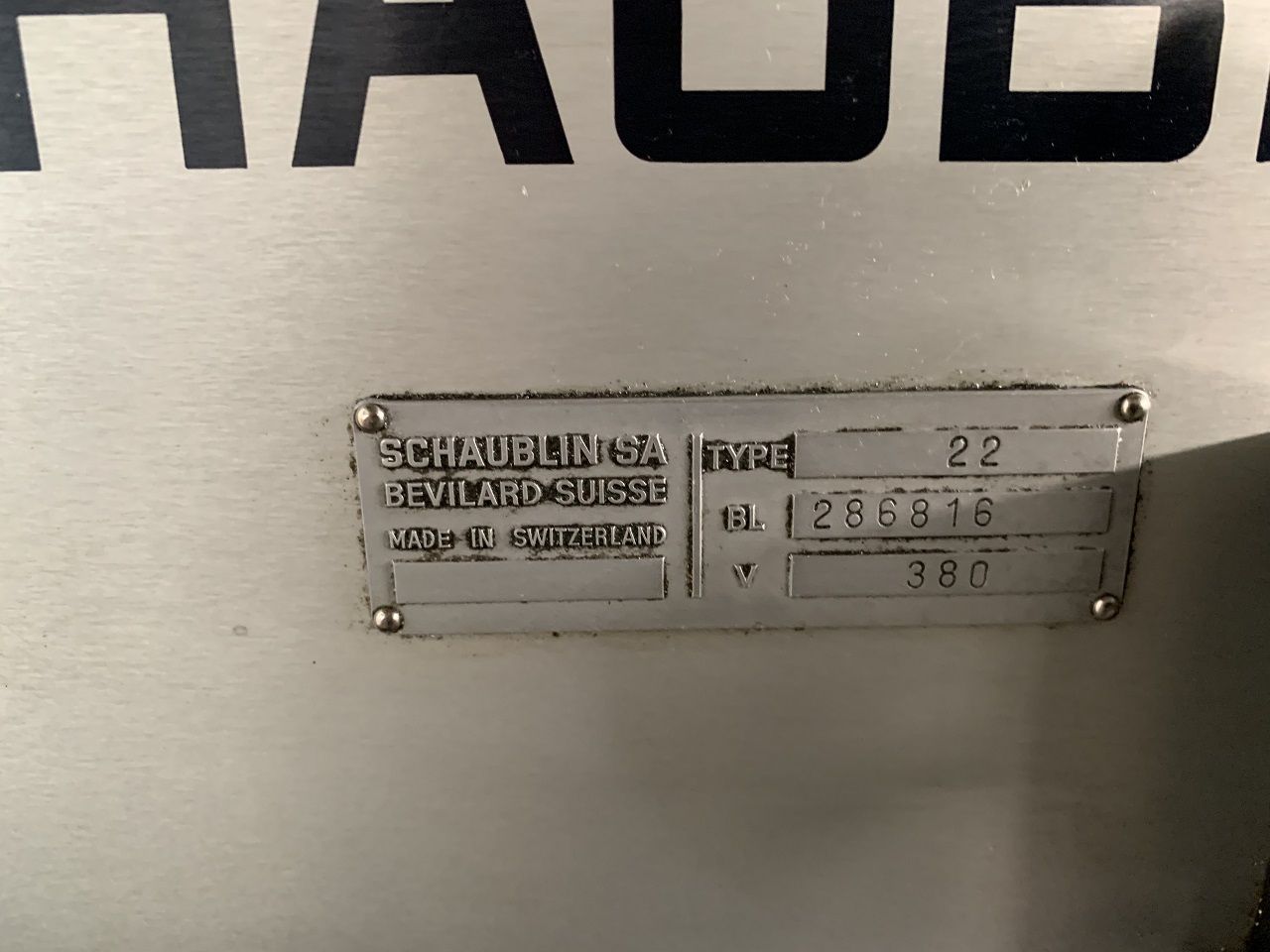

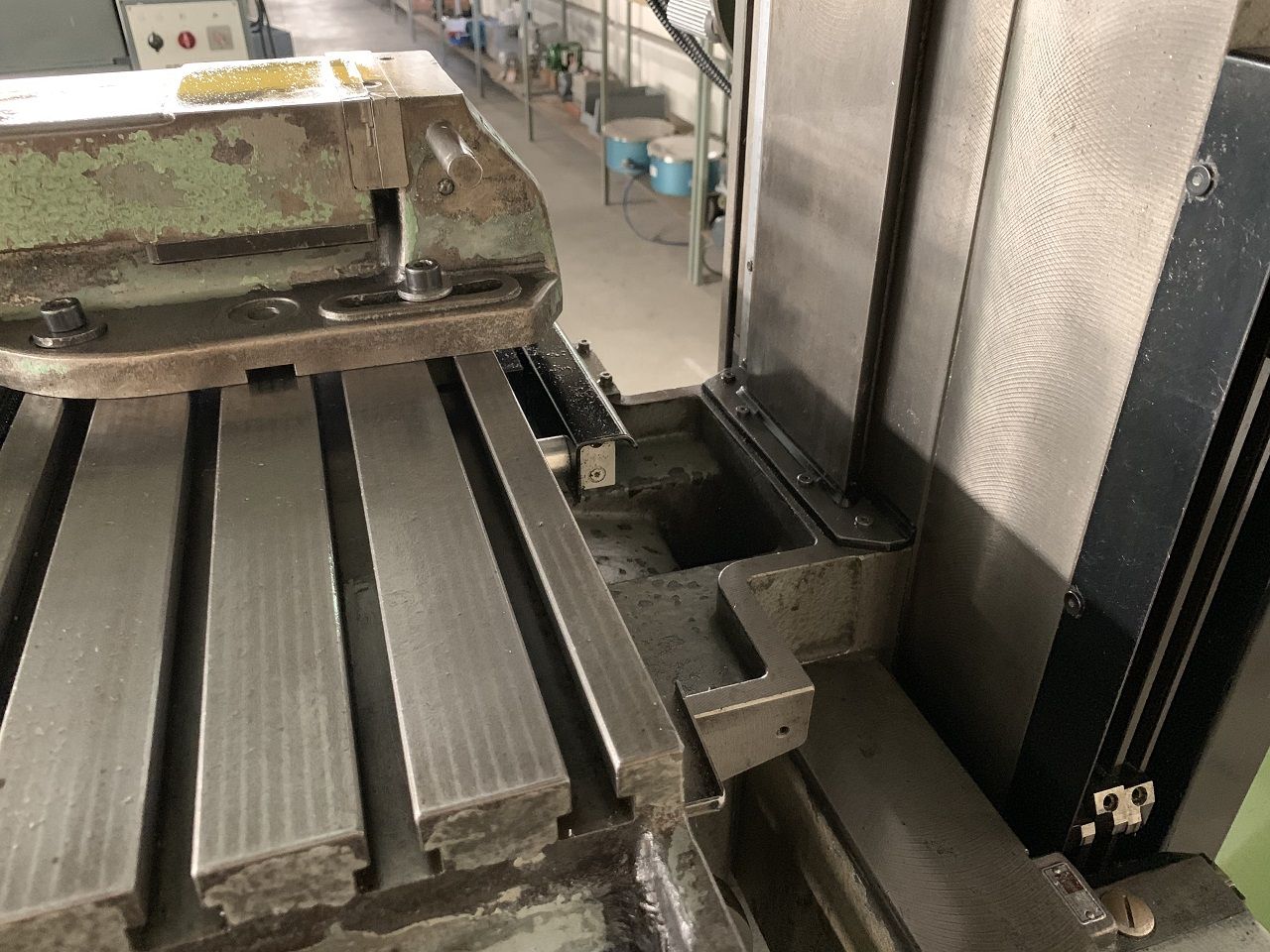

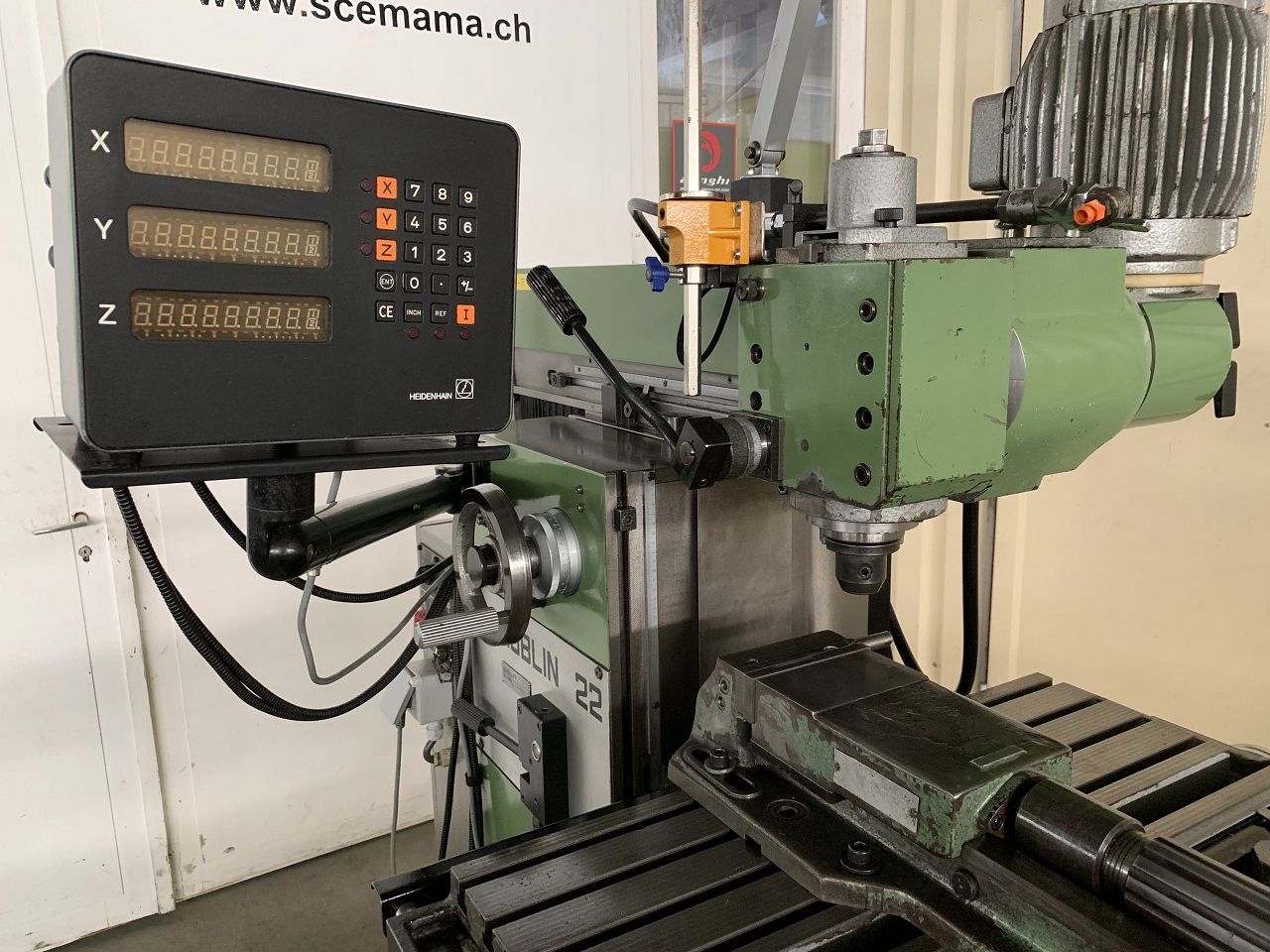

  • UNIVERSAL MILLING MACHINE SCHAUBLIN TYPE 22
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

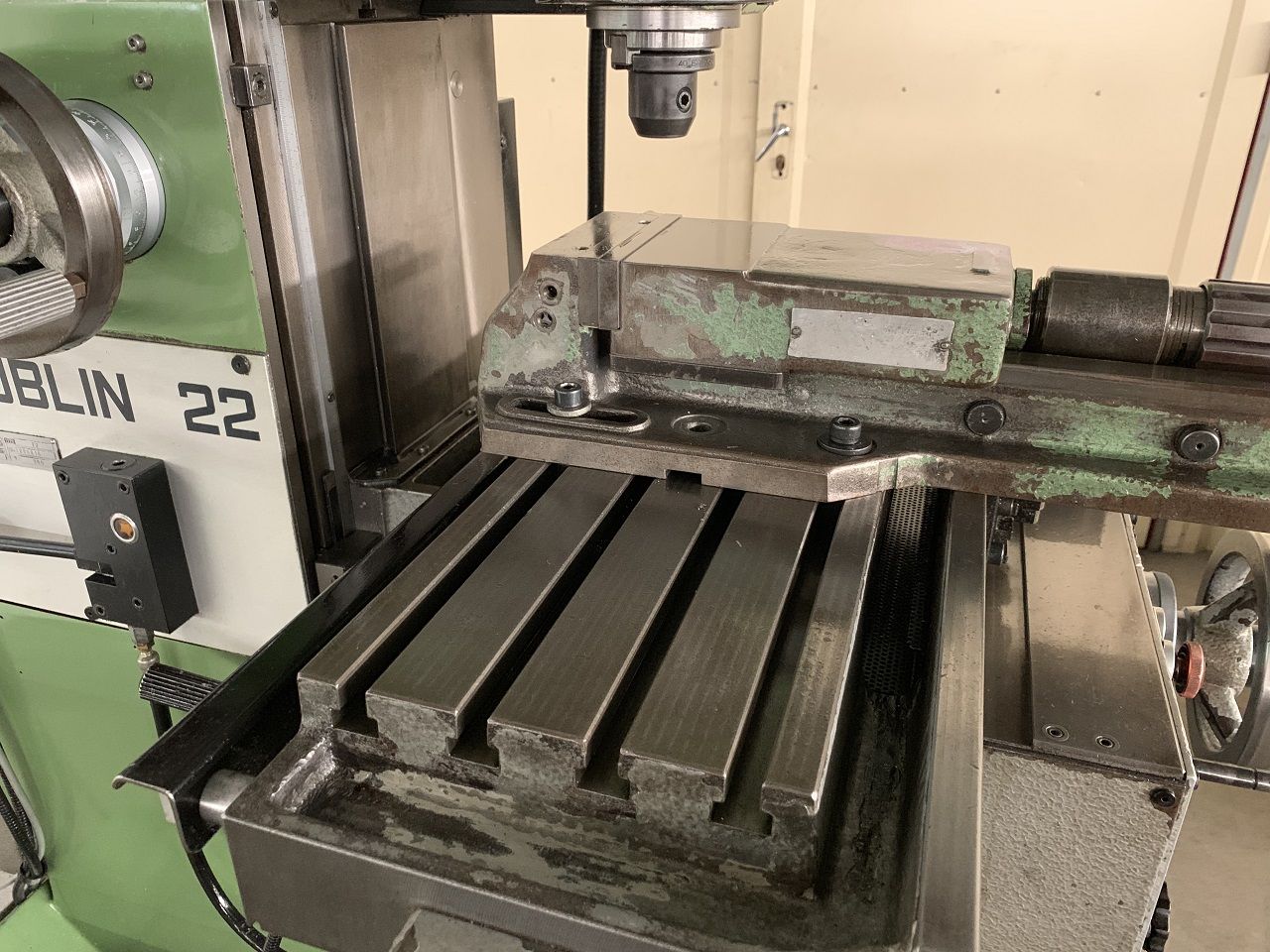

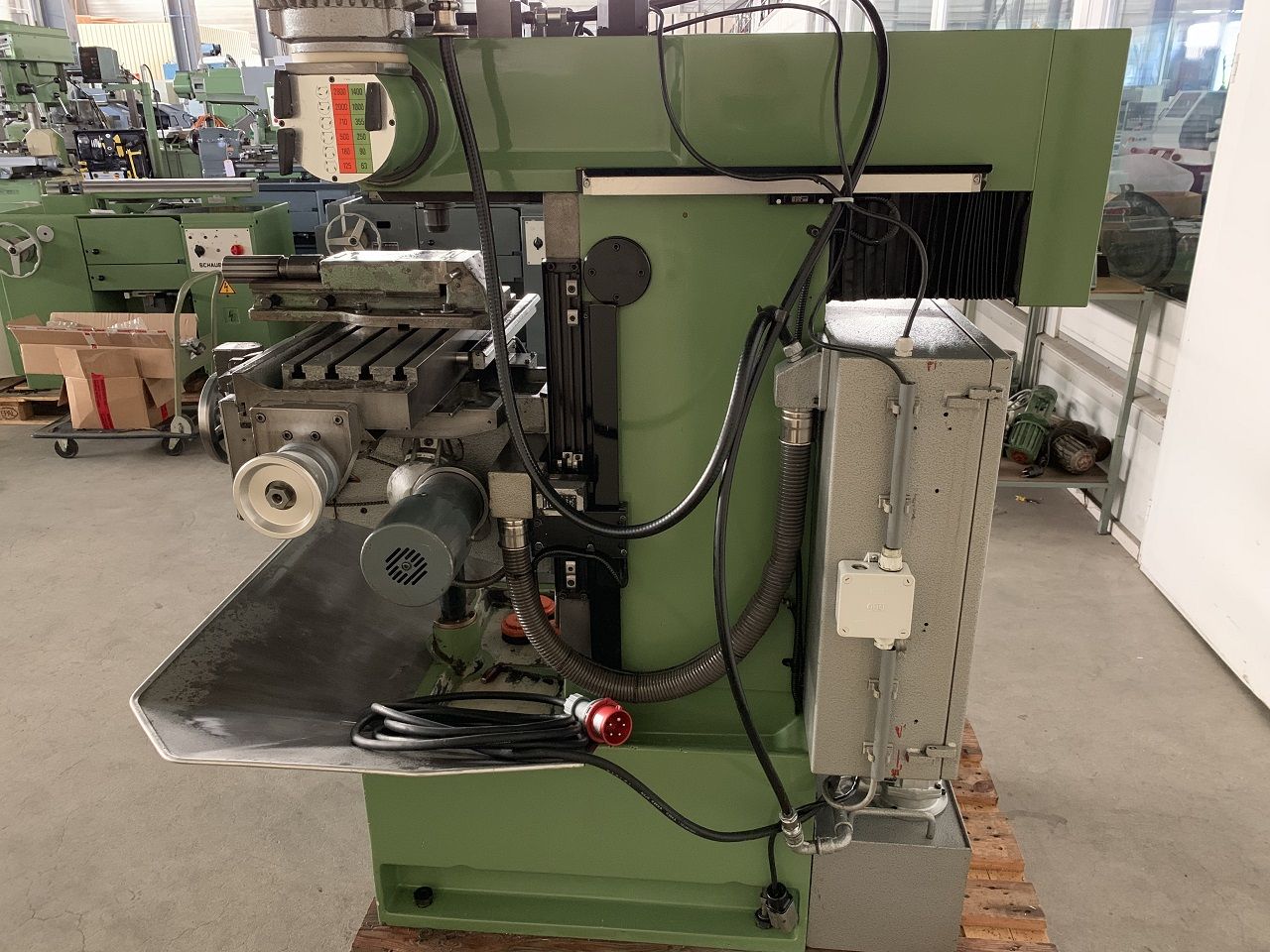

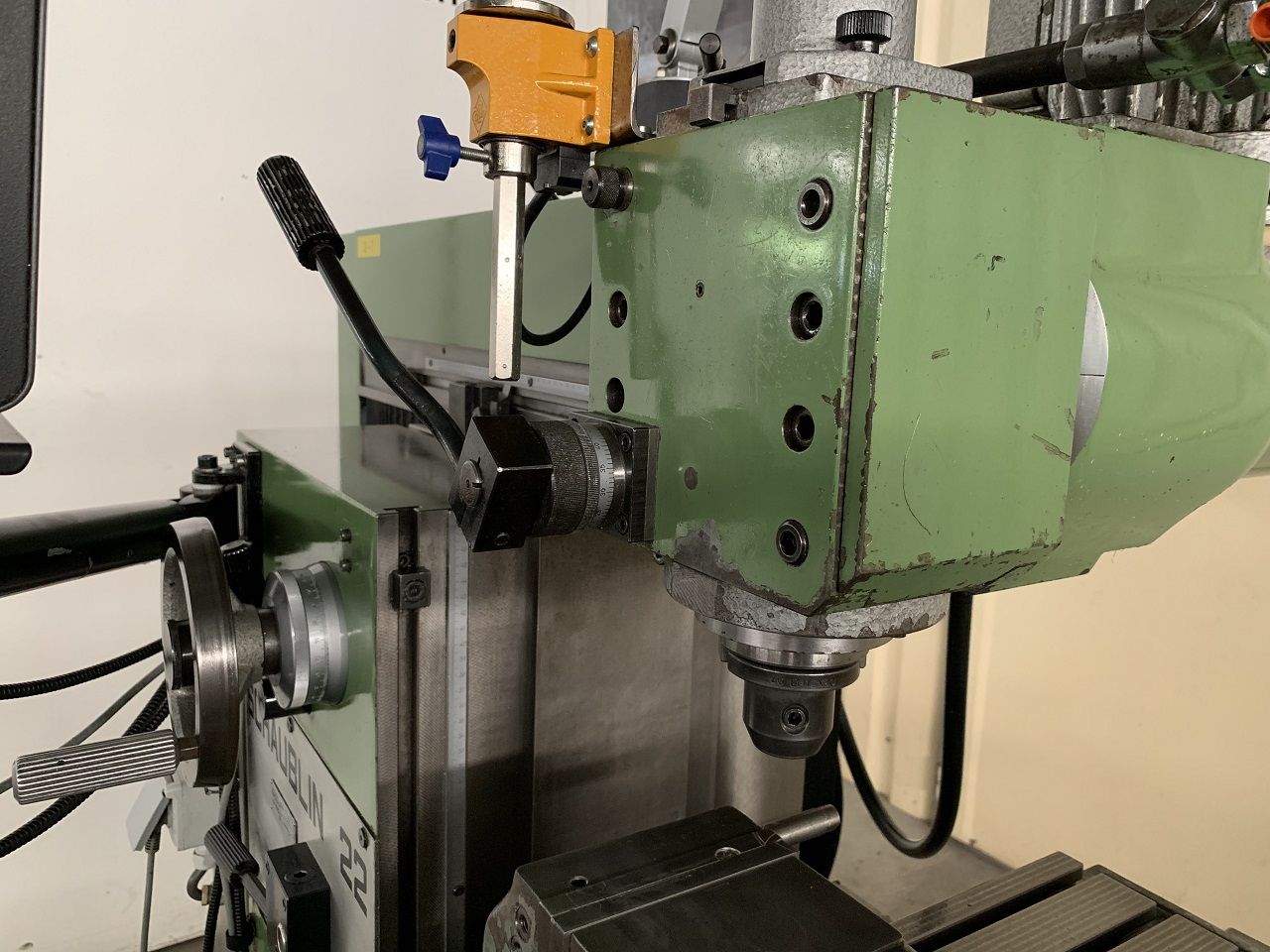

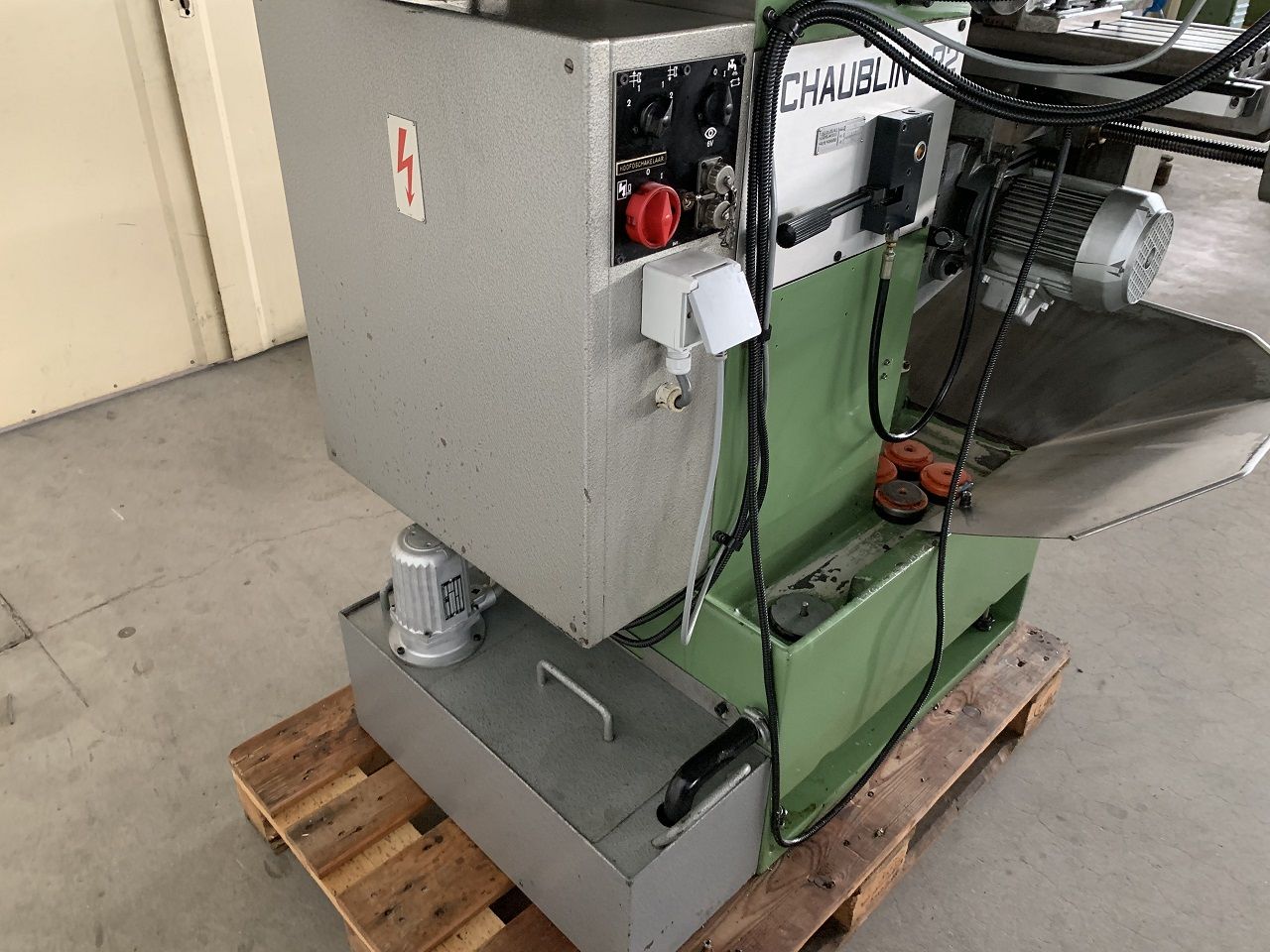

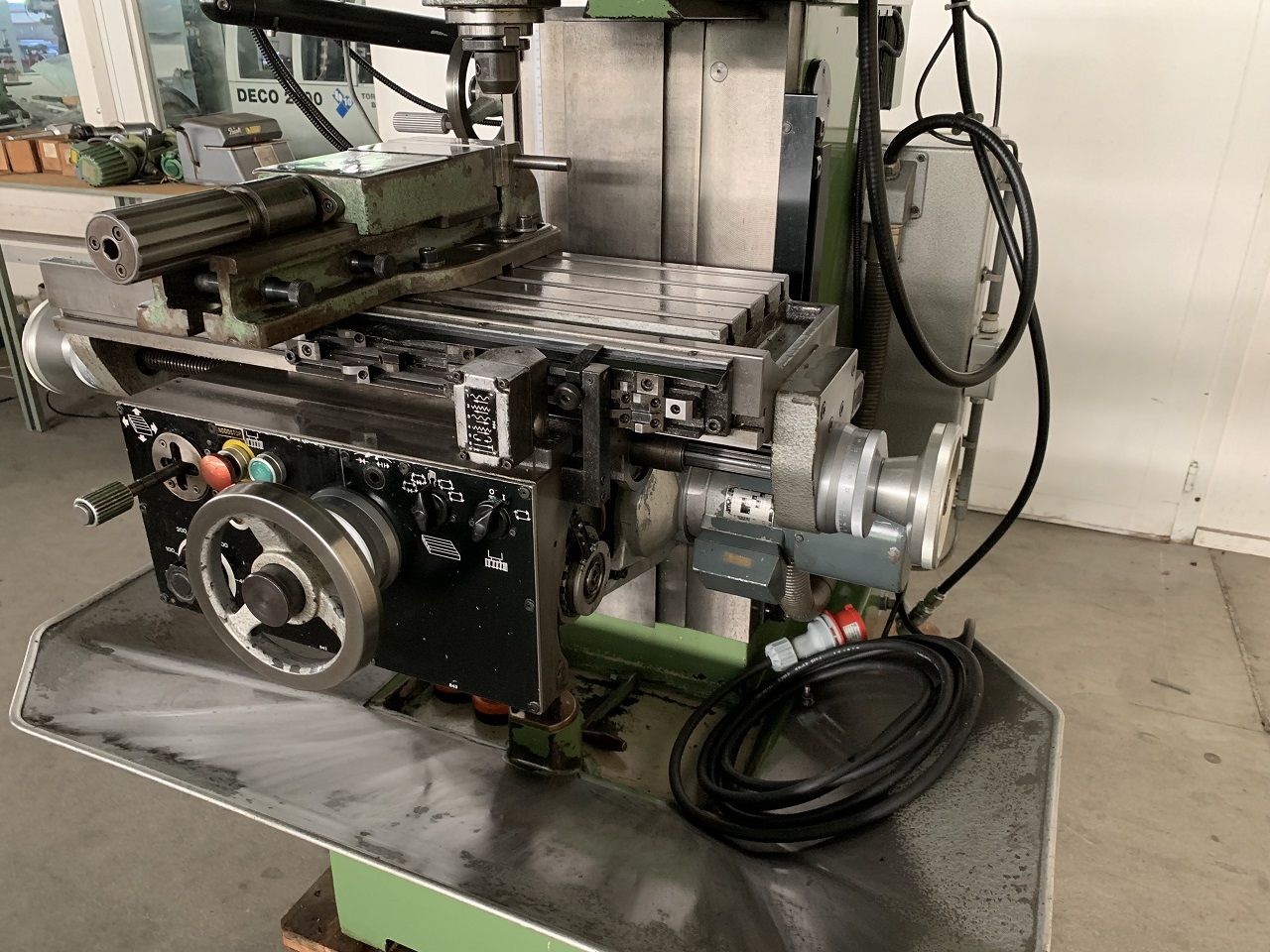

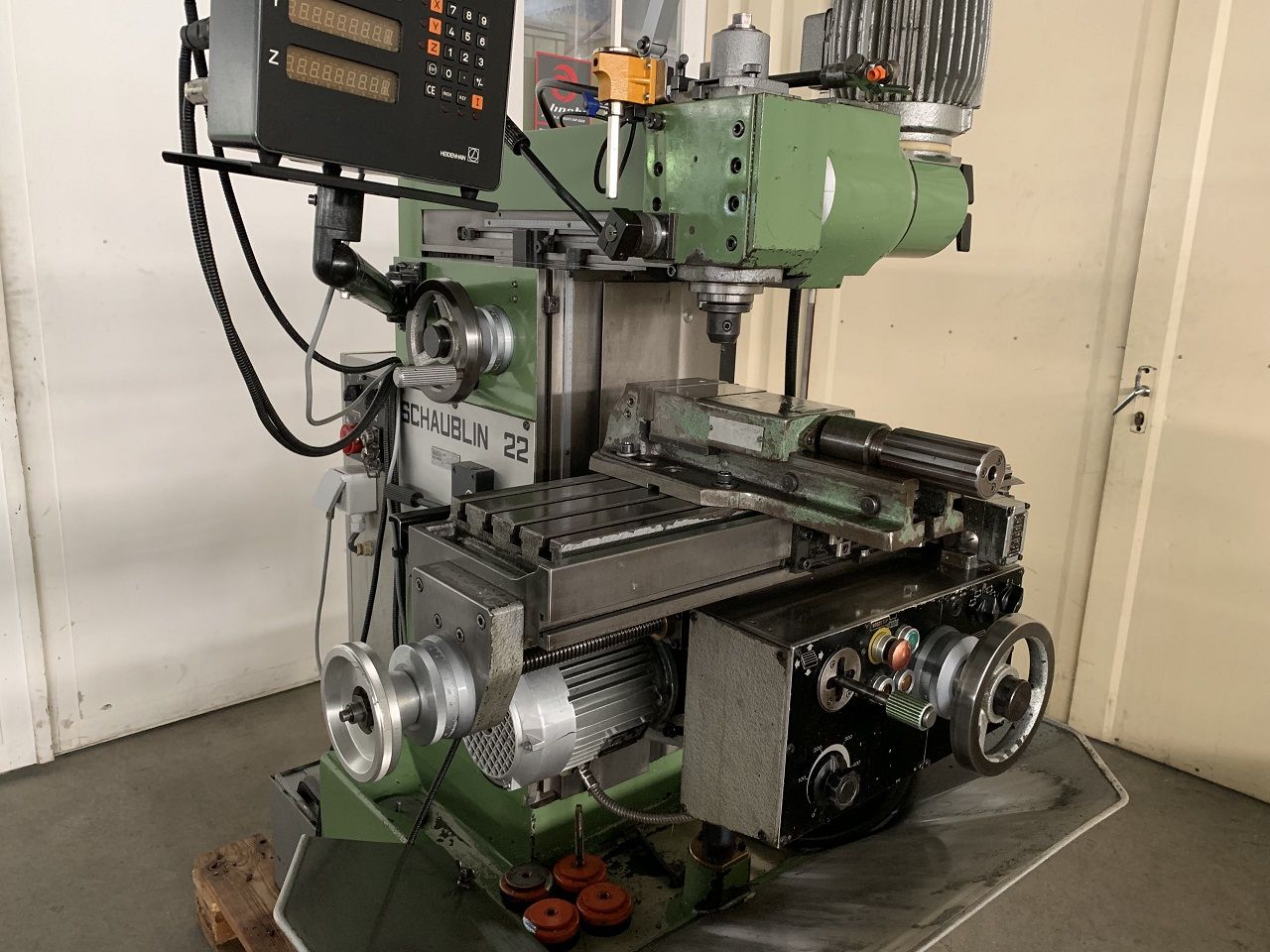

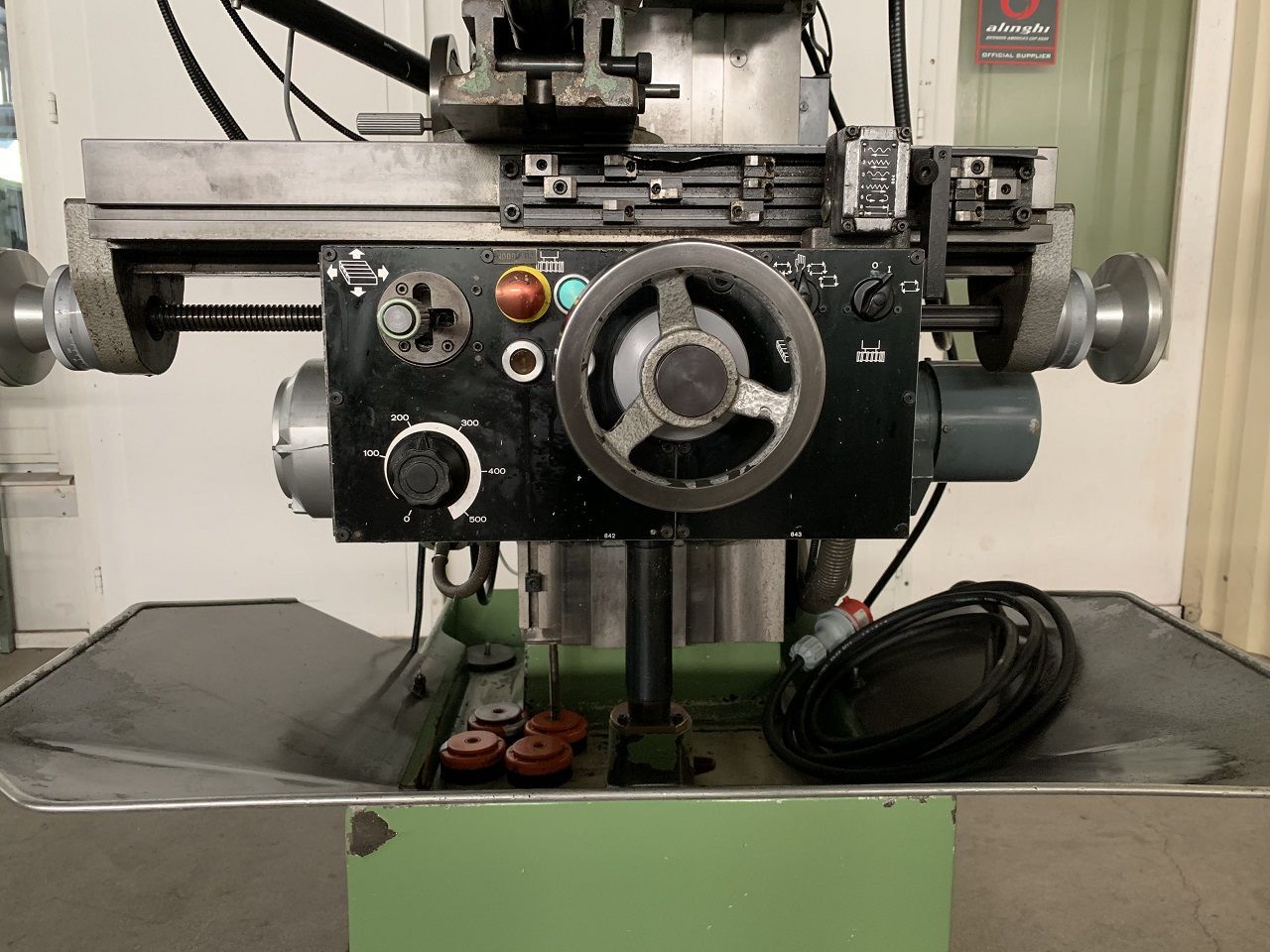

<section id="description"> <div class="detail_title_1"> <h1>UNIVERSAL MILLING MACHINE "SCHAUBLIN" TYPE 22</h1> </div> <p> <b>Reference</b>: 2180114 </p> <p>with 3-axes digital read-out VRZ 750, cooling device </p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing origin </td><td>Swiss</td></tr><tr><td>Voltage </td><td>380V 50Hz 3ph</td></tr><tr><td>Net weight </td><td>950 kg</td></tr><tr><td>Dimensions </td><td>140x110x160 cm</td></tr><tr><td>Customs position </td><td>8459.2930</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody><tr><td colspan="2">Geometrical characteristics</td></tr><tr><td>Working surface of table </td><td>650x250 mm</td></tr><tr><td>Number of T-slots </td><td>4</td></tr><tr><td>Width of T-slots </td><td>12-H7 mm</td></tr><tr><td>Distance between slots </td><td>50 mm</td></tr><tr><td>Spindle internal taper </td><td>Iso 30 (40)</td></tr><tr><td>Bore through spindle </td><td>17,8 (24,8) mm</td></tr><tr><td colspan="2">Strokes and traverses</td></tr><tr><td colspan="2">Longitudinal stroke</td></tr><tr><td>- table </td><td>330 mm</td></tr><tr><td>- 1 turn of the handwheel is equal to a traverse of </td><td>5 mm</td></tr><tr><td colspan="2">Vertical stroke </td></tr><tr><td>- knee </td><td>475 mm</td></tr><tr><td>- 1 turn of the handwheel is equal to a traverse of </td><td>2 mm</td></tr><tr><td colspan="2">Transverse stroke </td></tr><tr><td>- spindle-head slide </td><td>400 mm</td></tr><tr><td>- 1 turn of the handwheel is equal to a traverse of </td><td>5 mm</td></tr><tr><td colspan="2">Drive, motors, power feeds, coolant system</td></tr><tr><td colspan="2">Main motor</td></tr><tr><td>- spindle head, 2 speeds </td><td>1500/3000 rpm</td></tr><tr><td colspan="2">1,1 / 1,5 kW</td></tr><tr><td colspan="2">Gearbox</td></tr><tr><td>- spindle head, number of speeds </td><td>12</td></tr><tr><td>- range </td><td>63-2800 rpm</td></tr></tbody></table><h3>63-90-125-180-250-355-</h3><table class="table table-striped add_bottom_45"><tbody></tbody></table><h3>500-710-1000-1400-2000-</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>- approach-feed motor </td><td>1000 rpm / 0,55 kW</td></tr><tr><td>- approach feed in longitudinal traverse </td><td>2500 mm/min</td></tr><tr><td>- approach feed in vertical traverse </td><td>mm/min</td></tr><tr><td>- working feed motor </td><td>kW max 0,2</td></tr><tr><td>- range of adjustment in longitudinal traverse </td><td>4-500 mm/min</td></tr><tr><td>- range of adjustment in vertical traverse </td><td>1,6-200</td></tr><tr><td>Coolant-system motor </td><td>3000 rpm / 0,15 kW</td></tr><tr><td>Coolant-pump delivery </td><td>20 l/min</td></tr><tr><td>Tank capacity </td><td>30 l</td></tr><tr><td colspan="2">errors and omissions excepted-data given without obligation</td></tr></tbody></table></div> </section>.
