MACHINE INFORMATION AND SPECIFICATION
- Model:
- UNIVERSAL MILLING MACHINE ACIERA F-3
- Country:
- Switzerland
DESCRIPTION

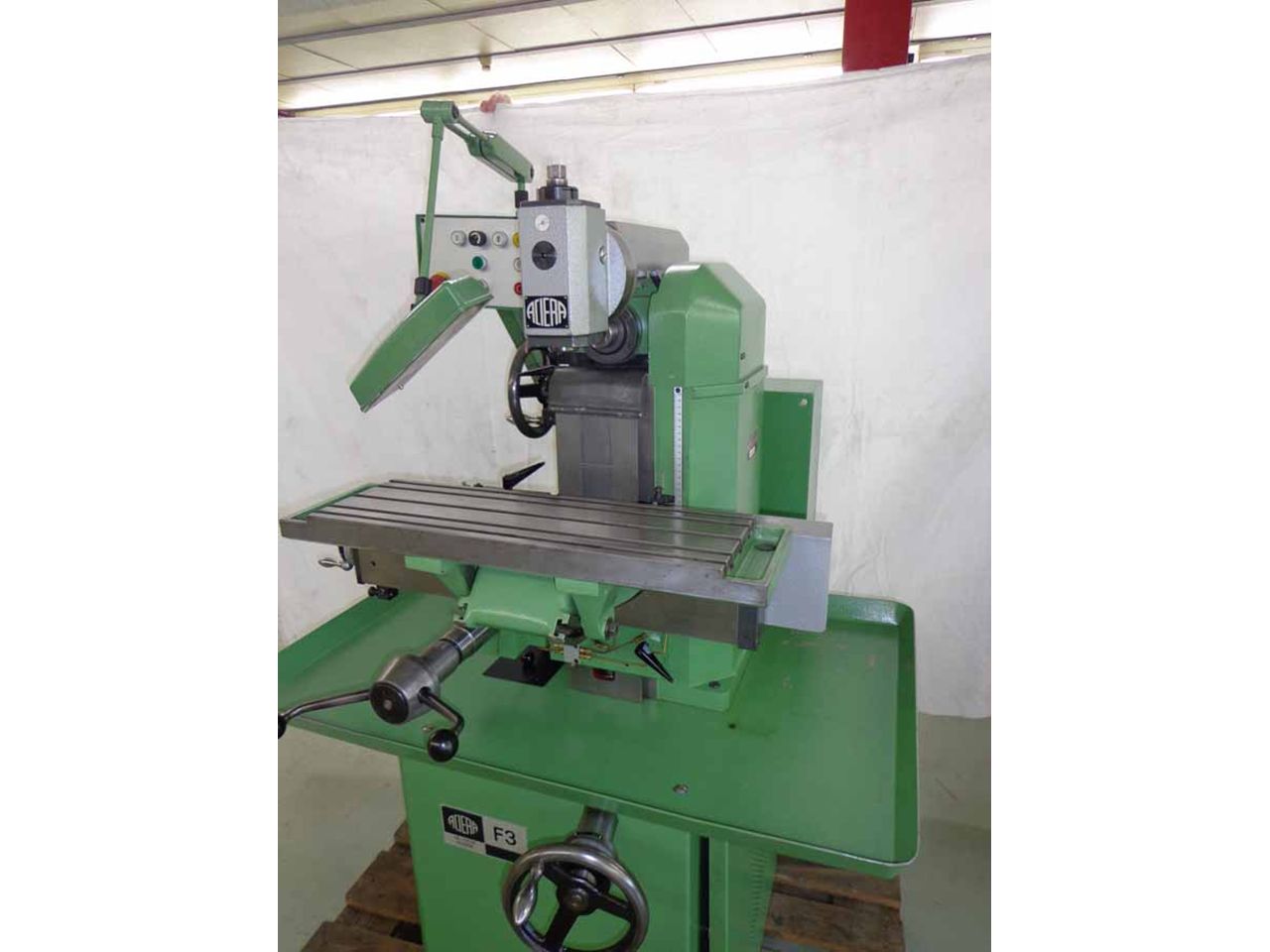

UNIVERSAL MILLING MACHINE "ACIERA" F-3
Reference: 2130049
Information
| Manufacturing origin | Swiss |
| Voltage | 380 / 50 / 3 |
| Netweight approx. | 670 kg |
| Dimensions |
See moreTECHNICAL DATA
MOTOR
| Power | 0,75 / 2 HP |
| Speeds 50 cycle motor | 700/2800 RPM |
| Speeds 60 cycle motor | 840/3360 RPM |
TRAVERSES AND CAPACITY
| Manual and powered longitudinal traverse to the table | 300 mm |
| Manual vertical traverse to the table | 300 mm |
| Manual cross traverse to the headstock | 135 mm |
| With intermediate piece | 205 mm |
| Working surface of table | 600x205 mm |
| 4 T-slots DIN 650, width | 10 mm |
| Graduations on all feedscrew drums | 0,02 mm |
| Min./Max. distance between : |
| table and orizontal spindle axis | 30-330 mm |
| table and vertical spindle nose | 20-320 mm |
| with intermediate piece | 100-400 mm |
HORIZONTAL AND VERTICAL MILLING SPINDLES
| Provision for clamping by W-20 colletson request taper | ISO 30 |
| Shank diameter | 20 mm |
| Number of spindle speeds | 8 |
| 50 cycle motor | 100-175-300-500-400-700-1200-200 RPM |
LONGITUDINAL POWER FEEDS
| Number of feeds (in both directions) | 8 |
| 50 cycle motor | 12-19-32-58-48-76-128-232 |
RAPID LONGITUDINAL ADVANCE BY CROSS-HANDLE
| Principle of transmission worm and wormwheel |
| 1 turn of cross-handle | 12 mm |
| DIMENSIONS (Total height of machine) |
| with headstock cover-plate | 1350 mm |
| with prismatic-section overarm | 1400 mm |
| with vertical milling head | 1450 mm |
| area occupied by machine | 1200x1000 mm |
| errors and omissions excepted-data given without obligation |
