Manufacturer ZAYER
Model 30 KMU-5000
Year 1999
CNC HEIDENHAIN TNC-430PA
Table Surface 4.700 x 1.200 mm.
Travels (X/Y/Z) 3.400/1.250/2.000 mm.
Quill Travel (W Axis) 500 mm.
Taper ISO-50
Main Motor Power 37 kW
Automatic Head 45º INCLUDED
Automatic Head 45º 0.001º/0.001º
Head 45º Max. Speed 3.000 rpm
45º Head Taper ISO-50
Twist Head Contiuous INCLUDED
Twist Head Max Speed 3.000 rpm
Twist Head Taper ISO-50
Ram with Quill INCLUDED
Quill Diameter 150 mm.
Quill Taper ISO-50

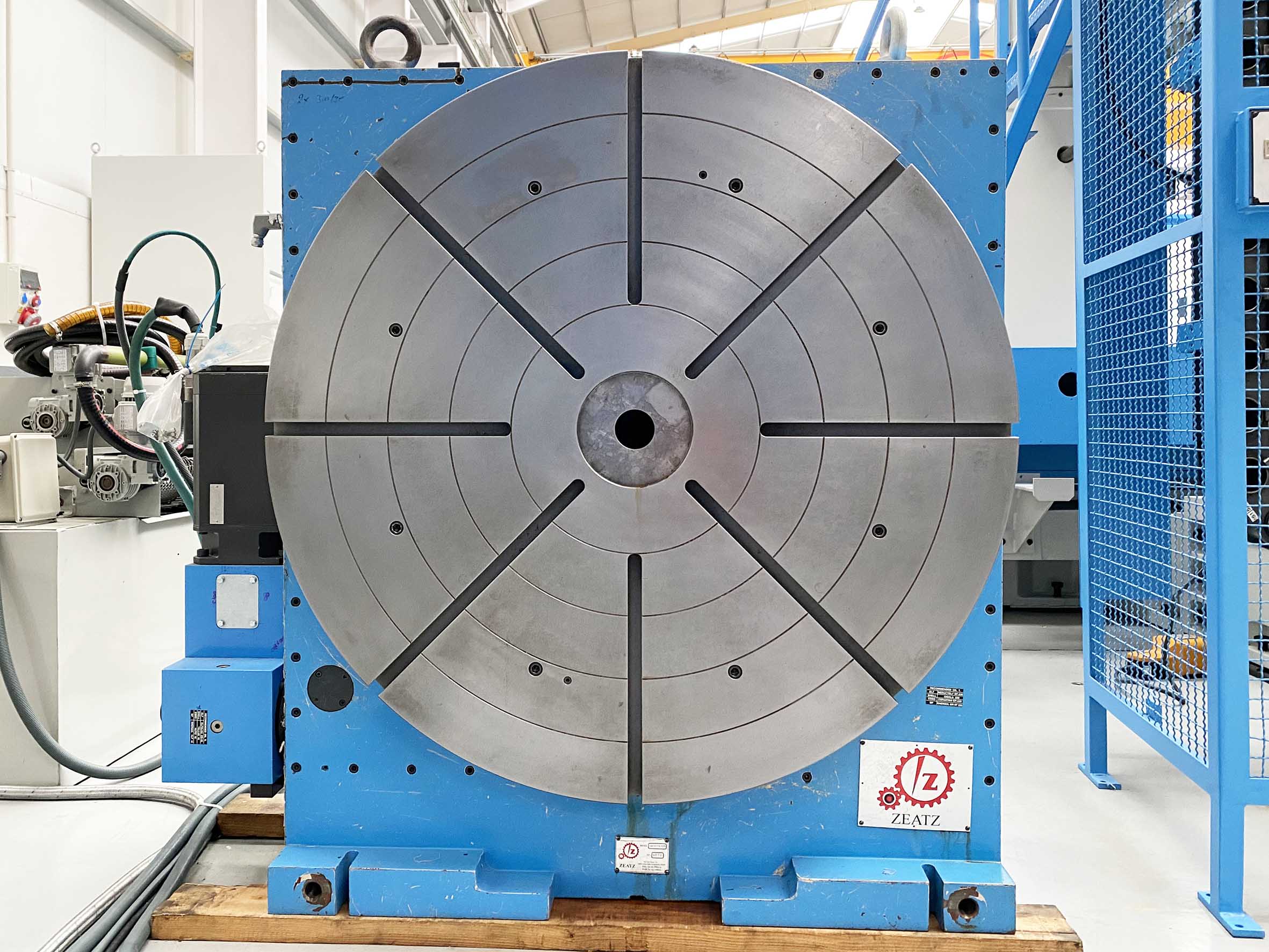

Rotary Table ZEATZ Ø 1200 INCLUDED
Internal and External Coolant Head 45º and Quill INCLUDED
External Coolant Twist Head INCLUDED
Semi-automatic head change INCLUDED
Automatic Tool Changer INCLUDED
Positions in ATC 60
Pick up station AITEK for 45º and Twist Heads INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel HEIDENHAIN HR-410
Piece Touchprobe RENISHAW MP 16+SP2/1
Machine Weight 35.000 kg.
Working Feeds (X/Y/Z) 5-10.000 mm/min
Rapid Traverse 20.000 mm/min
Head Type Universal
Taper ISO 50
Turning Speeds 20-4000 rpm
Head Power 22 Kw
Hydraulic Tool Clamping System INCLUDED
EC Guarding INCLUDED
Carrying Load Table 3.500 kg.
Machi...
Manufacturing number :
Manufacturing year :
Manufacturing origin : Swiss
Voltage : 380 / 50 / 3
Dimensions : 71 x 62 x 151 cm
Total power : 0,33 CV
Custom position : 8459.6930
Colour :
