Max Stroke
355 mm (14”)
Strokes per min
12-110
6 Speeds
Largest shaft admitted under ram
50mm (2”)

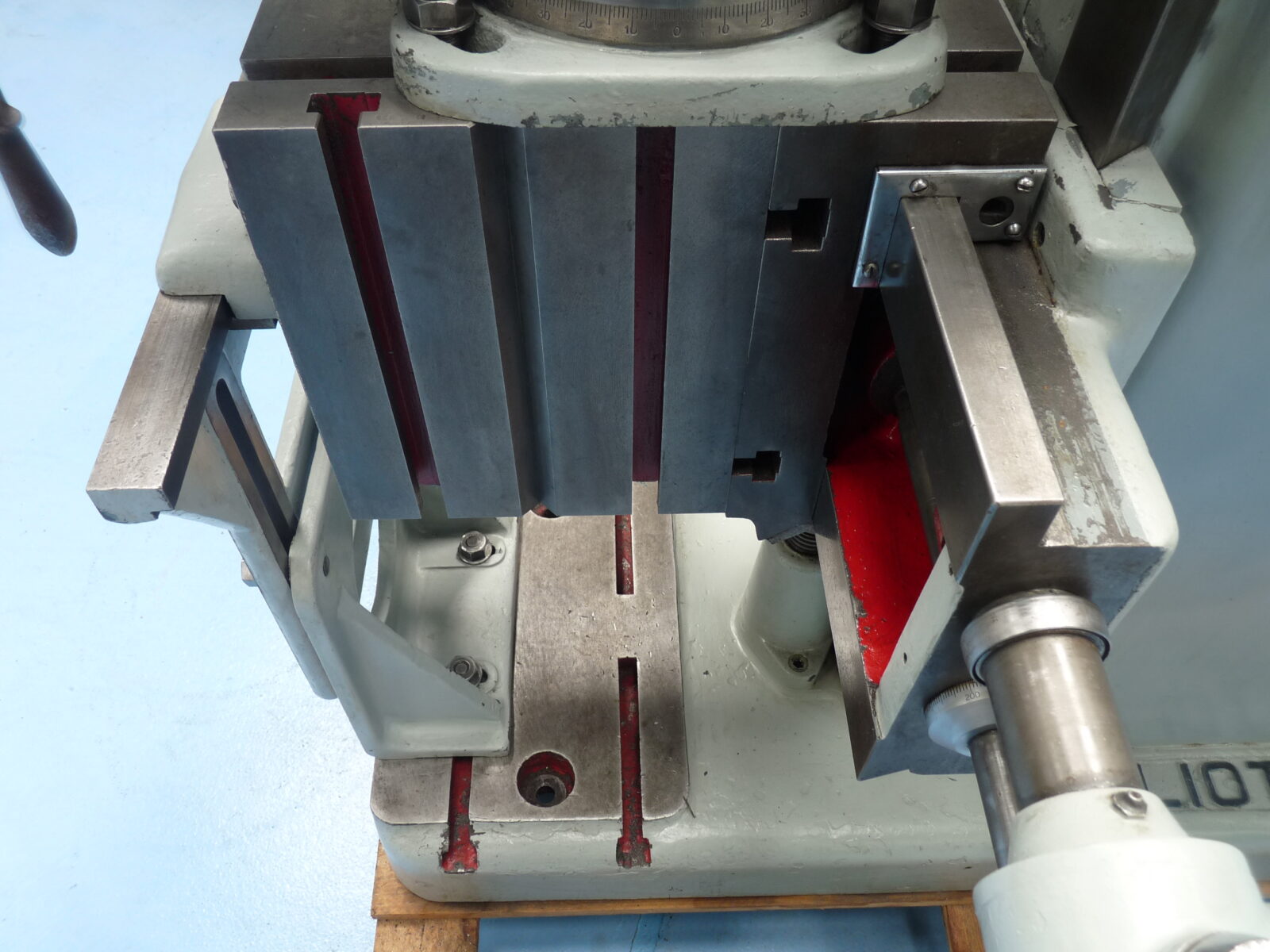

TABLE
355 x 254mm (14 x 10”) Top Surface
283 x 295mm (11 1/8 x 11 5/8”) Side Surface
403mm (15 7/8”) Maximum table to ram
463mm (18 ¼”) Longitudinal traverse (max)
352mm (13 7/8”) Vertical traverse
6 cross feeds: .25-1.5mm (.010-.060”) per cut
VICE
273mm (10 ¾”) jaw opening
235mm (9 ¼”) jaw width
Main Motor:
Three Phase Electrics 3HP 4.7 amps.
Nº Tools at ATC 60 Tools
Taper at Orthogonal Head ISO-50
Turning Speeds 45º Head 20 – 4.000 r.p.m.
Auto Indexing Orthogonal Head 1º/2.5º
Main Motor Power 35 Kw.
Speed Ranges (ZF Box) 2
Rotary Table Spirsin INCLUDED
Rotary Table Dimmessi...
