MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • XYZ
  • Model:
  • XYZ Manual E Mill 2000 (4294)
  • Condition:
  • Used
  • YOM:
  • 2006
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

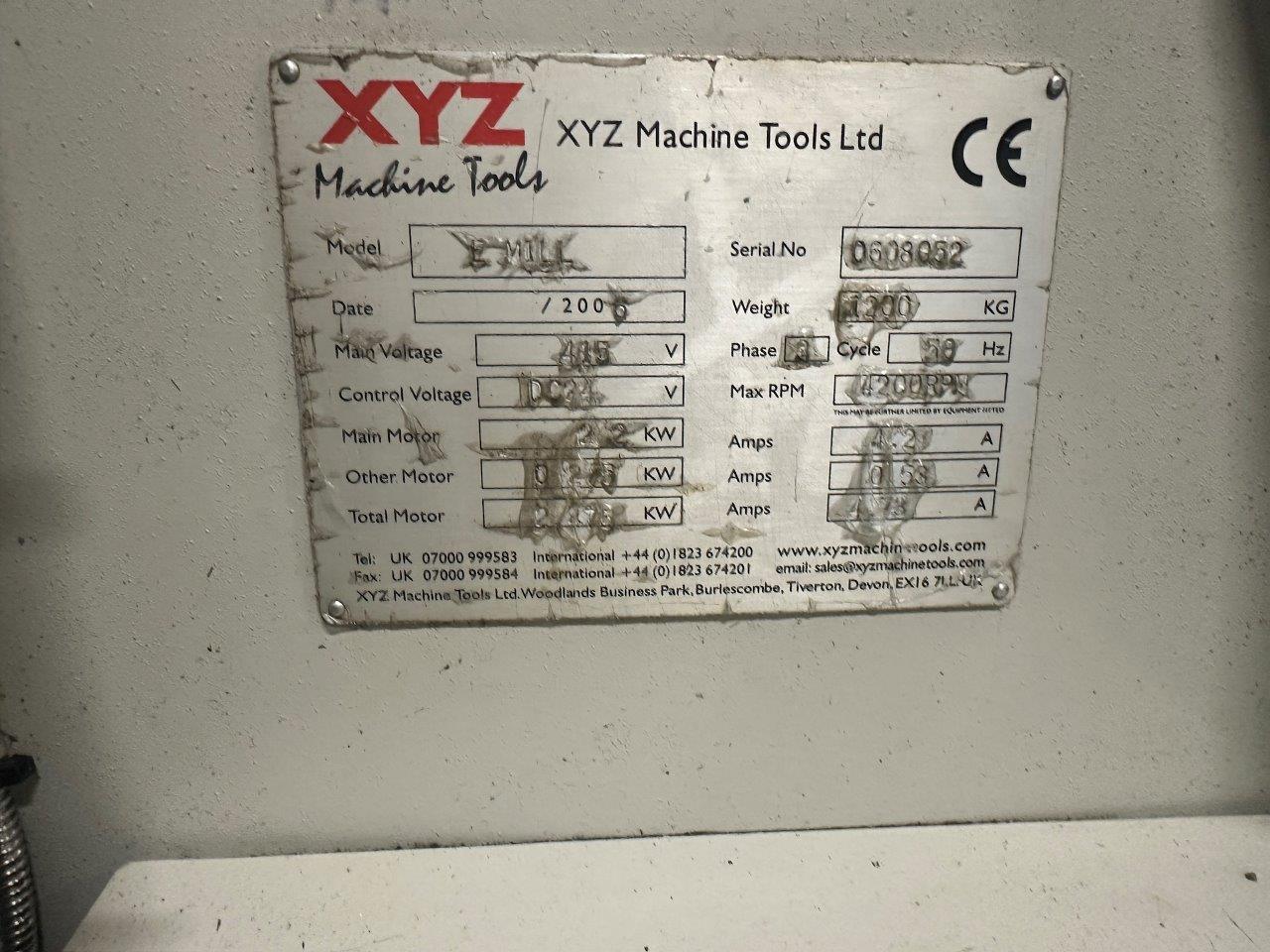

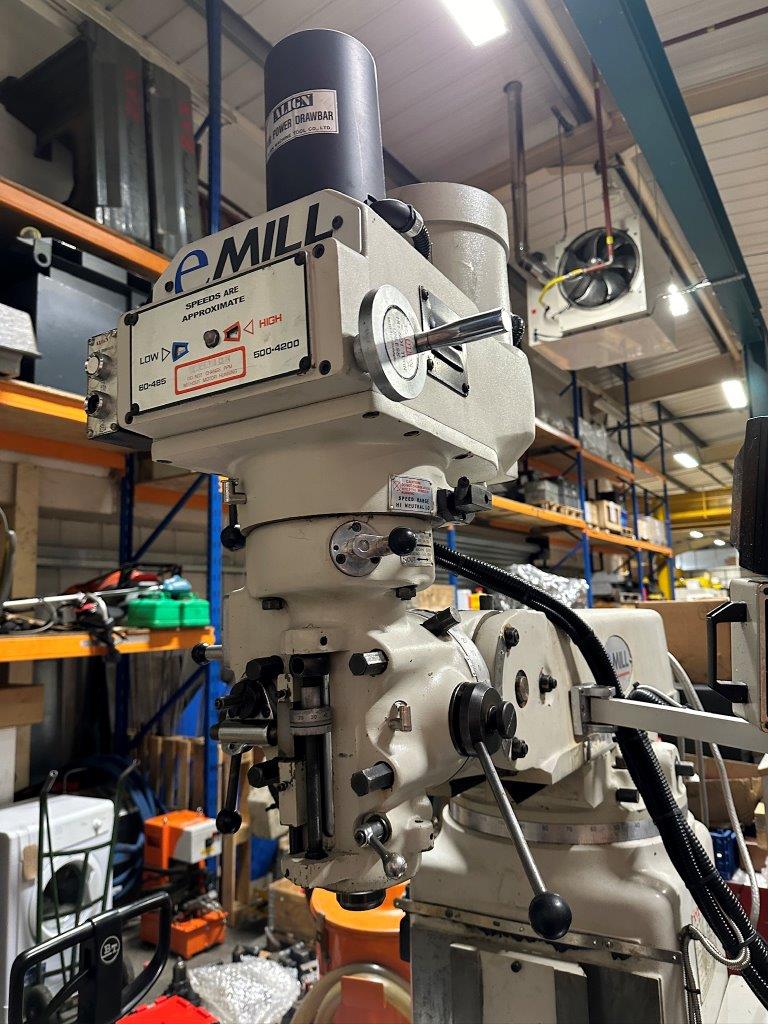

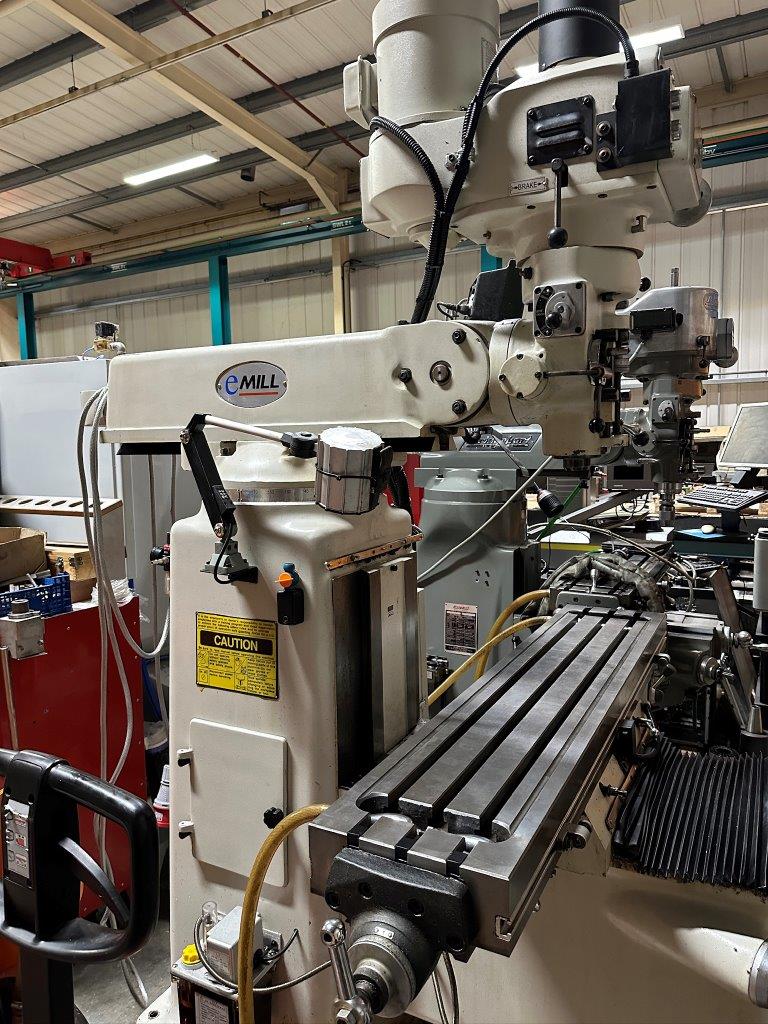

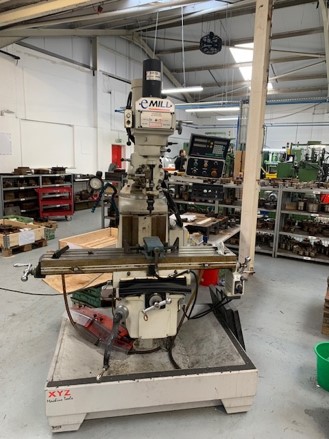

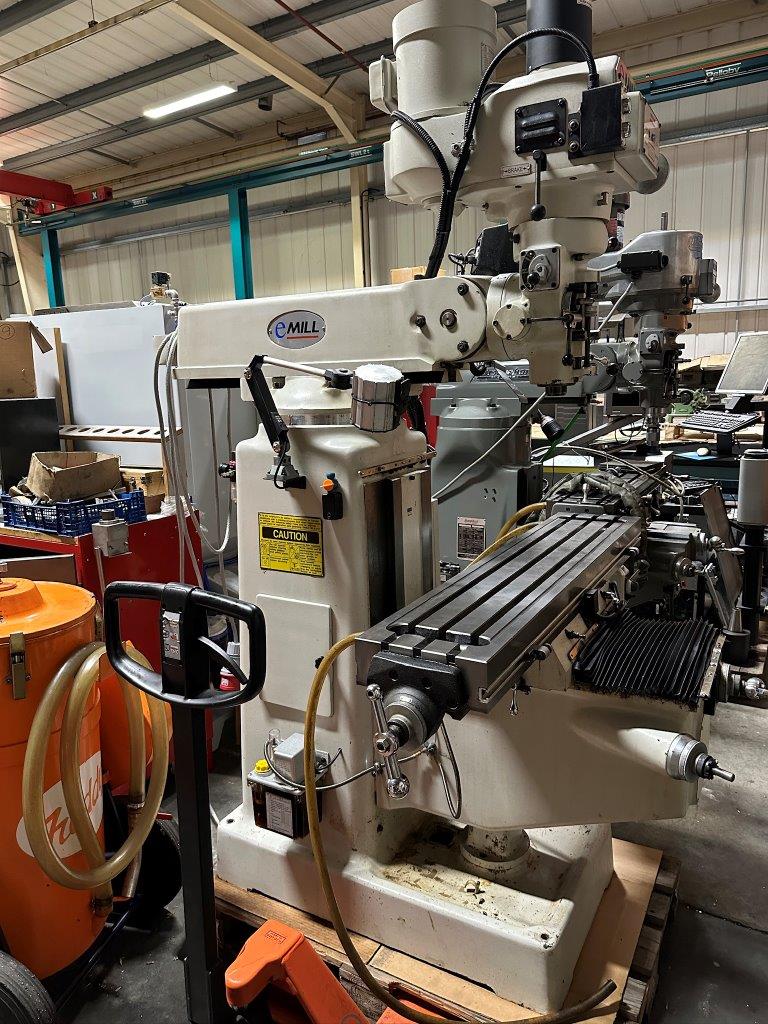

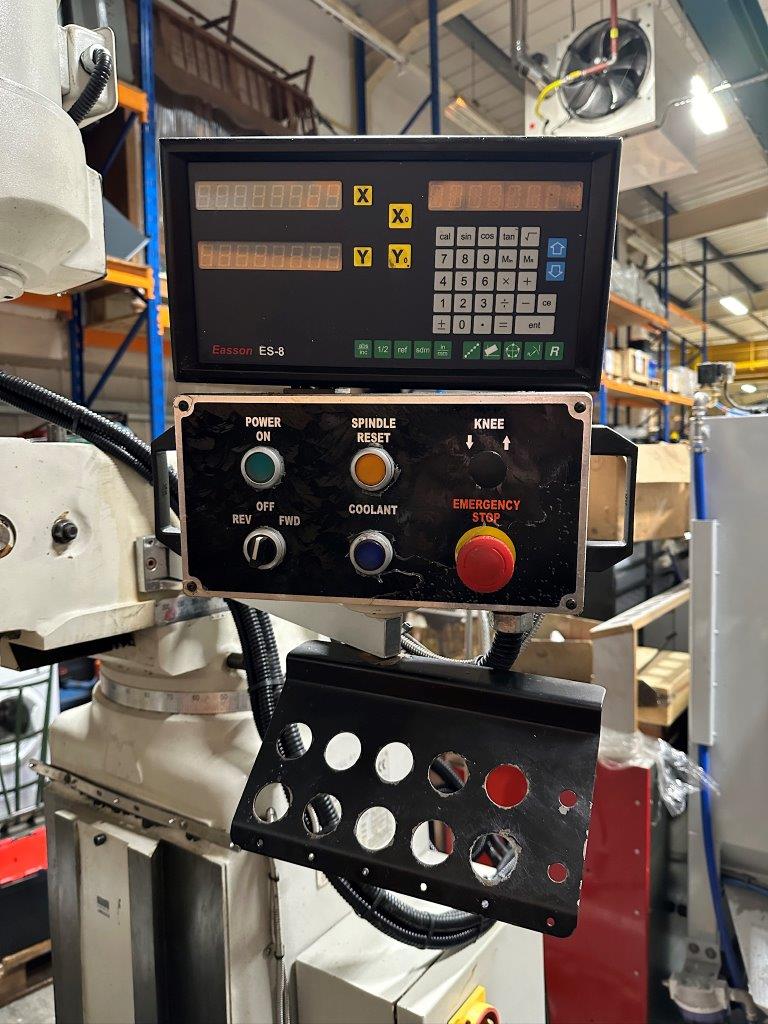

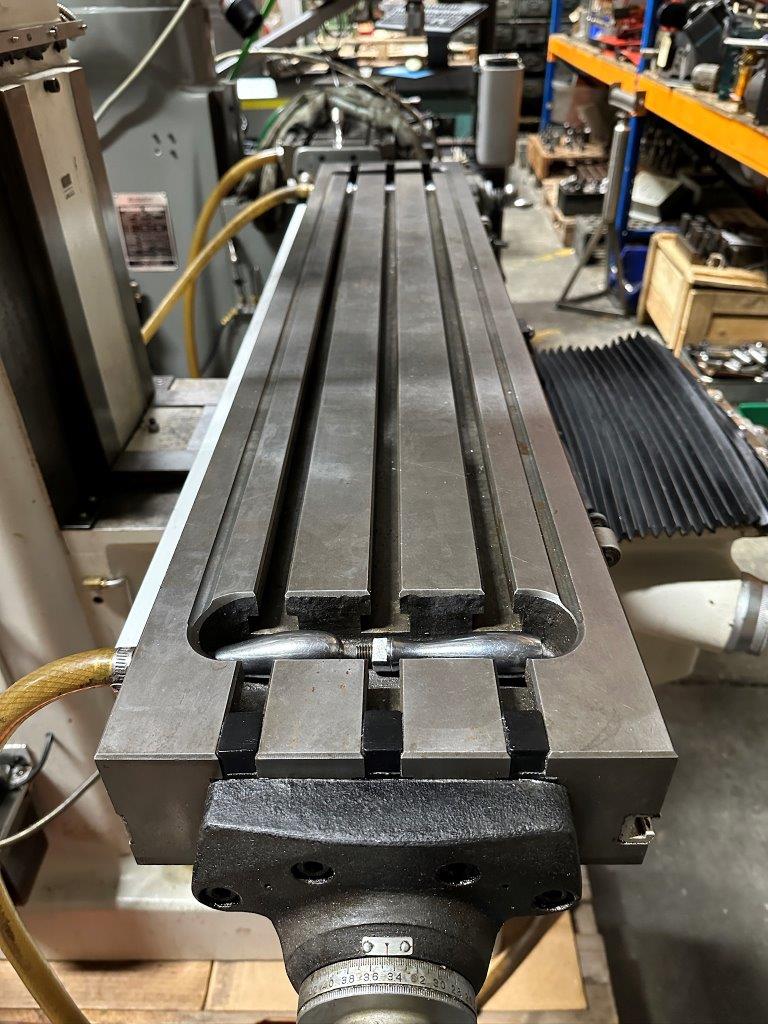

XYZ Manual E Mill 2000, 2006, s/n D608052, 3HP, table 1270 x 254mm, trav 785 manual - 735mm power feed x 406 x 406mm, quill trav 127mm, 60 - 4200 rpm variable speed, R8 taper, power drawbar, 2 axis DRO, swarf tray
