MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:

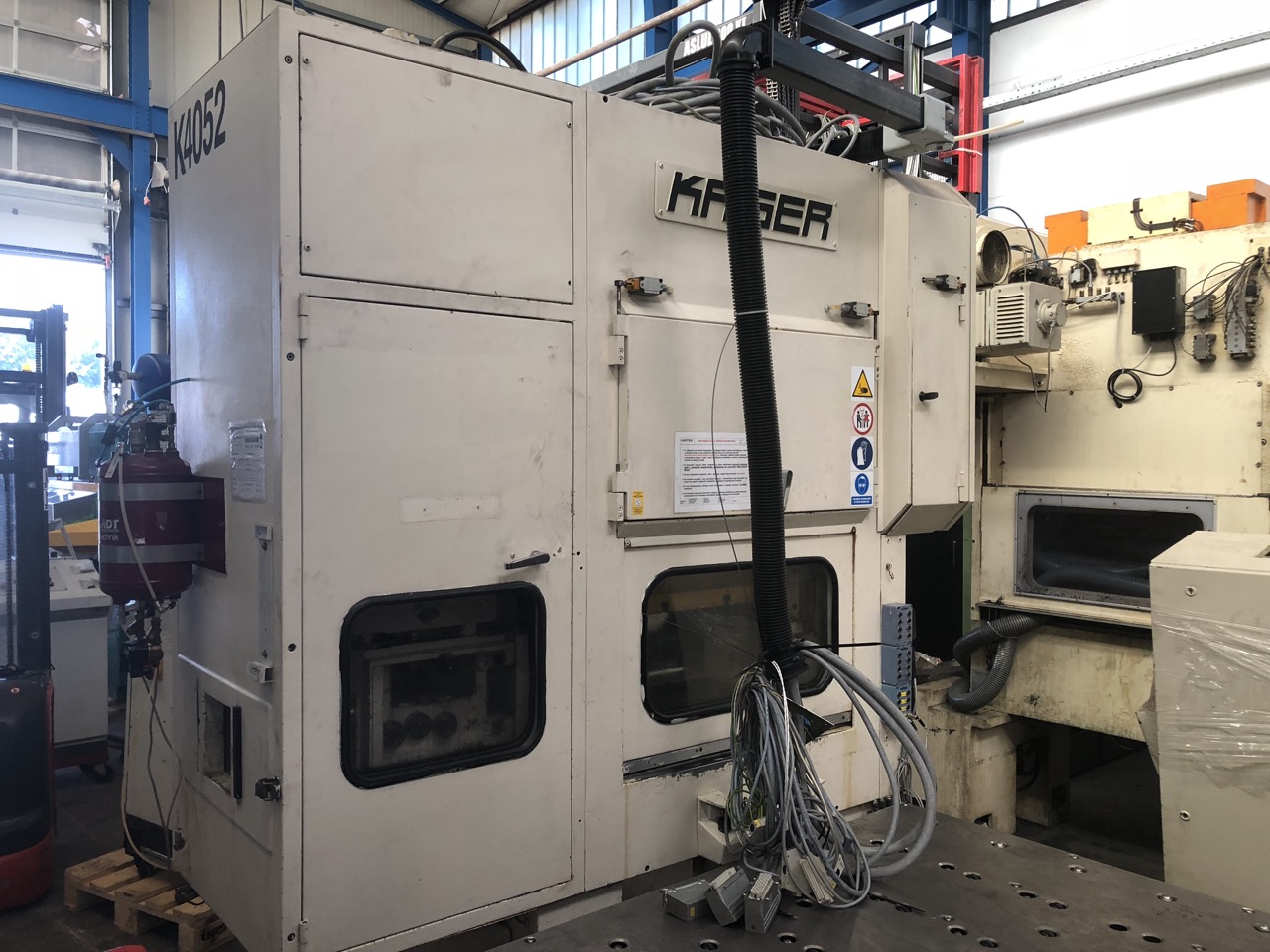

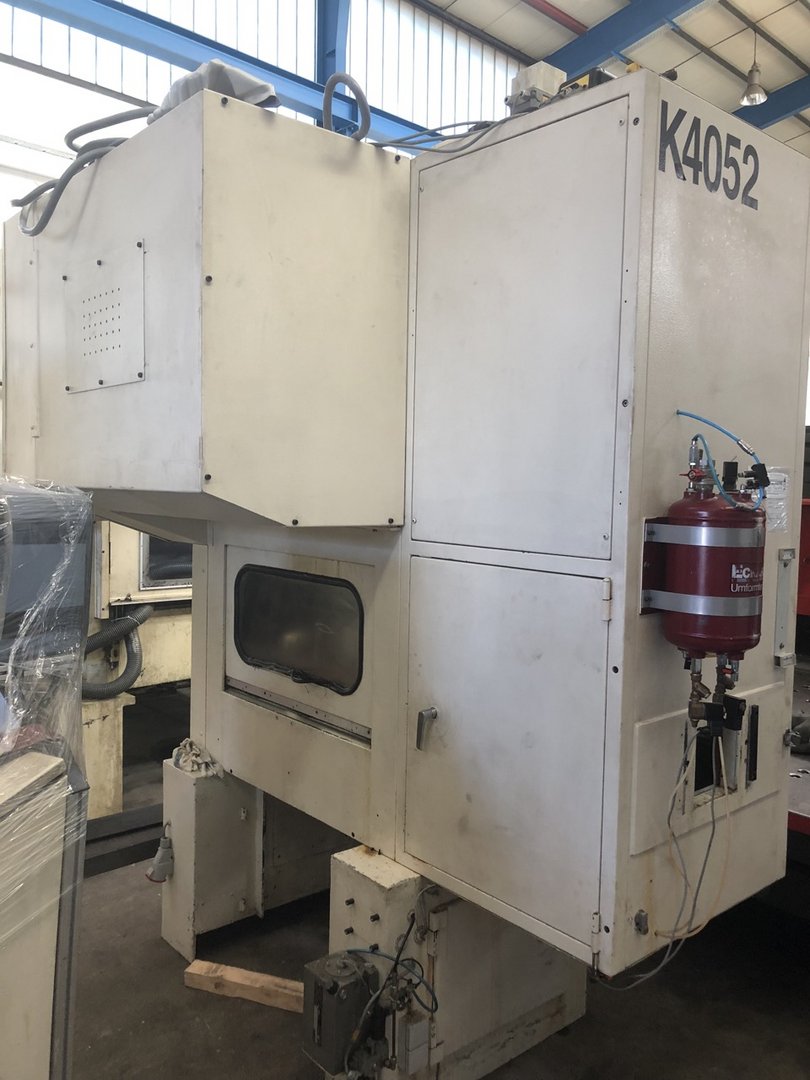

  • KAISER V 40 WHS
  • Condition:
  • Used
  • YOM:
  • 1985
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Press capacity: 40 ton
  • Ram stroke adjustable: 8 - 50 mm
  • Slide adjustment: 50 mm
  • Shut height (stroke down, adjustment up): 310 mm
  • Free frontal opening L-R: 820 mm
  • Table surface area : 810 x 450 mm
  • Slide area: 720 x 350 mm
  • Hole in table: 600 x 110 mm
  • Number of strokes: 100 - 1.000 s.p.m.
  • Table height over floor: 1.030 mm
  • Required power: 19,5 kW
  • Weight of machine approx.: 6,8 ton
  • Zehnder & Sommer roll feeder - YOM 2003
  • The machine was completely mechanical and electrical overhauled in 2003
