MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:
  • KAISER V 315 WR 2740
  • Condition:
  • Used
  • YOM:
  • 1997
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Pressure total: 315 ton
  • Ram stroke: 160 mm
  • Slide adjustment: 100 mm
  • Shut height (stroke down, adjustment up): 1.050 mm
  • Free frontal opening L-R: 2.740 mm
  • Free lateral opening F-B: 1.500 mm
  • Distance between oil tray: 2.400 mm

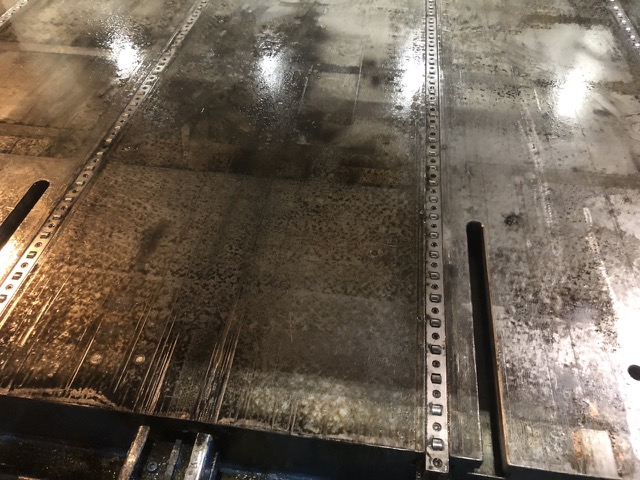

  • Table surface area : 2.740 x 1.800 mm
  • Slide area: 2.400 x 1.700 mm
  • Number of strokes: 10 - 60 s.p.m.
  • Required power: 75,5 kW kW
  • Working hours machine: 77.341 h
  • Height over floor approx.: 5.500 mm
  • Dimensions L x W x H: 5.400 x 3.300 x 5.700 mm
  • Weight of machine approx.: 80 ton
  • Standard configuration: hydraulic tool clamping device
.
