MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • WILLEMIN
  • Model:

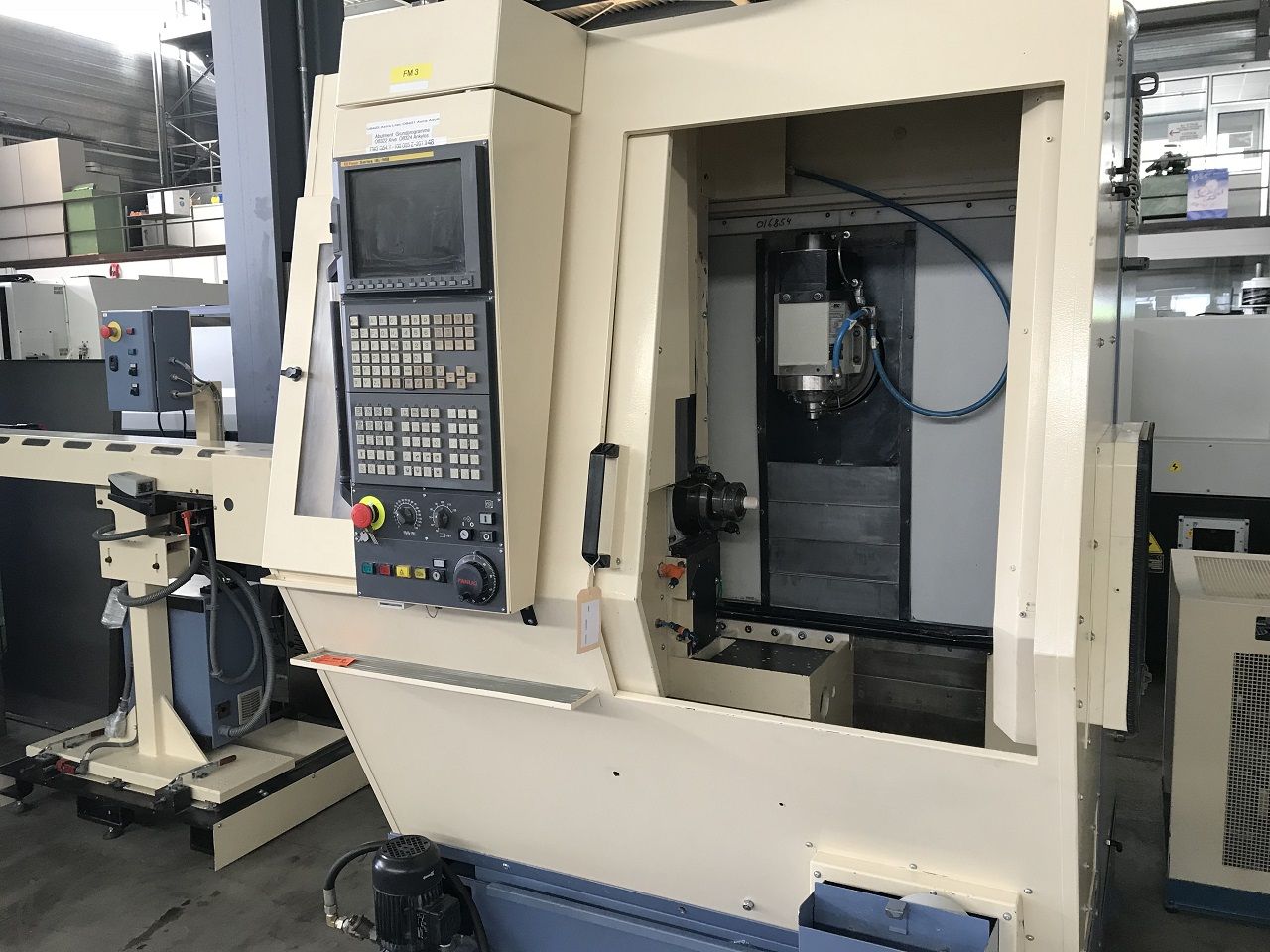

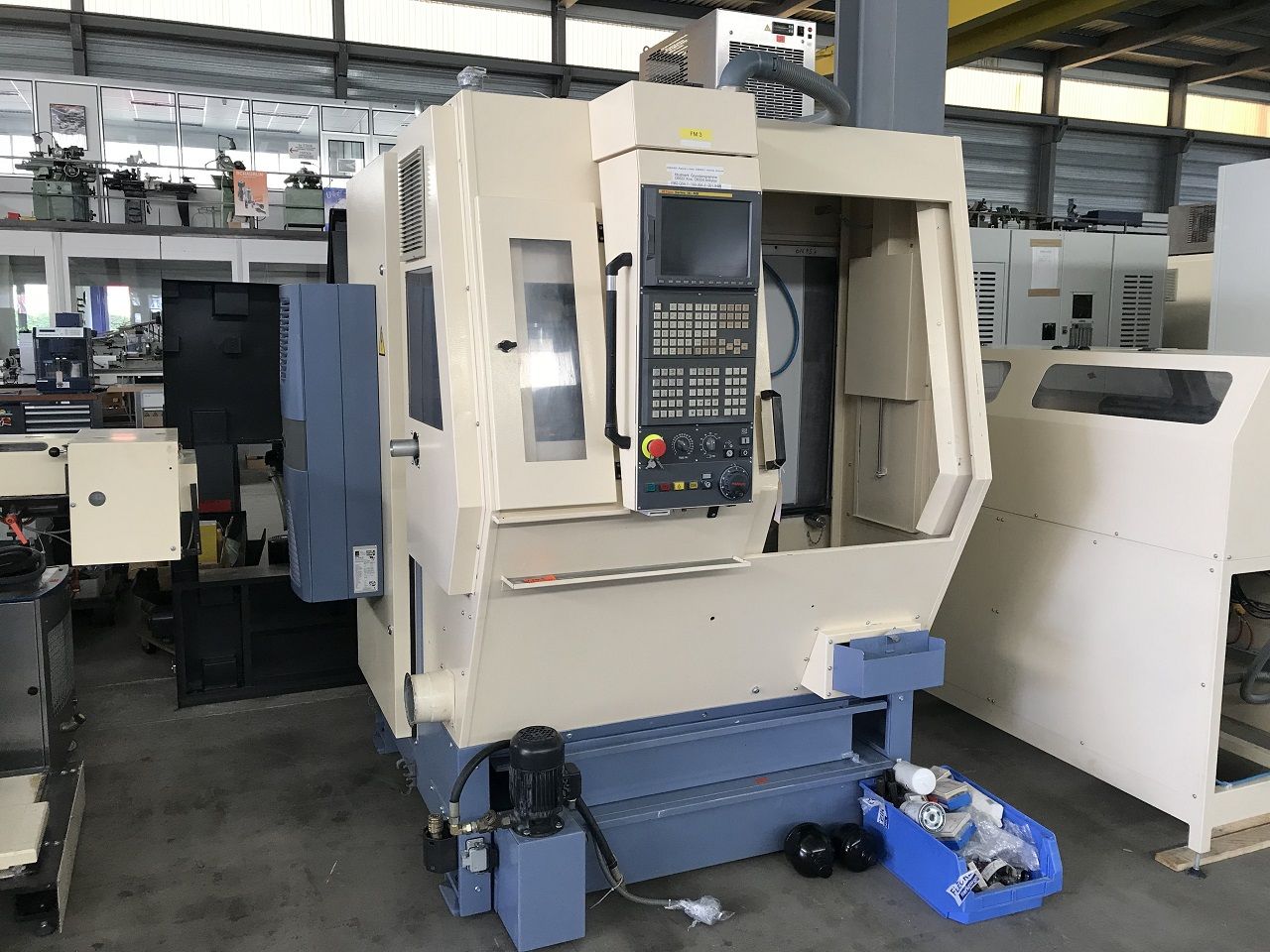

  • MACHINING CENTRE WILLEMIN-MACODEL W-408 MT
  • Condition:
  • Used
  • YOM:
  • 2005
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

<section id="description"> <div class="detail_title_1"> <h1>MACHINING CENTRE "WILLEMIN-MACODEL" W-408 MT</h1> </div> <p> <b>Reference</b>: 2180068 </p> <p>CNC 5 axes, Fanuc 16i-MB 2006</p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing year</td><td></td></tr><tr><td>Manufacturing origin</td><td>CH</td></tr><tr><td>Voltage</td><td>400 V</td></tr><tr><td>Netweight</td><td>1700 kg</td></tr><tr><td>Custom position</td><td>8458.9120</td></tr><tr><td>Dimensions </td><td>mm</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody><tr><td colspan="2">Standard bar capacity � 32 mm</td></tr><tr><td colspan="2">Turning / Milling from bars up to � 36 mm</td></tr><tr><td colspan="2">Pivoting spindle </td></tr><tr><td colspan="2">Linear axes </td></tr><tr><td>Travels X � Y � Z � U </td><td>250 / 200 / 300 / 80 mm</td></tr><tr><td>Max travel speed </td><td>30m/min</td></tr><tr><td>Feed force </td><td>2600 N</td></tr><tr><td>Resolution</td><td>0,0001 mm (0.1 �m)</td></tr><tr><td colspan="2">Spindle with integrated motor</td></tr><tr><td>Standard interface </td><td>HSK-E40</td></tr><tr><td>Power S1/S6</td><td>10 kW / 15 kW</td></tr><tr><td>Torque S1/S6</td><td>8 Nm / 12 Nm</td></tr><tr><td>Speed</td><td>30000 min-1 (42000 min-1)</td></tr><tr><td colspan="2">B pivoting axis </td></tr><tr><td>Angular move </td><td>-15� � +100�</td></tr><tr><td>Resolution</td><td>0,0001�</td></tr><tr><td>Max torque </td><td>180 Nm</td></tr><tr><td>Hydraulic maintain brake</td><td>500 Nm</td></tr><tr><td colspan="2">A horizontal axis milling mode </td></tr><tr><td>Angular move </td><td>360�</td></tr><tr><td>Resolution</td><td>0,001�</td></tr><tr><td>Torque S1/S6</td><td>9 Nm / 29 Nm</td></tr><tr><td>Hydraulic maintain brake </td><td>130 Nm</td></tr><tr><td>Max rotating speed </td><td>100 min-1</td></tr><tr><td colspan="2">A horizontal axis turning mode</td></tr><tr><td>Max speed </td><td>6000 min-1</td></tr><tr><td>Power S1/S6</td><td>1,5 kW / 3,7 kW</td></tr><tr><td>Bar capacity</td><td>� 32 mm</td></tr><tr><td colspan="2">Tools magazine � quick changer ï¿½</td></tr><tr><td>Numbre of tools</td><td>24 / 48</td></tr><tr><td>Change tools to tools</td><td>0,8 sec</td></tr><tr><td>Change chip to chip </td><td>3 sec</td></tr><tr><td>Max tool �</td><td>63 mm</td></tr><tr><td>Max tool � with free adjacent posts</td><td>63 mm</td></tr><tr><td>Max tool length </td><td>95 mm</td></tr><tr><td colspan="2">Cooling unit</td></tr><tr><td>Tank capacity </td><td>80 L</td></tr><tr><td>Pump flow rate </td><td>40L / min. ; pression 2.5 bar</td></tr><tr><td colspan="2">Hydraulic group </td></tr><tr><td>Nominal power </td><td>100 bar</td></tr><tr><td colspan="2">errors and omissions excepted-data given without obligation</td></tr></tbody></table></div> </section>.
