Home > Spares & Accessories > Machine Vices Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • LATHE SHENYANG SMTCL HTC80200
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

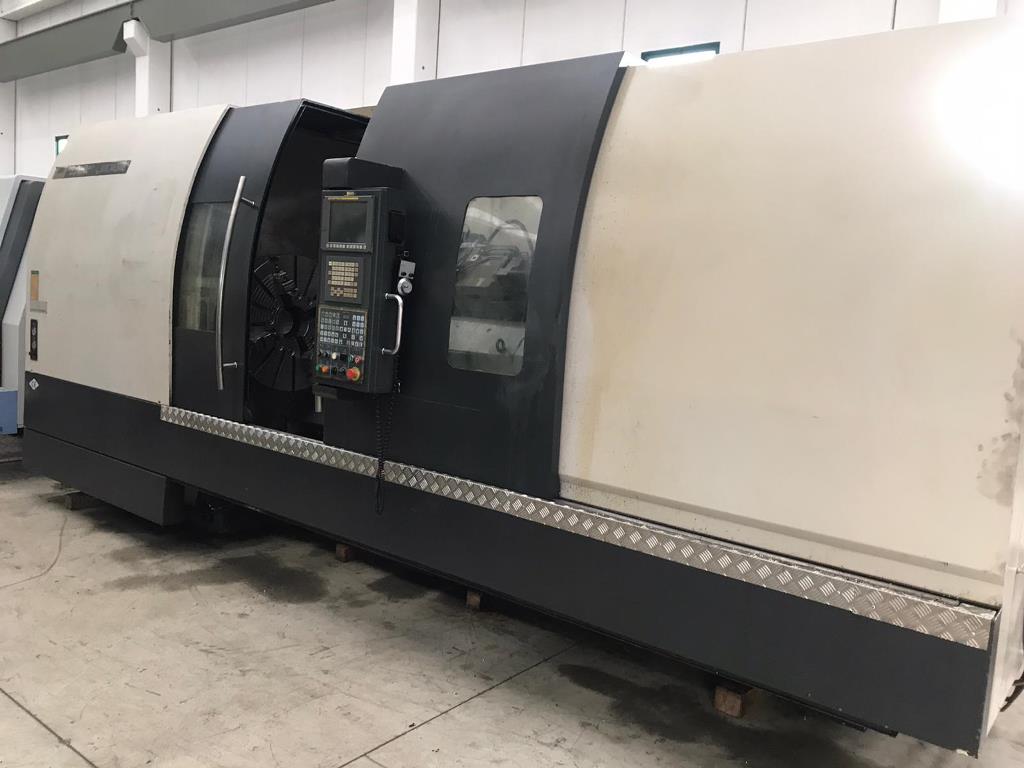

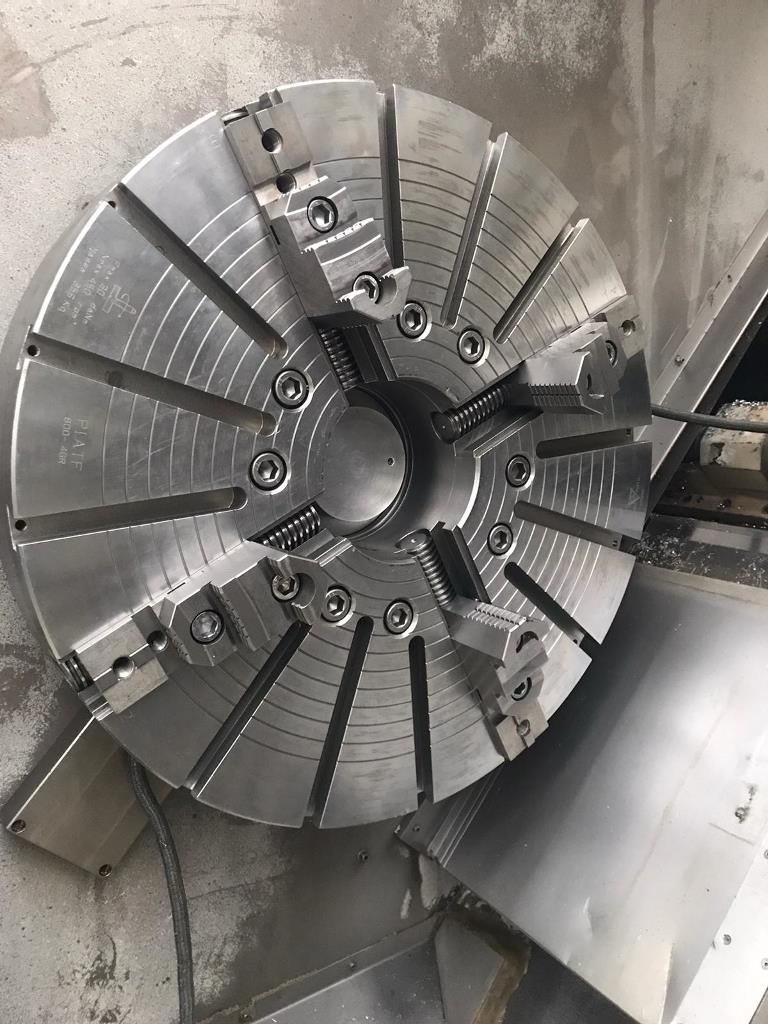

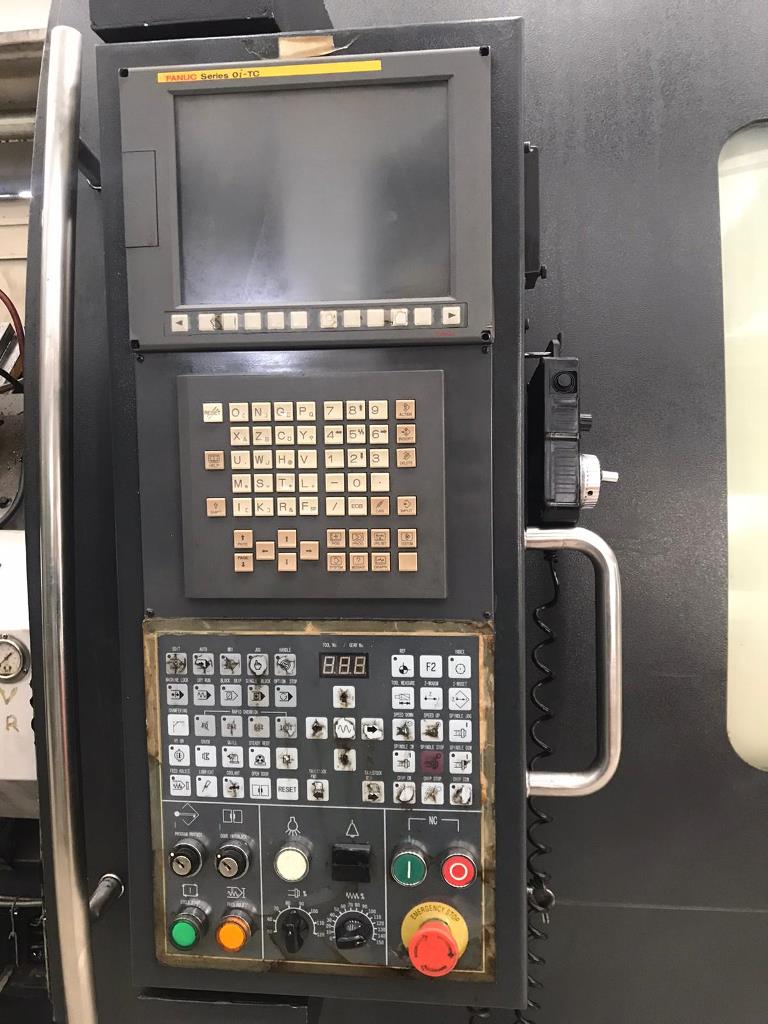

SHENYANG 08840 CNC FANUC Oi-TC + remote handwheel Max swing diameter over bed mm 1000 Max turning length 2000 mm Max turning diameter 800 mm Max swing diameter over saddle mm 800 Spindle nose A2-11 Spindle bore 130 mm Spindle speed n.2 - 10-1200 rpm Spindle motor power kW 37 Z axis travel 2100 mm Tailstock quill diameter mm 180 Tailstock quill stroke 150 mm Tailstock sleeve attachment Morse 6# Tailstock body travel mm 1700 8-station horizontal turret Tool size 32x32x170 mm Machine gross weight Kg 17000 Overall machine dimensions (LxWxH) mm 5800x2660x2532 COMPLETE WITH: -SAUTER turret 05.680.132 -Hydraulic self-centering chuck SMW 3 jaws diam. 400 mm -Faceplate independent 4 jaws MARIO PINTO diam. 800 mm -Chain type chip conveyor USED MACHINE YEAR 2008
