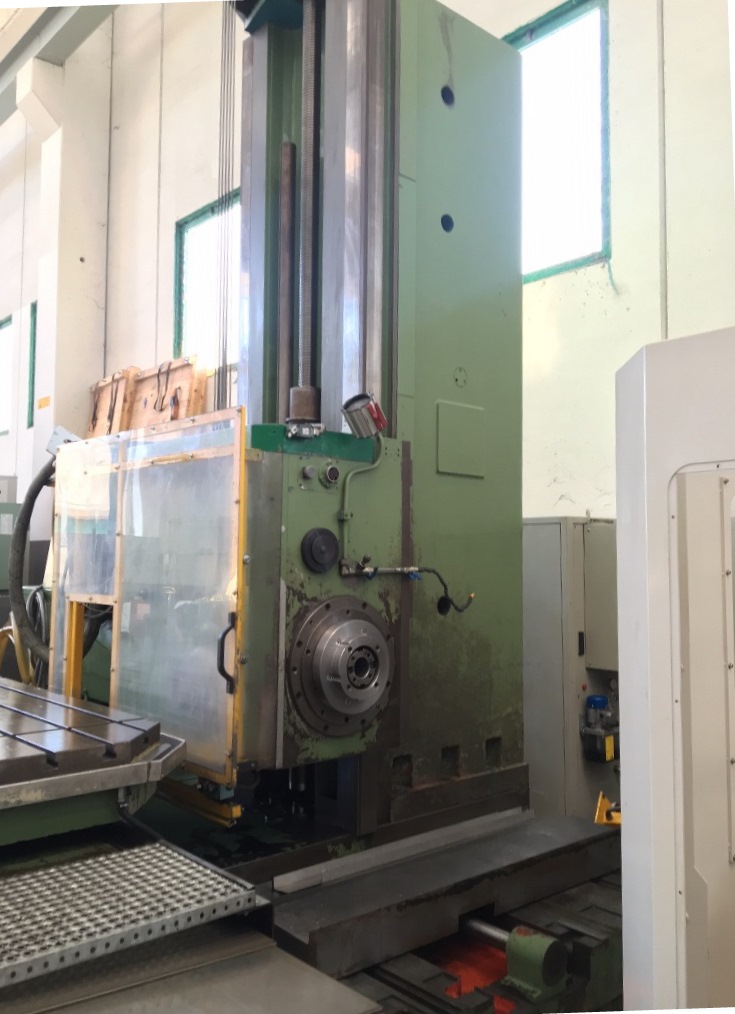

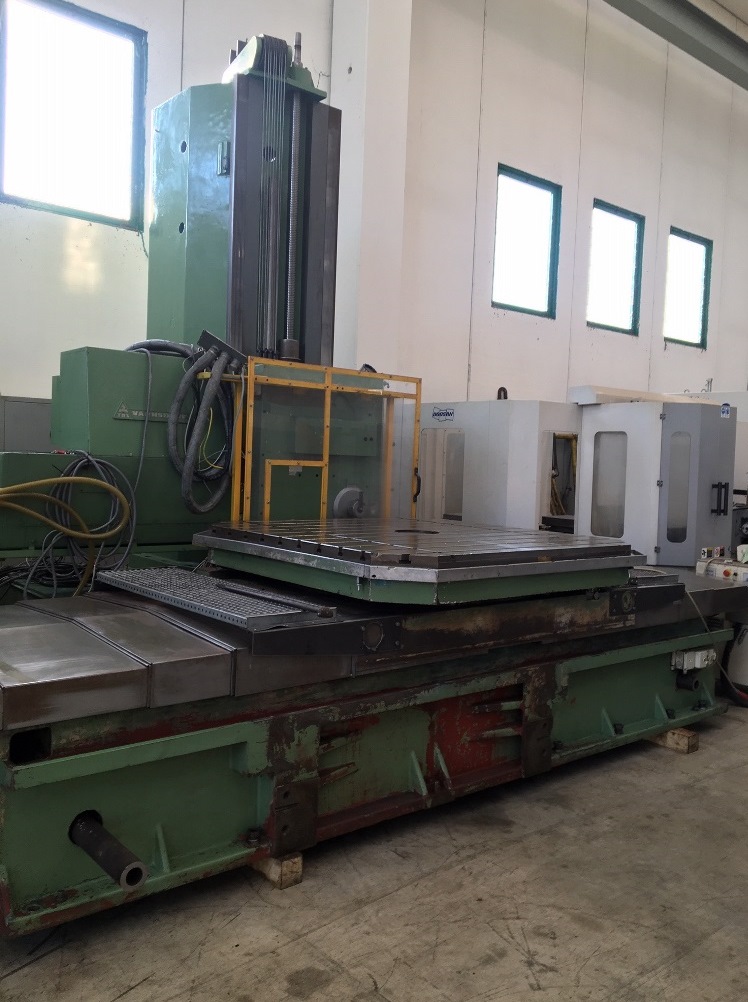

TOS VARNSDORF
07541

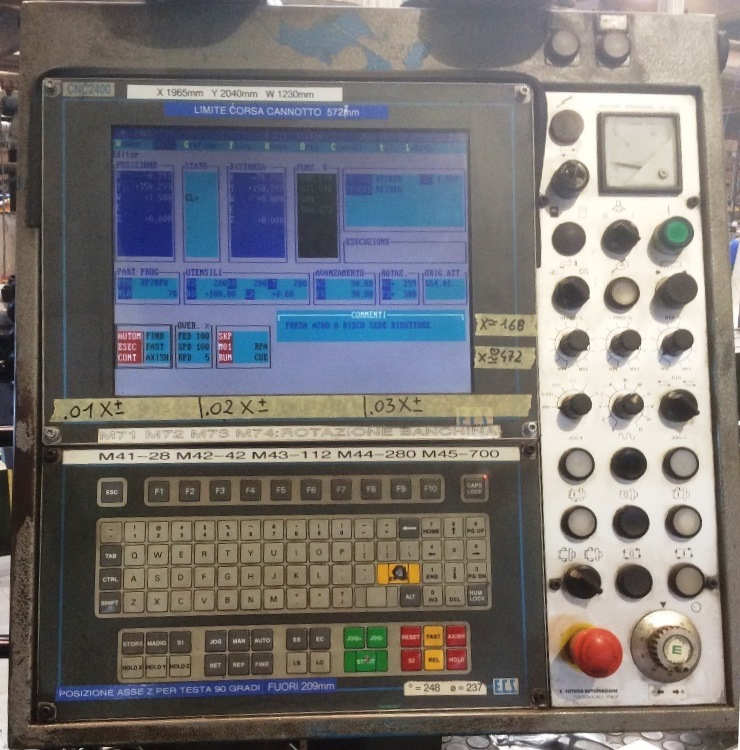

CNC ECS 2400
Axis X mm 1965
Axis Y mm 2040
Axis Z mm 1230
Axis W mm 572
Spindle diameter mm 130

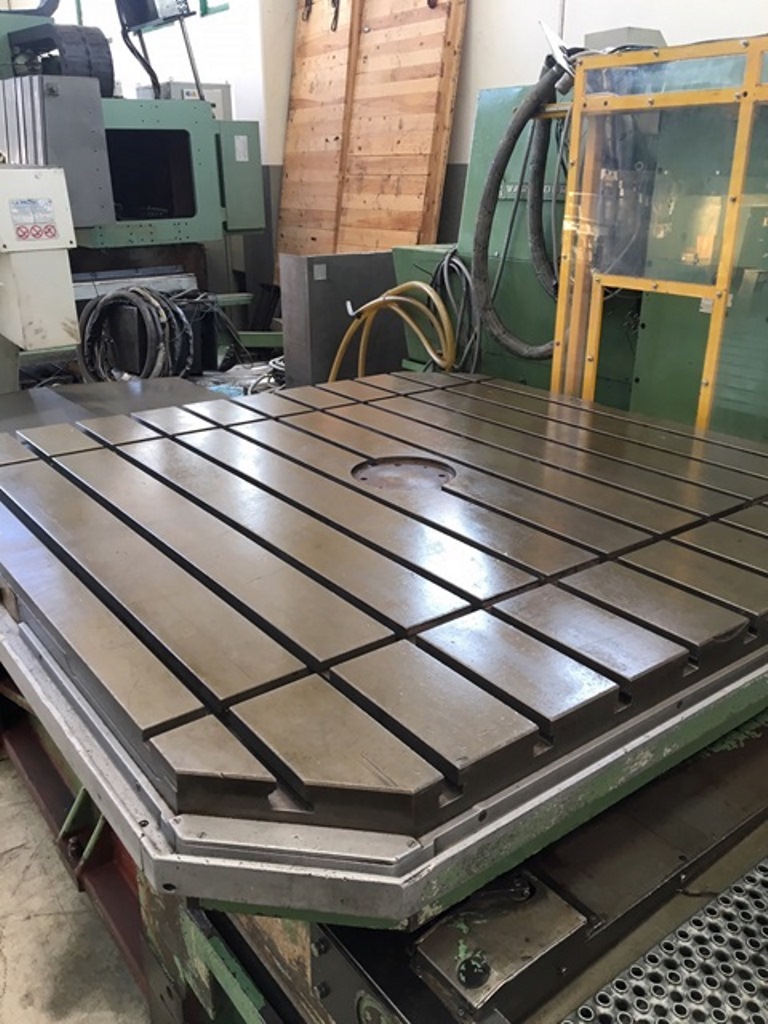

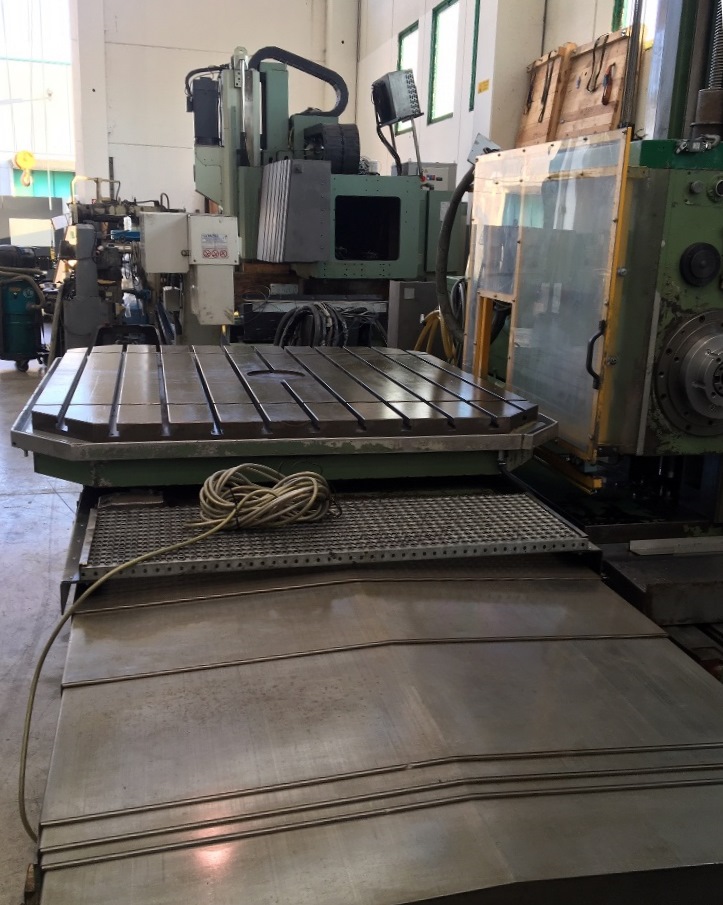

Table mm 1800 x 1800
Equipped with:

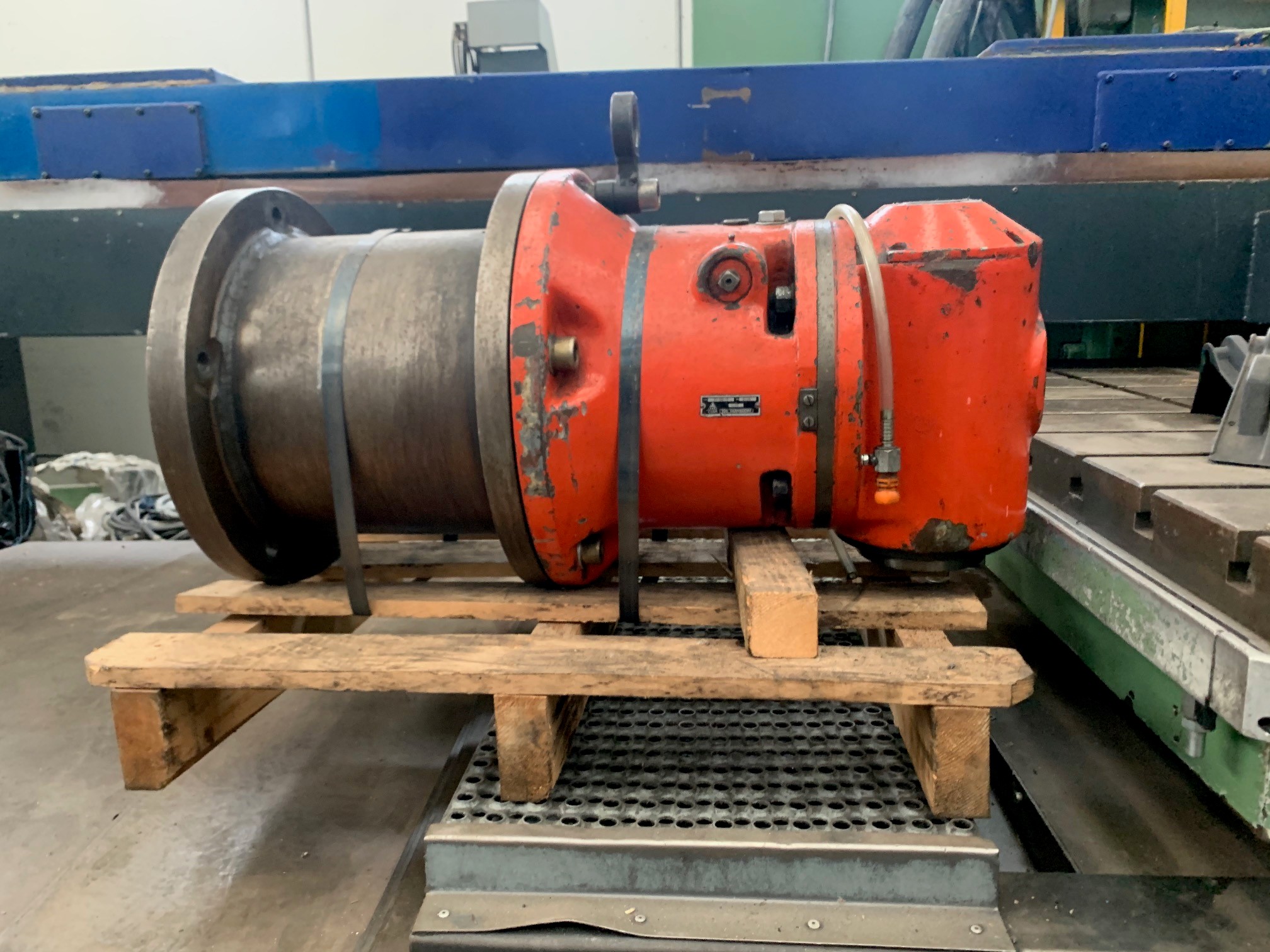

- Manual Head
- Direct measuring system with linear scales
USED MACHINE
WARCOM
07637
HYDRAULIC
Cutting lenght 2500 mm
Gap depth mm 500
Thickness max 3 mm
Cutting speed mm/sec. 65
Motor power CV 10
Approx. weight Kg 3700
Equipped with:
Positioner Esa tria 220
Motorized back gauge mm 750
Protections
USED MACHINE
BIGLIA
08439
CNC FANUC 31i-A5
WORKING AREA:
Max swing diameter mm 750
Max turning dimaeter mm 500
Max turning lenght mm 1280
LINESR AXIS:
X-Axis travel mm 515
Z-Axis travel mm 1280
Y-Axis travel mm 210 (+120/-90)
SPINDLE:
Max speed rotation rpm 3000
...
OTI
07771
Nominal power 300 T
Working table size mm 1300x800
Size of slide mm 1000x800
Distance between crank axis mm 650
Distance between columns mm 800
Slide adjustment mm 150
Adjustable slide stroke mm 20-200
Strokes per minute variable n. 30-60
M...
