MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • USED INDUSTRIAL OVEN
  • Condition:
  • 0
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

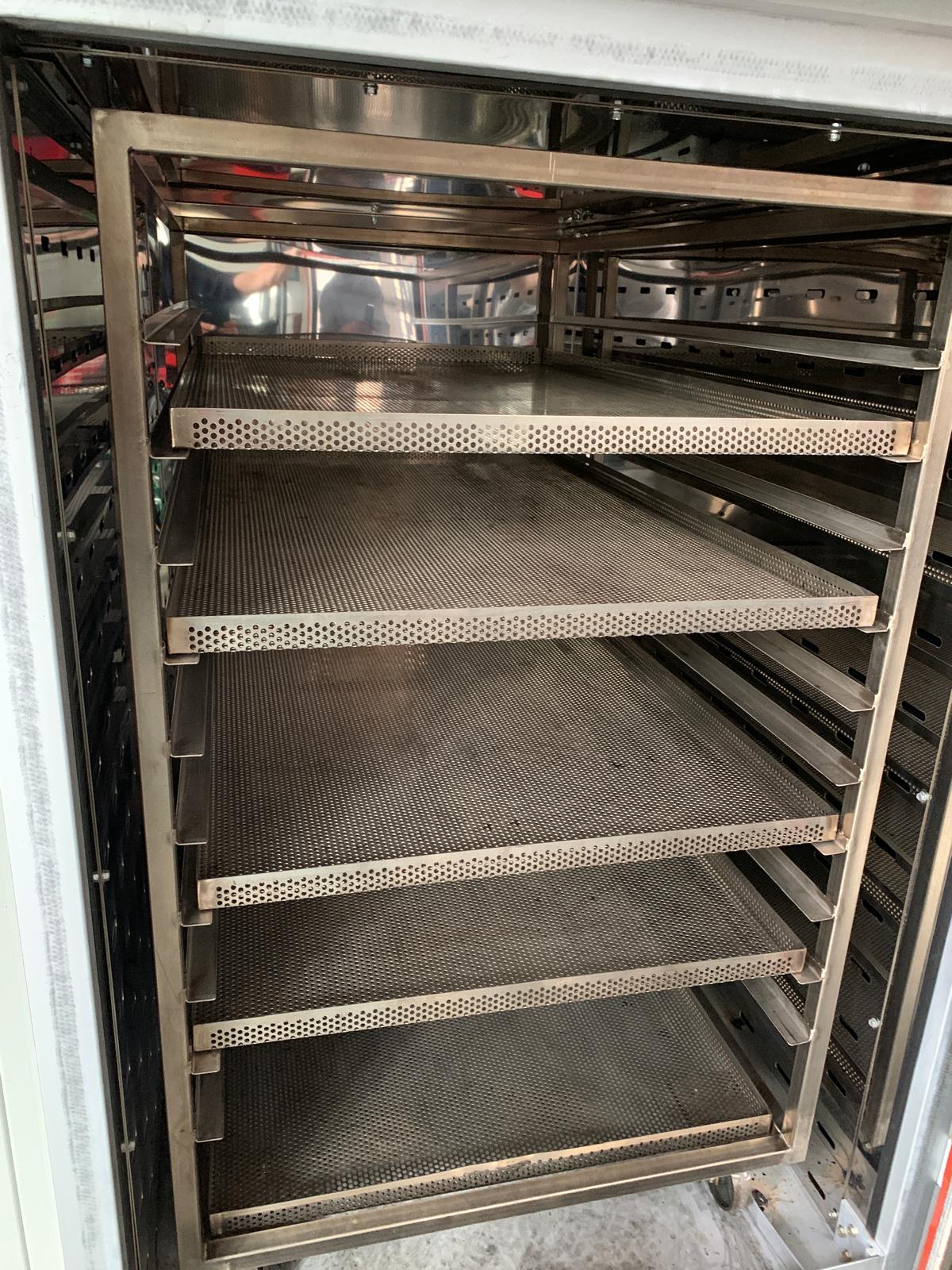

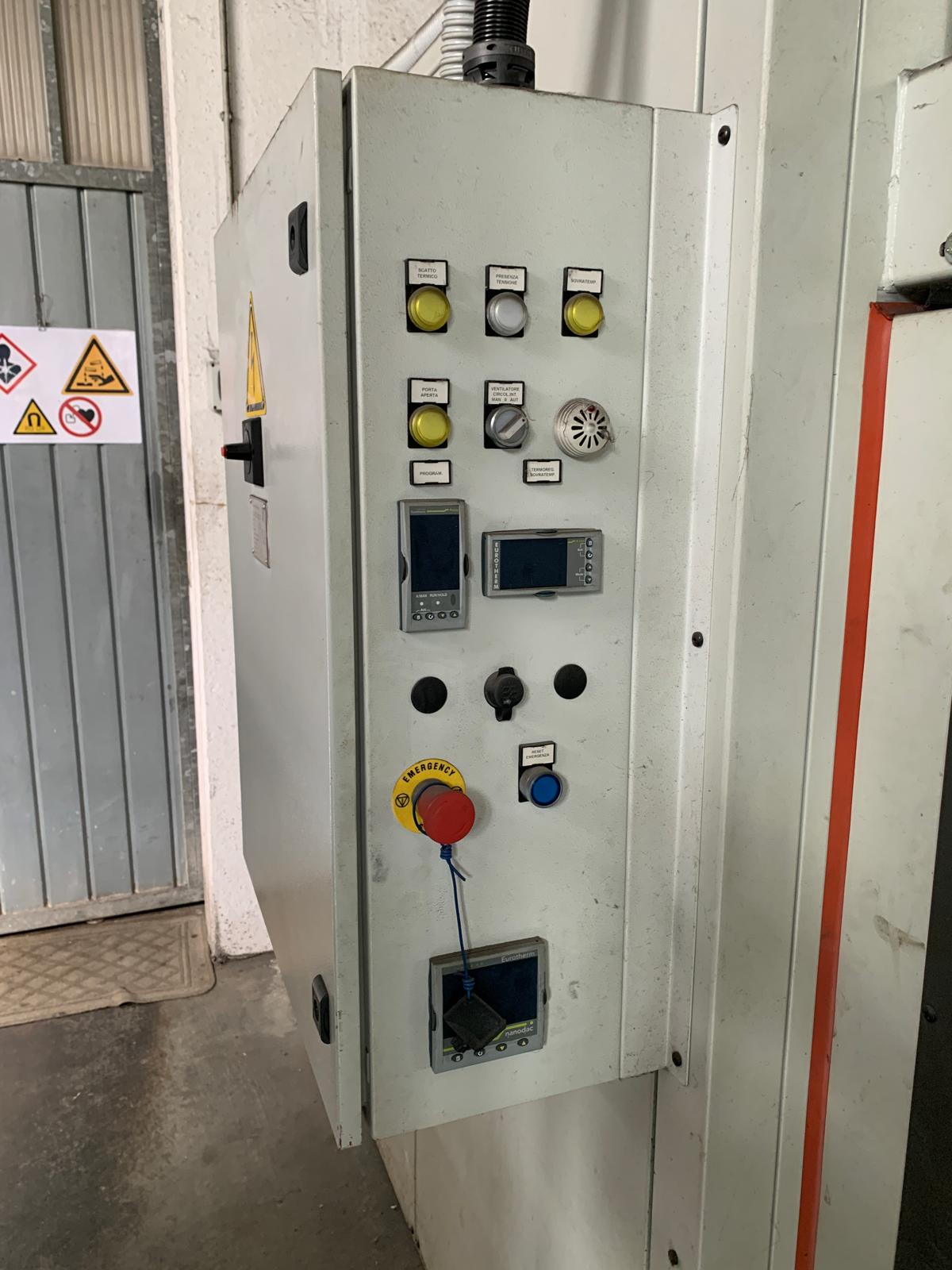

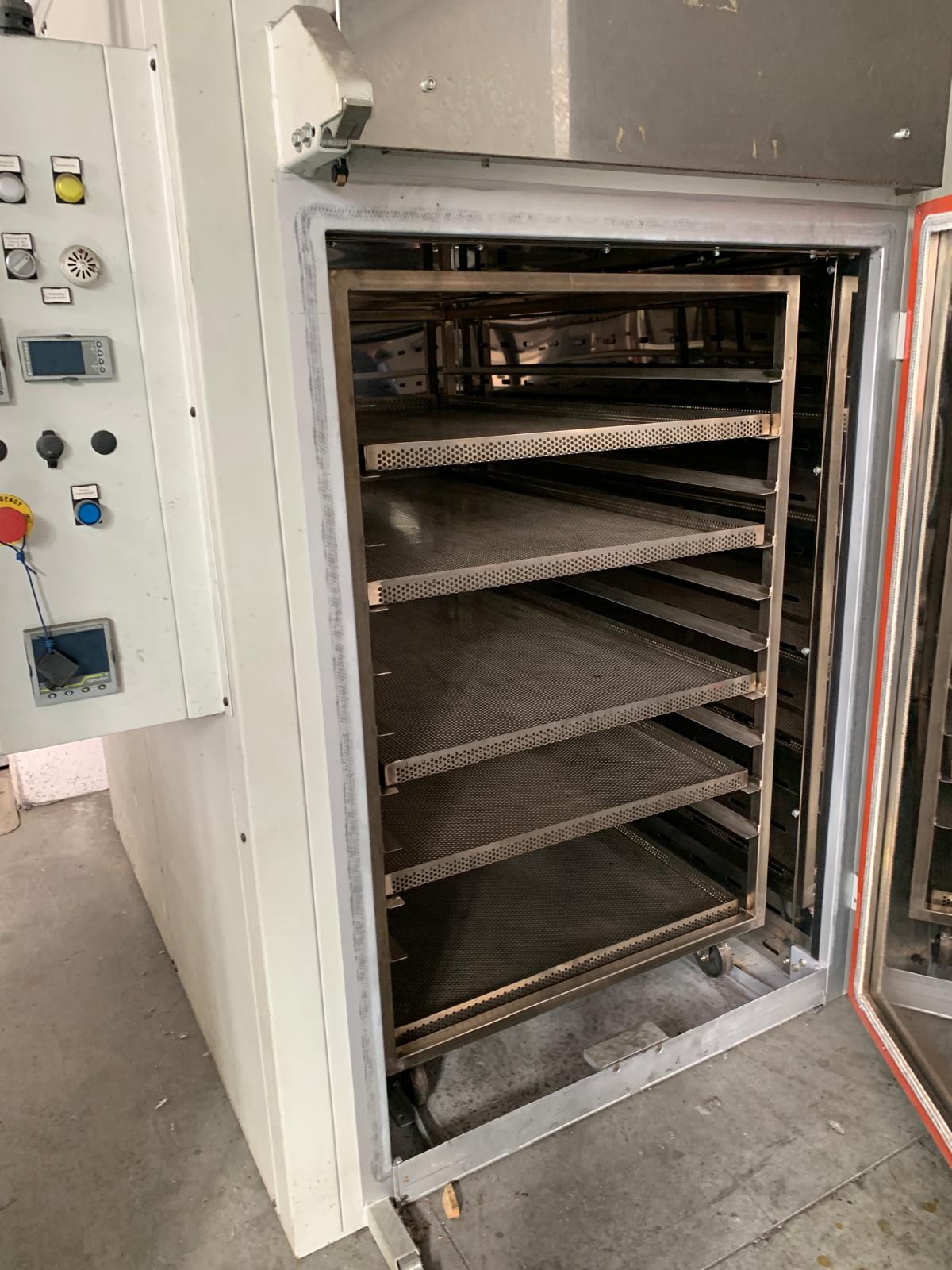

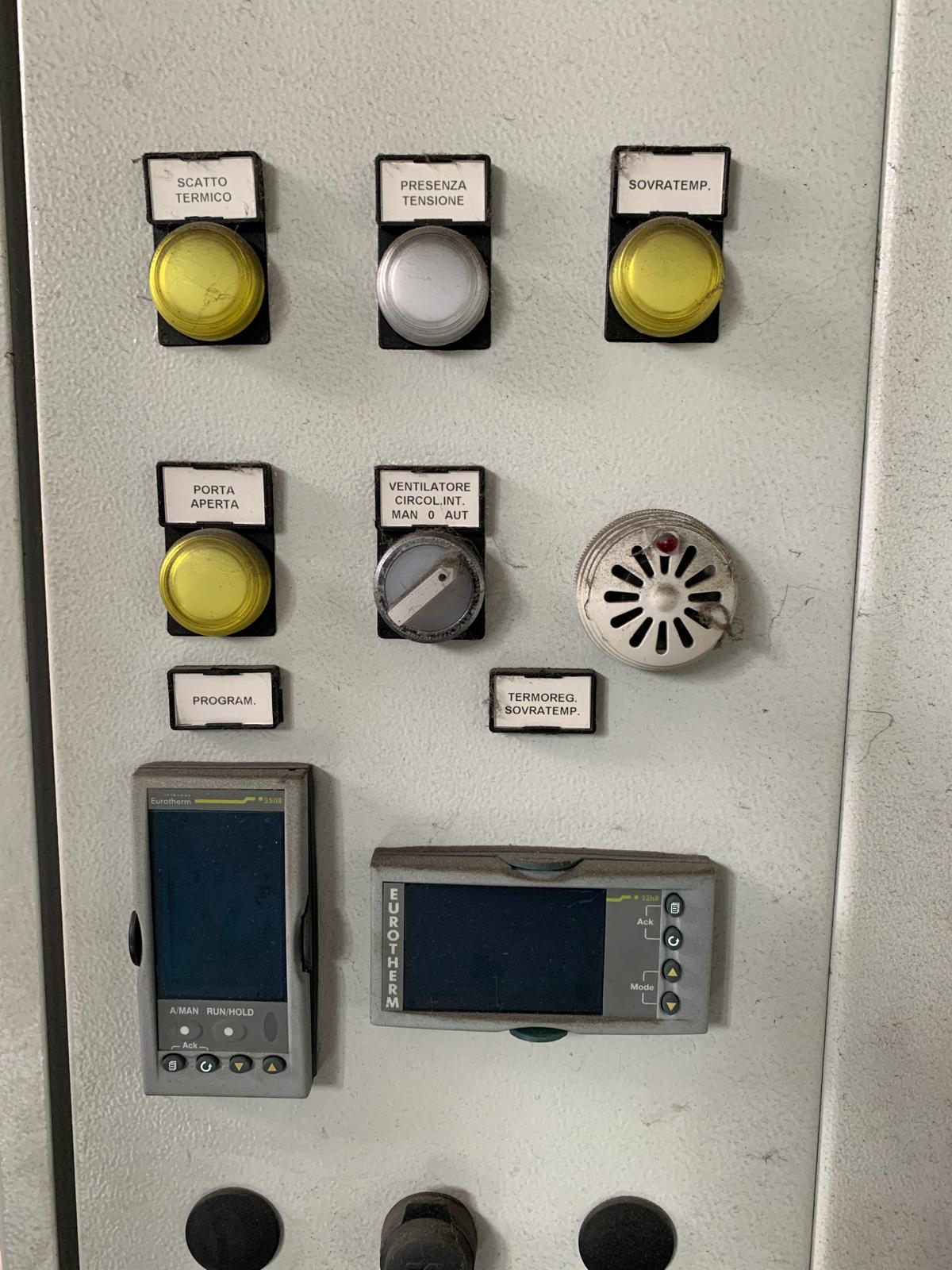

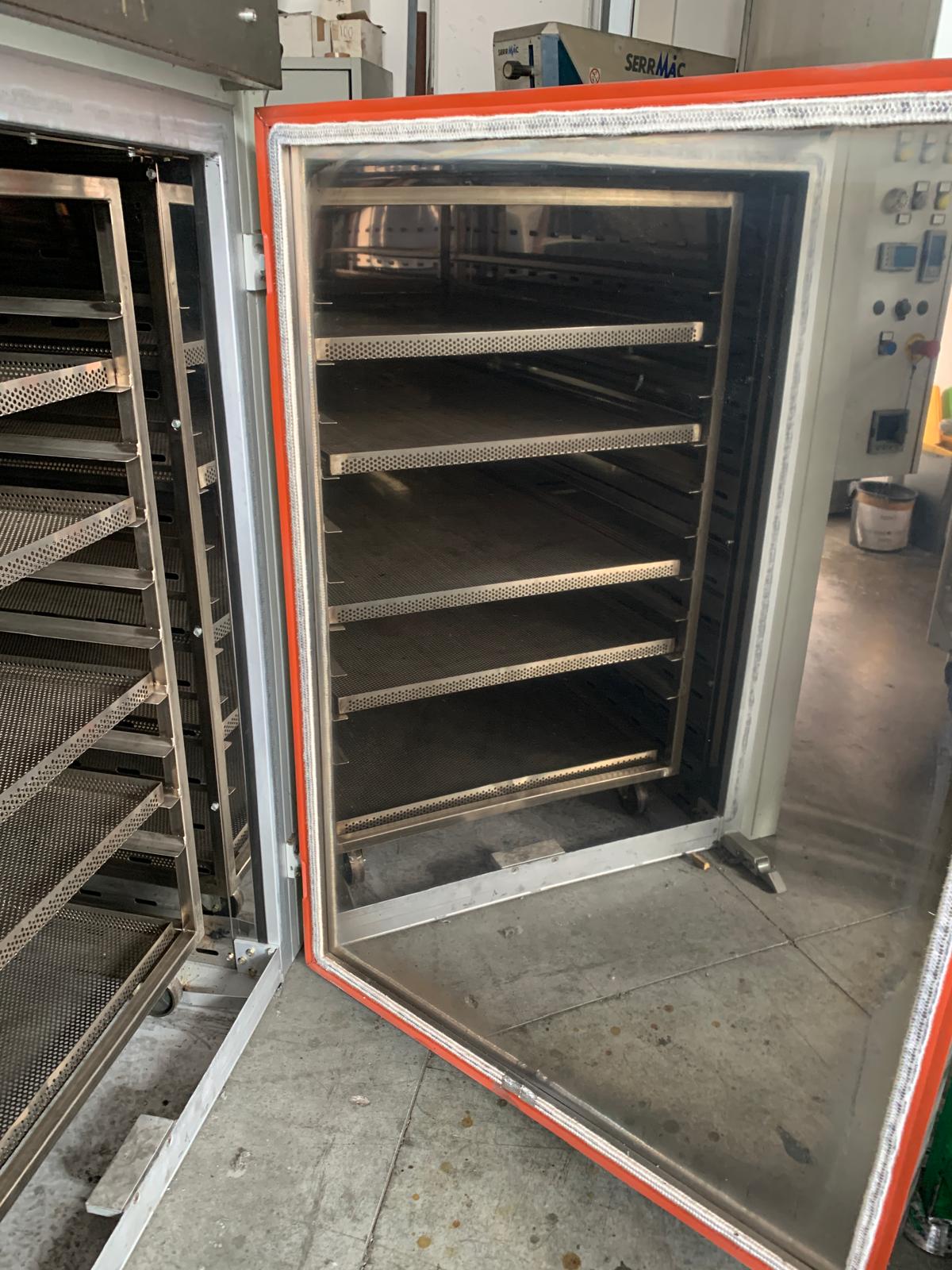

SERMAC 09981 Electric Fan Oven mod. CDTM 2000 - AMS 2750 E Max temperature 300°C Working temperatures From 60°C up to 240°C Max temperature deviation in the various zones of the chamber +/- 6°C from the set temperature Temperature controller - electronic digital programmer for oven control and management Conforms to AMS 2750 E Videographic temperature recorder Conforms to AMS 2750 E Digital safety thermostat Conforms to AMS 2750 E Chamber volume 2200 liters No. 1 stainless steel air circulation impeller Electric power air circulation impeller KW. 1,1 Total heating power KW. 16.5 approx. Type of heating elements Finned - armored with external electrical contacts Service thermocouple type J No. 1, Compliant with AMS 2750 E Safety thermocouple type J No. 1, Compliant with AMS 2750 E Additional display thermocouple No. 1, Compliant with AMS 2750 E Air exchange device With adjustable valve Smoke emission chimney With adjustable valve Supply voltage 400 V; 50 Hz Total installed electrical power KW.18.0 approx. AMS Classification of Oven Class 2 AMS classification of use Class 2 AMS classification of instruments Class 1 Overall dimensions (Width x Depth x Height) mm. 1,650 x 2,000 x H 2,350 Chamber dimensions (Width x Depth x Height) mm. 1,000 x 1,460 x H 1,500 Approximate weight Kg. 1250 EQUIPMENT USED Translated with DeepL.com (free version)
+ request more information
