MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • CENTER TOPPER MOD. TMV-760 APC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

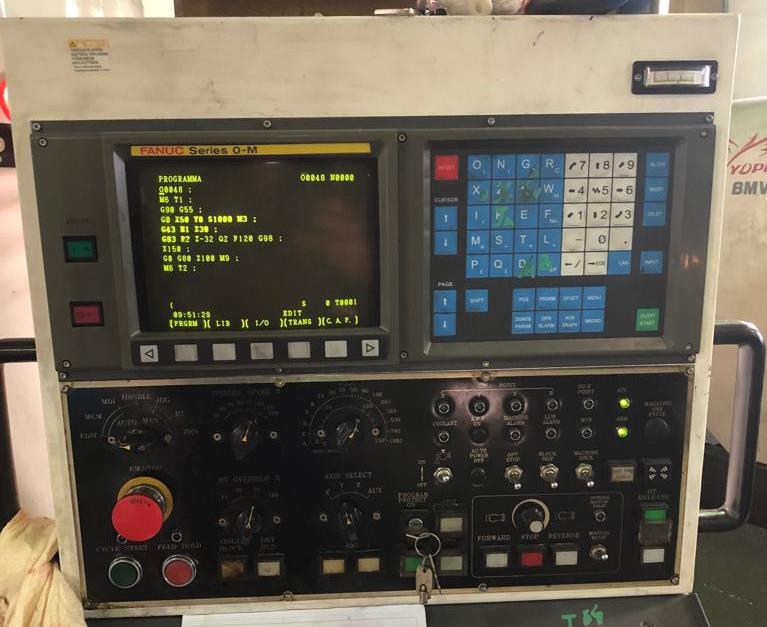

TOPPER 08196 CAMBIO PALLET CNC FANUC O-M Axis X longitudinal travel mm 760 Axis Y cross travel mm 530 Axis Z vertical travel mm 530 Table dimensions mm 700x500 Spindle taper NT NO. 40 Spindle speed rpm 50-5000 Spindle motor power kW 15 (50% ED) Tool changhe 24 positions Max tool diameter mm 100 Max tool lenght mm 250 Max tool weight Kg 10 Tool holder BT 40 Approx. machine net weight Kg 7000 Approx. overall dimensions mm 2932x3035x2850H USED MACHINE Tool change 24 postions Motor power kW 35 USED MACHINE
+ request more information
