MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIGMA
  • Model:

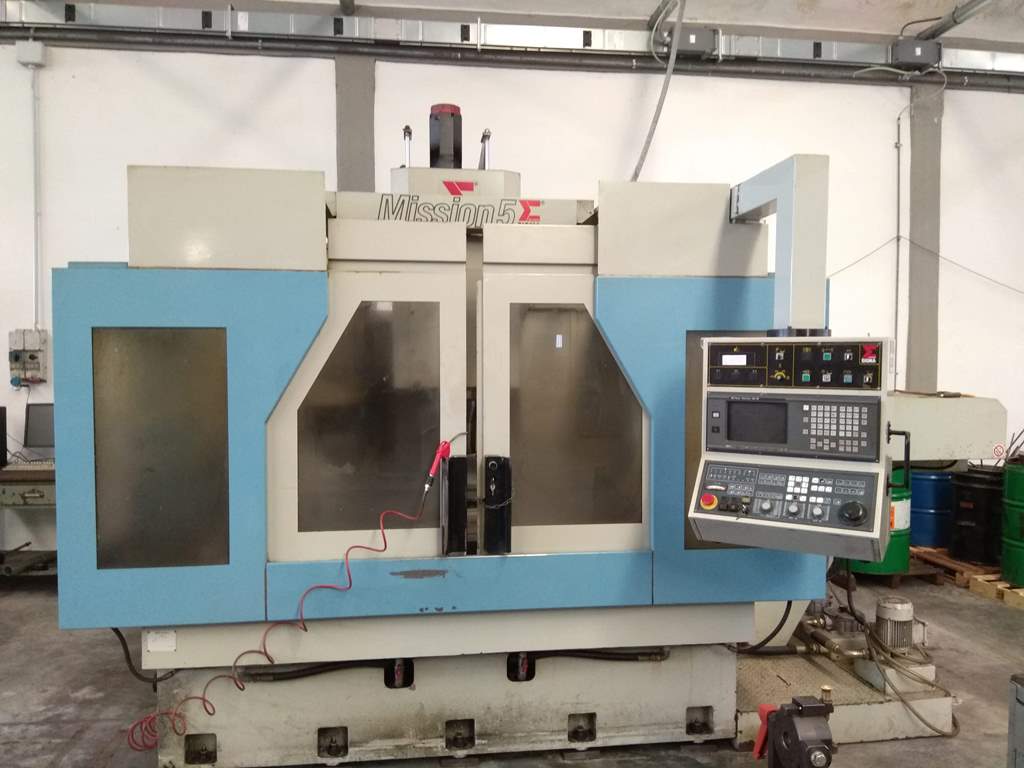

  • CENTER SIGMA MOD. MISSION 5
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

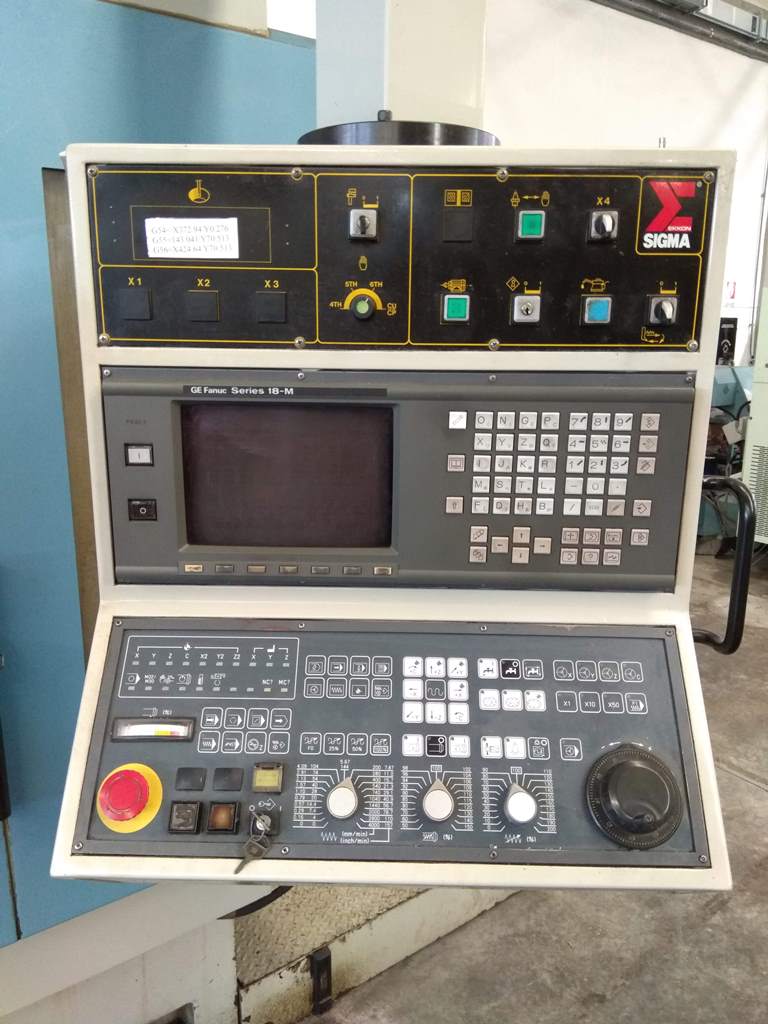

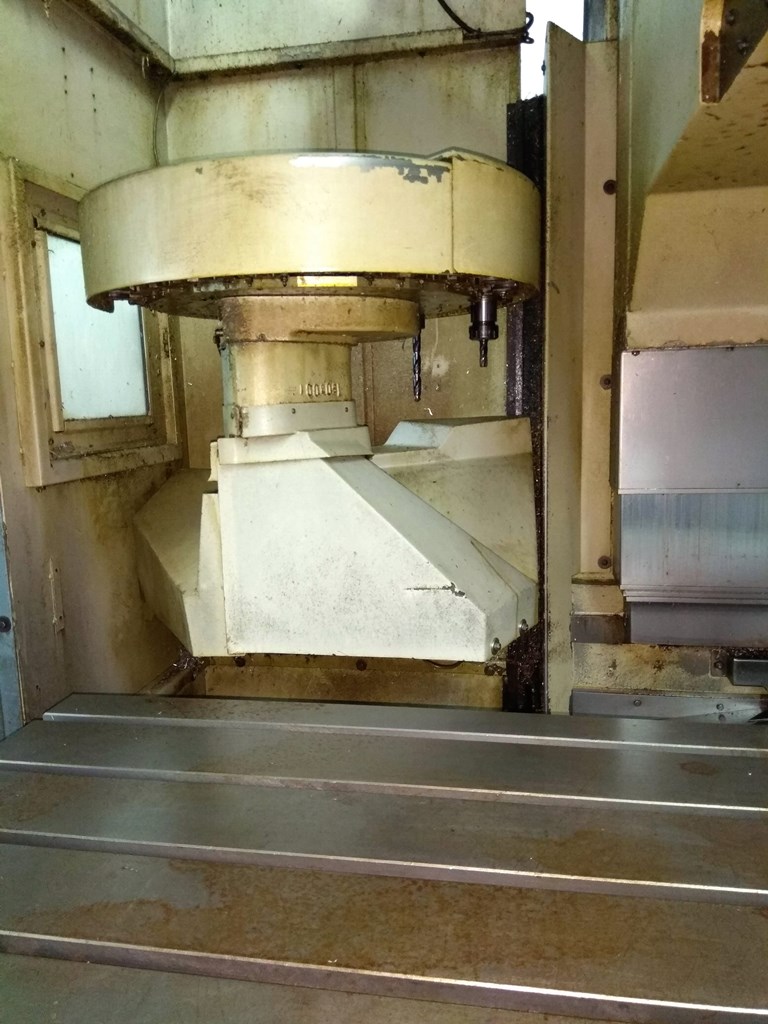

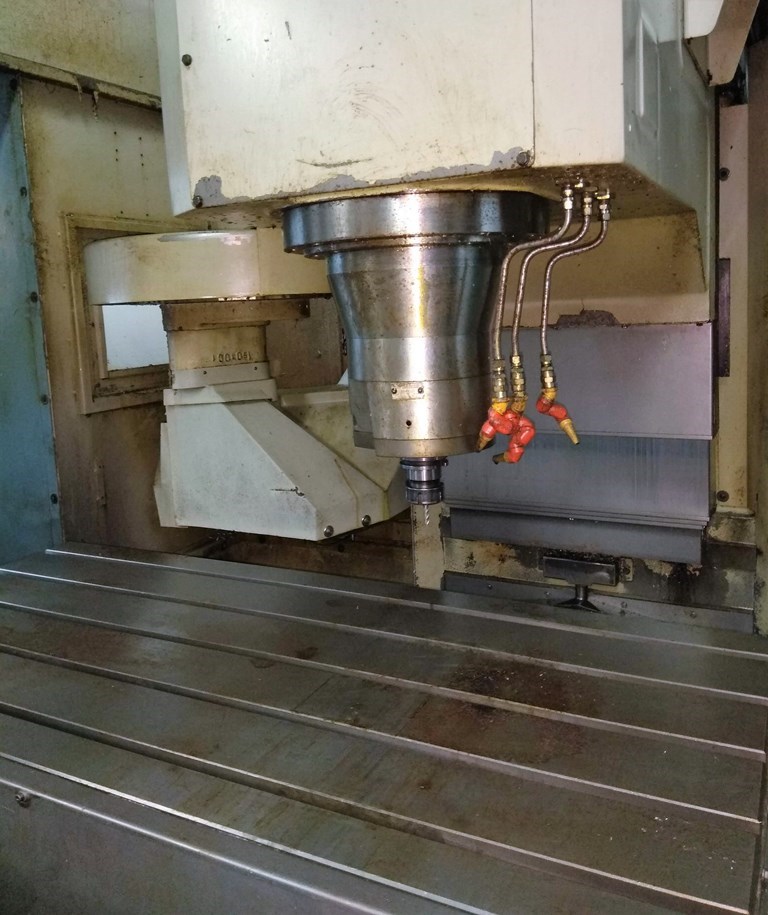

SIGMA 08342 CNC FANUC 18M TABLE: TABLE DIMENSIONS 650x1400 mm MAX TABLE LOAD 1400 kg TRAVELS: X-AXIS TRAVEL 1250 mm Y-AXIS TRAVEL 600 mm Z-AXIS TRAVEL 685 mm DISTANCE SPINDLE NOSE-TABLE 150 - 835 mm DISTANCE COLUMN-SPINDLE AXIS 650 mm SPINDLE: SPEED 40-12000 rpm; POWER 18,5-25 kW; TAPER ISO 40 - DIN 69871 TOOL MAGAZINE: TOOL MAGAZINE CHAIN-TYPE ; 21 POSITIONS MAX TOOL LENGHT 250 mm MAX TOOL DIAMETER 75 (100) mm MAX TOOL WEIGHT 6 Kg OVERALL DIMENSIONS AND WEIGHT: WEIGHT 8000 Kg OVERALL DIMENSIONS 2860x3580x3045 mm ACCESSORIES: -CHIP CONVEYOR USED MACHINE
