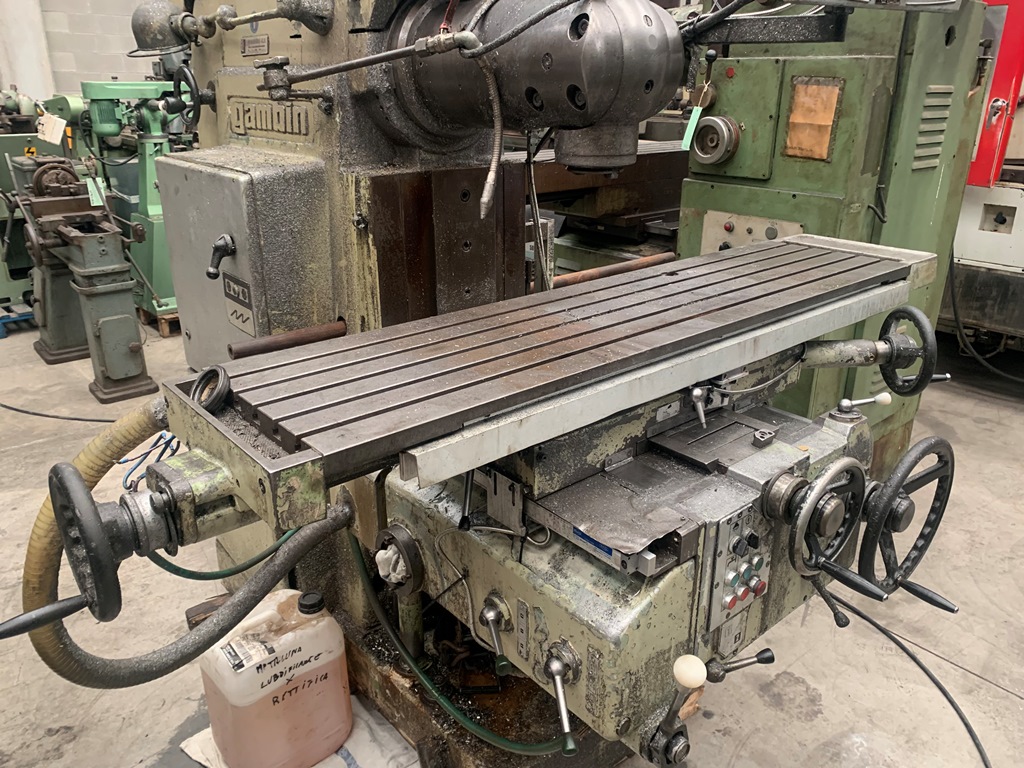

GAMBIN
09390
Table size mm 1520x385
Longitudinal stroke axis X mm 1000
Cross stroke axis Y mm 420
Vertical stroke axis Z mm 710
Max height workpiece mm 513
Spindle speed n.20 / rpm 25:2000
Overall dimensions mm 3010x2210x1900
Weight Kg 3800
EQUIPPED WITH:

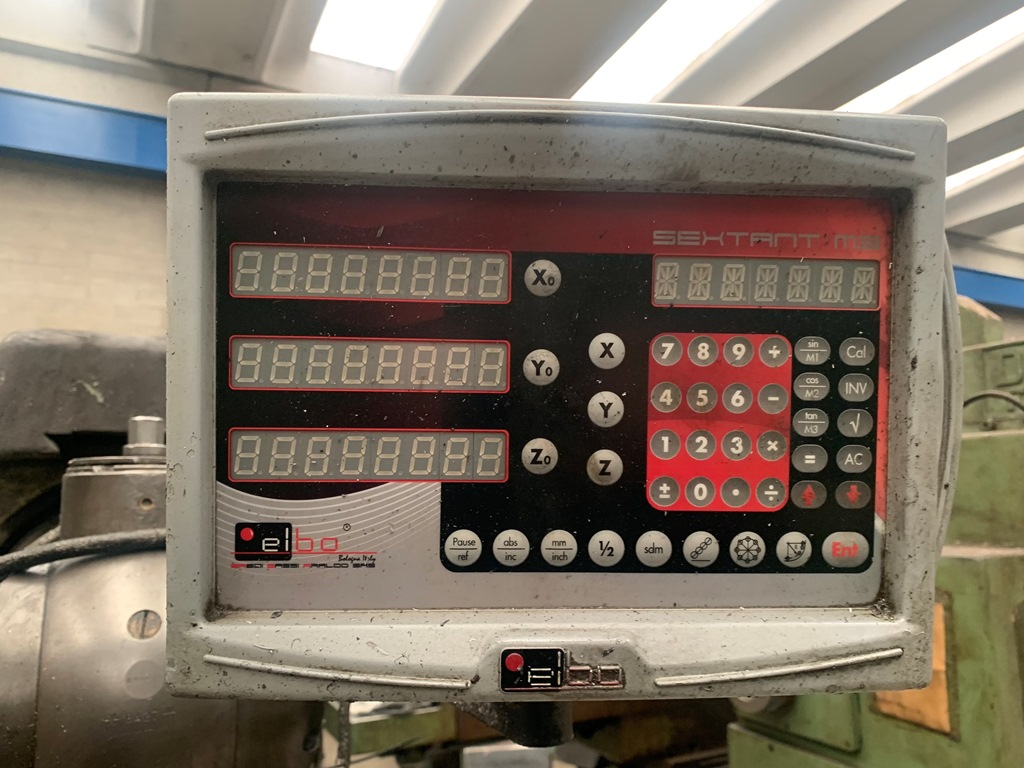

-DRO 3 axis
USED MACHINE
TOS
07344
Table surface mm 290x1250
T-slots a T n.3 / mm 14x80
Longitudinal table stroke mm 800
Cross table stroke mm 360
Vertical table stroke mm 460
Distance between spindle to table surface mm 10-460
Distance between spindle to column mm 200-750
S...
FICEP
10033
NOMINAL FORCE kN 10.000
Force kN 20.000
Screw diameter mm 315
Max usable energy Kgm 12.000
Slide stroke mm 500
Theoretical strokes per minute N° 26
Vertical clearance height mm 800
Horizontal clearance height mm 750
Table dimensions leng...
KENT
09788
WORKING AREA:
Workin plane 800x400 mm
Longitudinal stroke 920 mm
Crossl stroke 450 mm
Distance spindle center-table 600 mm
Max load capacity on the table (including magnetic chuck) 700 kg
Longitudinal table speed m/min 1-28
Min. cross feed...
