MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • LATHE KIA MOD KT15
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

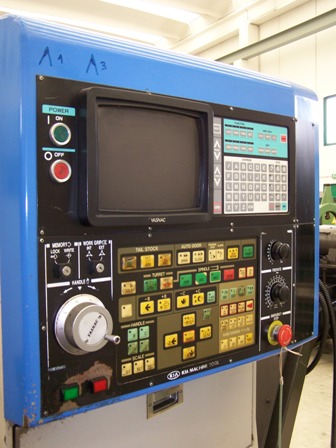

KIA New03409 CNC yasnac -max turn mm.450 -standard turning diam mm.165 -turning lenght mm.360 -bar passage mm.38 -x axis mm.160 -z axis mm.380 -spindle turns 50-5000 min-1 -spindle head A2-5 -spindle hole mm.45 -diameter spindle bearing mm.80 -Turrett 12 positions -Rapid X 25m/min -Rapid Z 30m/min -tailstock MT4 -tailstock stroke mm.400 -spindle power 50% continuous Kw 7,5 EQUIPED WITH: -spindle Kitagawa B-200 -Nr.05 fixed tool-magazine for internal -Nr.01 presetting tools -Nr.01 tool for spindle dismantling -Nr.01 chip conveyor USED MACHINE
