MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FEELER
  • Model:
  • CENTER FEELER FV1000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

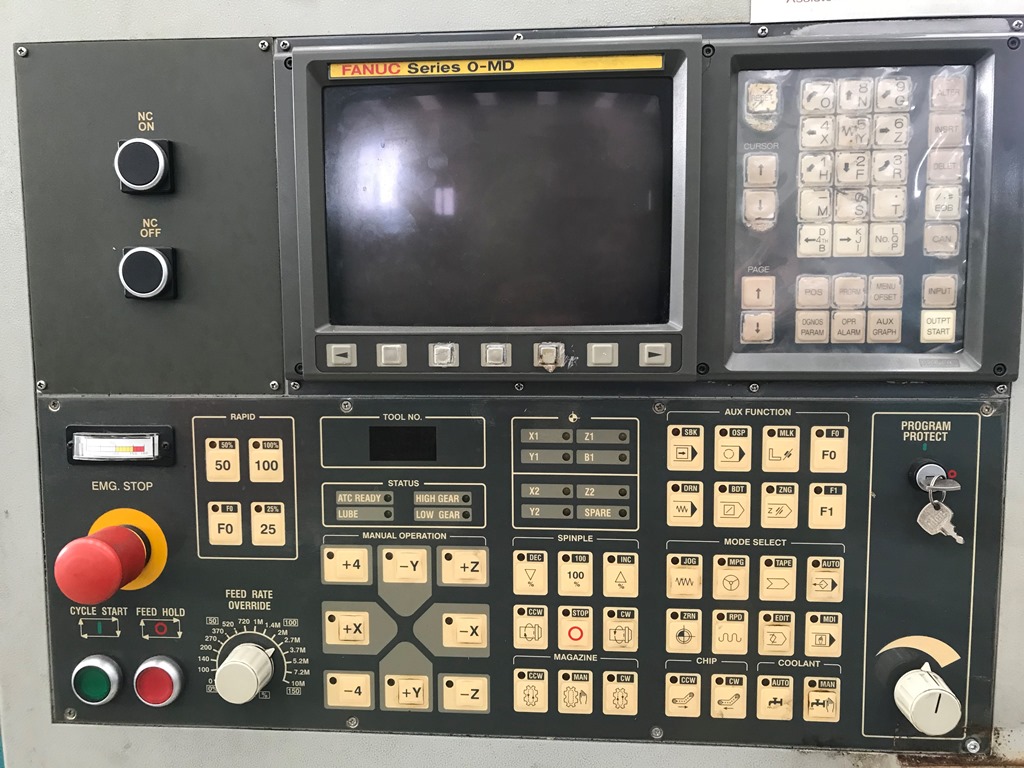

FEELER 08607 CNC FANUC OM-D TRAVELS: Axis X mm 1000 Axis Y mm 450 Axis Z mm 505 TABLE: Table dimensions mm 475x1100 Load max Kg 500 SPINDLE: Spindle speed rpm 50-6000 Spindle taper ISO 40 Spindle bore mm 70 Motor power kW 5,5-7,5 AUTOMATIC TOOL CHANGE: Tools number 24 Max tool weight Kg 7 Max tool lenght mm 250 Max tool diameter mm 80 Max tool diameter (without adjacent tools) mm 150 OVERALL DIMENSIONS AND WEIGHT: Approx. overall dimensions 2800x2178x2735H Approx. net weight Kg 4950 USED MACHINE
