MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • PRESS SANGIACOMO T130R CE
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

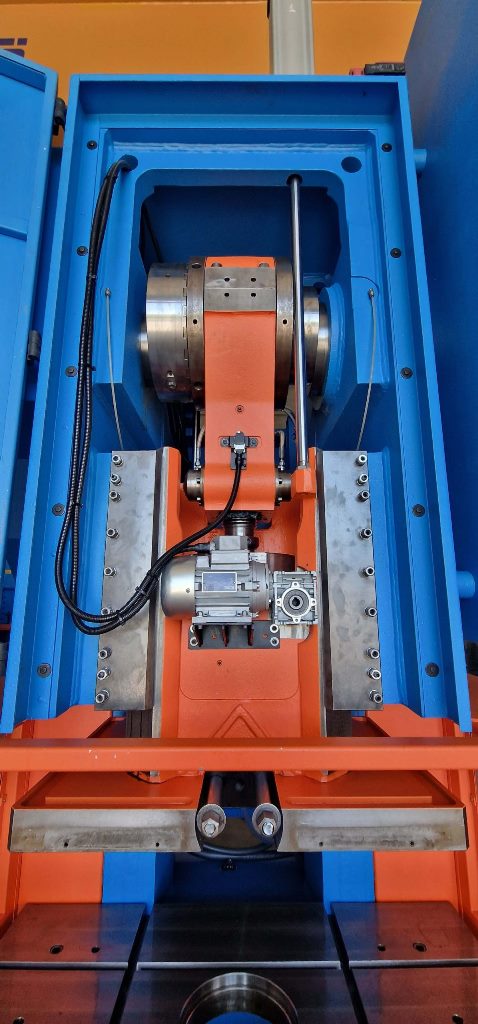

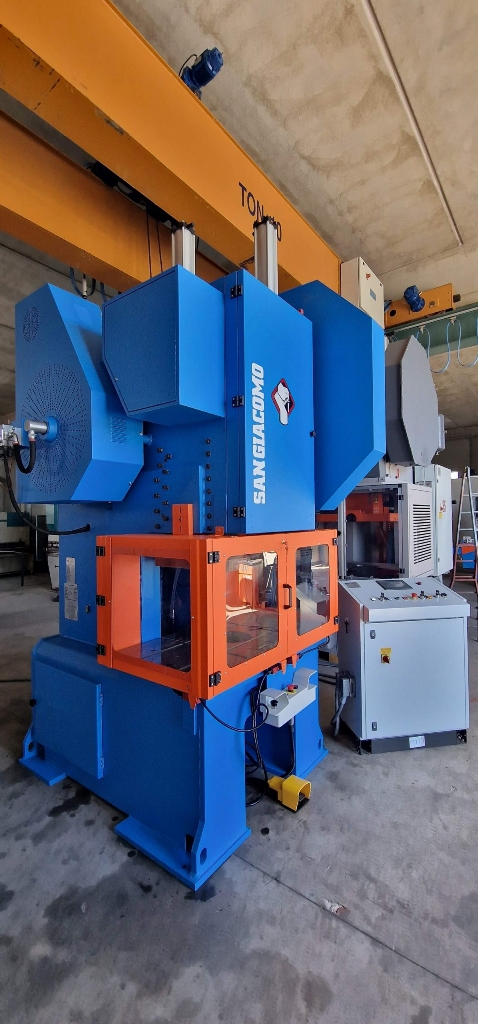

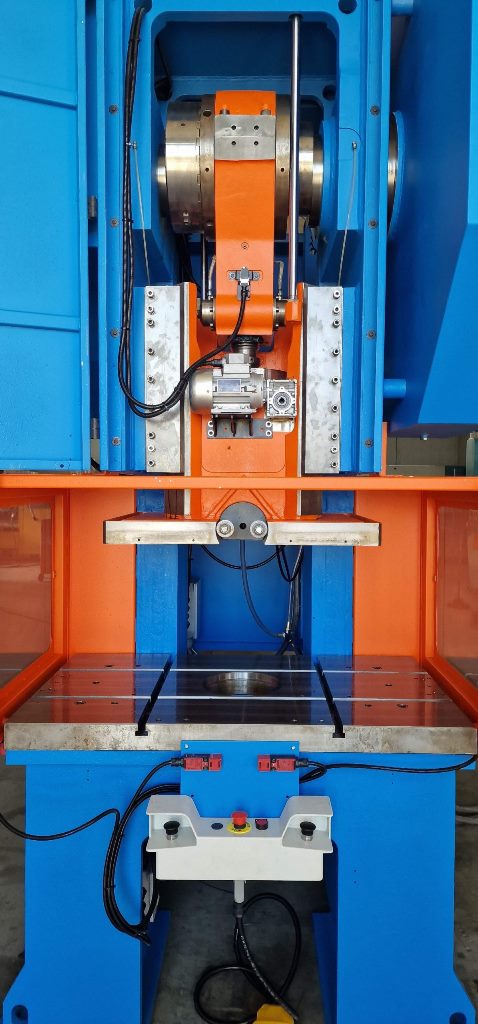

SANGIACOMO 09944 C-FRAME PRESSES Nominal force: 1300 kN Nominal stroke: mm.7.5 Adjustable stroke: mm.16 ÷ 200 Stop position: P.M.S. Sledge-hammer adjustment: 100 mm Stopping time: Ms 190 Strokes per minute: N ° 55 Maximum mold surface: mm.600xmm.1100 Max closed mold height: 452 mm Closed mold height min: 260 mm Upper mold mass: Kg. 140 Shuttlecock turns at 1st: 411 Ads max. at 1st: 28 Installed power: 9.38 KW Voltage: V400 Auxiliary voltage: V24 Working air pressure: BAR 5,5 ÷ 6 Mass: Kg. 10,000 Motorized sledge-hammer adjustment Hydraulic overload safety USED MACHINE
