MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

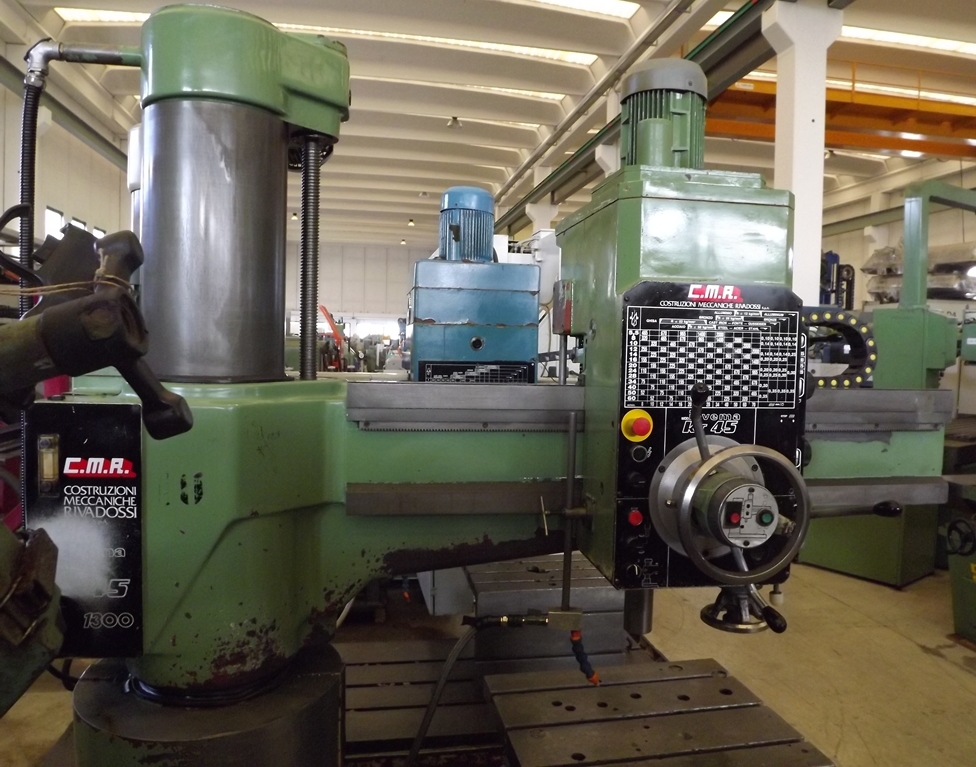

  • DRILLING CMR INVEMA KR 45-1300
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

CMR INVEMA 06827 Drilling capacity on steel mm 45 Drilling capacity on cast iron mm 55 Threading capacity on steel mm 45 threading capacity on cast iron mm 55 Quill diameter mm 92 Quill stroke mm 300 Taper CM 4 Spindle speed n.12, 36-2000 Rpm Spindle motor power CV 4 Arm lenght mm 1300 Headstock stroke mm 970 Vertical arm stroke mm 600 Max distance between spindle and base mm 1410 Min. distance between spindle and base mm 280 Column diameter mm 280 Approx machine weight Kg 2815 USED MACHINE
