MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Biglia
  • Model:
  • LATHE BIGLIA MOD. B565/M
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

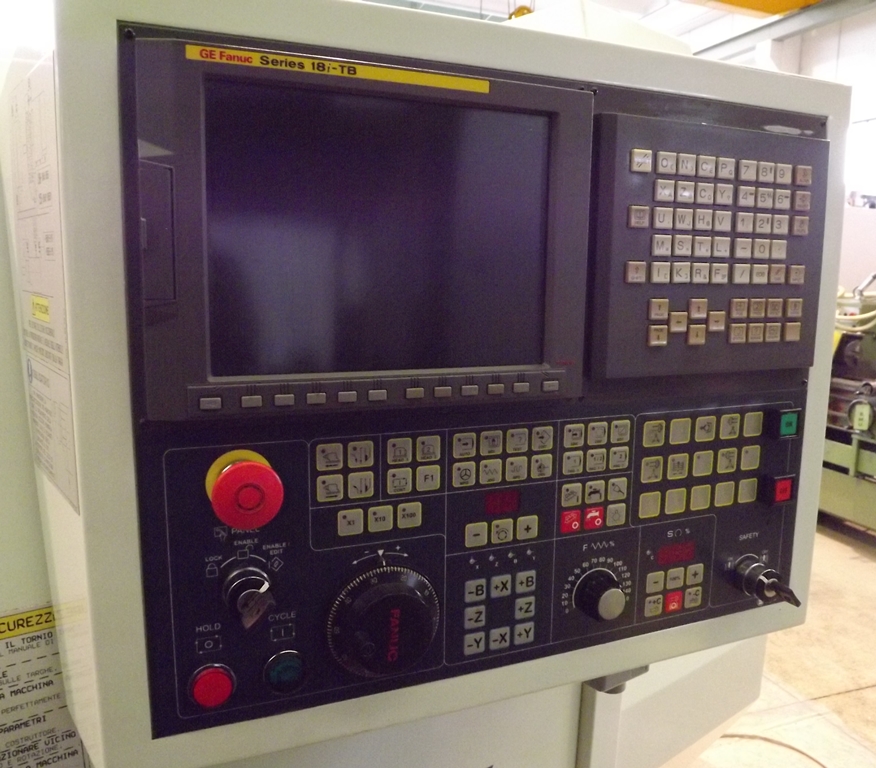

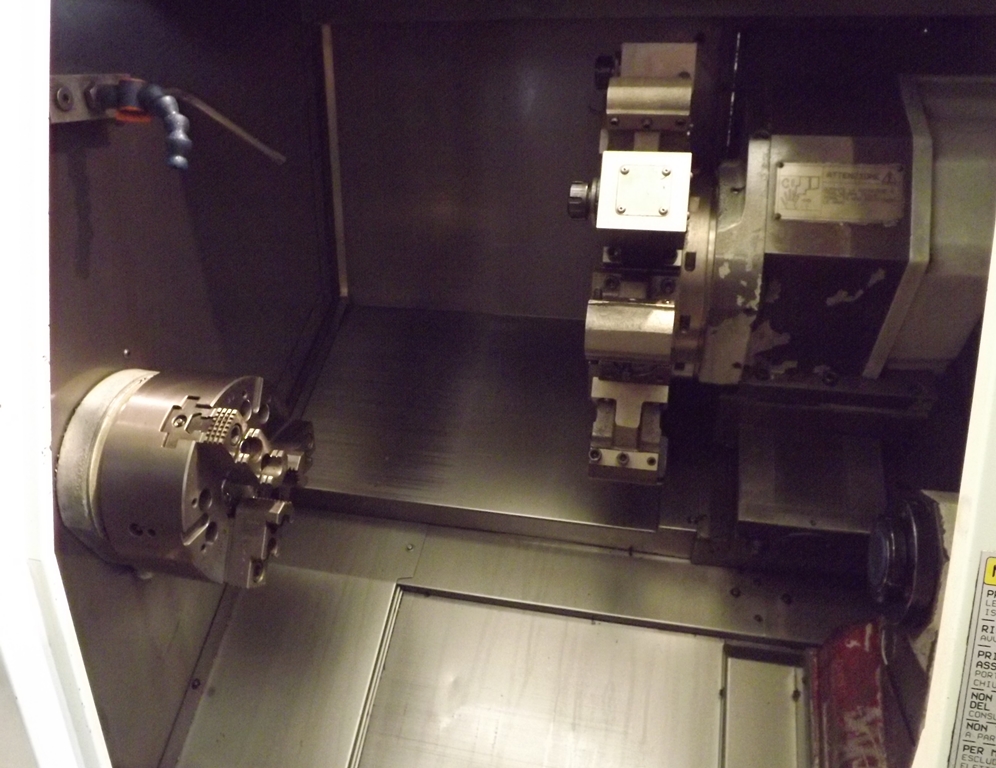

BIGLIA 07013 LIVE TOOLS AXIS C CNC FANUC 18i-TB CAPACITY: -Bar diameter mm 65 -Max turning diameter 290 -Max turning lenght mm 560 -Max swing diameter mm 580 SPINDLE: -Spindle speed rpm 40-4000 -Spindle nose ASA 6'' -Spindle bore mm 76 -Front bearing internal diameter mm 110 -Chuck diameter mm 210-250 -Motor power kW 22-26 TURRET: -Positions number 12 LIVE TOOLS: -Positions number 12 -Speed max rpm 3000 -Motor power kW 3,7 AXIS: -Axis X stroke mm 170 -Axis Z stroke mm 560 -Axis X rapid m/min 20 -Axis Z rapid m/min 24 AXIS C: -Min. valore programmabile 0,001 -Rapid speed rpm 100 TAILSTOCK: -Tailstock cone CM 5/4 -Automatic positioning axis B mm 490 -Axis B rapid m/min 15 OVERALL DIMENSIONS AND WEIGHT: -Overall dimensions with chip conveyor mm 4240x2000x1900h -Spindle center height mm 1035 -Weight with chip conveyor Kg 4600 EQUIPPED WITH: -Chip conveyor -N.01 tool holder axial -N.01 tool holder radial USED MACHINE YEAR 2008
