REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Spares & Accessories

Subcategory:
Machine Vices

Manufacturer:

Model:
SAW DANOBT MOD. CP650A

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Bentivoglio Macchine Utensili

Country:
N/A

DESCRIPTION

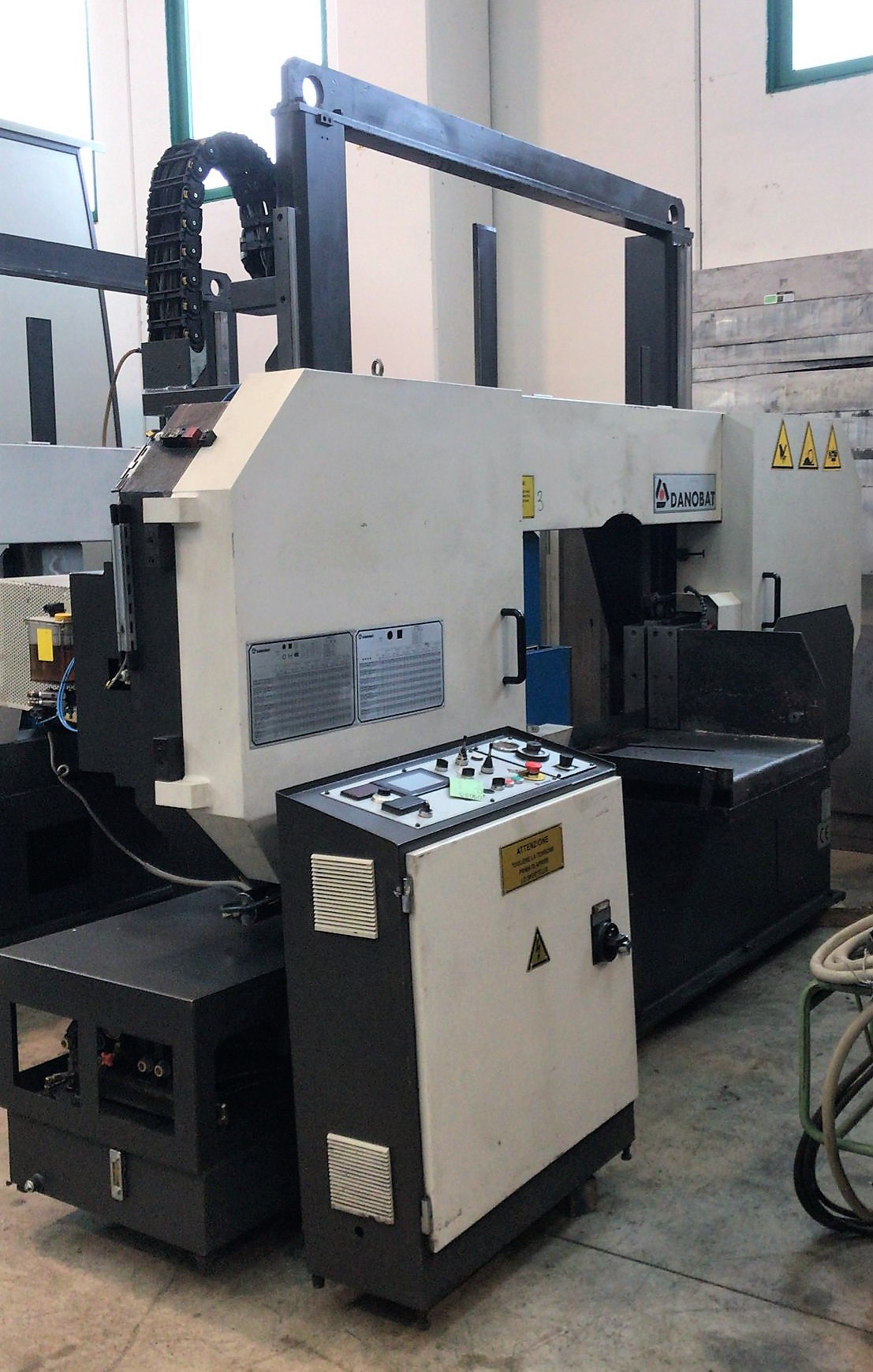

DANOBAT 09033 CNC DANOBAT Round cutting capacity diam. 660 mm Rectangular cutting capacity mm 660x660 Work table height 800 mm Flywheels diameter 760 mm Blade dimensions mm 8015x67x1.6 Balde rotation main motor power kW 7,5 Blade speed m/min 10-91 Hydraulic unit power kW 1,5 Cleaning brush motor power kW 0,25 Chip extractor power kW 0,09 Cooling motor pump power kW 0,24 Hydraulic tank capacity L 66 Refrigerant tank capacity L 139 Total useful power kW 9,6 Machine dimensions 4130x2060x2705 mm Weight Kg 6700 EQUIPPED WITH: -Roller USED MACHINE
