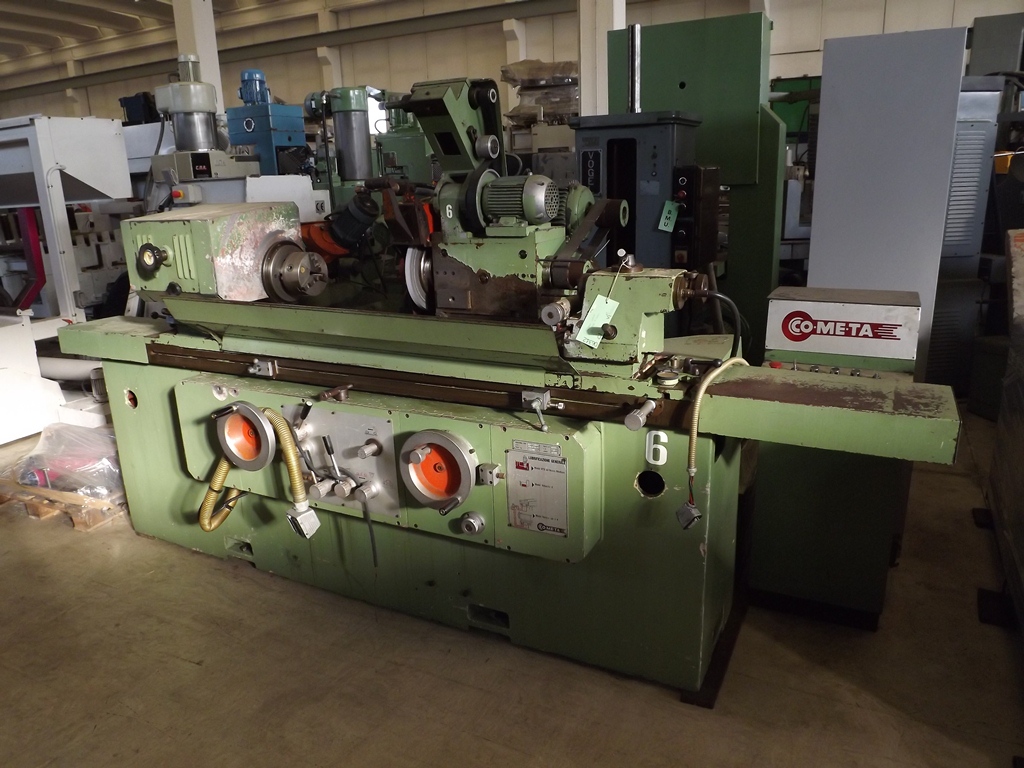

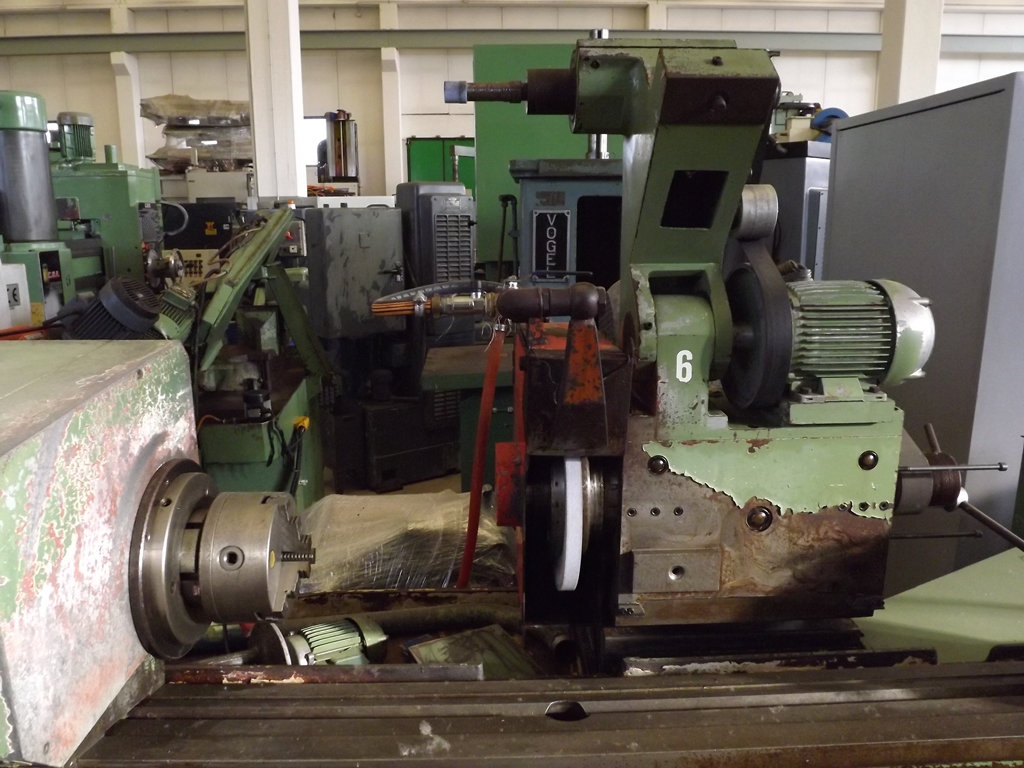

COMETA
06312
Height of center mm 180
Grinding lenght mm 1000
Grinding diameter mm 360
Max stroke mm 1130
Wheel dimensions:
-diam. ext. 406 mm, diam. hole 127mm, band min. 24mm
-diam. ext. 406 mm, diam. hole 127mm, band min. 103 mm, with N.1 tapering 8 mm + N.1 tapering 30 mm
USED MACHINE
CMT
08555
CAPACITY:
Height of centre mm 280
Max diameter over bed mm 560
Max diameter over slide mm 305
Distance between centre mm 1500
AXIS:
Axis Z mm 1350
Axis X mm 300
SPINDLE:
Bar passaging mm 90
Spindle taper CAM-LOCK 8''
Spindle speed rpm 15:22...
BOMAC
09875
TECHNICAL AND CONSTRUCTION CHARACTERISTICS:
TABLE
Dimensions mm 1470x300
“T” slots mm N 3 16
Distance between slots mm 80
Table rotation 45
TRAVELS
Distance vertical spindle-table mm 0-390
Manual X,Y,Z axis travel mm 1100-400-450
Auto...
INDUMA
07821
VISUALIZED
STROKES:
Axis X mm 1100
Axis Y mm 500
Axis Z mm 400
Spindle taper ISO 40
Spindle speed n. 18 / Rpm 31,5-1600
EQUIPPED WITH:
Universal head type huron
DRO 3 axis
Lamp
Head cover
Shaft and support shelves
USED MACHINE
PONTIGGIA
08709
Height of center mm 175
Distance between center mm 1000
Bar capacity diameter mm 60
EQUIPPED WITH:
-Chuck diameter mm 200
-Toolholder turret
-N.6 toolholder
-Steady rest
-Follow rest
USED MACHINE
